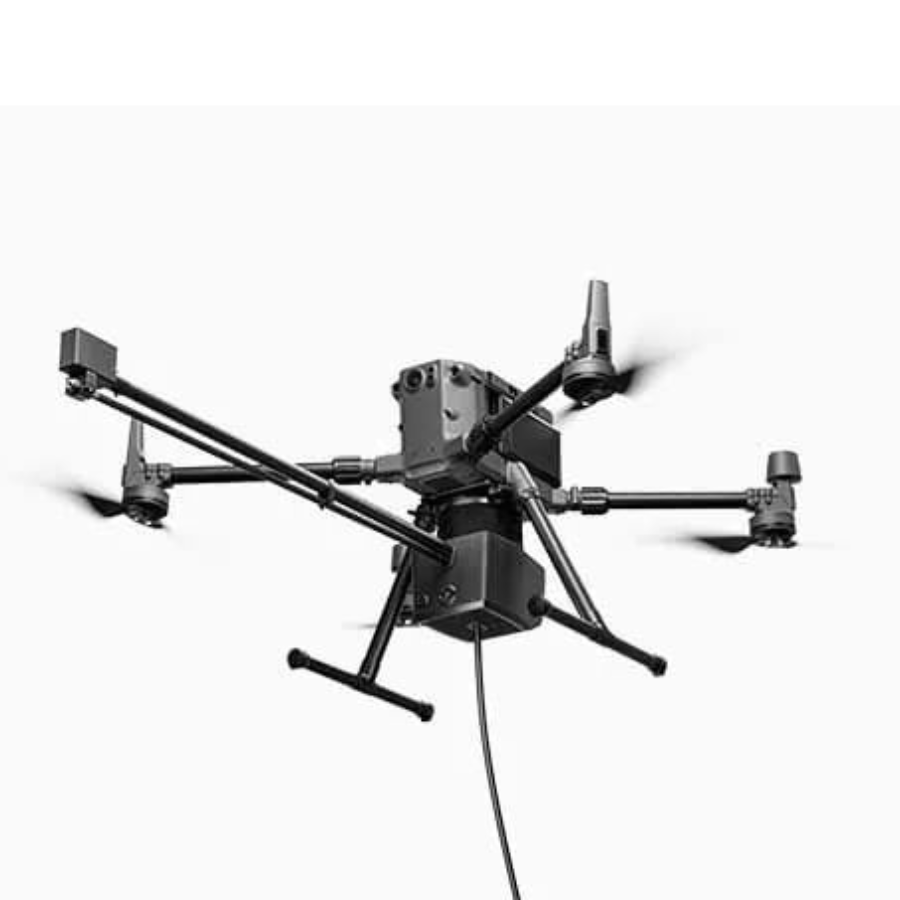

Introducing the Orion | AP3-P3 Pliabot® Aerial Tethered Cleaning System
The Orion | AP3-P3 Pliabot® Aerial Tethered Cleaning System is an advanced cleaning solution compatible with drones carrying a payload of 3-10 kg (6-22 lb). Designed for high-pressure aerial cleaning, it delivers an exceptional cleaning efficiency of 7.5㎡/min at 8MPa pressure, supporting continuous operations. Its versatile design adapts to various tasks, such as cleaning building exteriors, solar panels, and tall structures. The system is lightweight, compact, and suitable for navigating narrow spaces while offering multi-angle cleaning coverage. Safety is a priority, with features like remote operation, adaptive balance, and real-time laser distance detection to ensure secure and stable performance.
Features
| Feature | Details |
|---|---|
| High Cleaning Efficiency | 7.5㎡/min cleaning speed with 8MPa maximum pressure for fast and effective cleaning. |
| Tethered Water Supply | Supports continuous operations with a tethered water supply for uninterrupted performance. |
| Multi-Angle Coverage | Adjustable nozzles allow cleaning of complex surfaces, including top and bottom areas. |
| High-altitude Stable Operation | Operates at a maximum flight height of 50m (164 ft) for various cleaning scenarios. |
| Compact and Lightweight | Suitable for narrow spaces and compatible with drones carrying 3-10kg payloads. |
| Modular Nozzles | Provides flexibility with interchangeable nozzles tailored to different cleaning tasks. |
| Laser Distance Detection | Real-time feedback ensures optimal spraying with a range of up to 3 meters. |
| Adaptive Balance | Pliable gimbal minimizes sway and counters spray recoil, enhancing operational safety. |
| Quick Installation | Simple and fast setup within 1 minute for seamless integration. |
| Remote Operation | Eliminates the risks of manual high-altitude cleaning with safe, efficient drone operation. |
Efficiency | Delivers rapid cleaning at 7.5㎡/min with 8MPa pressure and supports uninterrupted operations.
Enables continuous operation through a tethered water supply
Efficient cleaning at 7.5㎡/min
Seamless integration into flight control systems
Delivering up to 8MPa of pressure
Features a quick 1-minute installation process
Versatility | Designed for tight spaces with adjustable, highly flexible nozzles for maximum adaptability
High-Altitude Stability
Modular Nozzles
Multi-Angle Coverage
Safety | Eliminates the Need for Manual High-Altitude Tasks
Replacing Manual High-Altitude Tasks
Remote-controlled operation removes the hazards linked to manual high-altitude work, ensuring a safer approach to challenging tasks.
Adaptive Stabilization
The flexible gimbal minimizes sway during lateral movements and counters spray recoil, maintaining stability and safety throughout operations.
Specifications
| Specification | Details |
|---|---|
| Product Name | Orion |
| Payload Compatibility | 3-10kg (6-22lb) |
| Maximum Pressure | 8MPa |
| Cleaning Efficiency | 7.5㎡/min |
| Flight Height | Up to 50m (164 ft) |
| Nozzle Type | Modular and adjustable |
| Installation Time | 1 minute |
| Spray Range | Up to 3 meters |
| Safety Features | Adaptive balance, laser distance detection |
| Applications | Solar panels, buildings, tall structures |
| Weight | Compact and lightweight |
FAQs
What types of drones are compatible with the Orion AP3-P3 cleaning system?
The system is compatible with drones that have a payload capacity of 3-10kg (6-22lb)
What is the maximum height the system can operate at?
The system can perform stable operations at heights of up to 50 meters (164 feet)
How much area can the system clean in a minute?
It can clean up to 7.5 square meters per minute with 8MPa high-pressure water jets.
Can the nozzles be adjusted for different cleaning tasks?
Yes, the system features modular and adjustable nozzles to handle a variety of surfaces and angles effectively.
How does the system ensure stability during operation?
It uses a pliable gimbal that counteracts sway and spray recoil, maintaining balance and operational safety.
What is the setup time for the cleaning system?
The system supports a quick and easy installation, taking only about 1 minute to set up.
Does the system include distance measurement features?
Yes, it has a laser distance detection module that provides real-time feedback for precise spraying within a range of 3 meters.
