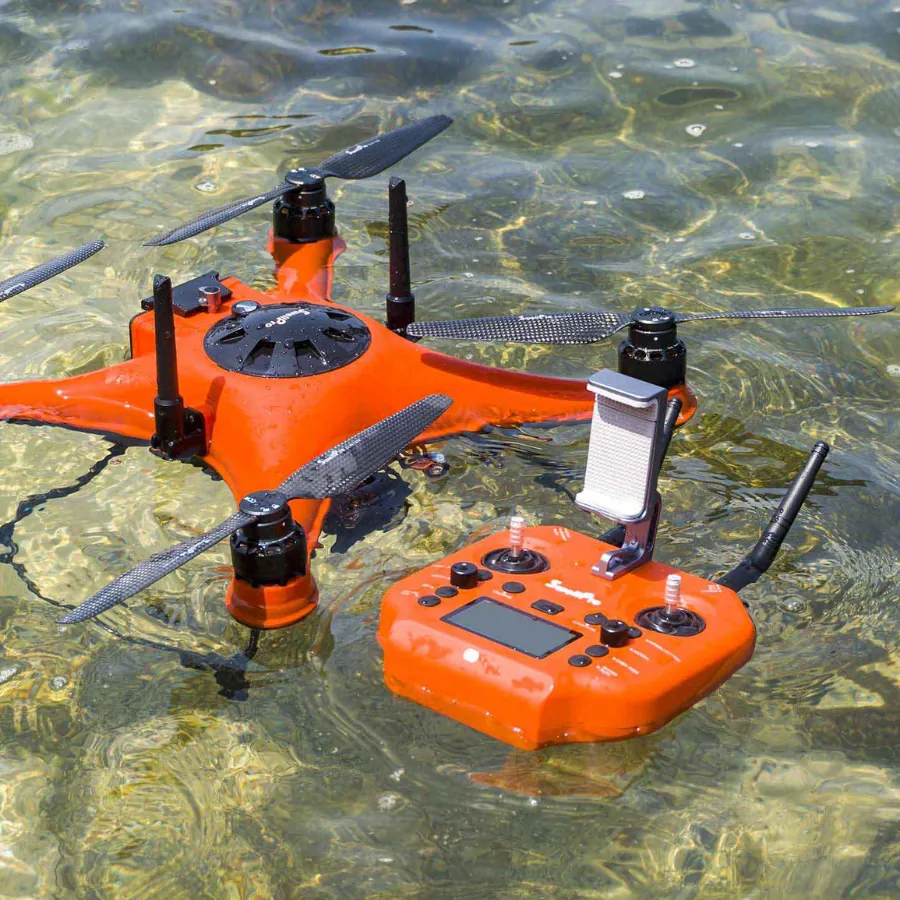

Introducing the 5th Generation SwellPro Waterproof Splash Drone 4

The fifth generation of Swellpro’s waterproof drones, the SplashDrone 4 Waterproof Search & Rescue Drone, is here and better than ever. With over seven years of design enhancements, this model sets a new standard in waterproof drones, featuring an IP67 waterproof rating and IP66-rated controller. The controller now supports smartphone or tablet mounting

• IP67-Rated Waterproof Body and IP66-Rated Controller
  The SplashDrone 4 Waterproof Search & Rescue Drone features an IP67-rated waterproof body, ensuring it can withstand harsh aquatic environments. The controller is IP66-rated, providing protection against powerful water jets, sand, and debris. The controller also supports mounting a smartphone or tablet for enhanced usability.
• 5KM Image Transmission Range
  This drone offers a 5KM image transmission range, allowing for long-distance operations while maintaining a clear and stable video feed. Innovative adjustable antennas optimize the transmission range based on the mission requirements. Even when flying just 0.5m above water, the range is up to 2.8km, and 500m when floating on the water surface.
• 30-Minute Flight Time
  Equipped with a high-performance smart battery, the SplashDrone 4 Waterproof Search & Rescue Drone can fly for up to 30 minutes. The slide-in battery features integrated balance charging and real-time power monitoring to ensure safety and longevity. It also allows for fast and easy replacement during missions.
• 2KG Payload Capacity
  The drone can comfortably lift payloads up to 2KG, making it suitable for various tasks such as search and rescue, payload delivery, and aerial imaging. Its robust design and powerful motors enable stable flight with heavy loads, even in challenging weather conditions.
• Advanced Flight Controls
  The drone includes Smooth+ flight dials for precise control, allowing the pilot to switch from joystick control to dial-based adjustments for smooth and stable flight maneuvers. This feature is ideal for filming, surveying, and other precision tasks, ensuring hands-free operation during complex movements.
• Multiple Payload Options
  The SplashDrone 4 Waterproof Search & Rescue Drone supports a range of payloads, including three-axis gimbal cameras, thermal imaging cameras, and payload release mechanisms. These options provide versatility for different missions, from capturing high-quality footage to performing specialized tasks like bait dropping or night vision surveillance.

Microprocessor-Controlled Smart Drone Battery

The SD4 battery, featuring an integrated microprocessor controller and 6500mAh high-performance lithium cells, provides up to 30 minutes of flight time. Key features include:

• Real-Time Monitoring and Alerts: Keeps track of power levels and sends alerts.
• Integrated Balance Charging: Ensures long battery life by monitoring health, state-of-charge, and temperature.
• Simplified Storage and Maintenance: The controller manages battery health even when not in use.
• Quick Battery Replacement: Slide-in design with integrated connectors allows wire-free installation.
• Usage Data Logging: Facilitates better battery management with detailed charging and usage logs.
• High-Visibility Waterproof Design: Ensures durability and ease of use.

 Full HD night vision camera

With our SAR bundle option there are two payload options for you to choose from.
The budget option comes equipped with a full HD night vision camera with a dimmable spotlight that allows use even in complete darkness.

Innovative Waterproof Fuselage Design

The SD4’s body combines SwellPro’s extensive experience with waterproof drones, resulting in a simple yet attractive and functional structure. It’s lightweight, strong, and designed for easy upgrades, repairs, and custom modifications. The waterproof hatch allows for quick battery changes.

Advanced Propulsion System

After 18 months of R&D, the SD4 features new motors, digital reflux speed controllers (ESC), and a custom flight computer and gyroscope, providing a reliable, multi-purpose flight platform capable of handling challenging weather and variable loads.

Waterproof Motors

The 3510 motors offer strong, stable performance with high load capacity and excellent flight characteristics. Designed specifically for marine environments, they feature premium materials and coatings to resist salt and sand damage. Thorough rinsing after saltwater use is recommended.

Carbon Fiber Propellers

The SD4 uses 12” quick-release carbon-fiber propellers, known for their durability and resistance to marine corrosion. They provide high performance with accurate pitch and stiffness, secured with quick-release bayonet mounts.

Reflux Electronic Motor Speed Controllers (ESC)

The new 40A high-speed, digital reflux ESCs ensure fast response, low noise, and effective heat management, contributing to stable flight, short braking distances, and lower internal temperatures.

Payload Capacity

The SD4 can lift a payload of up to 2kg, comfortably handling weights of 1.5kg.

Integrated Anti-Collision Strobe

A bright white anti-collision strobe on top of the SD4 helps with visibility in low-light conditions and meets regulatory requirements. It can be controlled via the SwellPro app.

Advanced Digital Radio Systems

The SD4’s advanced wireless digital radios offer image transmission up to 5km while airborne. Adjustable antennas maximize range for different mission requirements. At low altitudes and on water, the transmission range is still impressive.

Multi-Device Connectivity

The SD4 supports multiple devices and apps connected simultaneously to its flight systems via multipoint WiFi, ethernet, or serial interface.

Dark Mode

For covert operations or to avoid startling wildlife at night, the SD4’s navigation lights can be turned off using the SwellPro app.

Automatic Flip Function

If flipped by a wave, the SD4’s flight computer locks the propellers for safety. Re-arming the drone triggers a self-righting action, readying it for take-off.

Open Platform Integration

Open Flight-Control API Interface

The SwellPro Open API allows third-party manufacturers and users to integrate with the SD4 flight platform. This enables real-time flight data gathering, control of aircraft functions, and operation of gimbals, camera triggers, and other industry-specific instruments.

Two-Way Serial Data Port

To support third-party integrations, the SD4 and its remote controller feature a pass-thru serial port (UART/TTL). This allows data from third-party sensors on the drone to be transmitted directly to the remote controller’s serial port and WiFi interface. It also supports real-time control signals from ground equipment to the drone’s sensors or flight computer.

Direct Ethernet Port

In addition to multipoint WiFi, the SD4 remote controller includes a wired ethernet connection, providing the same functionality as WiFi and allowing for a stable wired connection to a PC or other ethernet devices.

SDK for Integration

The SwellPro SDK for SD4 enables interfacing with flight instructions, flight telemetry, camera control, and the digital radio system.

Drone WiFi Hotspot

Besides the WiFi hotspot on the remote controller, the SD4 drone supports local WiFi connections, making it easy to connect third-party payloads without cables. The drone’s WiFi network is extended to the remote controller’s WiFi network via the SwellPro datalink.

PAYLOADS

Multiple Payload Options

The all-new SD4 body has been designed for integration with SwellPro accessories as well as custom and third-party modules both above and below the drone. SwellPro accessories like cameras and payload release modules are independent modules that can be mounted together to allow for different combinations according to user needs. Multiple interface ports allow for the simultaneous control and attachment of different modules.

	GC1-S 1 AXIS GIMBAL CAMERA With the same sensor as the GC3-S, the GC1-S can capture high quality 4K videos and crisp photos. It also has a Pro mode and supports RAW photo.
	GC2-S 2 AXIS LOW-LIGHT GIMBAL CAMERA The new night vision camera comes with a spotlight that can illuminate nighttime scenes and restore true colors. Even without the LED, the camera itself can still capture decent details in low-light situations.
	GC3-S 3 AXIS GIMBAL CAMERA Capture smooth videos and crisp photos with our new, fully waterproof 4K camera stabilized by a 3-axis gimbal. The GC3-S is our flagship gimbal camera. The powerful gimbal remains stable even in water while taking underwater shots. The GC3-S now has a Pro mode and supports RAW photo. ND filters can also be added for greater creative freedom.
	GC3-T 3 AXIS GIMBAL THERMAL CAMERA GC3-T waterproof 3-axis gimbal thermal camera combines both a high resolution thermal infrared camera and a full HD low-light camera with a dimmable LED flashlight, which can provide both infrared and visible light imaging simultaneously.
	PL1-S Single Payload Release The PL-1 payload release turns the SplashDrone 4 into an aerial bait dropping system that can deliver 2KG of bait and drop the bait at targeted locations up to 4km. The PL-1 can be mounted together with your choice of camera accessories for targeted payload release. Using the SwellPro NaviFLy app, you can program the bait drop or replay flights to successful fishing locations.
	FAC Fixed Angle Camera
