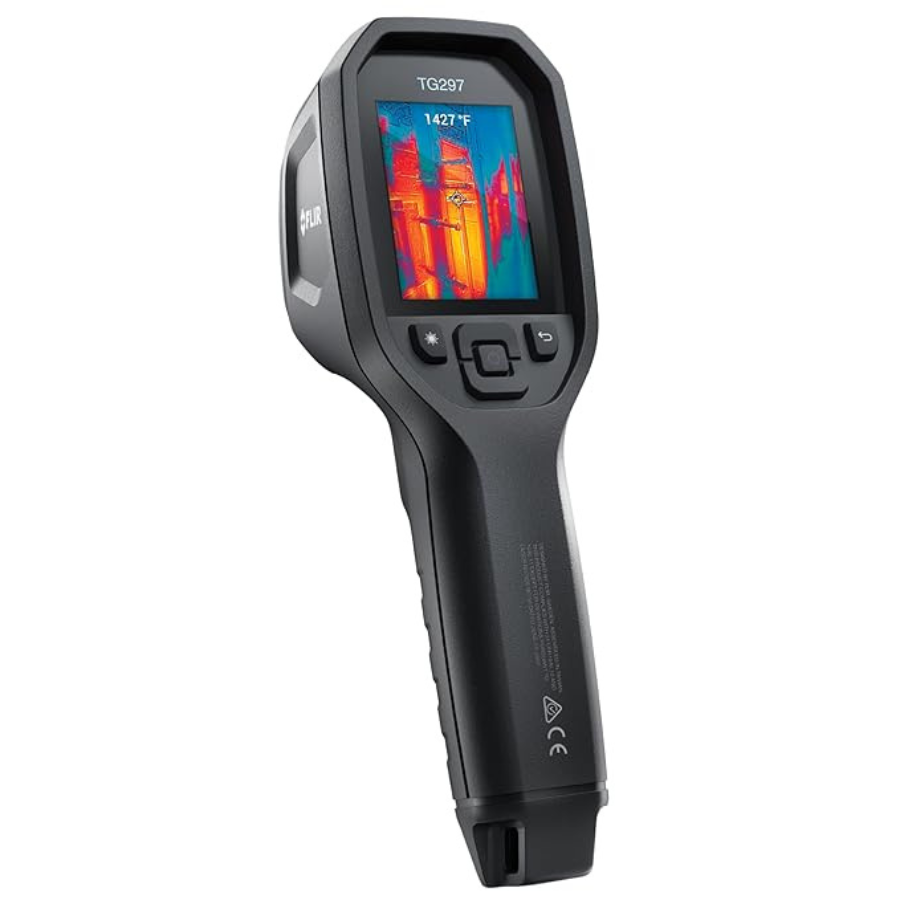

FLIR TG297 Industrial High Temperature Thermal Camera

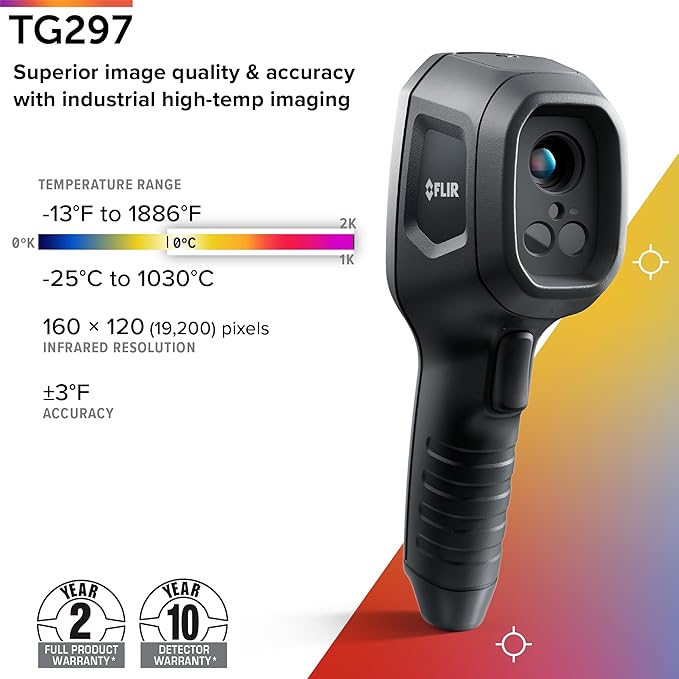

Model TG297 – High Resolution 19,200 pixel IR camera measures temperatures from -25°C to 1030°C (-13°F to 1886°F)

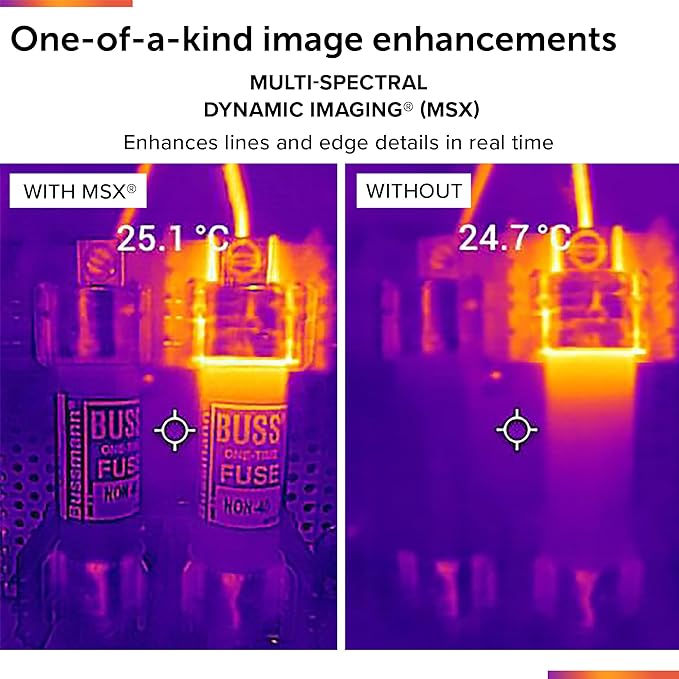

ULTRA CLEAR IMAGES – Patented MSX embosses visual details on the thermal image to create sharper, easier to understand picture

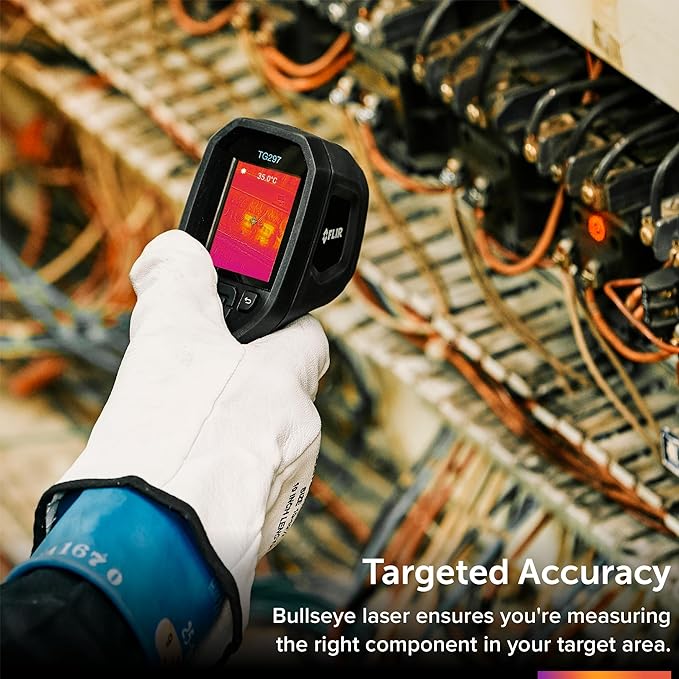

LASER POINTER – Indicates the size of the measurement area for faster and easier detection
RUGGED AND RELIABLE- Tough, drop-tested design with an IP54 enclosure that protects the camera from dirt, dust, and oil

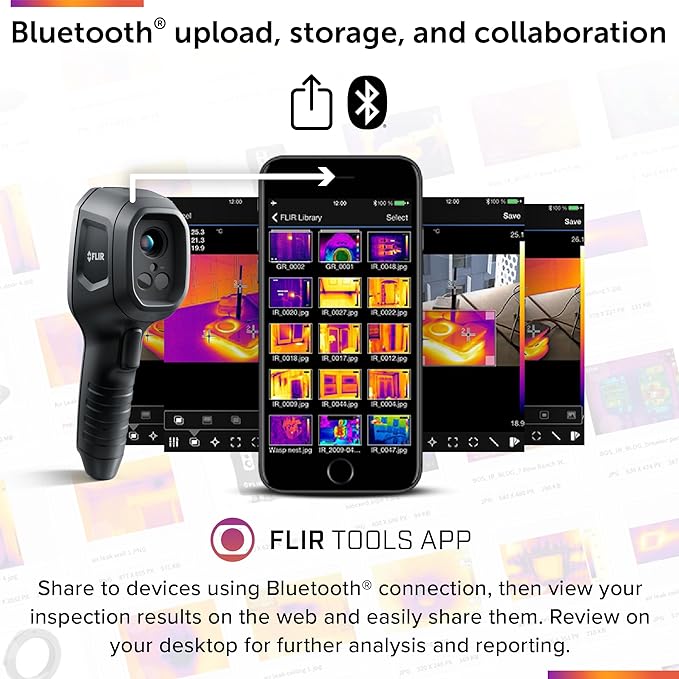

WIRELESS CONNECTIVITY – Download and share images using the FLIR Tools Mobile App for iOS or Android

1 Year Warranty

After Sales Service

Category: Xboom

Description

FLIR TG297

Industrial High Temperature Thermal Camera

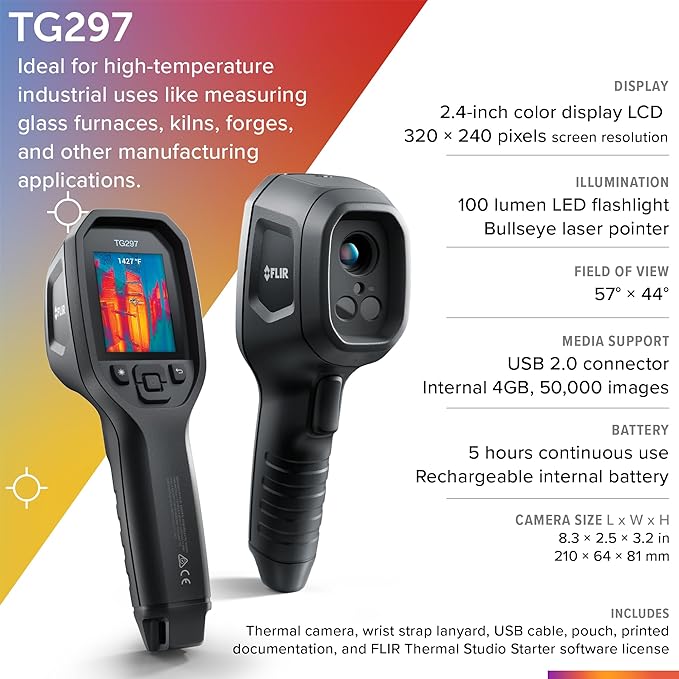

The FLIR TG297 stands out as a unique industrial diagnostic tool, offering precise temperature measurement capabilities combined with imaging up to 1030°C (1886°F). With patented FLIR MSX (Multi-Spectral Dynamic Imaging) enhancement, this device enhances image clarity by overlaying visual scene details onto full thermal images. Tailored for high-temperature industrial applications, such as monitoring glass furnaces, kilns, forges, and manufacturing processes, it facilitates accurate fault targeting, troubleshooting, and process monitoring. By capturing images, the TG297 provides assurance to your team regarding the safe and efficient operation of machinery and systems. Whether it’s ensuring optimal performance or diagnosing potential issues, this tool serves as a reliable asset in maintaining operational integrity and productivity in industrial settings.

IDENTIFY PROBLEMS QUICKLY
The FLIR TG297 enables swift problem identification by offering a wide temperature measurement range from -25°C to 1030°C (-13°F to 1886°F). Its true 160 × 120 IR pixel imager (19,200 pixels) ensures accurate and detailed thermal imaging, allowing for precise detection of temperature variations and anomalies across various industrial applications. Whether it’s monitoring machinery, assessing thermal insulation, or troubleshooting electrical systems, the TG297 provides reliable temperature data to swiftly address potential issues and prevent costly downtime.

PRODUCE CRISP THERMAL IMAGES
In extreme heat environments, the TG297 facilitates faster problem diagnosis by engaging the high temperature filter over the lens, enhancing image clarity and detail. This feature enables operators to capture crisp thermal images even in challenging conditions, ensuring optimal visibility of heat signatures and anomalies. By providing clear and detailed thermal imagery, the TG297 empowers users to identify and address potential issues with confidence and precision, ultimately minimizing downtime and maximizing productivity.

WORK WITH CONFIDENCE IN RUGGED ENVIRONMENTS
Designed to withstand rugged environments, the TG297 allows users to work from a safe distance while measuring high-temperature objects, such as glass furnaces, with ease. Encased in an IP54 enclosure, this portable tool is protected against dust, dirt, and water ingress, ensuring durability and reliability in harsh industrial settings. Whether it’s conducting inspections in manufacturing plants, foundries, or industrial facilities, the TG297 provides peace of mind, allowing operators to work confidently and efficiently in challenging environments while maintaining safety standards.

FLIR TG297 Industrial High Temperature Thermal Camera

In The Box

Package Includes

TG297, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch

Specifications

General

Specifications
IR Resolution	160 × 120 pixels
Thermal Sensitivity/NETD	<70 mK
Accuracy	±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 1030°C (212°F to 1886°F)
Field of view (FOV)	57° × 44°
Image Modes	MSX® (Multi Spectral Dynamic Imaging), Visual with temperature reading
Display	320 × 240 pixel, 2.4 in color LCD
Storage Media	eMMC 4 GB
Imaging & Optical
Built-in Digital Camera	Yes
Color Palettes	Iron, Rainbow, White hot, Black hot, Arctic, Lava
Detector Pitch	12 µm
Detector Type	Focal plane array (FPA), uncooled microbolometer
Digital image enhancement	Yes
Field of view (FOV)	57° × 44°
Focus	Focus free
Gallery	Yes
Image Frequency	8.7 Hz
IR Resolution	160 × 120 pixels
Laser	Class 1 laser indicates the temperature measurement area; button-activated
Minimum Focus Distance	0.3 m (0.98 ft)
Minimum Measurement Distance	0.26 m (0.85 ft)
Spectral Range	7.5 – 14 µm
Thermal Sensitivity/NETD	<70 mK
Measurement & Analysis
Accuracy	±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 1030°C (212°F to 1886°F)
Camera size (L x W x H)	210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
Camera weight incl battery	0.394 kg (13.9 oz)
Center spot	Yes
Emissivity Correction	Yes: 4 preset levels with custom adjustment of 0.1–0.99
Object Temperature Range	-25°C to 1030°C (-13°F to 1886°F)
Set-up Commands	Local adaptation of units, language, date, and time formats; Screen brightness (high, medium, low); Gallery, deletion of images
Spot Meter	Center spot on/off
User Interface
Display	320 × 240 pixel, 2.4 in color LCD
Languages	Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
Power
Battery charge life	30 days minimum
Battery operating time	5 hours continuous scanning, 4.5 hours with laser on
Battery type	Rechargeable Li ion battery
Battery voltage	3.7 V
Charging system	Battery is charged inside the camera
Charging Temperature	0°C to 45°C (32°F to 113°F)
Charging Time	4 hours to 90%, 6 hours to 100%
Power Management	Adjustable: off, 5 min., 15 min., 30 min.
Environmental & Certifications
Drop test	Designed for 2 m (6.6 ft)
EMC	EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
Encapsulation	IP 54 (IEC60529)
Humidity (Operating and Storage)	0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F))
Operating Temperature Range	-10°C to 45°C (14°F to 113°F)
Radio Spectrum	ETSI EN 300 328, FCC Part 15.249, RSS-247 Issue 2, EN 301 489-1:2011, EN 301 489-17:2009
Safety	CE/CB/EN61010/UL
Shock	25 g (IEC 60068-2-27)
Storage Temperature Range	-30°C to 55°C (-22°F to 131°F)
Tripod Mounting	1/4 in.-20 on handle bottom
Vibration	2 g (IEC 60068-2-6)
Warranty	FLIR 2-10 warranty
General
Includes	TG297, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch
