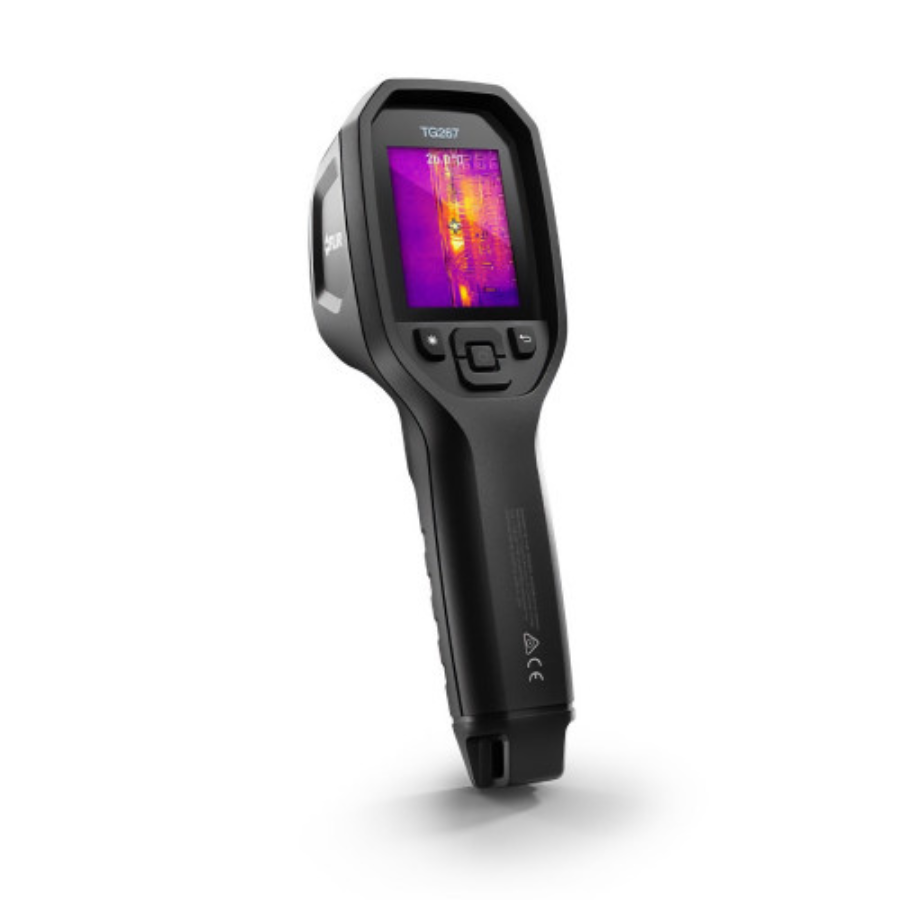

FLIR TG267 Thermal Camera
IDENTIFY PROBLEMS QUICKLY
Equipped with a true 160 × 120 IR pixel imager, the FLIR TG267 allows professionals to measure a wide range of temperatures from -25°C to 380°C (-13°F to 716°F), providing comprehensive coverage of thermal conditions. With 19,200 pixels, it offers unparalleled detail, enabling users to swiftly identify potential issues with precision. This capability expedites problem detection, allowing for prompt intervention and mitigation of risks before they escalate.
PRODUCE CRISP THERMAL IMAGES
The FLIR TG267 enables users to produce crisp thermal images enriched with vital details through its MSX® enhancement technology. Whether displaying or recording MSX®-enhanced thermal images or visual images with temperature readings, the camera ensures clarity and accuracy in every inspection. This feature-rich functionality enhances diagnostic capabilities, enabling users to capture and analyze data effectively for informed decision-making and streamlined maintenance procedures.
WORK WITH CONFIDENCE IN RUGGED ENVIRONMENTS
Designed to withstand demanding working conditions, the FLIR TG267 instills confidence with its rugged construction and IP54 enclosure. Withstanding a 2-meter drop, the camera ensures durability and reliability in the field. Furthermore, its robust design protects against dust and water ingress, making it suitable for use in diverse environments. This resilience enables professionals to work safely and worry-free, knowing that their equipment can withstand the rigors of their job while maintaining optimal performance.
In The Box
Package Includes
TG267, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch
Specifications
General
| Category | Specification |
|---|---|
| IR Resolution | 160 × 120 pixels |
| Thermal Sensitivity/NETD | <70 mK |
| Accuracy | ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F) |
| Field of View (FOV) | 57° × 44° |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging), Visual with temperature reading |
| Display | 320 × 240 pixel, 2.4 in color LCD |
| Storage Media | eMMC 4 GB |
| Built-in Digital Camera | Yes |
| Color Palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Digital image enhancement | Yes |
| Focus | Focus free |
| Gallery | Yes |
| Image Frequency | 8.7 Hz |
| Laser | Class 1 laser indicates the temperature measurement area; button-activated |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Minimum Measurement Distance | 0.26 m (0.85 ft) |
| Spectral Range | 7.5 – 14 µm |
| Camera Size (L x W x H) | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Camera Weight incl battery | 0.394 kg (13.9 oz) |
| Center Spot | Yes |
| Emissivity Correction | Yes: 4 preset levels with custom adjustment of 0.1–0.99 |
| Object Temperature Range | -25°C to 380°C (-13°F to 716°F) |
| Set-up Commands | Local adaptation of units, language, date, and time formats; Screen brightness (high, medium, low); Gallery, deletion of images |
| Spot Meter | Center spot on/off |
| Display Languages | Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish |
| Battery Charge Life | 30 days minimum |
| Battery Operating Time | 5 hours continuous scanning, 4.5 hours with laser on |
| Battery Type | Rechargeable Li ion battery |
| Battery Voltage | 3.7 V |
| Charging System | Battery is charged inside the camera |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | 4 hours to 90%, 6 hours to 100% |
| Power Management | Adjustable: off, 5 min., 15 min., 30 min. |
| Certifications | CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan |
| Drop Test | Designed for 2 m (6.6 ft) |
| EMC | EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B |
| Encapsulation | IP 54 (IEC60529) |
| Humidity (Operating and Storage) | 0-90% RH (0-37°C), 0-65% RH (37-45°C), 0-45% RH (45-55°C) |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) |
| Radio Spectrum | ETSI EN 300 328, FCC Part 15.249, RSS-247 Issue 2, EN 301 489-1:2011, EN 301 489-17:2009 |
| Safety | CE/CB/EN61010/UL |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -30°C to 55°C (-22°F to 131°F) |
| Tripod Mounting | 1/4 in.-20 on handle bottom |
| Vibration | 2 g (IEC 60068-2-6) |
| Warranty | FLIR 2-10 warranty |
| Includes | TG267, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch |
