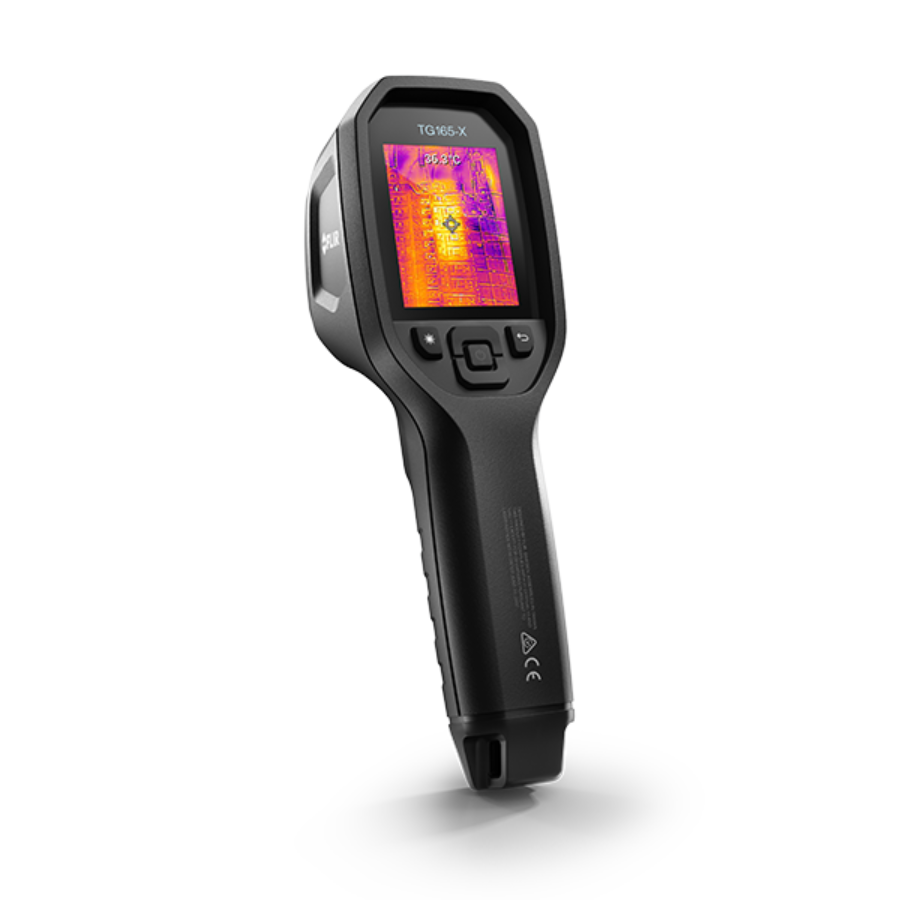

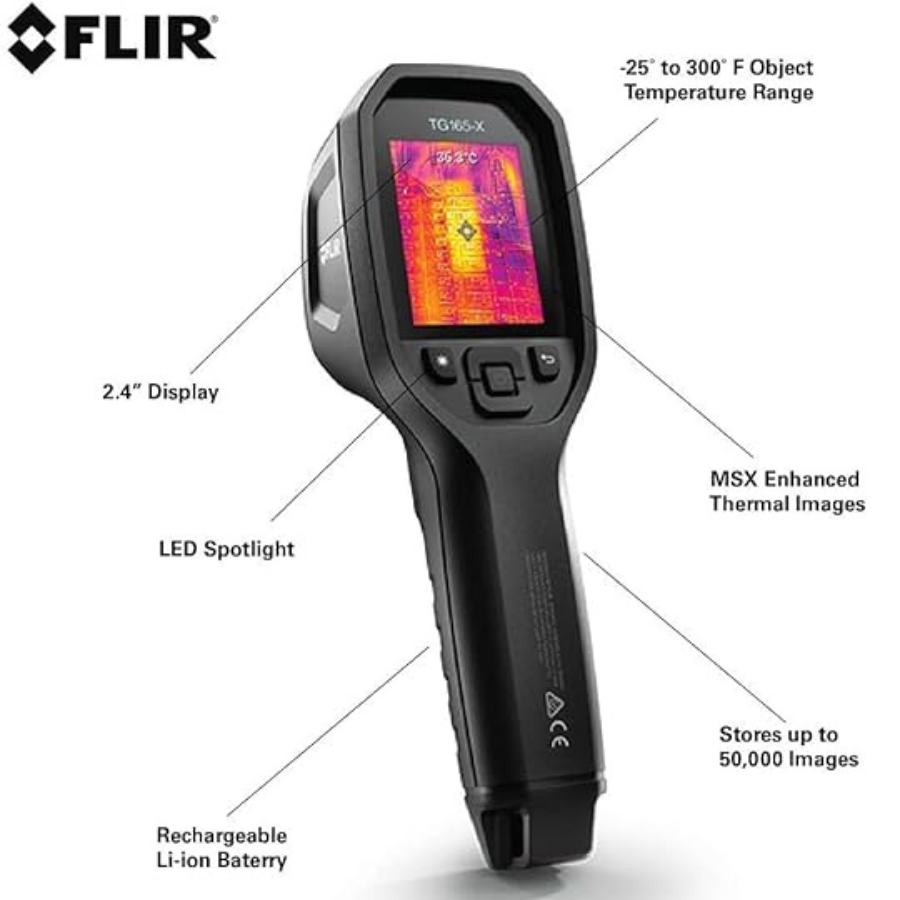

FLIR TG165-X MSX Thermal Camera

  • Model TG165-X – 4,8000 pixel IR camera measuares temperatures from -25°C to 300°C (-13°F to 572°F)
  • ULTRA CLEAR IMAGES – Patented MSX embosses visual details on the thermal image to create sharper, easier to understand picture
  • LASER POINTER – Indicates the size of the measurement area for faster and easier detection
  • RUGGED AND RELIABLE- Tough, drop-tested design with an IP54 enclosure that protects the camera from dirt, dust, and oil.
  • BATTERY LIFE – Rechargable Li-Ion batter lasts for 5 hours or continuous use
1 Year Warranty
After Sales Service
Category:

Description

FLIR TG165-X

MSX Thermal Camera

The FLIR TG165-X is an advanced, all-in-one, non-contact measurement and imaging tool designed to help you efficiently identify hot and cold spots that can signal electrical faults, mechanical breakdowns, or air and water leaks. By displaying temperature anomalies on screen, this device allows for faster problem detection compared to traditional single-spot IR thermometers. Its FLIR patented MSX image enhancement adds crucial visual details to full thermal images, making it easier to see components clearly and read labels accurately. The bullseye laser ensures precise targeting, so you always measure the right component. User-friendly buttons and intuitive settings streamline the inspection process, making it quick and stress-free. With a substantial internal storage capacity for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to use immediately upon unboxing. This makes it an indispensable tool for anyone needing reliable and efficient inspection capabilities. Whether you’re dealing with electrical, mechanical, or environmental diagnostics, the FLIR TG165-X offers the precision and ease of use you need to get the job done effectively.

FLIR TG165-X MSX Thermal Camera
FLIR TG165-X MSX Thermal Camera

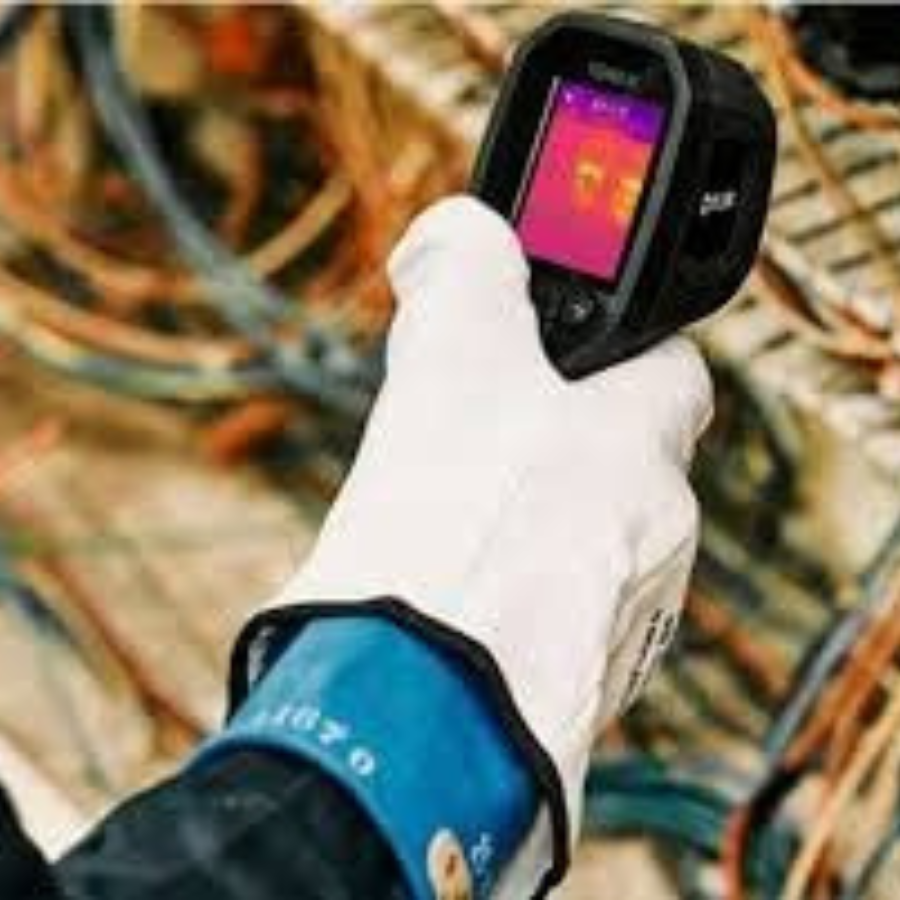

PINPOINT THE SOURCE OF SYSTEM FAILURES
Speed inspections with a thermal view offer instantaneous insights into overheating, allowing for rapid identification of potential issues. With measurements reaching up to 300°C (572°F), pinpointing the source of system failures becomes swift and accurate, enabling prompt intervention to prevent costly downtime and repairs.

COMPLETE INSPECTIONS QUICKLY AND EASILY
Targeting the area of interest is effortless with the bullseye laser pointer, ensuring precise measurement locations. By capturing thermal MSX and visual images with a simple trigger-pull, inspections are completed swiftly and with ease, enhancing productivity and enabling timely maintenance interventions.

WORK WITH CONFIDENCE
Confidence in inspections is assured with the ability to view live images on the 2.4-inch display, providing real-time feedback on thermal conditions. Additionally, the bright LED worklight illuminates dark or hard-to-reach areas, facilitating thorough inspections even in challenging environments. This combination of features instills confidence in operators, ensuring comprehensive assessments and efficient problem-solving.

FLIR TG165-X MSX Thermal Camera
FLIR TG165-X MSX Thermal Camera
FLIR TG165-X MSX Thermal Camera
FLIR TG165-X MSX Thermal Camera
FLIR TG165-X MSX Thermal Camera
FLIR TG165-X MSX Thermal Camera
FLIR TG165-X MSX Thermal Camera

Specifications

General

Category Specification
IR Resolution 80 × 60 pixels
Thermal Sensitivity/NETD <70 mK
Accuracy 50°C to 100°C (122°F to 212°F), acc. ±1.5°C (±3°F); 0°C to 50°C (32°F to 122°F) and 100°C to 300°C (212°F to 572°F), acc. ±2.5°C (±5°F); -25°C to 0°C (-13°F to 32°F), acc. ±3°C (±7°F)
Field of View (FOV) 51° × 66°
Image Modes MSX® (Multi Spectral Dynamic Imaging), visual
Storage Media eMMC 4 GB
Camera Software Update Using USB cable or SD card
Color Palettes Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava
Detector Pitch 17 µm
Digital Image Enhancement No
Display Resolution 320 × 240 pixels
Focal Plane Array (FPA) Uncooled microbolometer/7.5–14 µm
Focus Fixed
Gallery Yes
Image Frequency 8.7 Hz
Laser Class 1
Minimum Focus Distance 0.3 m (0.98 ft)
Minimum Measurement Distance 0.26 m (0.85 ft.)
Resolution 2 MP (1600 × 1200 pixels)
Distance to Spot Ratio (D:S) 24:1
Emissivity Correction Yes: 4 pre-set levels with custom adjustment of 0.1–0.99
Object Temperature Range -25°C to 300°C (-13°F to 572°F)
Set-up Commands Local adaptation of units, language, date, and time formats; Screen brightness (high, medium, low); Gallery, deletion of images
Spot Meter Center spot on/off
Display Technology TFT
Languages Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish
Battery Charge Life 30 days minimum
Battery Operating Time 5 hours of scanning (LCM medium brightness); 4.5 hours with laser on (LCM medium brightness)
Battery Type Rechargeable Li-ion battery
Battery Voltage 3.7 V
Charging System Battery is charged inside the camera
Charging Temperature 0°C to 45°C (32°F to 113°F)
Charging Time 4 hours to 90%, 6 hours to 100%
Power Management Adjustable: off, 5 minutes, 15 minutes, 30 minutes
Drop Designed for 2 m (6.56 ft)
EMC EN 61000-6-3/EN 61000-6-2/FCC 47 CFR Part 15 Class B
Encapsulation IP54 (IEC60529)
Humidity 0–90% relative humidity (RH) (0°C to 37°C); 0–65% RH (37°C to 45°C); 0–45% RH (45°C to 55°C)
Magnetic Fields EN 61000-4-8 class 3
Operating Temperature Range -10°C to 45°C (14°F to 113°F)
Radio Spectrum ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2/EN 301 489-1:2011/EN 301 489-17:2009
Safety CE/CB/EN61010/UL
Shock 25 g (IEC 60068-2-27)
Storage Temperature Range -30°C to 55°C (-22°F to 131°F)
Tripod Mounting UNC ¼″-20
Vibration 2 g (IEC 60068-2-6)
Flashlight LED on/off
Laser Pointer Indicating the size of the measurement area
Light Output 100 lumens
Size [L × W × H] 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
Weight [Battery Included] 0.394 kg (13.9 oz)
