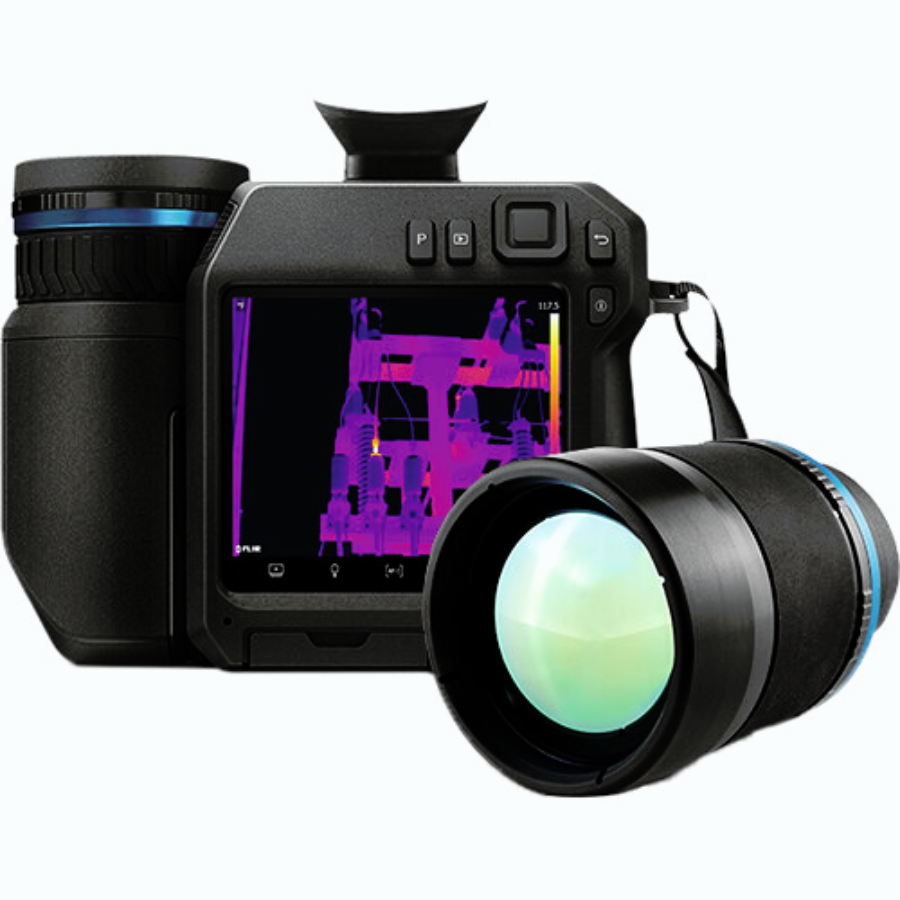

FLIR T840 High-Performance Thermal Camera with Viewfinder

Practical Thermal Imaging: The FLIR T840 Thermal Imaging Camera is an extremely sophisticated thermal imaging camera designed to be used by professional thermographers across a range of industries including power distribution and heavy plant production. It has an infrared sensor with a resolution of 464 x 348 pixels and three object temperature measurement ranges: -20˚C to 120˚C, 0˚C to 650˚C, and 300˚C to 1500˚C. Measurements are accurate to ±2˚C or ±2% and excellent thermal sensitivity of 30mK means that temperature differences of just 0.03˚C can be shown on screen.

The FLIR T840 is available with four different lenses: 14˚, 24˚, 42˚ and Dual Field of View (DFOV). Each lens has different fields of view and focus distances. Focusing is done using a laser-guided continuous focus system and it is also possible to get a laser distance reading and use a manual focus system. Automatic area calculation in m² and ft² is also available. The 180˚ rotating optical block is particularly useful for observing all around the user during inspections and the imager has an integrated viewfinder.

FlexView Dual FOV 14 – 24˚ Lens: The FlexView Dual FOV 14 – 24˚ Lens is a single lens that offers both 14˚ and 24˚ FOVs, replacing the need to change between two physical camera lenses to achieve each FOV. The FlexiView lens allows for FOV switching with the push of a button and a 1-second FOV toggle time, providing an efficient inspection experience and reducing the physical load for those in the field. This innovative lens retains the sleek design of other FLIR lenses, with an increased length of just 6mm. Performance in both FOVs is retained, offering full radiometric performance and image quality.

High Quality Thermal Picture: Thermal images are shown on the FLIR T840’s vibrant 4” colour display and a range of palettes are available including iron, greyscale, rainbow, arctic, and lava. A smooth picture in real-time and the saved thermal video is provided by the 30Hz image refresh rate and the high-definition sensor enables 1-6x continuous digital zoom. The imager has various measurement functions such as centre spot, hot spot, cold spot and twin spot surface temperature readings.

An integrated 5MP digital camera takes visual images and video to sit alongside thermal videos and images in the large 8GB SD-card memory. It also enables a wide range of additional display functions on the FLIR T840 such as MSX® image enhancement, picture-in-picture, and thermal blending. One of the standout features of the thermal camera is time lapse which allows the user to monitor an installation over 24 hours to see intermittent faults.

Advanced Analysis Features: The FLIR T840 has multiple analytical features and can store full radiometric thermal video and paired thermal images with visual images. Onboard GPS automatically geotags saved files and it is possible to add 60-second voice observations to video and still images to record observations during inspections. METERLINK® Bluetooth technology allows the camera to combine with FLIR test and measurement equipment to add quantitative data to thermographs whilst USB and Wi-Fi technology allows transfers to PCs or smartphones.

Once files are transferred to a PC, the FLIR T840 is compatible with FLIR Ultramax which can multiply the pixel count by four to vastly increase thermograph clarity. Video streaming is possible over Wi-Fi or a video out cable. The camera is covered by FLIR’s 2-10 warranty with a decade’s guarantee on the sensor. It comes supplied with batteries, a battery charger, a hard transport case, lanyards, a front lens cap, power supplies, an 8GB SD card and USB cables.

Thermal Imaging for Detecting Elevated Body Temperature

This camera includes an EBT screening mode: While unable to detect a virus or infection, thermal imaging cameras can be used to detect Elevated Body Temperature. FLIR thermal cameras have been used in public spaces—such as airports, train terminals, businesses, factories, and concerts—as an effective tool to measure skin surface temperature and identify individuals with Elevated Body Temperature (EBT).

If the temperature of the skin in key areas (especially the corner of the eye and forehead) is above average temperature, then the individual may be selected for additional screening. Identifying individuals with EBT, who should then be further screened with virus-specific diagnostic tests, can help reduce or dramatically slow the spread of viruses and infections.

Using thermal cameras, officials can be more discrete, efficient, and effective in identifying individuals who need further screening with virus-specific tests. A variety of institutions, including transportation agencies, businesses, factories, and first responders are using thermal screening as an EBT detection method and as part of employee health and screening (EH&S).

Airports in particular are actively employing FLIR thermal cameras as part of their screening measures for passengers and flight crews. The screening procedures implemented at airports and in other public places are just the first step when it comes to detecting a possible infection: it’s a quick way to screen for anyone who might be sick, and must always be followed up with further screening before authorities decide to quarantine a person.

Fast, flexible, accurate – in any work environment

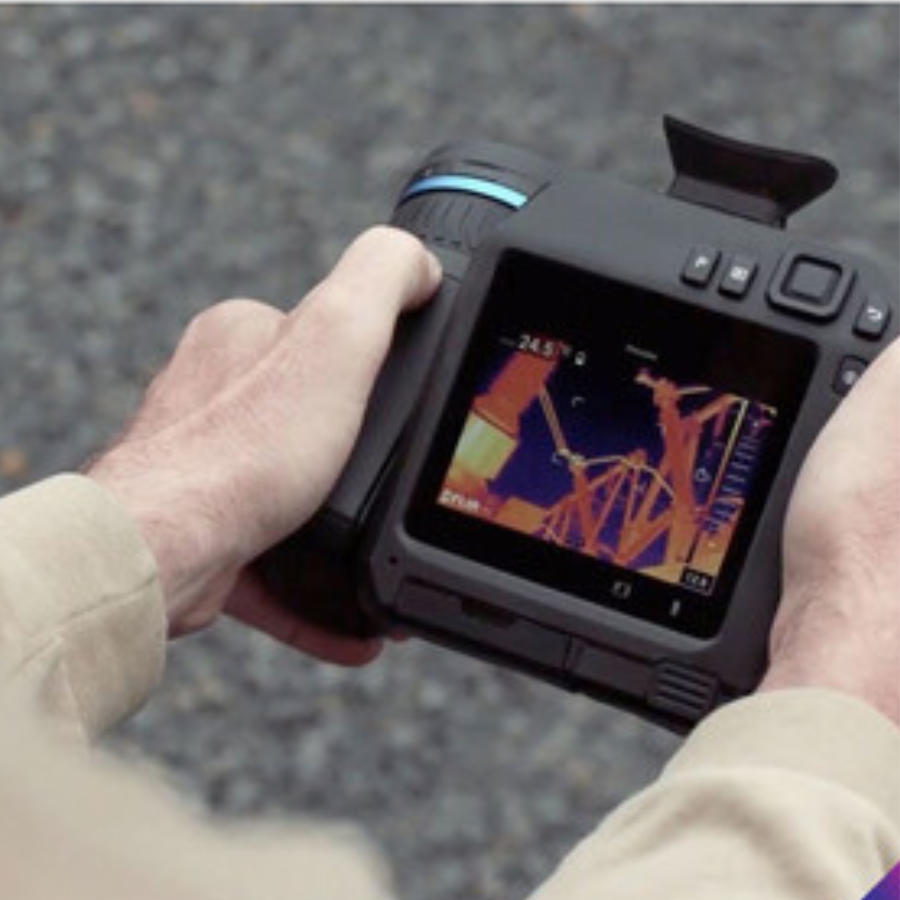

SAFELY AND COMFORTABLY ASSESS EQUIPMENT: Scan large areas from a safe distance with 464 x 348 resolution, allowing you to capture detailed thermal images even from afar, ensuring thorough assessments while maintaining a safe distance from potentially hazardous equipment. Additionally, reduce the strain of full-day inspections with the 180° rotating optical block, enabling you to adjust the camera’s position effortlessly, ensuring comfortable operation during extended periods of use. This innovative feature enhances usability by providing flexibility in capturing images from various angles, ultimately contributing to a more efficient and comfortable inspection process.

MAKE CRITICAL DECISIONS QUICKLY: With industry-leading image clarity provided by FLIR Vision Processing, MSX, and UltraMax, you can swiftly analyze thermal data and make informed decisions with confidence. FLIR Vision Processing enhances image quality, ensuring clear and detailed thermal images, while MSX overlays visual details onto thermal images, improving clarity and facilitating better interpretation of data. Additionally, UltraMax technology quadruples the pixel count, providing enhanced image resolution and allowing for more precise analysis of critical equipment conditions. These advanced features empower you to make critical decisions quickly, minimizing downtime and maximizing productivity.

DESIGNED TO MAKE YOUR WORK EASIER: FLIR Ignite automatic image uploading directly from the camera streamlines workflow by seamlessly transferring thermal images to your preferred storage or reporting platform, eliminating the need for manual file transfers and saving valuable time in the field. Moreover, rapid reporting features enable you to efficiently organize findings on-site, simplifying data management and facilitating collaboration with team members or clients. This user-centric design approach ensures that you get the most out of your workday, allowing you to focus on conducting thorough inspections and delivering actionable insights promptly.
