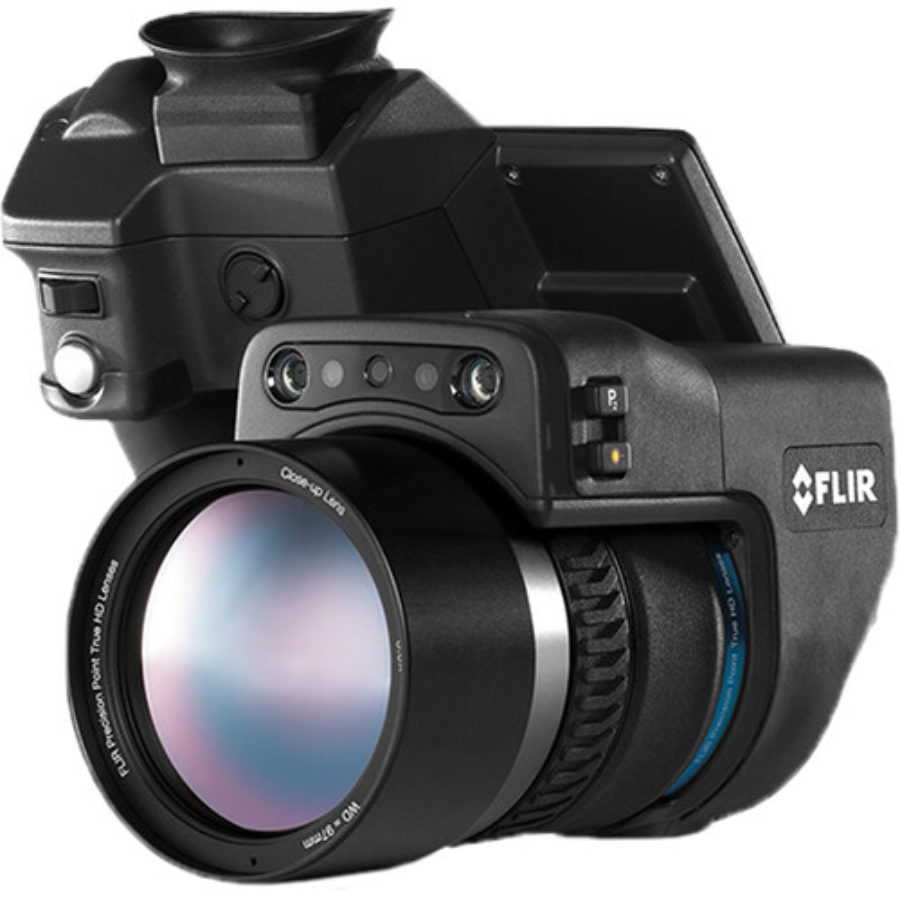

FLIR T1020 HD Thermal Camera with Viewfinder

  • IR Resolution: 1024 × 768; up to 3.1 MP with UltraMax
  • Thermal Sensitivity/NETD: <20 mK @ 30°C (86°F)
  • Field of view (FOV): 12° × 9°
  • Digital Camera: Field of view adapts to the infrared lens
  • Image Modes: Thermal, thermal MSX, picture in picture, digital camera
  • Display: Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
  • Battery operating time: >2.5 hours at 25°C (68°F) and typical use
1 Year Warranty
After Sales Service
Category:

Description

FLIR T1020 HD Thermal Camera with Viewfinder

The T1020 Thermal Imaging IR Camera from FLIR combines ergonomics and feature-rich flexibility with superior image quality at an infrared resolution of 1024 x 768 pixels. The high accuracy and sensitivity together with radiometric recording and streaming options makes the T1020 camera well suited for advanced research and development. A wide variety of measuring and analysis functions make the FLIR T1020 flexible for your every need. Two programmable buttons provide easy access to favorite functions. The FLIR T1020 is equipped with the innovative MSX (Multi Spectral Dynamic Imaging) feature, which produces an image richer in detail than ever before. With its continuous autofocus, the FLIR T1020 is a fully automatic infrared camera. When enabling Ultra Max in the camera, the resolution of images can be substantially enhanced when importing the images into FLIR Tools. The included FLIR Tools+ software is specifically designed to provide an easy way to update your camera and create inspection reports. As compared to FLIR Tools, FLIR Tools+ features radiometric panorama, including MSX enhancement, radiometric IR video recording, and advanced reporting.

EXPERT FEATURES: Experience enhanced usability with the FLIR T1020’s agile new Graphical User Interface (GUI), designed to offer a responsive and intuitive experience akin to a smartphone interface. Benefit from live image enhancements such as 1-Touch Level/Span, allowing for quick adjustments and optimizations to capture the most accurate thermal data in real-time. This advanced feature set empowers users with greater control and efficiency in their inspection processes, enabling swift and precise analysis of critical equipment and infrastructure.

EXCEPTIONAL MEASUREMENT PERFORMANCE: Utilize the FLIR OSX™ Precision HDIR optical system to achieve exceptional measurement performance in any scenario. With continuous autofocus and crisp resolution, the T1020 ensures accurate measurements even from a distance, facilitating thorough inspections without compromising on precision. This advanced optical system enhances the camera’s capability to capture detailed thermal data with unparalleled clarity, empowering users to make informed decisions confidently based on reliable measurements.

COMPACT AND EASY TO USE: The FLIR T1020 combines compact design with user-friendly features for maximum convenience and efficiency. Its 120° rotating optical block offers versatility, allowing users to adjust the camera’s position effortlessly to capture images from various angles. Additionally, the bright, high-resolution LCD viewfinder provides clear visibility, putting any target within comfortable viewing range regardless of lighting conditions. These design elements enhance usability and ensure that users can easily operate the camera for extended periods without discomfort, ultimately maximizing productivity in inspection tasks.

12° Precision HDIR Lens for Enhanced Reach: Expand the capabilities of your infrared camera with the included 12° precision HDIR Lens, designed to extend the reach of your measurements to small or distant objects. Ideal for applications such as transmission lines, substations, and large industrial facilities, this lens enables swift detection of heat anomalies with pinpoint accuracy. Calibrated sensors and lenses work in tandem to ensure that your readings are not only precise but also reliable, providing you with confidence in your assessment of critical equipment and infrastructure.

Enhanced Annotation and Analysis Tools: Efficiently highlight objects of interest in both infrared and visual images by utilizing advanced annotation features directly on the camera’s capacitive touchscreen. Whether sketching annotations or adding predefined stamps, you can easily draw attention to key areas for further analysis and evaluation. Additionally, leverage the temperature difference function to measure variations between different measurement functions and reference temperatures, enabling comprehensive analysis of thermal patterns and anomalies.

Automatic Correction and Calibration: Benefit from automatic atmospheric transmission correction, which adjusts for factors such as distance, atmospheric temperature, and relative humidity to ensure accurate thermal measurements in varying environmental conditions. The camera’s automatic optics transmission correction feature utilizes signals from internal sensors to maintain precision, while the emissivity table of predefined materials and variable emissivity correction further enhance measurement accuracy. Moreover, automatic reflected apparent temperature correction and external optics/windows correction contribute to reliable and consistent thermal readings.

Comprehensive Software Support: Access separate PC software offering extensive report generation capabilities, allowing you to analyze and present thermal data in a clear and concise manner. Additionally, take advantage of upgradable camera software via FLIR Tool PC software, ensuring that your device remains equipped with the latest features and enhancements. This comprehensive software support enhances the functionality and longevity of your infrared camera, enabling seamless integration into your workflow and facilitating efficient data analysis and reporting.

FLIR T1020 HD Thermal Camera with Viewfinder
FLIR T1020 HD Thermal Camera with Viewfinder
FLIR T1020 HD Thermal Camera with Viewfinder

In The Box

Package Includes

  • Infrared camera with lens
  • Small viewfinder eyecup
  • 2 batteries
  • Battery charger
  • Hard transport case
  • Lanyards
  • Front lens cap
  • Power supplies
  • Printed documentation
  • SD card (8 GB)
  • Cables:
    • USB 2.0 A to USB Type-C
    • USB Type-C to HDMI
    • USB Type-C to USB Type-C
  • License card:
    • FLIR Thermal Studio Pro (3 month subscription)
    • FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription)

Specifications

General

Specifications
IR Resolution 1024 × 768; up to 3.1 MP with UltraMax
Thermal Sensitivity/NETD <20 mK @ 30°C (86°F)
Field of view (FOV) 12° × 9°
Digital Camera Field of view adapts to the infrared lens
Image Modes Thermal, thermal MSX, picture in picture, digital camera
Display Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Storage Media Removable media SD or SDHC card. Class 10 or better recommended
Imaging & Optical
4.3” Display 800 × 480 pixels
Auto orientation Automatic landscape or portrait
Automatic Image Adjustment Standard or histogram based on the image content
Built-in Digital Camera 5 Mpixel with LED light
Camera size excl lens (L x W x H) 167.2 mm × 204.5 mm × 188.3 mm (6.6 in. × 8.0 in. × 7.4 in.)
Color Palettes Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Imaging & Optical (Continued)
Detector Pitch 17 µm
Detector Type Focal plane array (FPA), uncooled microbolometer
Digital image enhancement Adaptive digital noise reduction
Digital Zoom 1–8× continuous
Display Type Capacitive touchscreen
Field of view (FOV) 12° × 9°
f-number 1.2
Focal Length 83.4 mm (3.28 in)
Focus One shot or manual
Frame Rate [Full Window] 30 Hz
Measurement & Analysis
Area 5 + 5 areas (boxes and circles) with max./min./average
Atmospheric transmission correction Automatic, based on the inputs for distance, atmospheric temperature, and relative humidity
Color Alarm (Isotherm) Above/below/interval
Difference Temperature Delta temperature between the measurement functions and the reference temperature
Emissivity Correction Variable from 0.01 to 1.0 or selected from the materials list
External Optics & Windows Correction Automatic, based on the inputs of the window transmission and temperature
Measurement & Analysis (Continued)
Measurement Presets No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
Object Temperature Range -40°C to 2000°C (-40°F to 3632°F)
Object temperature range Accuracy ±1°C (±1.8°F) or ±1% at 25°C for temperatures between 5°C to 150°C; ±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures up to 1200°C
Spectral Range 7.5–14 µm
Thermal Sensitivity/NETD <20 mK @ 30°C (86°F)
User Interface
Display Built-in touchscreen, 4.3 in. wide screen LCD, 800 × 480 pixels
Languages Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish
Text Add table, select between predefined templates
Touch Screen Yes
Voice 60 seconds (via Bluetooth) stored with the image
Power
Battery operating time >2.5 hours at 25°C (68°F) and typical use
Battery Type Rechargeable Li ion battery
Charging system In camera (AC adapter or 12 V from a vehicle) or two-bay charger
Charging Temperature 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (‎50°F to ‎113°F)‎
Charging Time 2.5 hours to 90% capacity, charging status indicated by LEDs
Environmental & Certifications
EMC ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003
Encapsulation IP 54 (IEC 60529)
Ergonomics The viewfinder plus the 120° rotating optical block allow you to point the camera in multiple directions while maintaining a comfortable position
Humidity (Operating and Storage) IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles
Laser Classification Class 2
General
Compass Camera direction automatically added to every image
Housing Material Magnesium
Weight 2.1 kg (4.6 lb)
Box Contents Infrared camera with lens, Battery (2 each), Battery charger, HDMI-HDMI cable, Hard transport case Large eyecup, Lens cap, Neck strap, Power supply, including multi-plugs USB cable, Standard A to Micro-B Calibration certificate, FLIR Tools+ license card, User documentation on CD-ROM Printed documentation, Bluetooth headset, SD card
