FLIR ONE Edge Pro Wireless Thermal Camera for IOS & Android

Connects wirelessly to IOS and Android devices
Inspections made easy for out-of-reach targets
Connects with your device up to 5m away

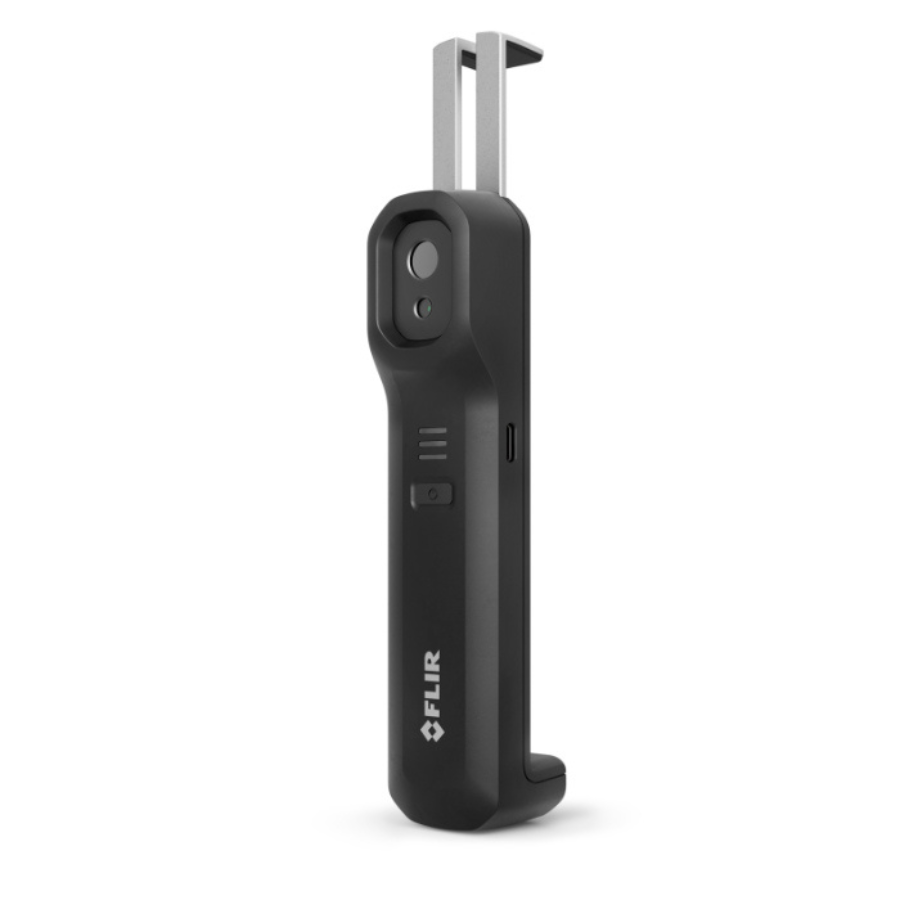

Clips to your smart device for one-hand operation
Capture sharp and detailed thermal images anywhere using your smart device
Features VividIR™ and MSX™ technology
Thermal resolution of 160×120 (19,200 pixels)
Thermal sensitivity of 70mK
Temperature range of -20ºC to 400ºC
Store and share images using FLIR’s Ignite cloud

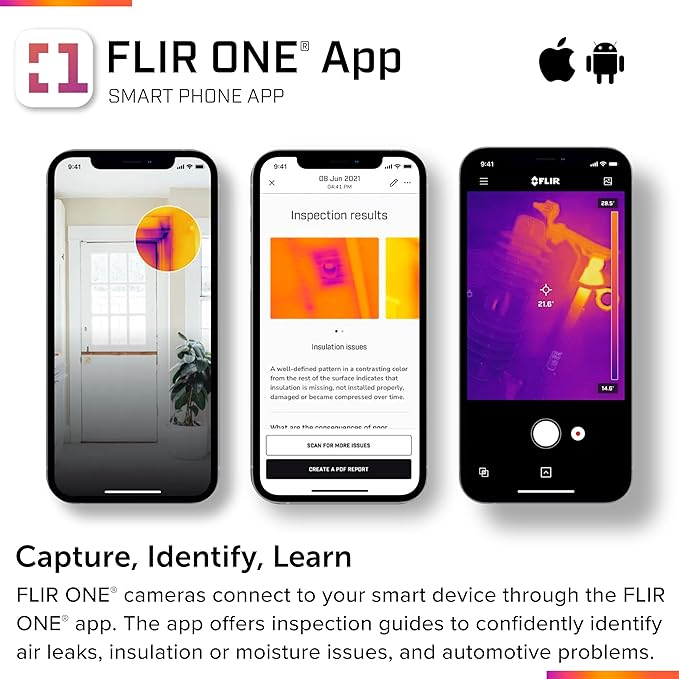

Create reports using the FLIR Tools mobile app or Thermal Studio PC software
2.5 hour battery life
Future proof for device upgrades or changes to device operating systems

1 Year Warranty

After Sales Service

Category: Xboom

Description

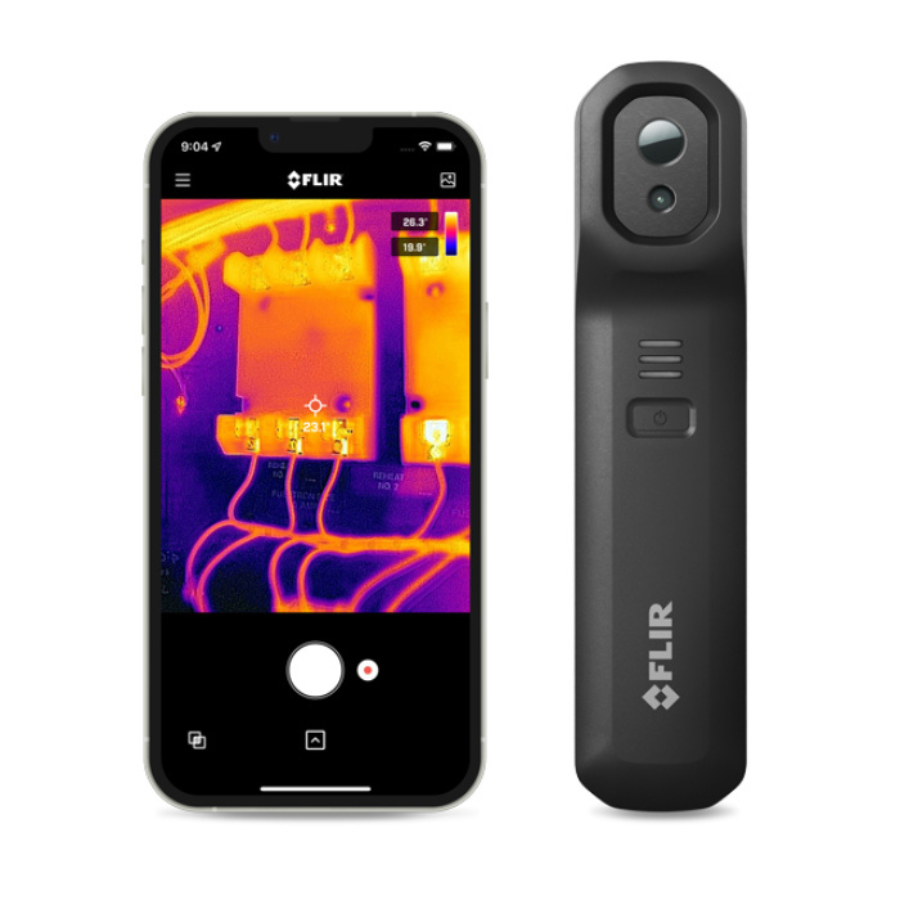

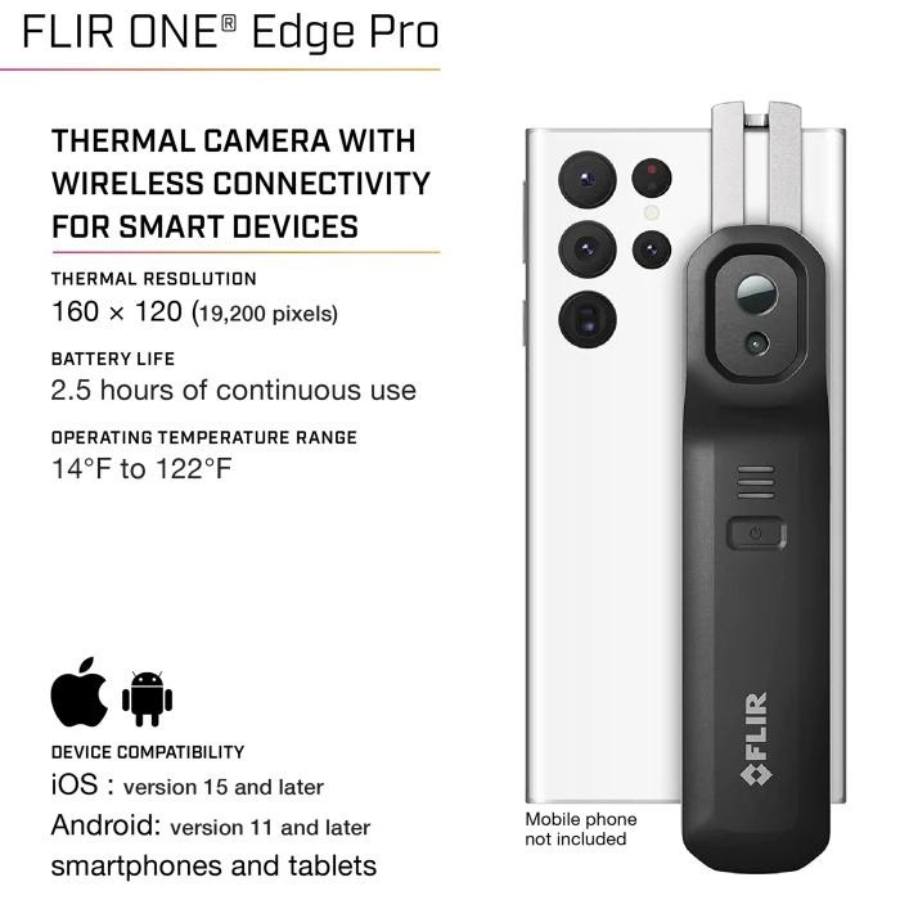

FLIR ONE Edge Pro

Thermal Camera with Wireless Connectivity for iOS and Android Smart Devices

The innovative FLIR ONE Edge Pro wirelessly connects to your smart device, allowing you to easily inspect hard-to-reach targets. You can also clip it onto your phone or tablet for convenient one-handed operation. This thermal camera combines VividIR™ and FLIR MSX® (Multi-Spectral Dynamic Imaging) technologies, providing crisp thermal images from any angle. Its improved battery life and rugged design ensure it’s ready for use in demanding industrial environments. The wireless connection allows the FLIR ONE Edge Pro to be compatible with both Android and iOS devices, making it easy to share tools with friends and colleagues. All your thermal images and videos are saved directly to your mobile device, ensuring they are easily accessible for further use. Additionally, connecting to FLIR Ignite™ enables instant cloud uploads, allowing you to create reports, organize, store, and share data efficiently. This streamlined workflow is perfect for both professional and DIY applications, enhancing your inspection capabilities.

FLIR ONE Edge Pro Wireless Thermal Camera for IOS & Android

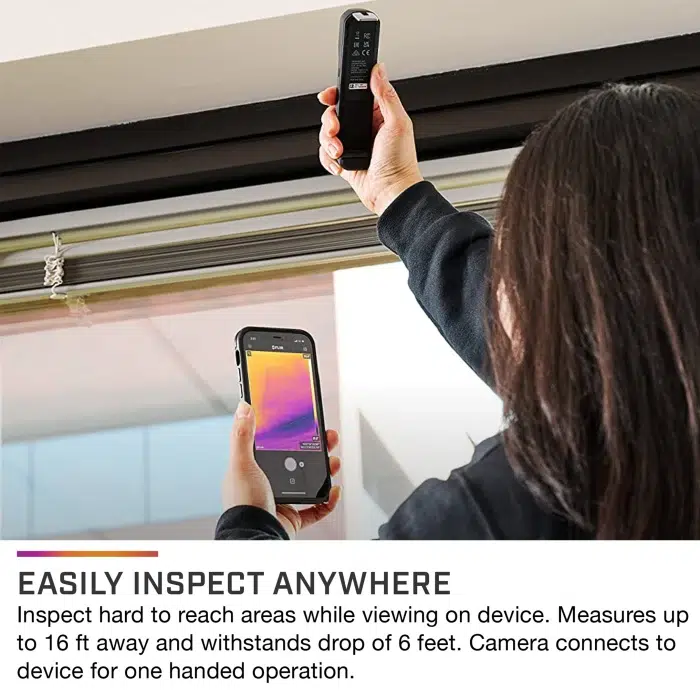

EASILY INSPECT ANYWHERE

Conveniently scan hard-to-reach or out-of-view targets while comfortably viewing images on your mobile device with the FLIR ONE Edge Pro. This thermal imager can wirelessly connect to your smartphone or tablet, allowing you to inspect from any position or angle. Alternatively, clip it onto your device for one-handed operation with a natural grip. The FLIR ONE Edge Pro’s versatile design ensures easy and efficient thermal imaging, making it ideal for both professional and DIY applications. Enhance your inspection capabilities with this innovative tool, providing you with flexibility and precision in capturing thermal images.

A PROFESSIONAL TOOL

With a battery time of up to 2.5 hours and fast-charging capabilities, the FLIR ONE Edge Pro is ready when you need it. This rugged camera is IP54 rated and drop-tested from 2 meters.

HIGH-QUALITY IMAGES AND PERFORMANCE

Take high-quality thermal images, easily identify targets, and recognize where problems are located with FLIR MSX, VividIR, and 160 × 120 (19,200 pixels) thermal resolution.

Specifications

General

Category	Specifications
Thermal Resolution	160 × 120 (19,200 pixels)
Battery Life	Approximately 2 hours 30 minutes
Object Temperature Range	-20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
Accuracy	±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
Operating Temperature	-10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
Spot Meter	Hottest, Coldest and 3 spot measurement
Adjustable MSX Distance	30 cm — Infinity
Focus	Fixed 30 cm — Infinity
Frame Rate	8.7 Hz
HFOV/VFOV	54° ±1° / 42° ±1°
Image Modes	Infrared, visual, MSX
Palette	Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
Shutter	Automatic/Manual
Thermal Sensitivity/NETD	70 mK
Thermal Sensor	Pixel size 12 µm, 8 — 14 µm spectral range
Visual Resolution	640 × 480
VividIR	Yes
Battery Charge Time	60–90 min for fully charged, 15 min charging from empty battery gives 40 min operating time
Charging Method	Female USB-C (5V/1A)
Measurement Corrections	Emissivity; Reflected apparent temperature (22°C / 72°F)
Battery Charge Monitor	0 — 100%
Clip Span	130 mm (min) / 195 mm (max)

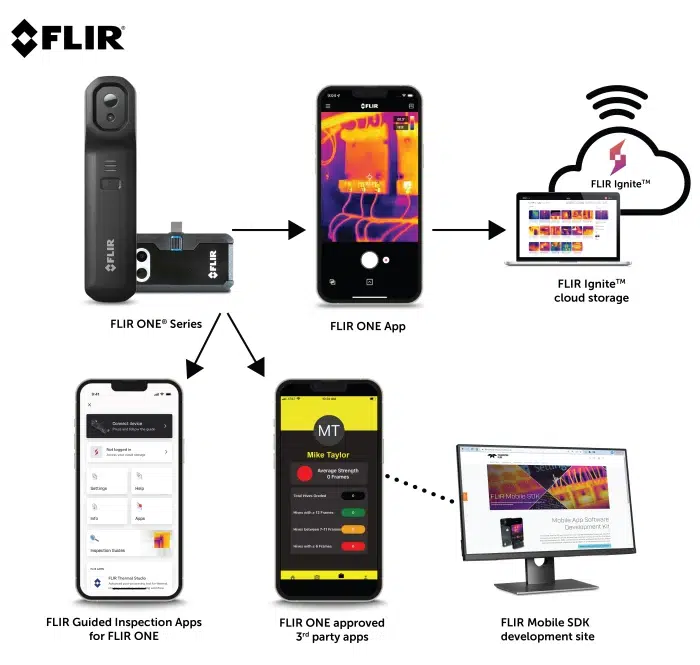

Compatible with FLIR Software	FLIR ONE app, FLIR Ignite, FLIR Thermal Studio
Device Compatibility	iOS (version 15 and later) or Android (version 11 and later) smartphones and tablets
Dimensions (H x W x D)	37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in)
Remote Operation	Up to 5 m (16.4 ft) from smart device via Wi-Fi
Weight	153 g (5.4 oz)
Certifications	RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54
Drop Test	Drop from 2 m (6.56 ft)
Emissivity Settings	Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
Non-Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Bluetooth	Uses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device
Capture Modes	Video, Still image
File Formats	Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))
WiFi	IEEE 802.11 a/b/g/n
