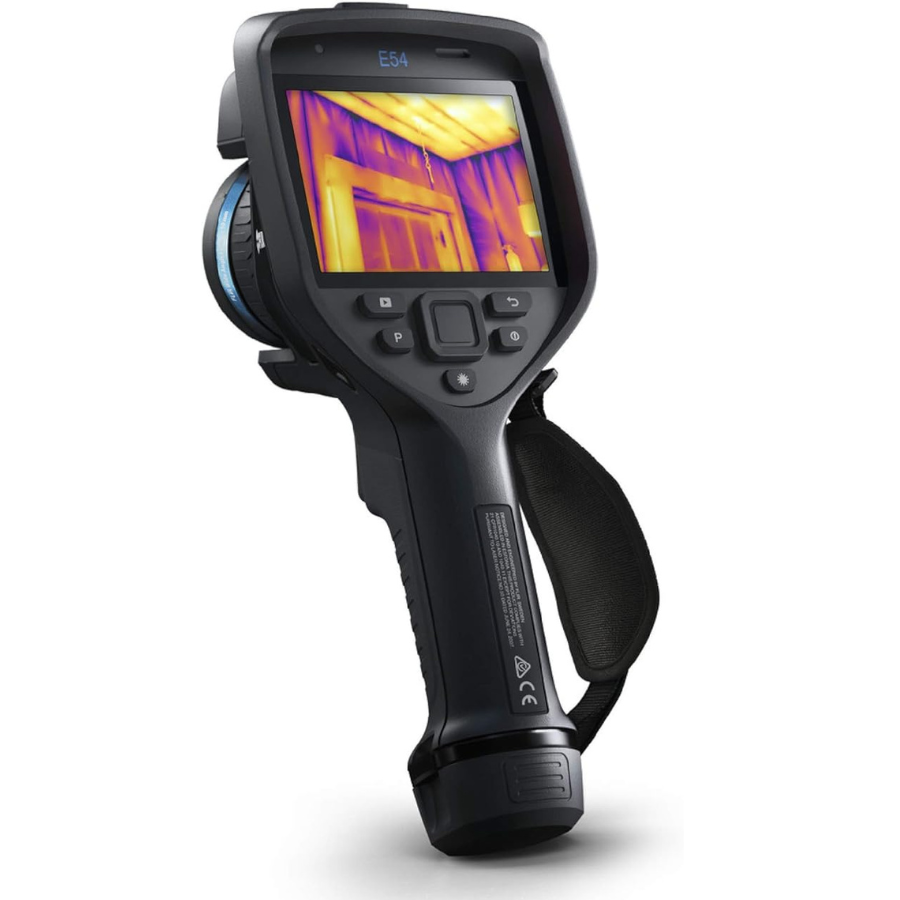

FLIR E54 Advanced Thermal Imaging Camera

320 x 240 infrared pixel resolution with FLIR patented MSX visual enhancements
Super high resolution 4″ touchscreen LCD
METERLiNK – Connect to select FLIR electrical and moisture meters and embed the data into the IR image
Versatile 24 degree FOV
Vibrant, 4” optically-bonded LCD touch screen with intuitive new user interface
Includes Multi-Spectral Dynamic Imaging System (MSX) to add visible spectrum definition to thermal images in real time
Rugged design is IP54 rated for demanding application

1 Year Warranty

After Sales Service

Category: Xboom

Description

FLIR E54

Name: FLIR E54 Advanced Thermal Imaging Camera
SKU: 115450
Price: 684400 INR
Availability: InStock

Advanced Thermal Imaging Camera

The FLIR E54 thermal camera is tailored to address diverse needs in basic condition monitoring, electrical/mechanical assessments, and building inspections. Boasting a high-resolution 320 × 240 pixel thermal detector, it accurately captures temperatures up to 650°C (1202°F), presenting imagery with exceptional clarity and vibrancy. With patented FLIR MSX® technology, images are further enhanced to provide added detail and perspective, aiding in precise analysis. The onboard FLIR Inspection Route feature streamlines surveying tasks by facilitating organized navigation through pre-planned routes, particularly beneficial for examining extensive or multiple locations. FLIR Ignite complements this functionality by enabling seamless, automatic uploading of E54 images to the cloud, ensuring hassle-free storage and sharing with enhanced security measures.

Enhanced Resolution, Faster Inspections

IMPROVED CONTRAST FOR FASTER TROUBLESHOOTING: Utilize FLIR 1-Touch Level/Span feature to instantly enhance image contrast, facilitating swift identification of potential electrical or mechanical issues. This intuitive function allows for quick adjustments, ensuring optimal visualization of critical details that may otherwise go unnoticed, thereby expediting troubleshooting processes.

FEATURES TO HELP WITH DIAGNOSIS: Equipped with versatile features, the E54 thermal camera offers comprehensive support for diagnosis. With the capability to measure temperatures up to 650°C (1202°F), it provides essential insights into thermal conditions. Additionally, the inclusion of three spotmeters and live on-screen display of maximum and minimum temperatures within an area enhance precision and facilitate accurate diagnosis of issues.

STREAMLINED REPORTING: The E54 integrates various features aimed at streamlining reporting processes and enhancing overall workflow efficiency. With onboard integration with FLIR routing software (optional accessory), automatic image upload directly to the FLIR Ignite cloud library, built-in microphone for voice annotation, and robust report generation capabilities, the camera simplifies tasks and optimizes productivity throughout the workday.

FLIR E54 Advanced Thermal Imaging Camera

In The Box

Package Includes

Infrared camera with lens
2 batteries
Battery charger
Hard transport case
Lanyards
Front lens cap
Power supplies
Printed documentation
SD card (8 GB)
Cables:
- USB 2.0 A to USB Type-C
- USB Type-C to HDMI
- USB Type-C to USB Type-C

Specifications

Section

SPECIFICATIONS
IR Resolution	320 × 240 pixels
Thermal Sensitivity/NETD	<40 mK at 30°C (86°F)
Accuracy	±2°C (±3.6°F) or ±2% of the reading
Digital Camera	5 MP, with built-in LED photo/video lamp
Display	4″, 640 × 480 pixel touchscreen LCD with auto-rotation
Storage Media	Removable SD card

IMAGING & OPTICAL
Color Palettes	Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
Detector Type and Pitch	Uncooled microbolometer, 17 µm
Digital Zoom	1-4× continuous
Focus	Manual
Image Frequency	30 Hz
Lens Identification	NA

MEASUREMENT & ANALYSIS
Accuracy	±2°C (±3.6°F) or ±2% of the reading
Measurement Presets	No measurements, Center spot, Hot spot, Cold spot, 3 spots, Hot spot–Spot
Object Temperature Range	-20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F)
Spot Meter	3 ea. in live mode

USER INTERFACE
Display	4″, 640 × 480 pixel touchscreen LCD with auto-rotation
Text	Predefined list or touchscreen keyboard
Voice	60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®

POWER
Battery operating time	> 2.5 hours at 25°C (68°F) and typical use
Battery Type	Rechargeable Li-ion battery

ENVIRONMENTAL & CERTIFICATIONS
Operating Temperature Range	-15 to 50°C (5 to 122°F)
Safety	EN/UL/CSA/PSE 60950-1
Storage Temperature Range	-40 to 70°C (-40 to 158°F)

GENERAL
FLIR Inspection Route	Enabled in camera
Laser Pointer	Yes
Packaging	Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
