Description

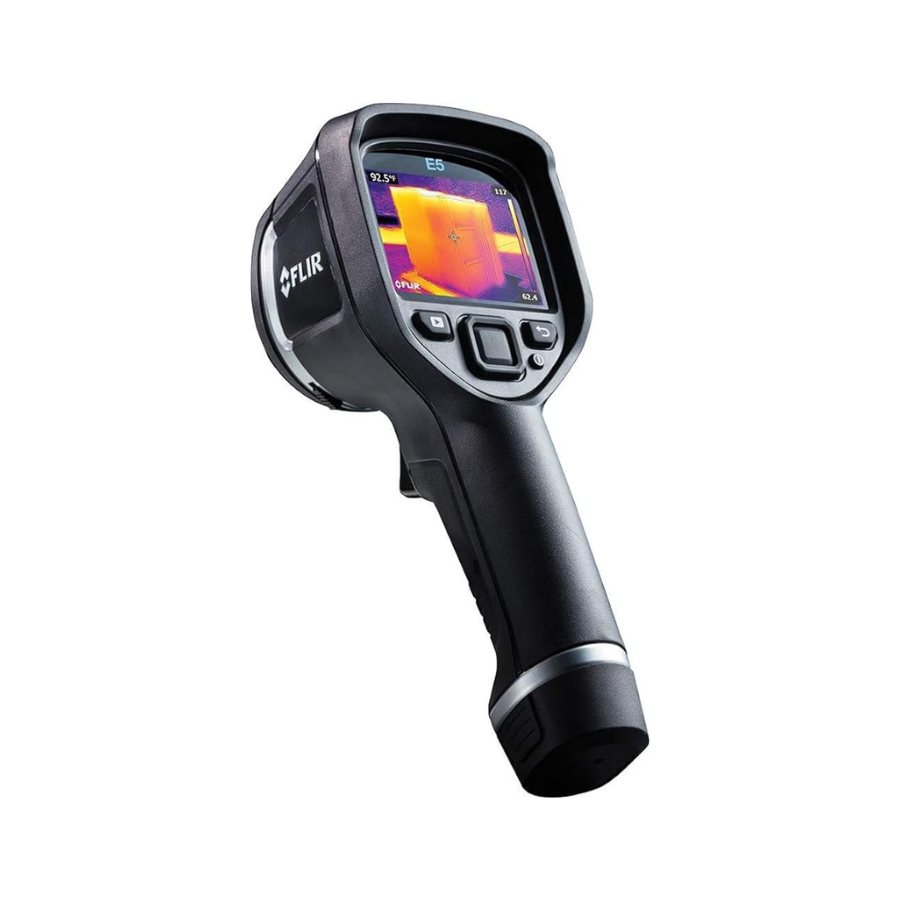

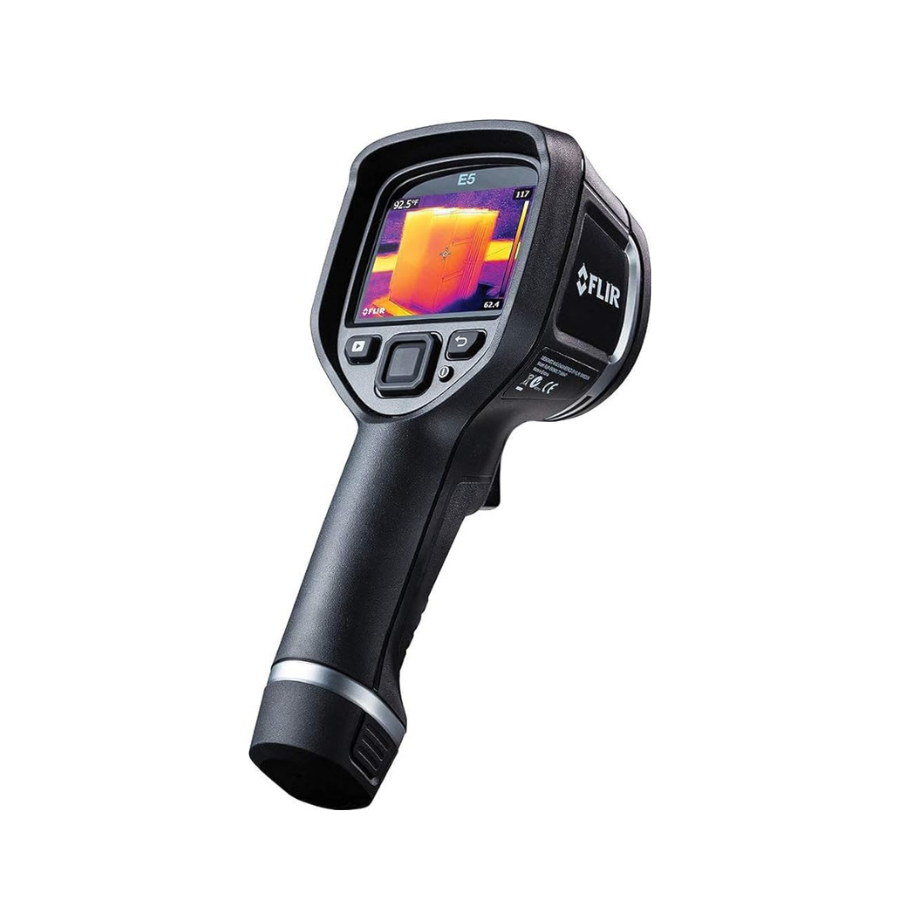

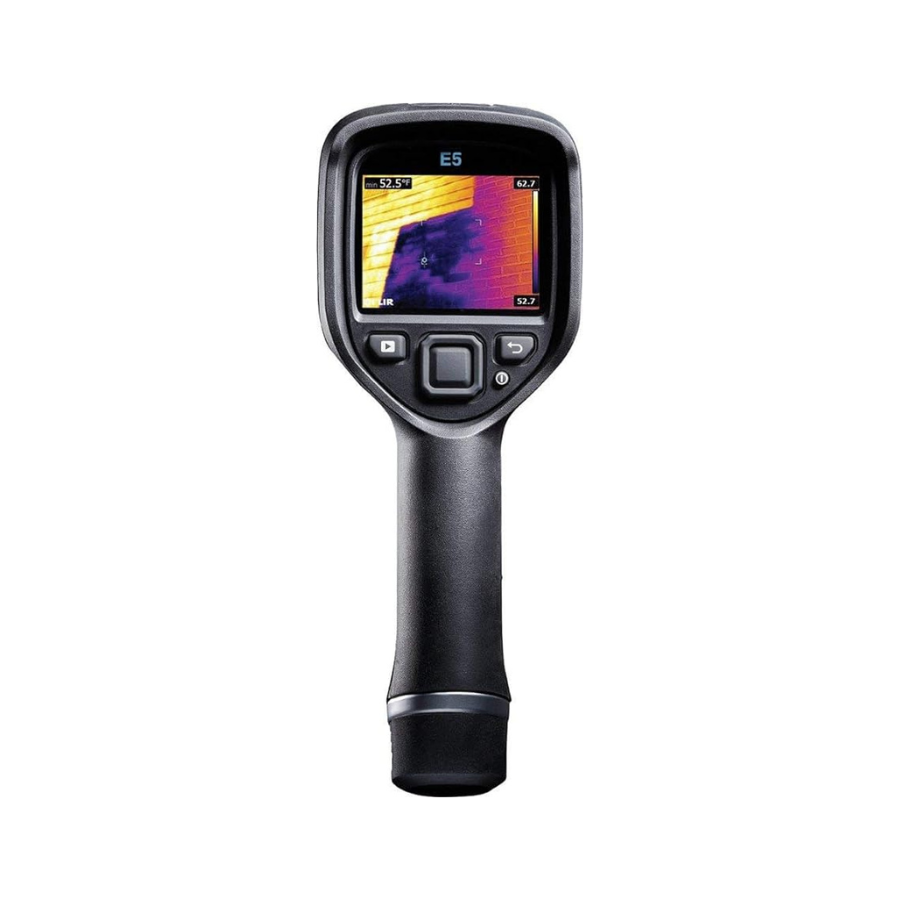

FLIR E5-XT
Infrared Camera with Extended Temperature Range

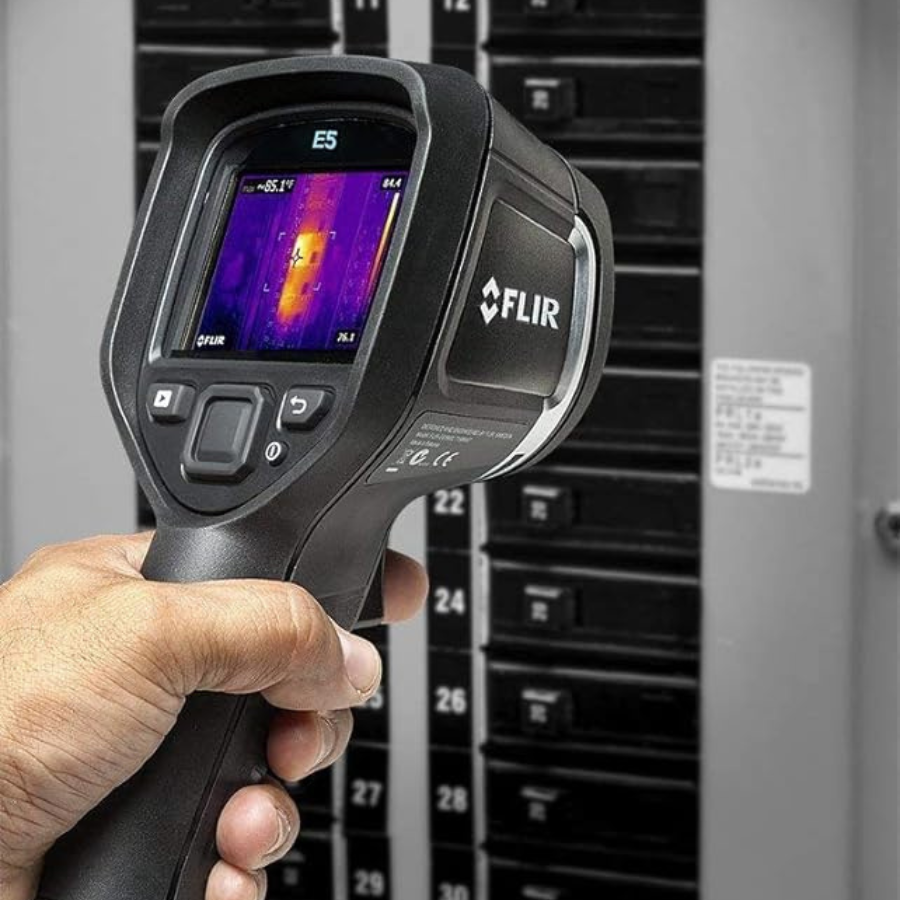

With its 19,200 (160 × 120) pixel infrared detector and increased temperature range of -20°C to 400°C (-4°F to 752°F), the FLIR E5-XT is the ideal instrument for promptly identifying and diagnosing electrical, mechanical, and construction problems. The FLIR Tools® Mobile app may be simply connected to via built-in WiFi, enabling users to share images and submit reports from any place. The FLIR MSX® image enhancement offers exceptional detail in thermal imaging.
The FLIR E5-XT is a robust and versatile thermal imaging camera designed for a wide range of applications, from electrical inspections to building diagnostics. Here’s an in-depth look at its features:
🔍 Enhanced Thermal Resolution: With a resolution of 160 x 120 pixels, the FLIR E5-XT captures detailed thermal images, making it easier to spot issues and anomalies in various environments.
📡 Wi-Fi Connectivity: Seamlessly transfer images and data to your smartphone or tablet via Wi-Fi, facilitating quick sharing and reporting with the FLIR Tools mobile app.
🌡 Broad Temperature Range: Capable of measuring temperatures from -20°C to 400°C (-4°F to 752°F), the E5-XT is versatile enough to handle a wide array of applications, from detecting heat loss to identifying overheated components.
🔎 MSX® Image Enhancement: This technology blends visual details from the digital camera with thermal images, providing richer detail and making it easier to understand thermal pictures.
🎛 User-Friendly Interface: The E5-XT features a simple, intuitive interface that allows for easy navigation and operation, even for those new to thermal imaging.
💪 Rugged Design: Designed to withstand the wear and tear of industrial environments, the E5-XT has an IP54 rating, indicating a high level of protection against dust and water.
🖥 Bright LCD Display: A large, 3-inch color LCD screen makes it easy to view thermal images in detail, even in bright outdoor conditions.
💾 Ample Storage: With internal storage for thousands of images, the E5-XT ensures that you can capture and save all the data you need during inspections.
🎯 Automatic Hot/Cold Spot Detection: The camera automatically identifies the hottest and coldest areas within a scene, helping users quickly pinpoint potential issues.
🔄 Picture-in-Picture (PiP) Technology: Overlay thermal images onto digital photos for better context and understanding of the thermal data.
🔋 Long Battery Life: Equipped with a rechargeable lithium-ion battery, the E5-XT offers hours of continuous use, reducing downtime in the field.
👷 Safety Certified: Meeting strict safety and production standards, the E5-XT is certified to ensure safe operation in various professional settings.
📊 FLIR Tools Compatibility: Works seamlessly with FLIR Tools software for further image analysis, reporting, and sharing, enhancing the overall utility and flexibility of the thermal imaging process.
The FLIR E5-XT stands out as a comprehensive thermal imaging solution, offering advanced features tailored to professional needs, combining high-quality imaging, durability, and ease of use. Whether for building inspections, electrical maintenance, or HVAC troubleshooting, the E5-XT provides the reliability and accuracy professionals need to diagnose and solve problems efficiently.

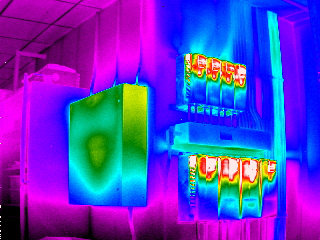

Vivid thermal images that tell your inspection story
MSX® Image Enhancement
FLIR’s exclusive Multi Spectral Dynamic Imaging (MSX) technology, available on the FLIR ONE Edge Pro, combines important information from the onboard visible light camera with the whole infrared image in real time. The end product is an all-in-one, pure thermal image with visible light characteristics that enables you to identify the troublesome heat pattern’s location right away. Since MSX operates in real time, its results are instantly visible on the LCD of the camera.
Specifications
Camera
- IR Resolution160 × 120 pixels
- Thermal Sensitivity/NETD
- <0.10°C (0.27°F) / <100 mK
- Accuracy
- ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
- Field of view (FOV)
- 45° × 34°
- Image Modes
- Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
- Display
- 3.0 in. 320 × 240 color LCD
IMAGING & OPTICAL
- Color
- Black and gray
- Color Palettes
- Black & white, iron, and rainbow
- Detector Type
- Uncooled microbolometer
- Field of view (FOV)
- 45° × 34°
- FLIR Screen-EST Mode
- No
- f-number
- 1.5
- Focus
- Focus free
- Image Frequency
- 9 Hz
- Image Modes
- Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
- IR Resolution
- 160 × 120 pixels
- Minimum Focus Distance
- 0.5 m (1.6 ft.)
- Multi Spectral Dynamic Imaging (MSX)
- IR image enhanced with visible camera detail
- Picture-in-Picture
- IR area on visual image
- Spatial resolution (IFOV)
- 5.2 mrad
- Spectral Range
- 7.5–13 µm
- Thermal Sensitivity/NETD
- <0.10°C (0.27°F) / <100 mK
MEASUREMENT & ANALYSIS
- Accuracy
- ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
- Camera size (L x W x H)
- 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
- Camera weight incl battery
- 0.575 kg (1.27 lb.)
- Isotherm
- Above alarm, below alarm
- Object Temperature Range
- –20°C to 400°C (-4°F to 752°F) in two ranges
- Reflected apparent temperature correction
- Automatic, based on input of reflected temperature
- Set-up Commands
- Local adaptation of units, language, date and time formats
- Spot Meter
- Center spot; box with min./max.
USER INTERFACE
Display3.0 in. 320 × 240 color LCD
POWER
- Charging system
- Battery is charged inside the camera or in specific charger.
- Charging Time
- 2.5 hours to 90% capacity in camera. 2 hours in charger.
- Power Management
- Automatic shut-down
ENVIRONMENTAL & CERTIFICATIONS
- Certifications
- UL, CSA, CE, PSE and CCC
- EMC
- •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
- Humidity (Operating and Storage)
- IEC 60068-2-30/24 h 95% relative humidity
- Operating Temperature Range
- –15°C to 50°C (+5°F to 122°F)
- Radio Spectrum
- •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
- Shock
- 25 g (IEC 60068-2-27)
- Storage Temperature Range
- –40°C to 70°C (–40°F to 158°F)
GENERAL
- List of Contents
- •Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation
- Packaging Size
- 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
