FLIR C5 Compact Thermal Camera

Spot Electrical, Plumbing, HVAC Issues
160 x 120 Thermal Sensor
1-Touch Level & Span
5MP Camera
MSX: Combine Infrared & Visual Imagery
3.5″ Color Touchscreen
IP54 Dust & Water Resistant
Upload & Share Images via Wi-Fi
Add Notes to Images

1 Year Warranty

After Sales Service

Category: Xboom

Description

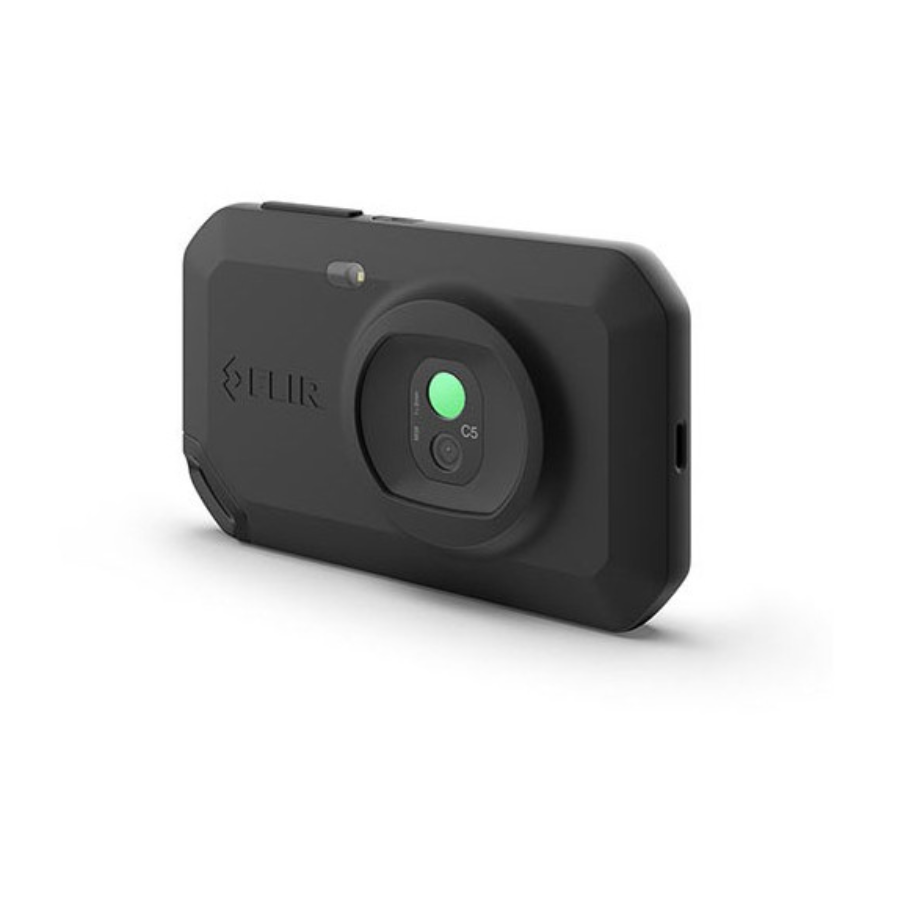

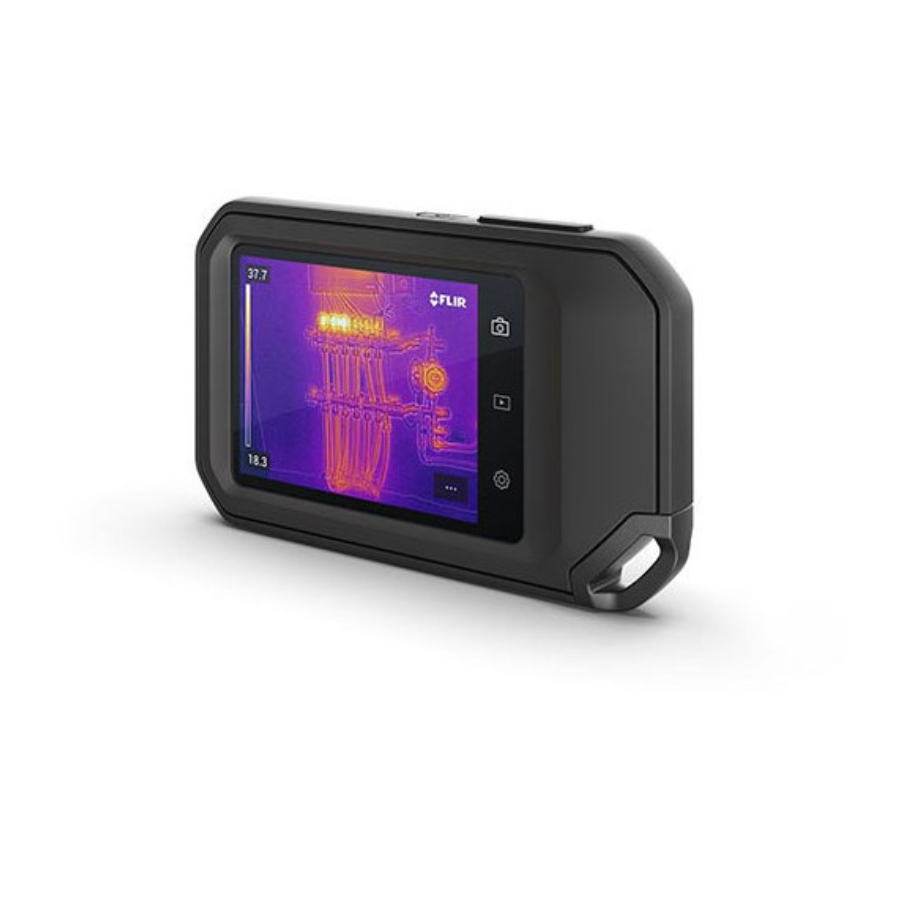

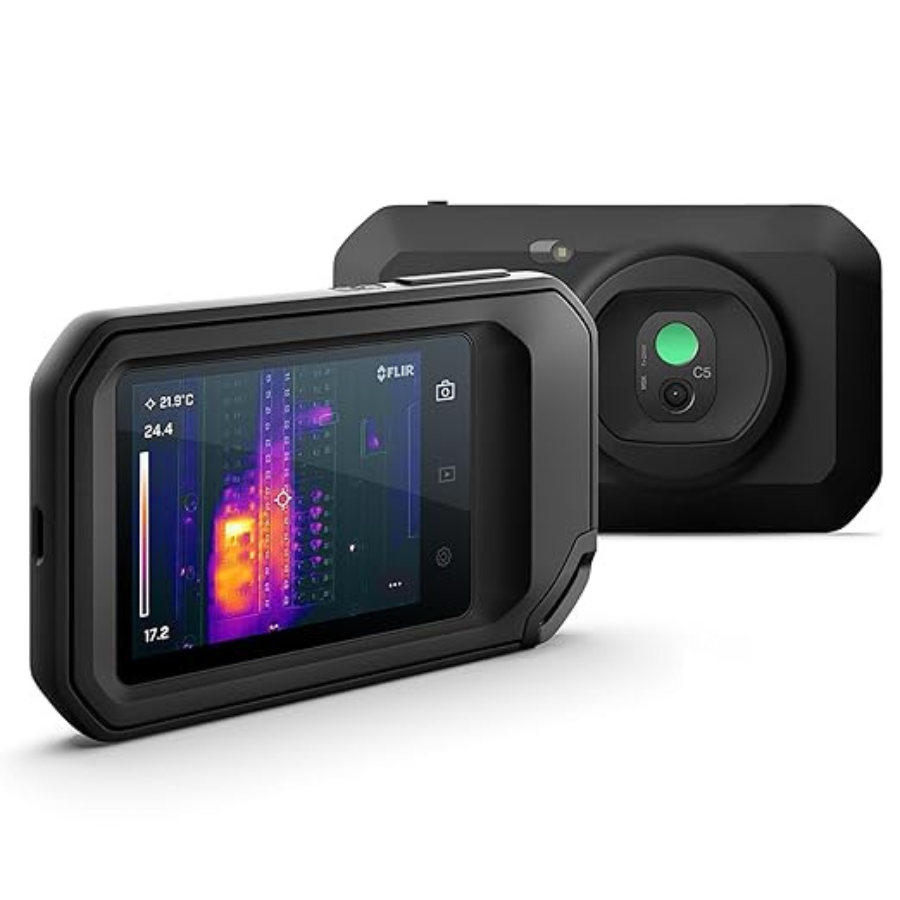

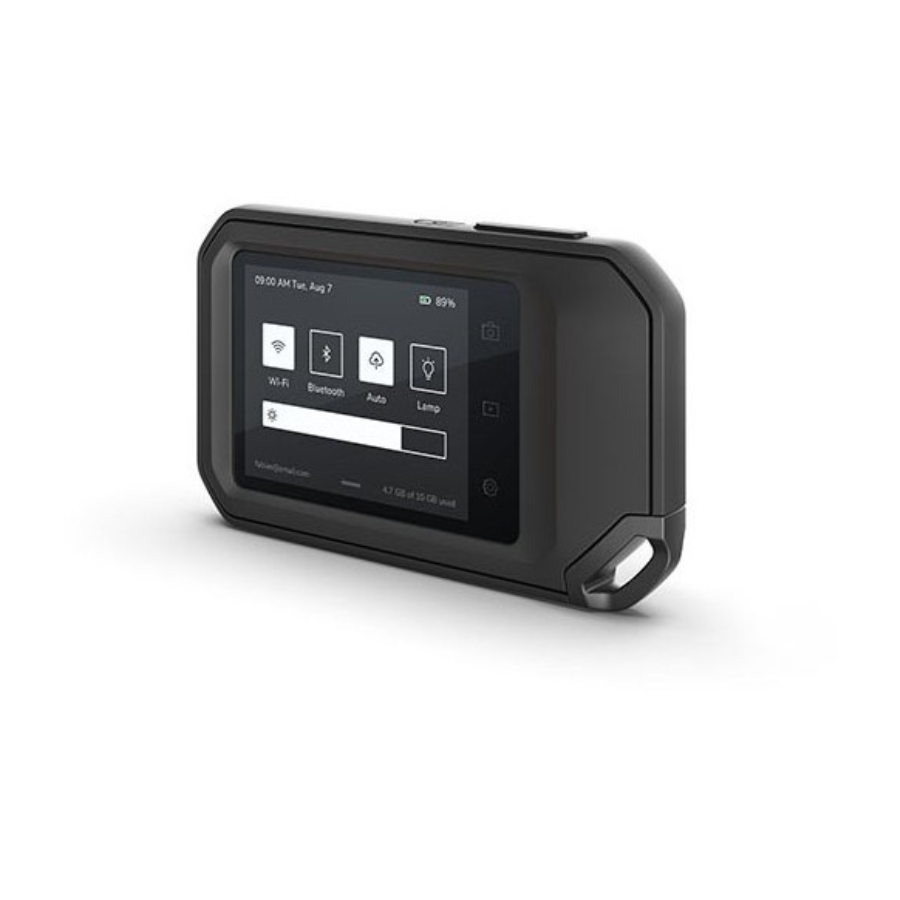

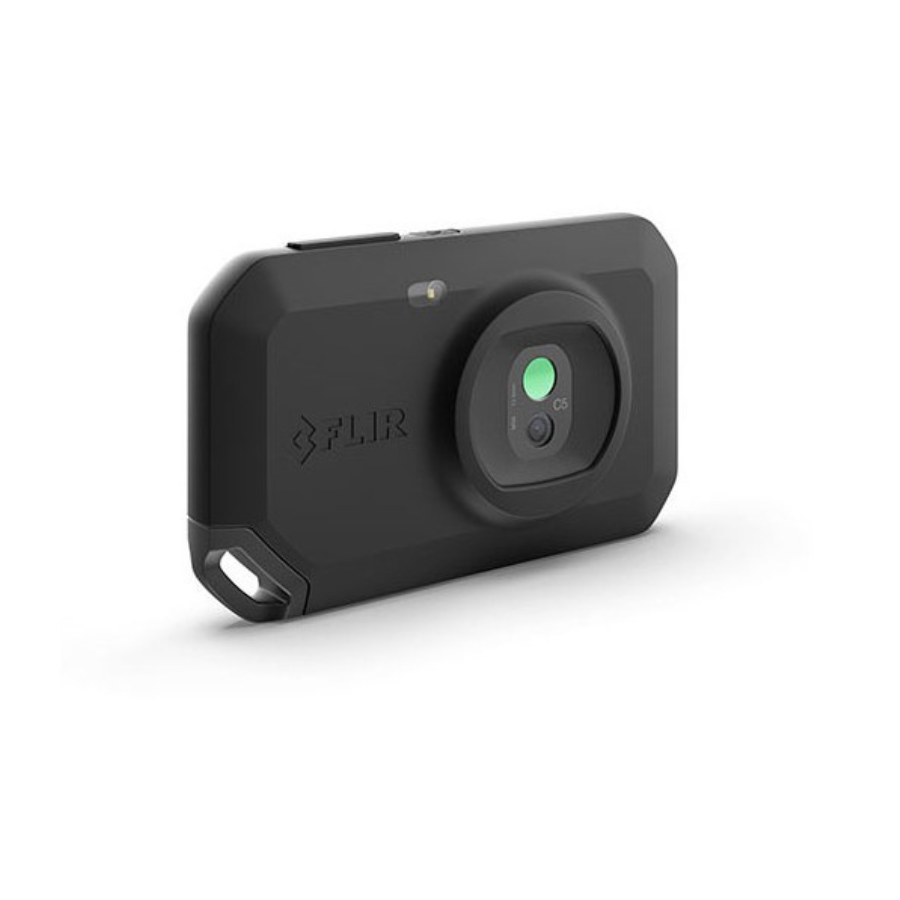

FLIR C5 Compact Thermal Camera

Name: FLIR C5 Compact Thermal Camera
SKU: 115322
Price: 92499 INR
Availability: InStock

With the FLIR C5 in your pocket, you’re always ready to uncover hidden issues such as hot fuses, air leaks, plumbing problems, and more. This compact tool features a true thermal imager with a resolution of 160 × 120 (19,200 pixels), along with MSX (Multi-Spectral Dynamic Imaging), a 5-megapixel visual camera, and an LED flashlight. These features make it easy to identify hidden problems and capture detailed images. The C5 allows for seamless integration with the FLIR Ignite cloud, enabling direct uploads and storage of your images. This ensures that your files are well-organized and backed up securely. You can instantly share images with customers or create professional reports to document issues and necessary repairs. The FLIR C5’s combination of portability, advanced imaging capabilities, and cloud connectivity makes it an essential tool for professionals in electrical, mechanical, and building inspections, offering convenience and efficiency in every use.

Specifications

General

Specifications of the FLIR C5:

Category	Specifications
Accuracy	At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F), 0 to 100°C (32 to 212°F): ±3°C (±5.5°F), 100 to 400°C (212 to 752°F): ±3%
Digital Camera	5 MP

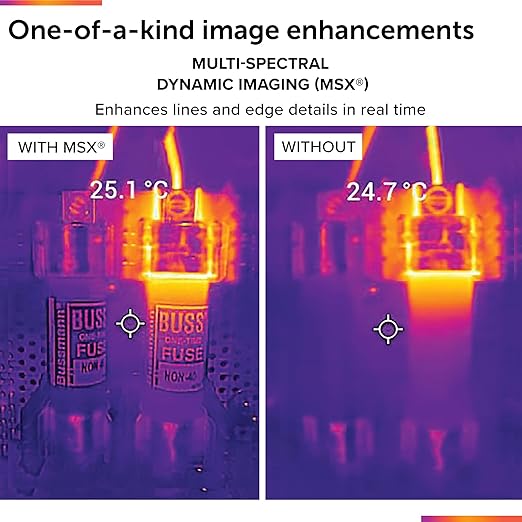

Image Modes	Infrared image, Visual image, MSX (Embossed visual details on thermal image), Picture-in-picture (IR area on visual image)
Storage Media	Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)
Color Palettes	Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
FLIR Screen-EST Mode	No
Focus	Focus free
Gallery	Thumbnails and custom folder structure
Image Frequency	8.7 Hz
Minimum Focus Distance	Thermal: 0.1 m (3.94 in), MSX: 0.3 m (11.8 in)
Spectral Range	8 to 14 µm
Camera Size (L x W x H)	138 x 84 x 24 mm (5.4 x 3.3 x 0.94 in)
Measurements Correction	Emissivity; matt/semi-matt/semi-gloss + custom value, Reflected apparent temperature, Atmospheric compensation
Object Temperature Range	-20 to 400°C (-4 to 752°F)
Thermal Sensitivity	<70 mK
Touchscreen	Capacitive touch
Battery Operating Time	4 hours
Battery Type	Rechargeable built-in Lithium ion battery
Charging System	USB-C (1 A)
Charging Time	2 hours
External Power Operation	5 V, USB-C
Drop Test	2 m (6.6 ft)
Encapsulation	Camera housing and lens: IP54 (IEC 60529)
Operating Temperature Range	-10 to 50°C (14 to 122°F)
Storage Temperature Range	-40 to 70°C (-40 to 158°F)
Tripod Mounting	UNC ¼”-20 (built-in)
