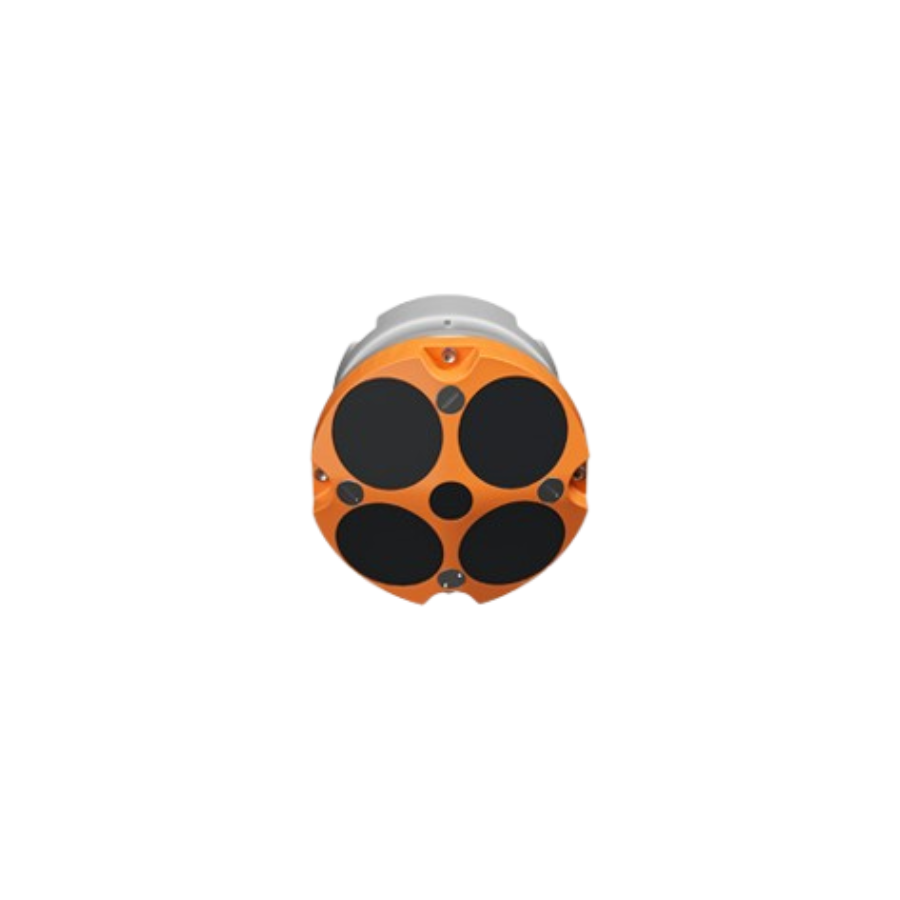

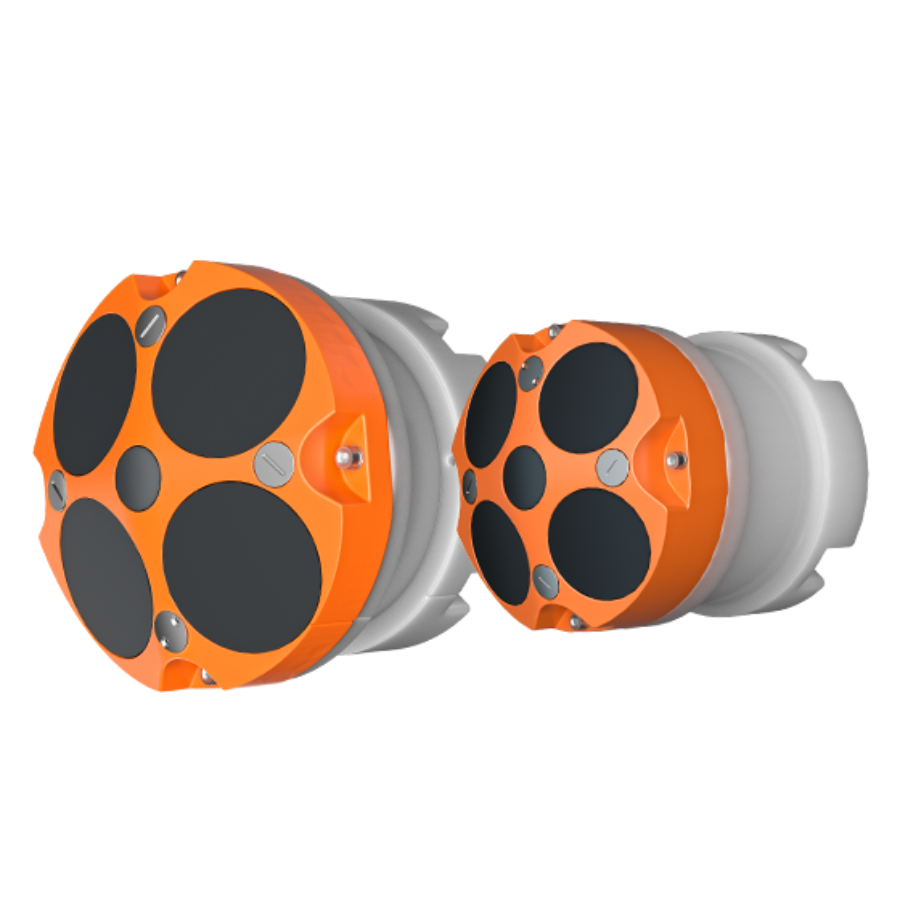

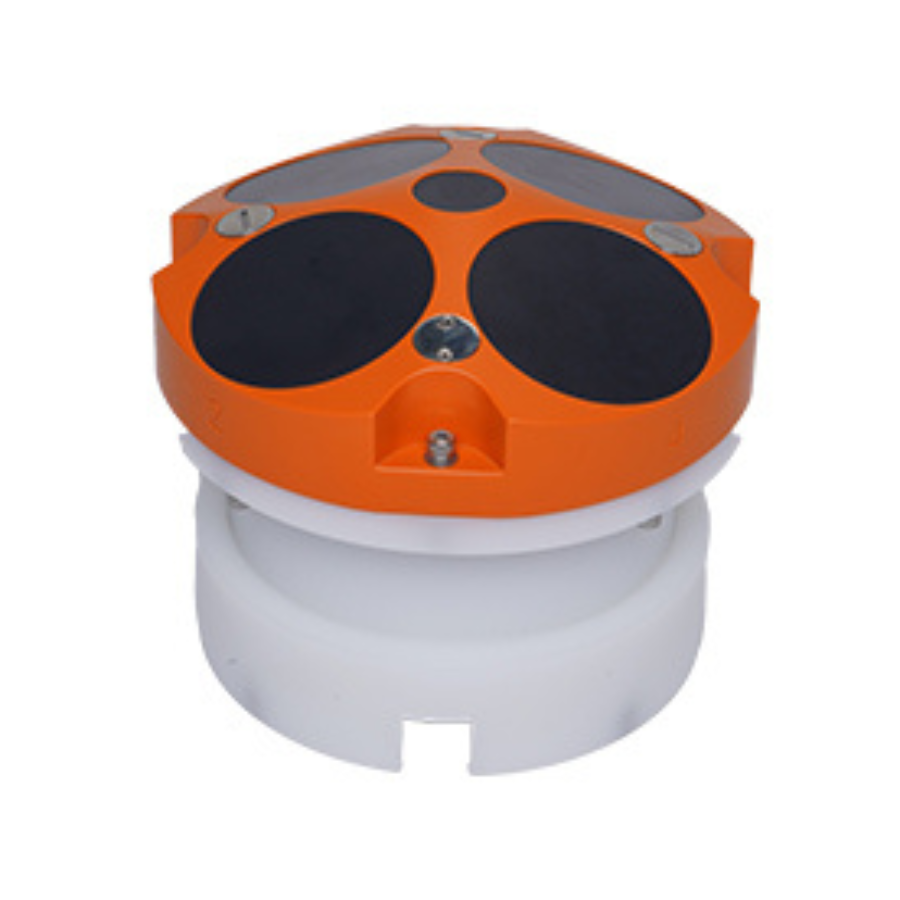

Introducing the CHCNAV RS600-1200 ADCP
The CHCNAV RS600/1200 ADCP is a high-precision acoustic Doppler current profiler designed for water velocity profiling in a variety of water conditions. It offers accurate flow measurements with a 5-beam solution and up to 180-meter range. The device’s compact and portable design is ideal for field operations, while automated features streamline data collection. Its compatibility with the CHCNAV Apache 4 USV makes it an efficient tool for hydrological surveys.
Features
| Feature | Description |
|---|---|
| Accuracy | 0.25% ±2 mm/s with 5 beams at 1200/600 kHz |
| Range | Up to 180 meters |
| Depth Measurement (Shallow) | Measures depths as low as 0.3 meters |
| Connectivity | RS232 for data transfer and device integration |
| Data Management | 32GB on-board memory and synchronization via software |
Accurate Water Flow Profiling
The RS600 and RS1200 utilize an advanced 5-beam technology to deliver precise water velocity data. These systems provide reliable measurements, ensuring consistent and accurate flow assessments in varying water conditions.
Wide Operational Range
The RS ADCP offers an impressive range of up to 180 meters, ensuring extensive coverage for large-scale hydrological surveys. This feature allows for comprehensive data collection across a broad area, providing valuable insights for various water conditions.
Shallow Water Measurement Capability
The RS ADCP Series is designed for shallow water environments, automatically switching to Pulse Coherent Signal mode for accurate data collection in depths as low as 0.3 meters. This feature ensures precise measurements even in challenging shallow water conditions, extending the device’s versatility for a wide range of surveying applications.
Durable and Lightweight Design
The RS600 and RS1200 are built with robust, lightweight materials, ensuring they can be easily transported and endure harsh field conditions. This makes them ideal for challenging environments, maintaining high performance even in rugged settings.
Seamless Connectivity
The RS600 and RS1200 offer versatile connectivity options, including RS232, ensuring seamless data transfer and easy integration with external devices. This connectivity feature enhances operational efficiency, allowing for smooth communication and data management throughout field operations.
Efficient Data Storage and Syncing
The RS600 and RS1200 offer smart data management with 32 GB of on-board memory for reliable storage. The devices can also sync data through software, ensuring easy access and comprehensive analysis, streamlining workflow and enhancing project accuracy.
Intuitive Software Solutions
The RS600 and RS1200 are supported by the HydroProfiler for PC, which allows for customizable page layouts and flexible data output. EasySail for CHCNAV Apache 4 USV ensures smooth data integration and real-time monitoring, making field operations more efficient and effective.
Improved Field Efficiency
The RS600 and RS1200 enhance operational efficiency with an automated measurement mode, eliminating the need for manual flow measurement configuration. This reduces setup time, allowing for faster deployment and more focused fieldwork, helping surveyors complete tasks more quickly and effectively.
Use Cases
River Discharge Measurement
The RS600/1200 helps accurately measure the flow of rivers, enabling precise discharge calculations essential for environmental monitoring and water management.
Coastal Erosion Monitoring
By assessing current speeds and water flow, the device supports coastal erosion studies, helping track shoreline changes over time.
Flood Risk Assessment
It assists in flood prediction by measuring water velocity, crucial for analyzing flood risks and ensuring effective flood management strategies.
Port Current Analysis
The device aids in monitoring port currents, ensuring safe navigation and efficient marine operations.
Specifications
| Feature | Description |
|---|---|
| ADCP Type | 600 kHz or 1200 kHz |
| Transducer | 5 beams |
| Accuracy | ±0.25% ±2 mm/s |
| Temperature | Yes |
| Tilt | Yes |
| Compass | Yes |
| Weight (RS1200) | 3.88 kg |
| Weight (RS600) | 6.86 kg |
| Dimensions (RS1200) | 191 x 170 mm |
| Dimensions (RS600) | 195 x 229 mm |
