Sale!

SIYI-DK32 SE TRANSMITTER

Original price was: ₹32,999.Current price is: ₹27,999.

  • Model: DK32 SE
  • Frequency Band: 2400 to 2483 MHz
  • Control Range: 10 Kilometers
  • Channels: 16 physical channels, 16 communication channels
  • Compatible Agriculture Flight Controllers:
  • BOYING Paladin V2
  • JIYI K++ V2 / K3A Pro
  • VK V7AG
  • Pixhawk / APM based flight controllers
  • Compatible RC Models: Planes, Copters, Gliders, Multi-Rotors, Vehicles, Boats, Robotics
1 Year Warranty
After Sales Service
Categories: ,

Description

SIYI-DK32 SE TRANSMITTER

Operating within the 2.4GHz ISM band, this system boasts an impressive 10-kilometer range, with a ground-to-ground range of 2 kilometers, ensuring reliable communication over vast distances. With 16 multi-functional channels, it offers extensive control capabilities for various applications. The inclusion of a 2.8-inch LCD touchscreen simplifies configuration and enhances user interaction, providing intuitive access to settings and functions. Moreover, its dual-operator functionality, complemented by coach mode, facilitates collaborative control, ideal for training scenarios or team operations. Additionally, the integration of voice broadcast functionality further enhances usability, providing audible cues and notifications. With a remarkable battery life of 14 hours, users can rely on extended usage without frequent recharging. Furthermore, its compatibility with a range of flight controllers including JIYI, BOYING, VK, and Pixhawk ensures seamless integration into existing setups, offering flexibility and versatility to suit diverse needs and preferences in the field of remote control systems.

SIYI-DK32 SE TRANSMITTER
SIYI-DK32 SE TRANSMITTER

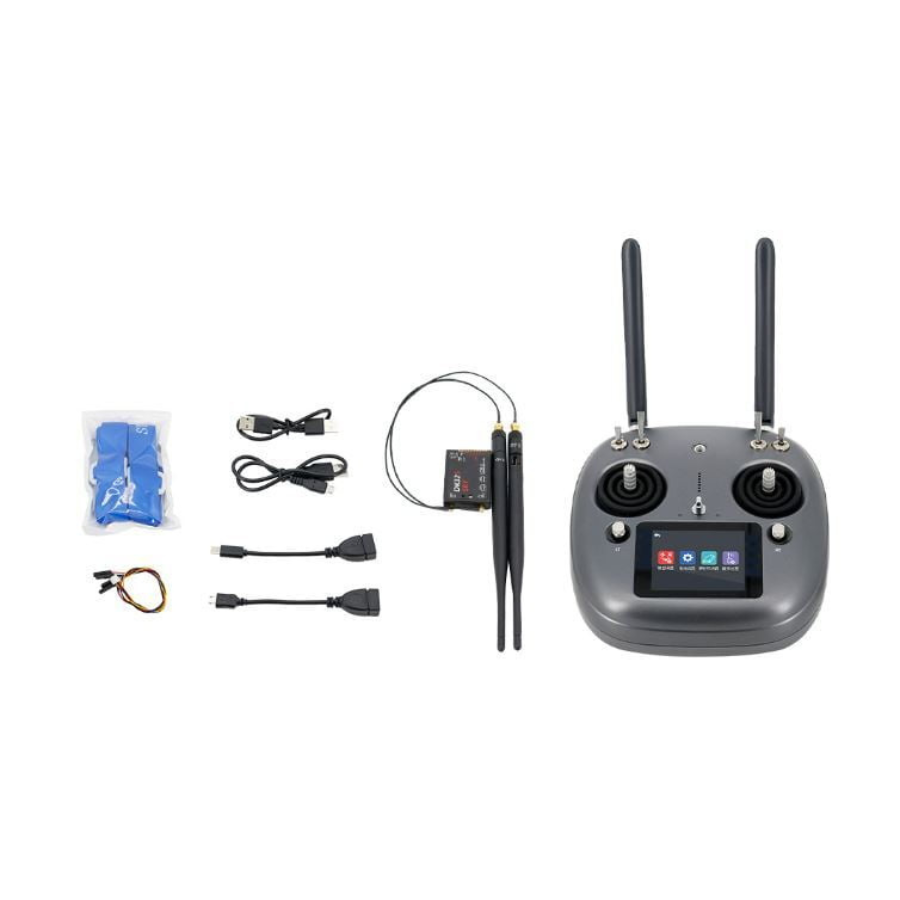

In The Box

Package Includes

  • 1 x DK32 SE Agriculture Remote Controller

Specifications

General

  • 2.4G ISM Band
  • 10KM Range, 2KM Ground to Ground Range
  • 16 Multi-Functional Channels
  • 2.-inch LCD Touchscreen Configuration
  • Dual Operator, Coach Mode
  • Voice Broadcast
  • 14 Hours
  • Compatible with JIYI, BOYING, VK, Pixhawk Flight Controllers

Remote Controller

Monitor: 2.8-inch LCD Touchscreen
Language Display: Chinese / English
Dimensions (antenna overlapped): 184.5 x 180 x 114 mm
Weight: 610 g
Battery Capacity & Type: Built-in Chargeable 5000 mAh 3.7 V 1S Li-Po, 18.5 Wh
Charging Time: 3.5 hours
Battery Life: 12 hours
Interface & Ports:
– Charging: Micro-USB
– Firmware Upgrade: Micro-USB
– External Storage: SD/TF Card Slot
Working Temperature: 0 to 55℃

Air Unit

Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
– SBUS & PWM: Pins
– Datalink (to FC): UART 4-Pin
– Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 55 x 45 x 16 mm
Weight (antenna excluded): 50 g
Antenna Gain (standard omni): 5 dBi
Power Input: 14.8 to 50.4 V (4S to 12S)
Working Temperature: -10 to 55℃
