Description

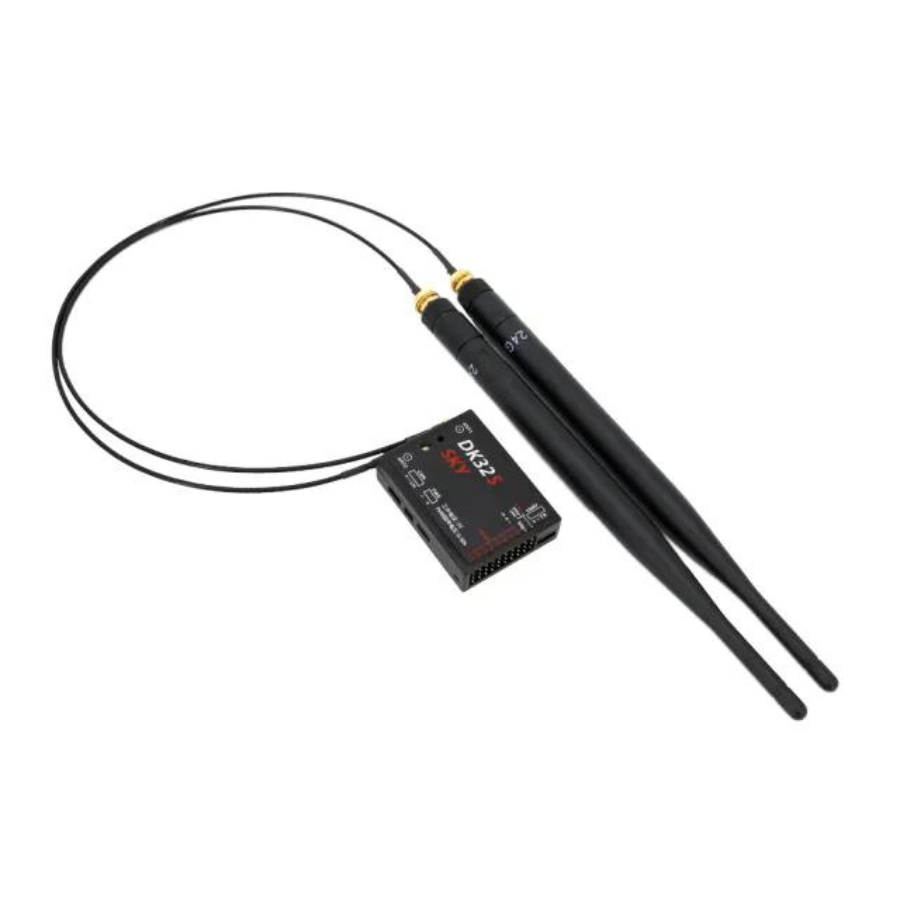

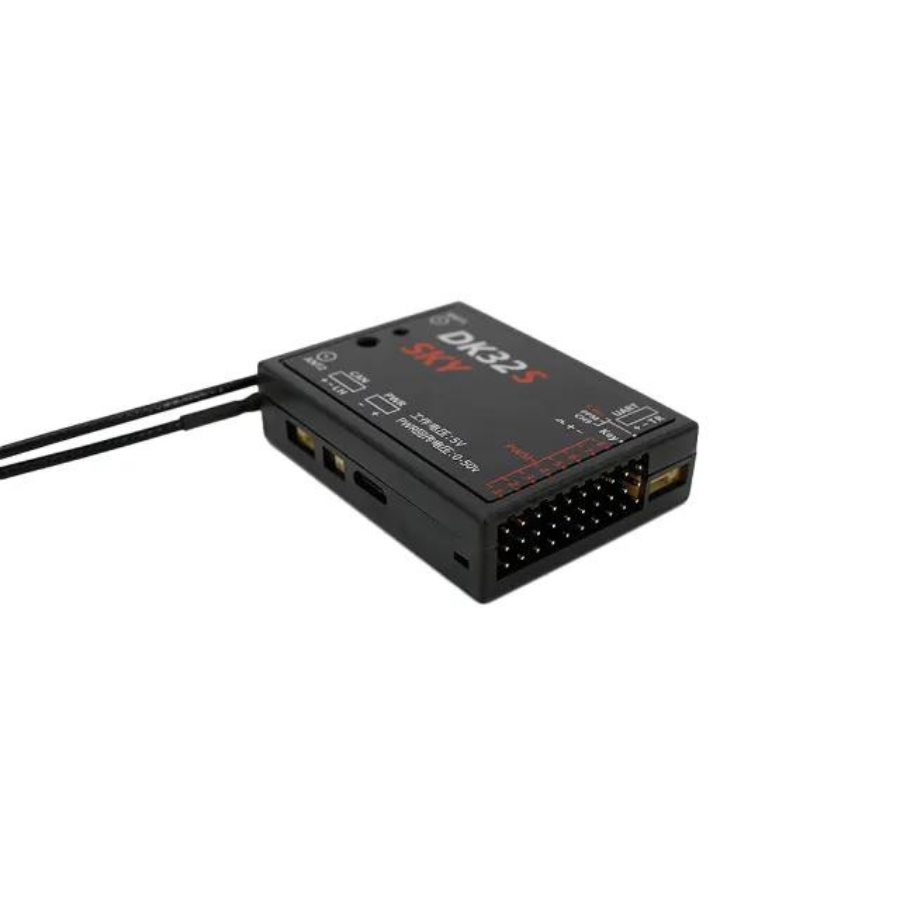

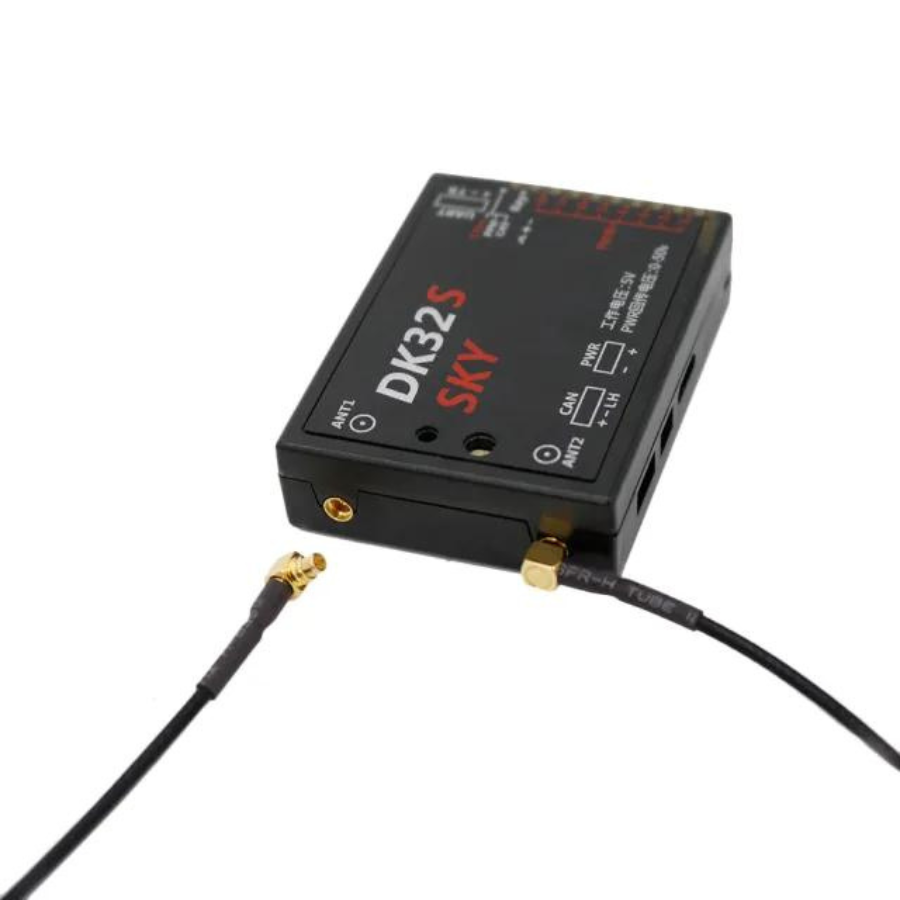

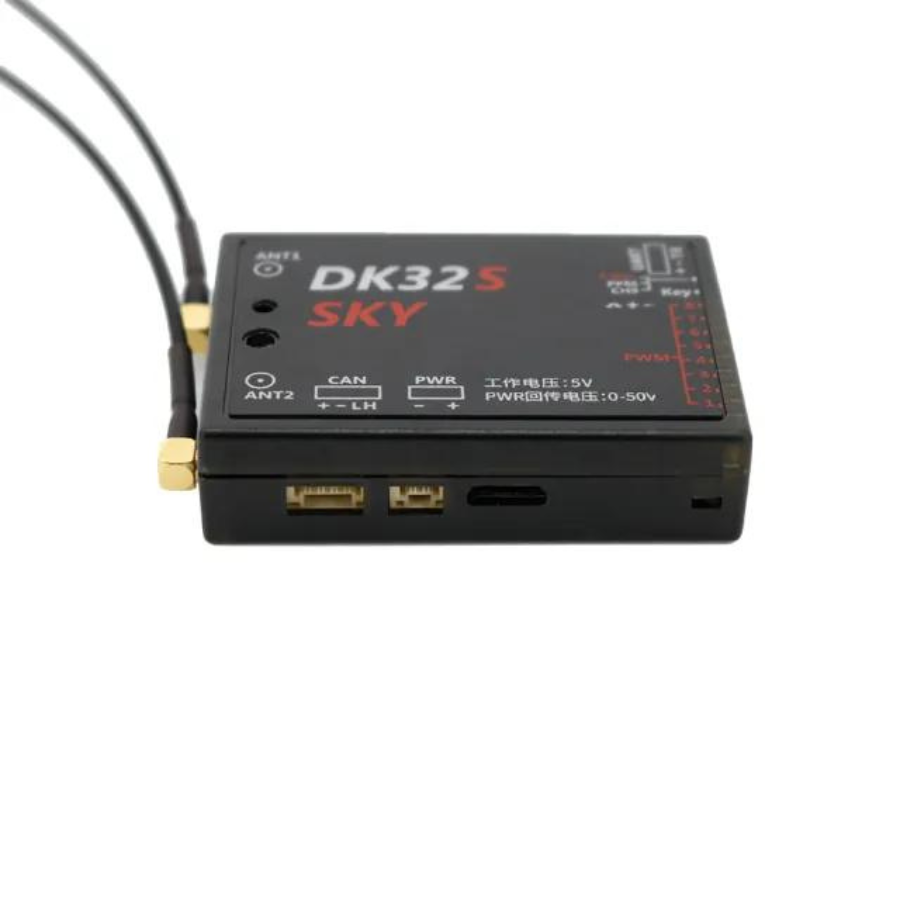

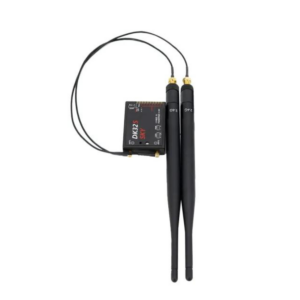

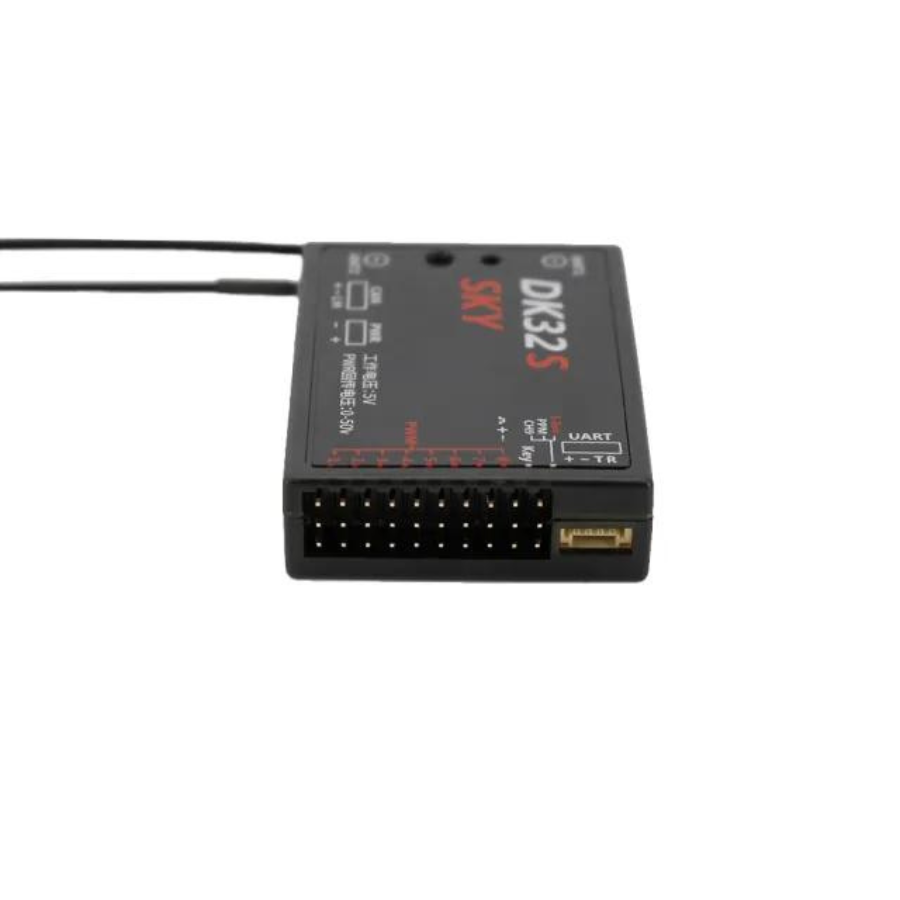

DK32 Receiver with Antenna
A crucial part intended for dependable signal reception in professional drone applications is the SIYI DK32 Receiver with Antenna. This receiver guarantees simple integration into a variety of drone systems with its plug-and-play configuration and compact design, offering a reliable and steady connection between the drone and ground control. The attached antenna contributes to increased coverage for accurate and safe drone operations by improving signal sensitivity and range. The SIYI DK32 Receiver with Antenna, designed for dependability, interoperability, and professional-grade performance, is a crucial tool for establishing secure and seamless communication in a variety of drone scenarios.
Technical Specifications

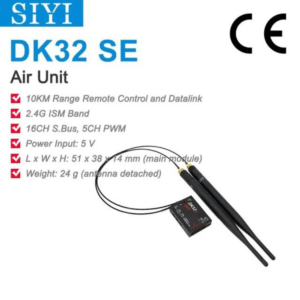

DK32 SE Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
– SBUS & PWM: Pins
– Datalink (to FC): UART 4-Pin
– Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 55 x 45 x 16 mm
Weight (antenna excluded): 50 g
Antenna Gain (standard omni): 5 dBi
Power Input: 14.8 to 50.4 V (4S to 12S)
Working Temperature: -10 to 55℃

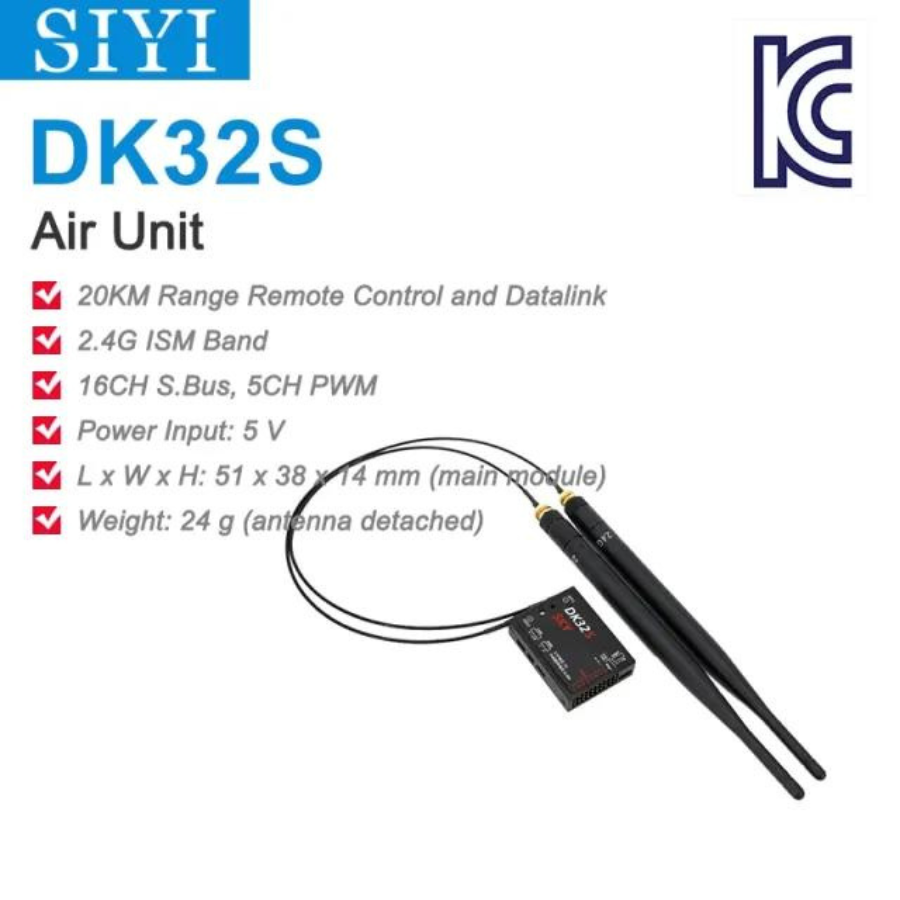

DK32S Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
– SBUS & PWM: Pins
– Datalink (to FC): UART 4-Pin
– Firmware Upgrade: Micro-USB
Dimensions (antenna excluded): 55 x 45 x 16 mm
Weight (antenna excluded): 50 g
Antenna Gain (standard omni): 5 dBi
Power Input: 14.8 to 50.4 V (4S to 12S)
Working Temperature: -10 to 55℃
