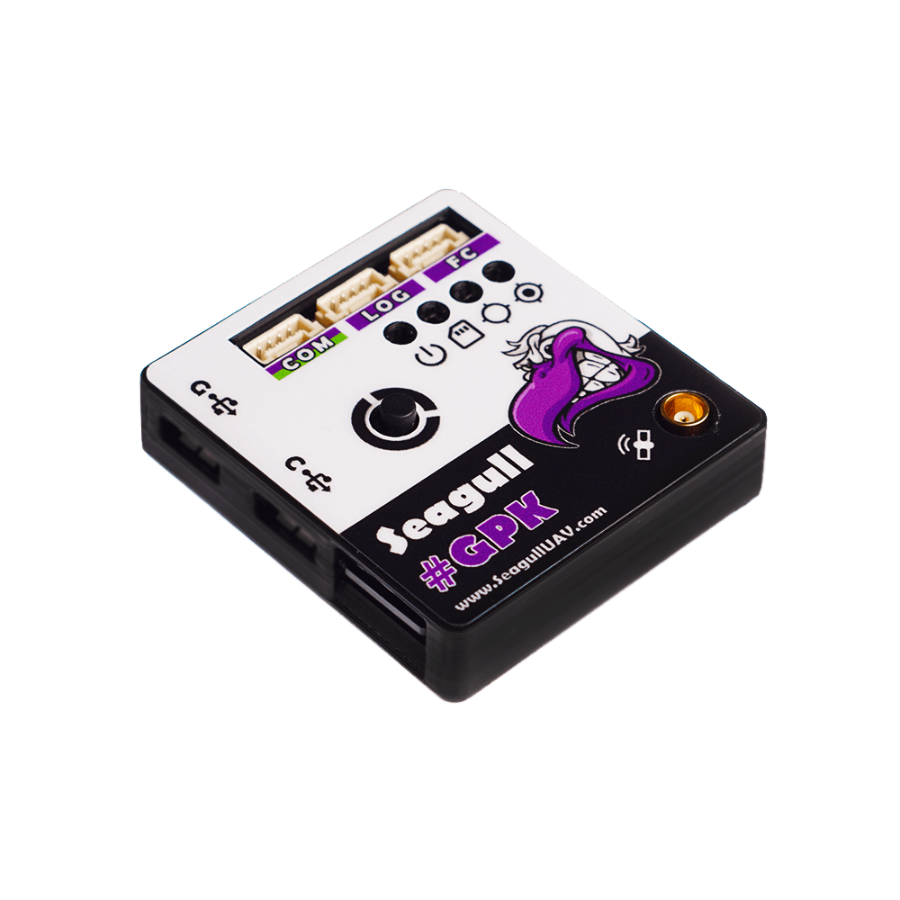

Seagull GPK

High refresh rate – 4Hz MB, 5Hz RTK, 10Hz RAW, 10Hz PVT GNSS
Concurrent GNSS constellations supported – 2
High precision navigation in RTK – up to 2.5 cm!
Internal data logging – RTK / PPK / PVT GNSS
Event logging – Such as shutter release
Two operational modes – BASE or ROVER
Multiple modes – Real Time Kinematic, Post Processed Kinematic, Moving Baseline

1 Year Warranty

After Sales Service

Description

GPK – Extreme Positioning

With the ability to function in numerous modes, Seagull #GPK is a high accuracy single band GNSS receiver that will provide you with the maximum versatility and precision for your UAV platform! When operating in BASE or ROVER configuration, #GPK can log data internally, regardless of whether it is used in RTK or PPK modes. #GPK can be used to capture and monitor data depending on shutter events by integrating with #SYNC2 or other kinds of feedback loops from camera devices!

What it supports

BASE / ROVER ( #GPK can operate either as a BASE or ROVER )
RTK ( Real Time Kinematic navigation rate – up to 8Hz )
PPK ( Post Processed Kinematic navigation rate – up to 10Hz )
MB ( Moving Baseline navigation rate – up to 4Hz )
PVT GNSS ( Non-Kinematic navigation rate – up to 10Hz )

Flight Controllers:

Pixhawk 1
Pixhawk 2.1
Pixracer
APM 2.6
APM 2.5

What you get

1 x Seagull #GPK

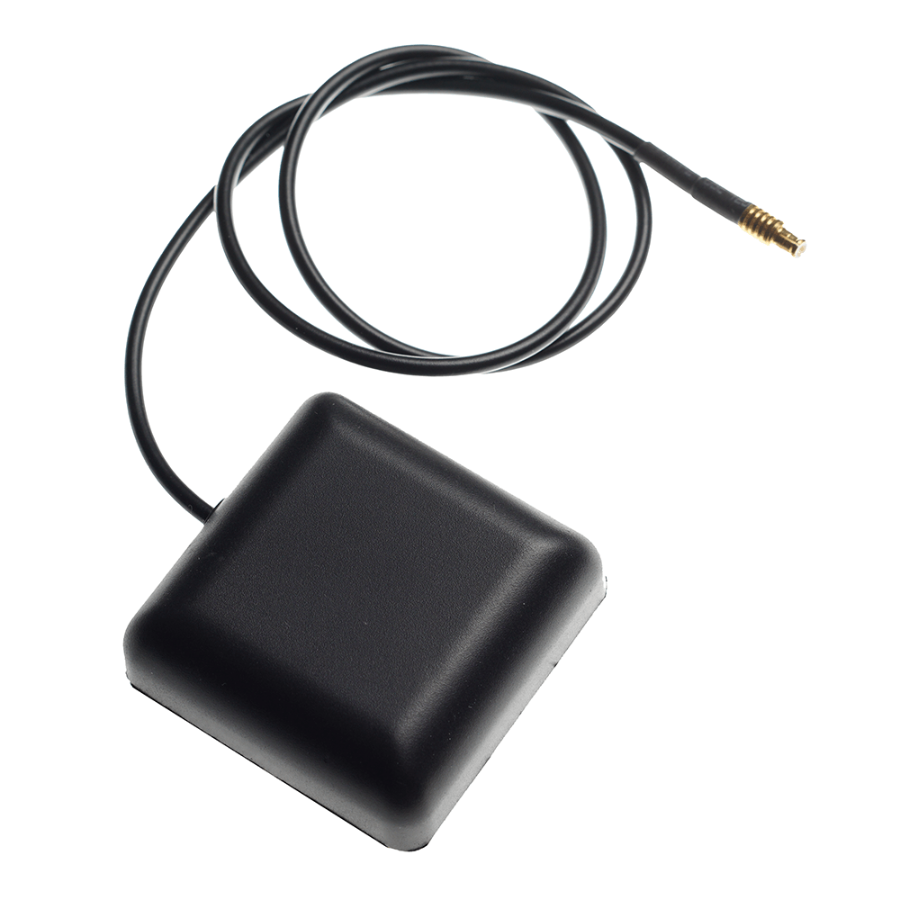

1 x GPS antenna for #GPK
1 x 16GB micro SD card ( w. fullsize adaptor )

Specifications

Ublox NEO-M8P-2 GNSS receiver
Following signals supported: L1C/A, L1OF, B1I (GPS/GLONASS/ /BEIDOU)
Refresh rate: up to 4Hz Moving Baseline, 8Hz Real Time Kinematic, 10Hz RAW (Post Processed Kinematic), 10Hz PVT (UBX Binary)
Supply voltage: 3.9 – 12v (5v recommended – do NOT exceed 12v!)
Current draw: 100mA AVERAGE
Dimensions: 42.7mm x 44.5mm x 10.2mm
Weight: 16g
