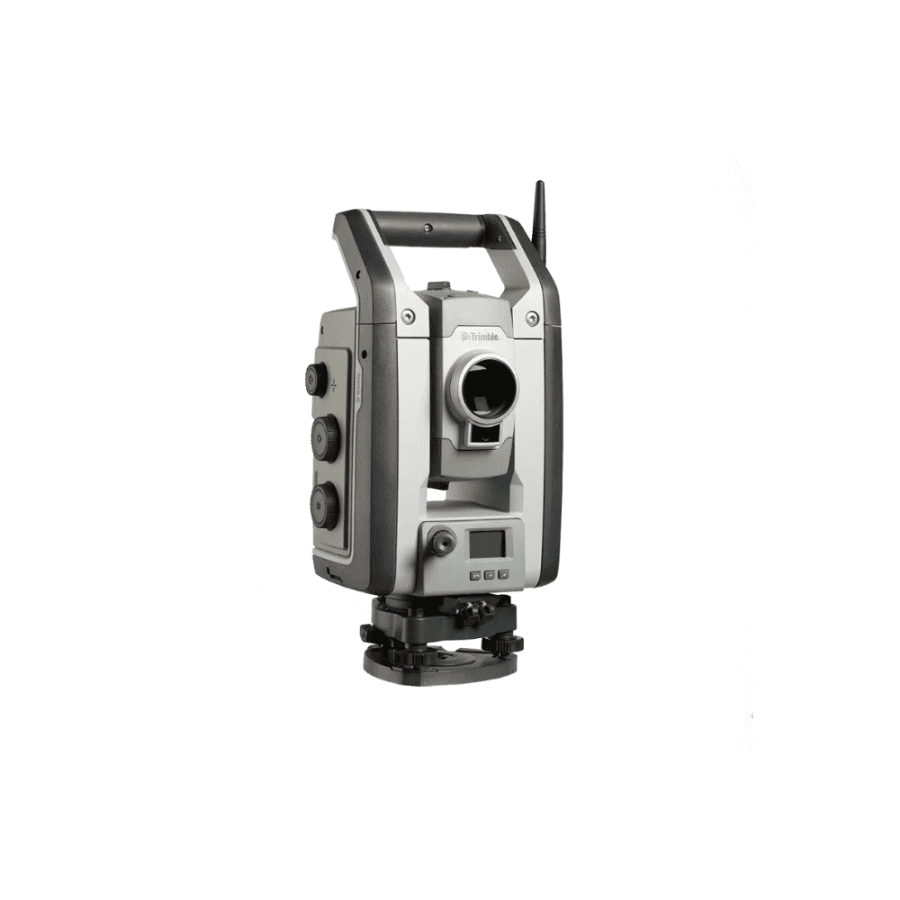

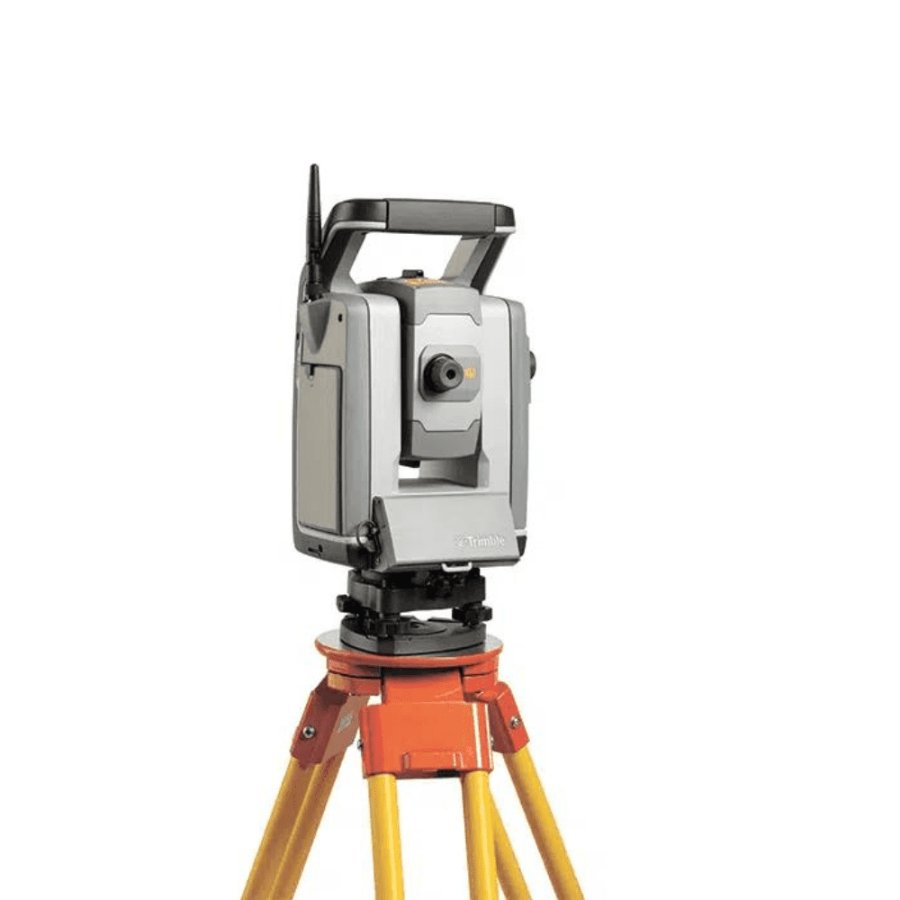

Trimble S9 and S9 HP Robotic Total Station

The Trimble S9 total stations embody the pinnacle of field technology integration, offering unmatched precision and performance. Designed with the most exacting accuracy standards and superior engineering features, these stations represent the finest in technical innovation. They provide users with a robust suite of capabilities tailored for high-precision tasks, ensuring reliable performance under challenging conditions. By combining state-of-the-art technology with top-tier engineering, the Trimble S9 stations deliver exceptional results, making them an ideal choice for professionals seeking the highest level of measurement accuracy and operational efficiency. This integration of advanced technologies and engineering excellence makes the Trimble S9 a leading tool in its field, setting new benchmarks for quality and precision in total station instruments.

Maximum performance, precision, and accuracy

Best field technologies level for Engineering

Trimble S9 total stations integrate the very best field technologies and our most excellent level of accuracy and technical engineering characteristics for the best in precision and performance. You can combine imaging, scanning and studying into one solution, or concentrate on the highest degree of accuracy with options such as LongRange FineLock™ and our Trimble DR High Precision (HP) EDM for applications where accuracy is the priority. Back in the office, trust our strong Trimble Business Center and Trimble 4D office software that will help you process and analyze your data.

Whether your job involves monitoring, tunneling, or some other highly specialized program, the Trimble S9 total station is the solution. It combines all our top field technologies with our highest level of precision and our latest engineering features.

It combines all our top field technology with our greatest level of accuracy and also our most advanced engineering characteristics. The outcome is a high-performance system built for the toughest jobs.

https://www.youtube.com/watch?v=Vl2tJC06j4E

Specialized for Engineering Applications

The Trimble S9 is built for exceptional performance, effective at tackling? Your most demanding applications like monitoring and tunneling, where you need a solution? With optimum rate, precision, and reliability.

Streamlined workflows guide crews through common project types, helping to get the work done faster without distractions. Trimble Access workflows can also be customized to fit your requirements.

Trimble Access field software

Back in the office, Software to assist you to assess, procedure and correct your optical, leveling, and GNSS data in one software solution.

Regardless of what Trimble tools you use in the area, you can trust that Trimble Business Center office applications will help you generate industry-leading deliverables. ? You may rest assured knowing that your equipment is up-to-date and where it should be.

Trimble SurePointTM

Reduce aiming error, avoid costly re-measurement and be confident in your outcomes using Trimble SurePointTM. The Trimble S9 total channels aim and stay on target through wind, managing, and sinkage, actively adjusting for unwanted movement ensuring accurate pointing and measurement each time. With exclusive MultiTrackTM technology and Target ID capabilities, surveyors can choose the type of goal, passive or active, that best matches the job site requirements and be confident that they’ll find and lock to the correct target. Additional engineering-specific features in the Trimble S9 total channels include Trimble Fine lock technology and the 3R laser pointer. Trimble Fine lock detects goals without hindrance from surrounding prisms for high precision applications in close quarters. The Trimble LongRange FineLock alternative extends this functionality. With the Class 3R laser pointer at the Trimble S9 HP, you’re able to visually mark things in the higher array in tunnels or underground mines

Trimble S9 and S9 HP Robotic Total Station

Specifications

General

PERFORMANCE (DR PLUS)
Angle measurement
Sensor type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Absolute encoder with diametrical reading
Accuracy (Standard deviation based on DIN 18723). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5” (0.15 mgon) or 1” (0.3 mgon)
Display (least count). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.1” (0.01 mgon)
Automatic level compensator
Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Centered dual-axis
Accuracy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5” (0.15 mgon)
Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5.4’ (±100 mgon)
Distance measurement
Accuracy (ISO)
Prism mode
Standard1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 mm + 2 ppm
Accuracy (RMSE)
Prism mode
Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 mm + 2 ppm
Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 mm + 2 ppm
DR mode
Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 mm + 2 ppm
Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 mm + 2 ppm
Extended Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 mm + 2 ppm
Measuring time
Prism mode
Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 s
Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 s
DR mode
Standard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5 s
Tracking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.4 s
Measurement Range
Prism mode (under standard clear conditions2,3)
1 prism. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2,500 m
1 prism Long Range mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5,500 m (max. range)
Shortest range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.2 m
DR mode
Good
(Good visibility,
low ambient light)
Normal
(Normal visibility, moderate
sunlight, some heat shimmer)
Difficult
(Haze, object in direct sunlight,
turbulence)
White card (90% reflective)4 1,300 m 1,300 m 1,200 m
Gray card (18% reflective)4 600 m 600 m 550 m
Reflective foil 20 mm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000 m
Shortest possible range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 m
DR Extended Range Mode
White Card (90% reflective)4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2200 m

FAQs for Trimble S9 and S9 HP Robotic Total Station

What is the difference between the Trimble S9 and S9 HP models?
- The Trimble S9 is designed for general surveying work, while the S9 HP (High Precision) model provides enhanced accuracy and is better suited for tasks requiring the highest precision, such as engineering and monitoring applications.
What accuracy levels do the Trimble S9 and S9 HP offer?
- The Trimble S9 offers angular accuracy options of 1″, 2″, and 5″, while the S9 HP offers enhanced angular accuracies of 0.5″ and 1″. Both models provide exceptional distance measurement precision.
Can the Trimble S9 models be used for remote monitoring?
- Yes, both the Trimble S9 and S9 HP are equipped with features suitable for continuous monitoring of structures and terrain, supporting applications in engineering, construction, and geological monitoring.
What software is compatible with the Trimble S9 series?
- The Trimble S9 series is compatible with Trimble Access and Trimble Business Center software, providing comprehensive solutions for data collection, processing, and analysis.
How do the Trimble S9 series handle environmental conditions?
- Both models are built to withstand harsh environmental conditions, featuring robust construction and compliance with environmental standards for dust and water resistance.
What type of connectivity options are available with the Trimble S9 series?
- The S9 series supports Wi-Fi, Bluetooth, and cable connections, allowing for seamless communication with data collectors and other devices in the field.
Is there any specific training required to operate the Trimble S9 series?
- While the S9 series is user-friendly, Trimble offers training programs and online resources to help users maximize the potential of their equipment, covering basic operations to advanced functionalities.
What type of power supply does the Trimble S9 series use?
- The Trimble S9 series operates using rechargeable lithium-ion batteries, designed to support extended periods of fieldwork with reliable power performance.
Can the Trimble S9 series be integrated with other surveying equipment?
- Yes, these total stations can be integrated with other Trimble sensors and systems, allowing for versatile configurations tailored to specific project needs.
Where can I purchase the Trimble S9 or S9 HP and what is the typical warranty?
- The Trimble S9 series can be purchased through authorized Trimble distributors. The standard warranty covers manufacturing defects and varies by region, with options to purchase extended warranty and support packages.
