Leica BLK360 Laser Scanner

  • Smallest and lightest laser scanning system in the world
    • Weight: 2.2 lbs, Size: 6.5” tall x 4” in diameter
    • Less than 3 minutes for a full 360° reality capture
    • Speed of capture 360,000 points per second
    • Range 60m radius
    • 3-D image point cloud available in real time
    • Selectable resolution settings
    • Calibrated full spherical image, HDR, LED flash support
    • Control all aspects of the reality capture process remotely
    on Cyclone Field 360 app for Apple or Android
    • Automatically register and visualize scan data in the field
    • Mark up, tag, and collaborate on scans while on the job site
    • Reduce rework requests and share reality data remotely
    IP54 Liquid & Dust Protection
1 Year Warranty
After Sales Service

Description

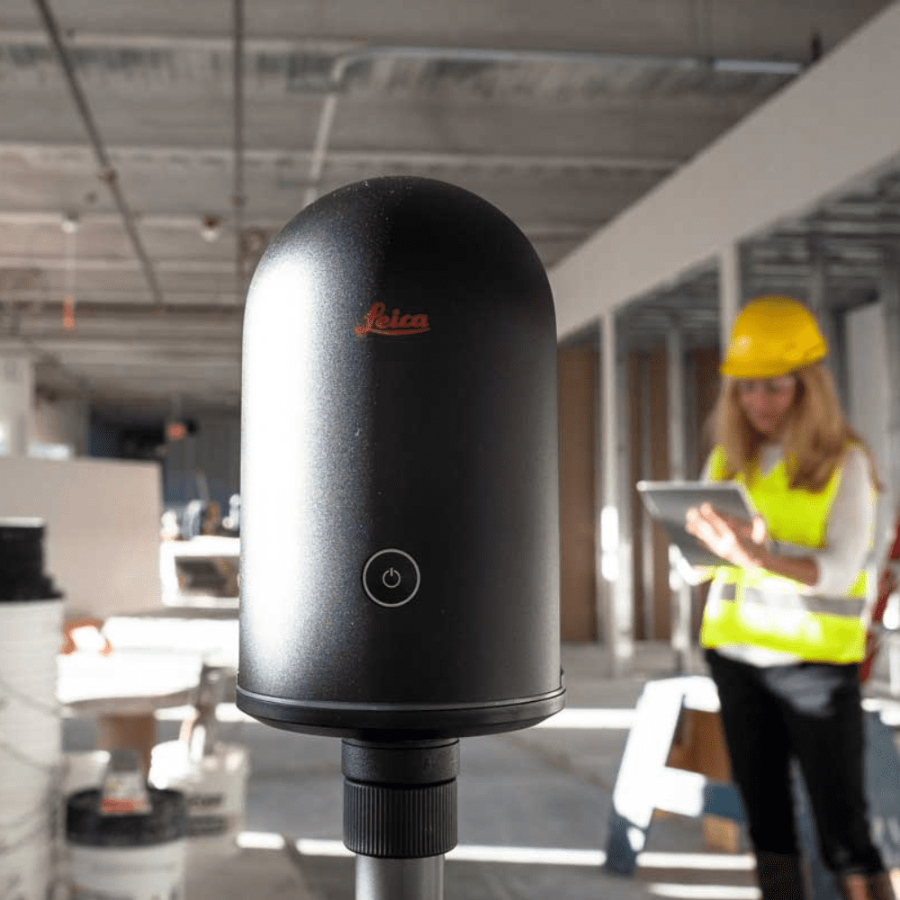

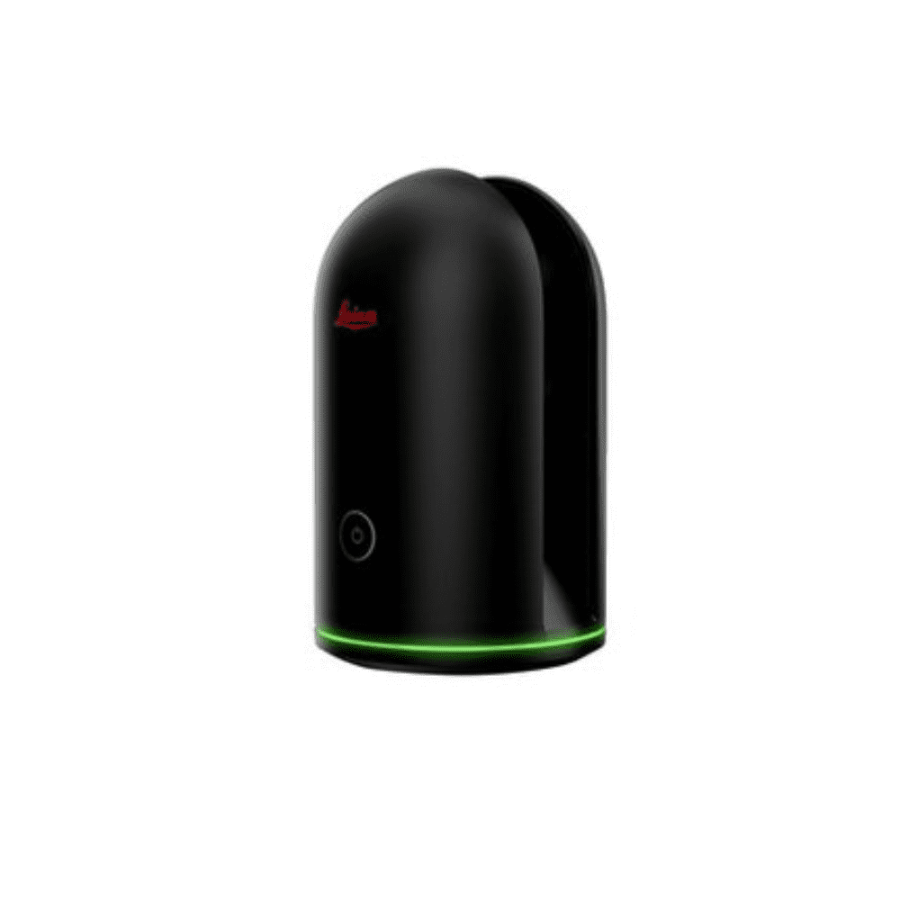

Leica BLK360 Laser Scanner

The new BLK360 improves upon everything users loved about the BLK360 G1. A 360-degree, panoramic image and full-dome scan now take less than 30 seconds, making it the fastest imaging laser scanner out there. And it has better image quality, data visualization, and point cloud colorization, along with a new USB-C port for speedy data transfer All in a package that’s 20% smaller than its predecessor.

Four scan settings capture data in 7, 13, 30, or 75 seconds at 680,000 points per second. And our patented Visual Inertial System (VIS) uses onboard cameras to track the device’s position for in-field pre-registration of captured data, significantly speeding up workflows and automatically combining scan setups on-site.

Fully compatible with Leica Geosystems Cyclone suite of Reality Capture software, the new BLK360 represents a new leap forward in fully automated, ultrafast, detailed laser scanning.

Specifications

Speed

On-the-fly image and point cloud processing in the field.

Portability

Flexibility to scan wherever, whenever with the small lightweight scanner that fits into a messenger bag.

Ease of Use

Push-button scanning that automatically stitches and registers in the mobile version of ReCap Pro.

Cloud Connectivity

Better collaboration and virtualisation with cloud sync.

Simplified Data Collection

Two-in-one 360º image documentation and laser scan data.

Interoperability

Reality capture data connectivity with Autodesk’s design solutions.

In The Box

Package includes

• BLK360 Laser Scanner (840440)
• BLK360 Transport Hood (850555)
• GEB212 Lithium-Ion Battery (772806)
• GKL312 Battery Charger (852413)
• GEV192-9 AC/DC Adapter for GKL, EU, NA, JP, UK & AUS (851476)
• Car-Adapter for GKL, 1m (738242)
• BLK360 Quick Guide (852401)
• Leica BLK USB Documentation Card (854230)
• Leica Cyclone FIELD 360 App Info Sheet (890820)
• Information for Customer, all language (721830)
• BLK360 packaging (853683)
• BLK360 CCP Basic 1yr (6016829)

FAQs for Leica BLK360 Laser Scanner

1. What is the Leica BLK360 Laser Scanner?

The Leica BLK360 is a compact, portable laser scanner that captures the world around it in full-color 3D. It’s designed for professionals needing to scan complex environments with precision and speed, offering a blend of performance, quality, and versatility.

2. How does the Leica BLK360 work?

The BLK360 uses laser technology to measure distances and angles from the scanner to surfaces in its surroundings. It combines these measurements with panoramic photography to create detailed, color 3D models of the scanned environment.

3. What are the key features of the Leica BLK360?

Key features include its lightweight and compact design, one-button operation for simplicity, 360-degree panoramic imagery, thermal imaging capabilities, and integration with various Leica and third-party software for data processing.

4. What kind of accuracy can I expect from the BLK360?

The BLK360 delivers high-precision measurements, with accuracy levels depending on conditions and settings. Typically, you can expect millimeter-level accuracy for distances up to 60 meters.

5. How long does it take to perform a scan with the BLK360?

A single scan can take as little as 3 minutes to complete, though times may vary based on the desired resolution and range settings. Complex environments or higher quality settings may require additional time.

6. Can the BLK360 be used outdoors?

Yes, the BLK360 is designed for both indoor and outdoor use. However, direct sunlight and extreme environmental conditions can affect the quality of the scans and the device’s operational efficiency.

7. What software is compatible with the BLK360?

The BLK360 is compatible with a range of software solutions, including Leica Cyclone, Autodesk ReCap, and other CAD and BIM applications. This allows users to easily integrate scan data into their existing workflows.

8. How do I transfer data from the BLK360 to my computer?

Data can be transferred via Wi-Fi or by using a USB cable to connect the scanner directly to your computer. The BLK360 also supports cloud-based storage and transfer solutions for efficient workflow integration.

9. What is the battery life of the BLK360, and how long does it take to charge?

The BLK360 has a battery life of up to 4 hours under typical use. Recharging a fully depleted battery takes approximately 3 hours.

10. Where can I purchase the Leica BLK360, and what is the cost?

The Leica BLK360 can be purchased from authorized Leica Geosystems distributors and select resellers. Prices may vary based on the package, accessories, and software options you choose. For the most accurate pricing and availability, contact a local distributor or visit the Leica Geosystems website.
