Description

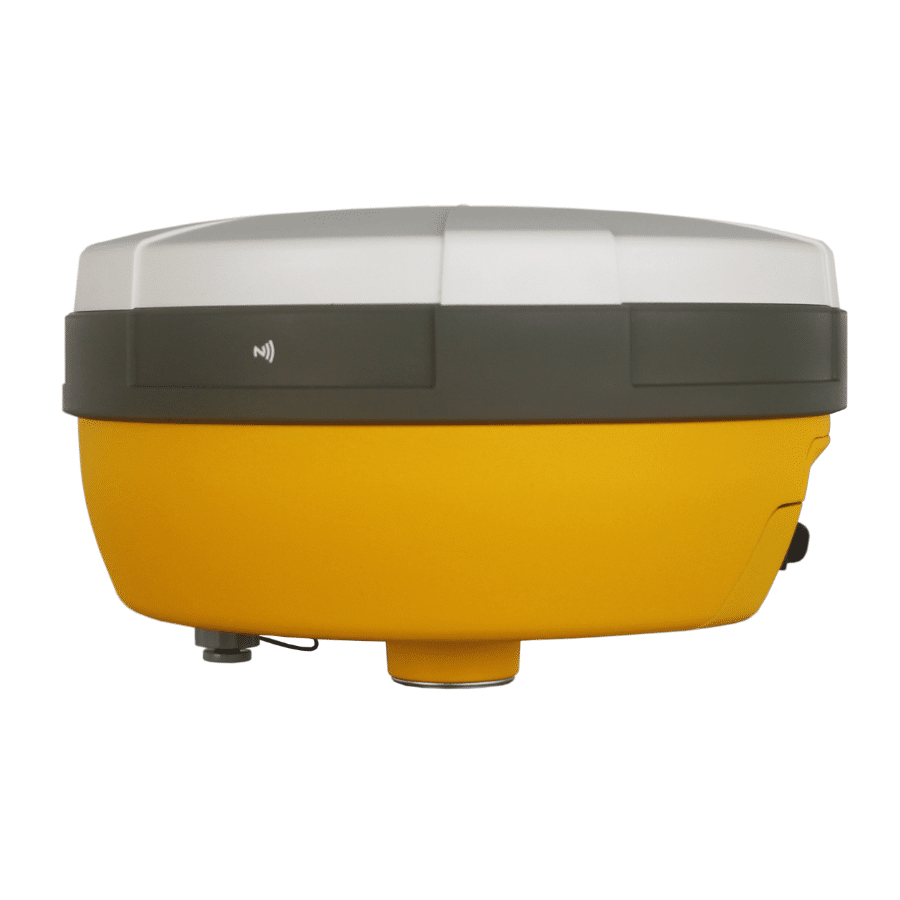

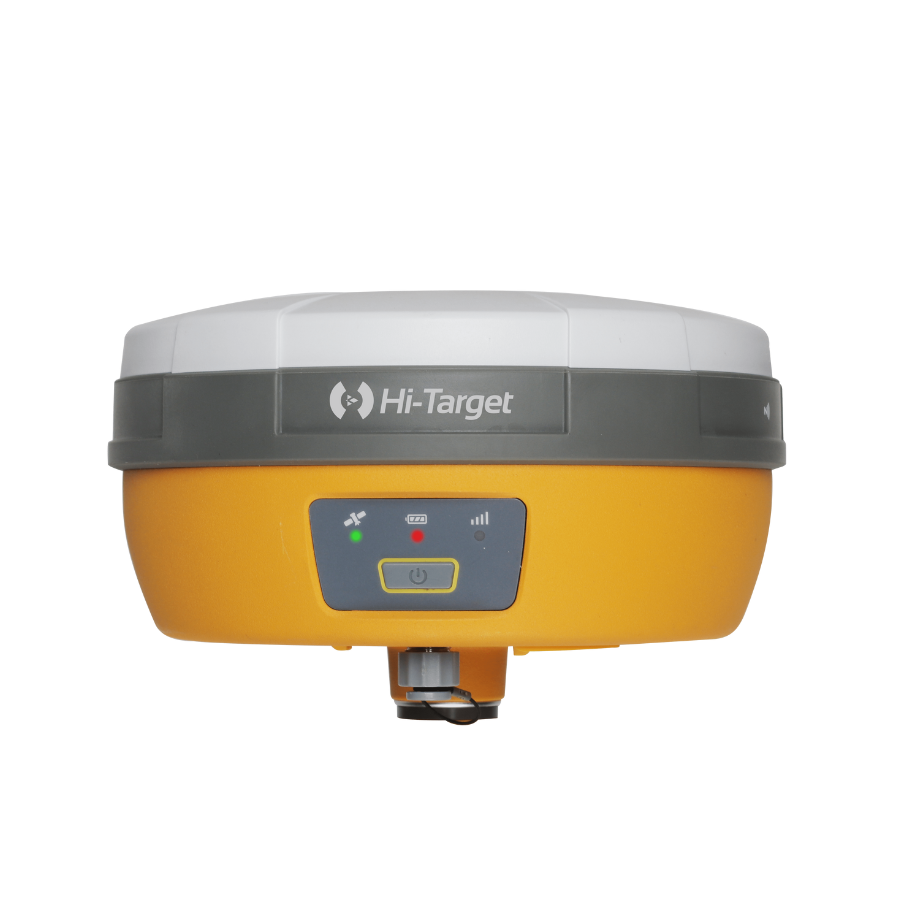

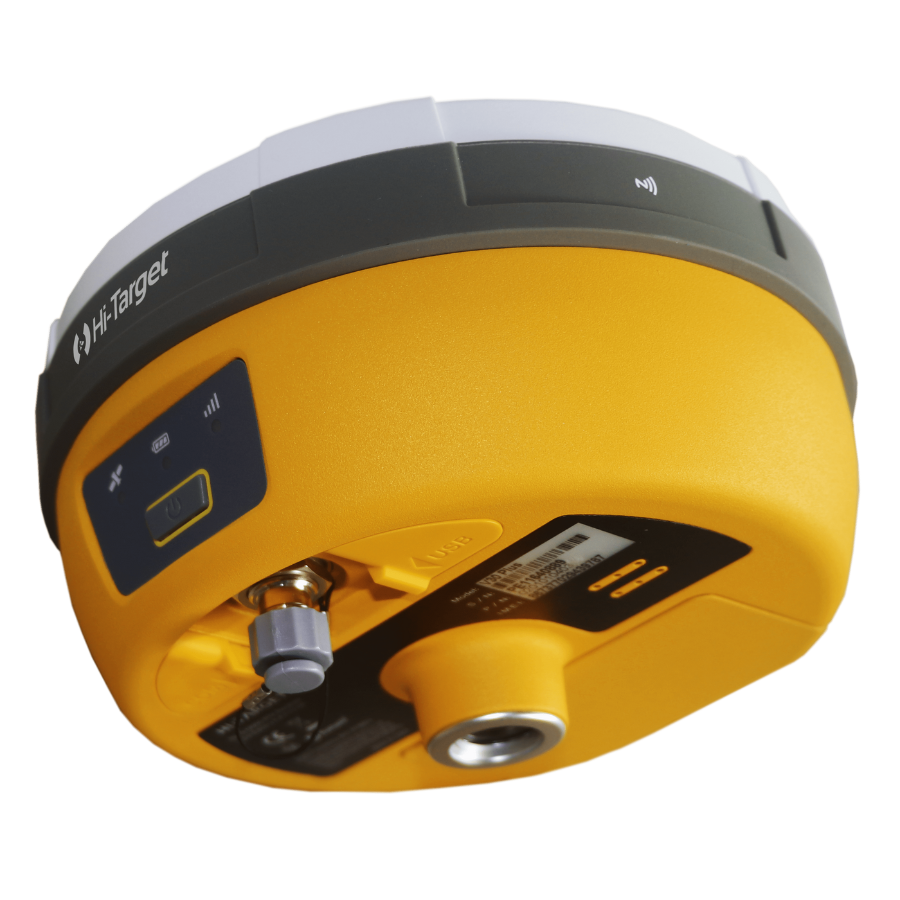

V30 Plus GNSS RTK System

Equipped with an advanced multi-constellation GNSS engine and featuring a compact, industrial-grade design, the V30Plus offers a versatile solution for GNSS tasks. Its smaller dimensions enhance portability without sacrificing functionality. The device integrates seamlessly with WebUI, WIFI, Bluetooth, and a 4G module, facilitating easier and quicker data management and transmission. Additionally, the V30Plus comes pre-loaded with Hi-Target’s professional field surveying software, enhancing its utility in diverse surveying scenarios. With a battery life that supports up to 10 hours of continuous operation, the V30Plus is designed to meet the demands of efficient and convenient field surveying, providing users with a reliable tool that adapts to various survey environments.

Key features:
1)High technology GNSS engine
2) Support GPS, GLONASS, BDS, GALLILEO
3) Rugged design and user-friendly functions
Communications:
1)3G
Built-in 3G module,support WCDMA/HSDPA/EDGE/GPRS
Network RTK (via CORS) range 20-50km
2)HI-TARGET internal UHF radio (standard)
Frequency :460 MHz with 116 channels
Transmitting power :0.1W, 1W, 2W adjustable
Transmitting Speed :Up to 19.2Kbps
Working range: 3~5Km typical, 8~10km optimal
3)HI-TARGET External UHF radio (standard)
Frequency : 460 MHz with 116 channels
Transmitting power : 5W, 10W, 20W, 30W adjustable
Transmitting Speed : Up to 19.2Kbps
Working Range : 8~10Km typical, 15~20km optimal
Support other external communication device
For example, external GSM modem
