Hi-Target iRTK5 GNSS RTK System

Next-Generation GNSS Engine
Hi-RTP™ Global PPP Service
Hi-Fix Technology
Unlimited Communication

1 Year Warranty

After Sales Service

Description

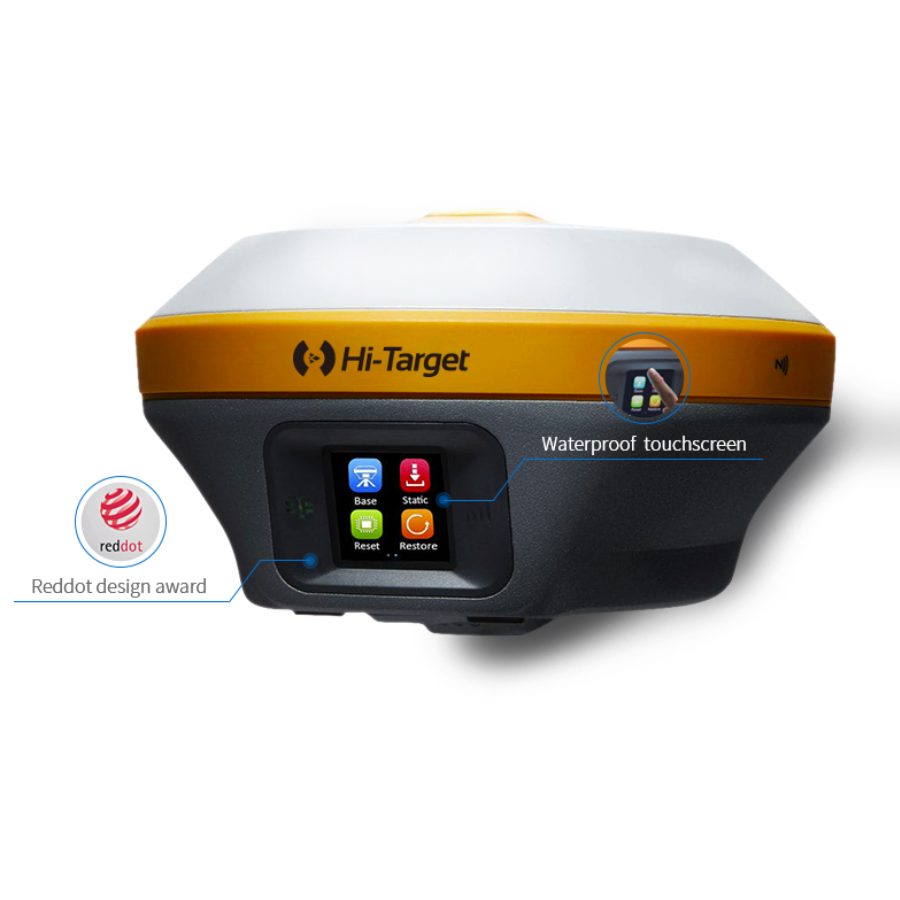

iRTK5 GNSS RTK System

The iRTK5 GNSS receiver stands at the forefront of technological advancement in the field of geospatial surveying. It integrates a next-generation GNSS engine, boundless communication technologies, and pioneering design elements, establishing itself as a premium, scalable solution for GNSS RTK surveying. This cutting-edge receiver is tailored to meet the rigorous demands of industry professionals, delivering unparalleled precision and reliability. Its advanced features facilitate a wide range of applications, ensuring users achieve the highest accuracy in data collection. The iRTK5’s combination of innovative technologies and user-centric design makes it a leader in providing top-tier surveying solutions, thereby enhancing productivity and efficiency in various surveying contexts.

iRTK5 GNSS RTK System

The iRTK5 GNSS receiver harnesses a next-generation GNSS engine, advanced communication technologies, and groundbreaking designs to offer a top-tier GNSS RTK surveying solution. As a high-quality, scalable device, it sets industry standards with its robust performance and versatility. Ideal for demanding field conditions, the iRTK5 ensures precise and reliable data collection, making it a leader in surveying technology. Its innovative features cater to the needs of professionals in remote or challenging environments, significantly enhancing surveying accuracy and efficiency.

Hi-RTP Global PPP Service

The Hi-RTP global correction service by Hi-Target has expanded its correction source, enabling users to operate in rural and remote areas worldwide without the need for a base station. This enhancement significantly broadens the usability of the service, allowing for precise positioning and data collection in locations previously challenging to access. The global reach and flexibility of this service make it an invaluable tool for professionals needing reliable survey capabilities across various geographies, improving productivity and operational efficiency in the field.

Revolutionary Tilt Survey with Built-in IMU

Customers experience a 20% boost in work efficiency with the revolutionary calibration-free tilt surveys that eliminate the need for centering. Upon arriving at survey points, operations can begin immediately, streamlining the surveying process significantly. This advanced feature contrasts sharply with traditional bubble leveling techniques, providing a faster and more efficient method. It enhances productivity by allowing surveyors to complete tasks quicker and with less setup time, making it an ideal solution for projects requiring rapid and precise measurements in various field conditions.

Specifications

Power

Operating power: min. :

Operating power: max. :

Typical consumption :

4.4

Internal power supply:

6800mAh lithium-ion rechargeable and remove battery

Operating time with internal power supply [hr]

External power supply:

6-28V DC external power input（5-pin port） with over-discharge protection

Rechargeable with (auto)battery:

Yes

Performance

Max. simultaneous tracked channels:

336

Tracked satellite signals:

BeiDou: B1, B2, B3 GPS: L1C/A, L2C, L2E, L5 GLONASS: L1C/A, L2C/A, L3 CDMA GALILEO: E1, E5A, E5B, E5AltBOC, E6

SBAS differential signals:

IRNSS: L5 QZSS: L1 C/A, L1 SAIF, L1C, L2C, L5, LEX SBAS: L1 C/A, L5 Support the PPP service

Type of measurements:

C/A; P code; CP

RTK Network Compatibility:

Yes

MRS functionality:

Yes

No. channels:

336

Communication: Protocols

RTCM standards for differential data:

RTCM2.X, RTCM3.0, RTCM3.2

CMR standards for differential data:

CMR, CMR+, sCMRx input and output

NMEA output format:

NMEA 0183

L-Band Compatible:

Configuration method:

Industrial OLED color screen (240 * 240); Capacitive touch, waterproof, supports glove operation.

Recording

Memory medium:

Circulating 16GB internal storage

Data capacity [MB]:

16384

Type of data (on board recording):

GNS and Rinex

Data input:

CMR, RTCM2.X, RTCM3.0, RTCM3.2

Environment

Operating temperature: min. [°C]:

-40

Operating temperature: max. [°C]:

Humidity resistance:

100%, condensing

Water sand and dust proof:

IP67

Shock and vibration proof:

Designed to survive a 2m natural fall onto concrete
