Description

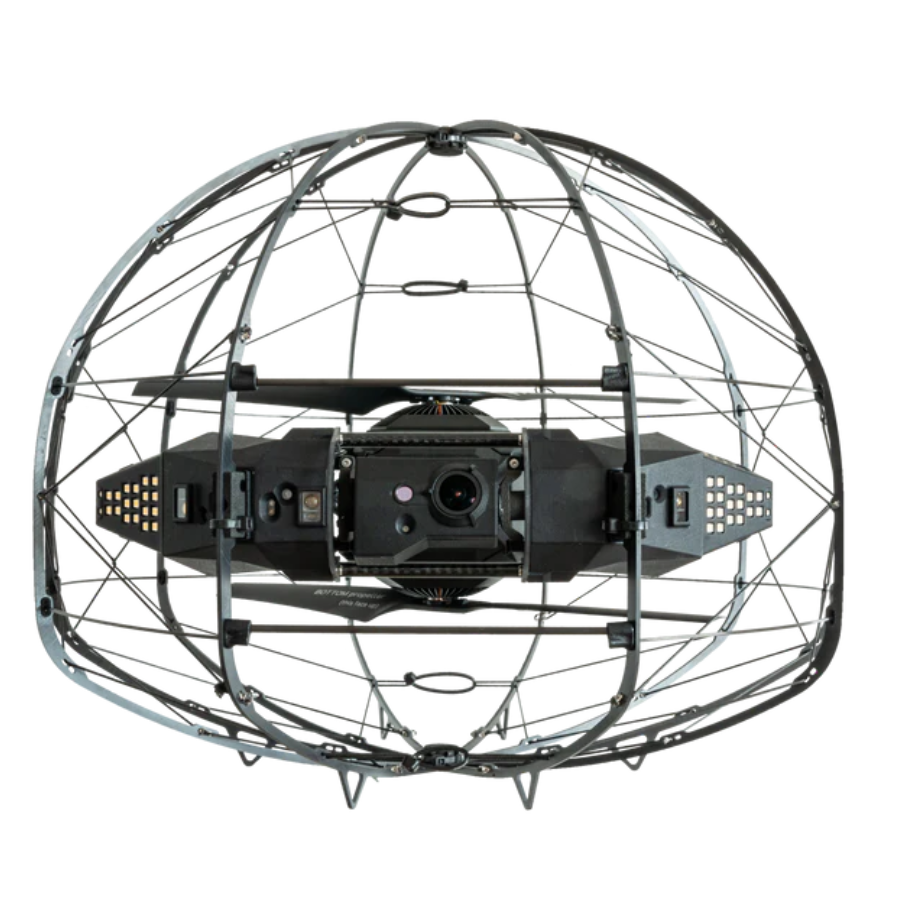

Introducing the Flybotix ASIO Pro
The Flybotix ASIO Pro is a versatile indoor inspection drone engineered for industrial environments where safety and high performance are essential. It boasts advanced features such as 24-minute flight time, a 4K camera, infrared imaging, and a protective cage, making it ideal for missions in confined or hazardous spaces. Its unique coaxial rotor system and low-noise design enable stable operation in challenging conditions, reducing risks during inspections. The ASIO Pro is especially valuable in industries like oil and gas, construction, and energy for applications requiring detailed visual assessments in tight and hard-to-reach areas.
Features
| Feature | Description |
|---|---|
| Flight Time | Up to 24 minutes |
| Camera | True 4K (3840×2160) + 12MP photo resolution |
| Thermal Imaging | Infrared sensor from FLIR |
| Lighting | Over 100 LEDs, 10,000 lumens for dark spaces |
| Propulsion System | Dual coaxial, tilting propellers for redundancy |
| Protective Cage | Ensures safe operation in tight spaces |
| Stabilization | No GPS required, uses 12+ sensors for stability |
| Gimbal | ±90° vertical gimbal for versatile camera angles |
| Video Streaming | Live HD streaming and onboard storage |
| Noise Level | 80dB at 1 meter for safer operation |
Use Cases
Oil and Gas Inspection
The ASIO Pro is ideal for inspecting oil tanks and pipelines, where confined spaces and hazardous environments require a drone with precise stability, long flight time, and the ability to identify thermal issues using its infrared camera.
Building and Infrastructure Inspections
In construction, the ASIO Pro helps inspect large buildings, bridges, and other infrastructure. Its protective cage and 4K camera ensure that all areas are inspected without risk of damage, even in tight, obstructed spaces.
Energy and Utility Inspections
The ASIO Pro is perfect for inspecting power plants, transformers, and energy grids. Its ability to fly for extended periods while providing high-definition imagery and thermal scans allows for proactive maintenance and efficiency monitoring.
Emergency and Safety Inspections
The low noise and advanced flight control features make the ASIO Pro a valuable tool in emergency situations, allowing first responders to safely and effectively assess damage in urban or industrial environments without disturbing sensitive areas.
Specifications
| Flight time: | up to 24 minutes |
| Weight: | 1kg (2.2 lbs) |
| Dimensions: | Ø395mm, H295mm (Ø15.6in, H11.6in) |
| Max transmission distance: | outdoor: up to 16km (direct line of sight); indoor: tested from basement to 2nd floorLED |
| Lighting: | max 10K lumen, dimmable and adjustable |
| Noise: | level80dB @ 1m; 70dB @ 5mRGB |
| Camera: | true 4K @ 30 fpsIR |
| Camera: | 160x120px @ 9fps |
| Pictures resolution: | 0.2mm/px @ 30cm |
| Gimbal system: | ±90° (damped) |
| Advanced algorithms: | Autopilot; Wall-lock; Wall-scan; Obstacle repulsion; Safety slowdown; Rewind; Self-righting; Auto-landing |
| Operating temperature range: | 0°C to 50°C (32°F to 86°F) |
