Description

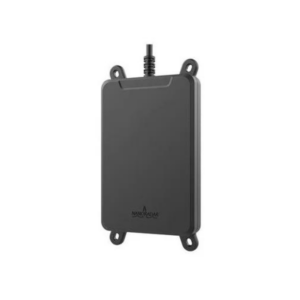

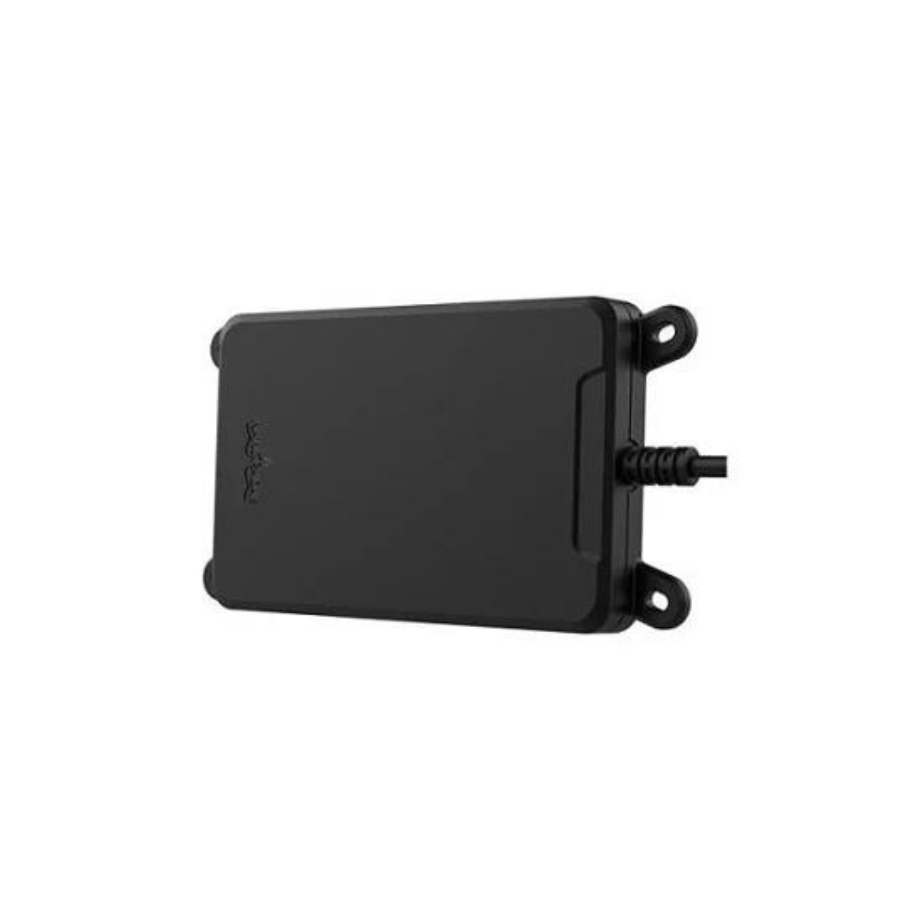

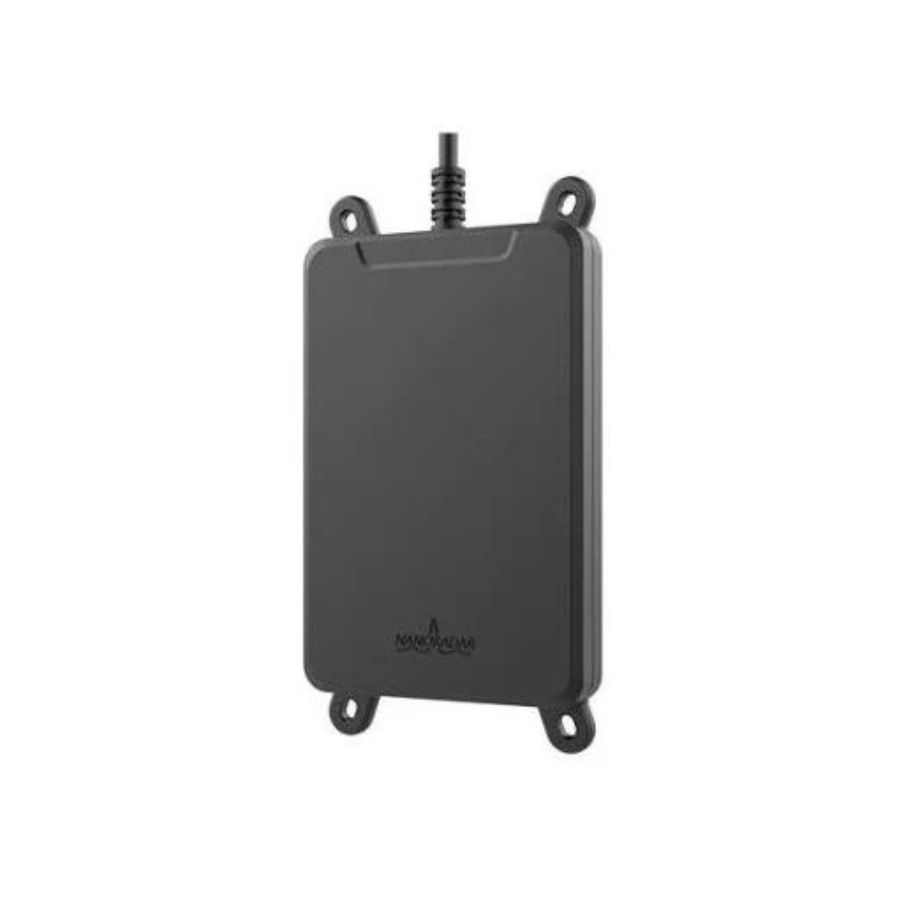

NRA24

Hunan Nanoradar Science & Technology Co., Ltd. is responsible for the development of the K-band radar altimeter known as the NRA24. It uses the 24GHz Band and has the benefits of accurate measuring to within 2 centimeters, a compact size, high sensitivity, light weight, easy integration, and reliable performance. These characteristics allow it to satisfy the application requirements in fields such as unmanned aerial vehicles (UAVs), helicopters, tiny airships, and other fields. The performance of its products has been acknowledged by a variety of partners.

Features

Work in 24GHz Band for the detection of moving targets
Adaptable for grasslands and other environment
With UART interface
With measurement accuracy of 2cm
With a measurement range of 50m

Package Includes

1 x 24GHz Alimeter Radar NRA24

Specifications

Supply voltage	5 – 20 V
Transmit Band	24.00 – 24.20 GHz
Output power(EIRP)	25 dBm
Modulation Type	FMCW
Update Rate	50Hz
Power Consumption	1.4 – 1.8 GHz
Communication Interface	Micro USB/UART
Distance-measuring range	0.1 – 50 m
Ranging accuracy	±0.02 m
Shipment Weight	0.129 kg
Shipment Dimensions	16 × 16 × 2 cm
