Description
PDB

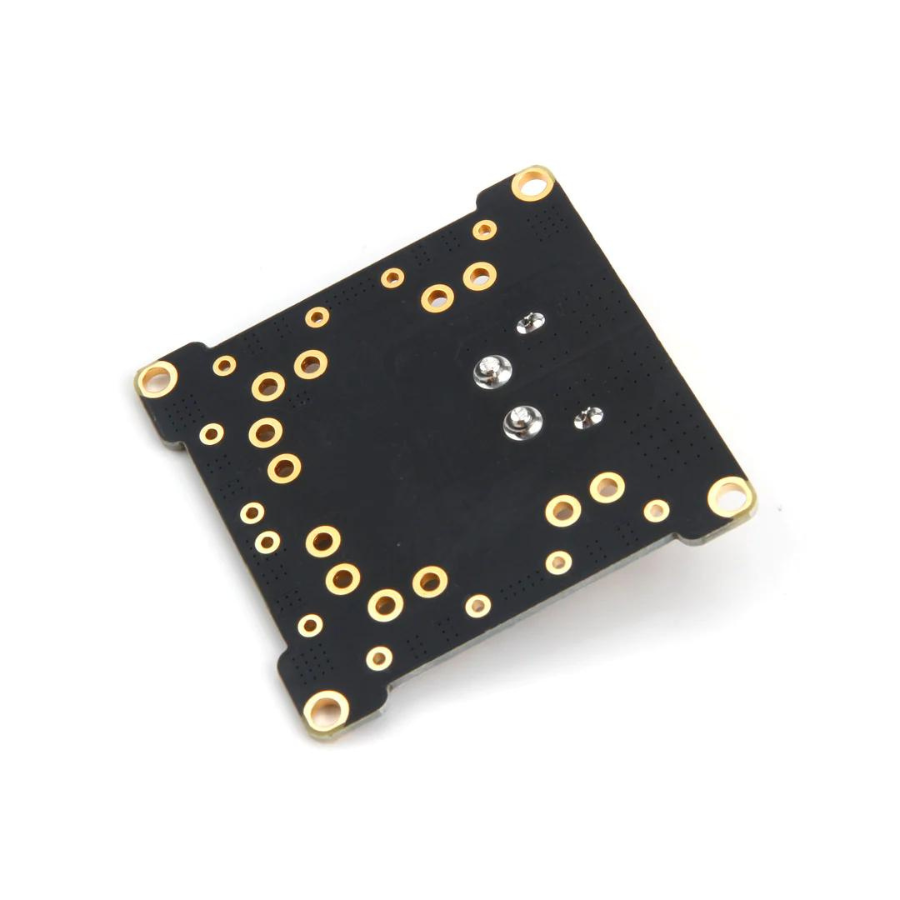

Your drone’s effective power distribution system is the HOLYBRO Power Distribution Board (PDB). Its superior design guarantees dependability and longevity in drone applications. This PDB is a flexible option for your drone setup because it provides many power output ports for different components. It is simple to install and streamlines the integration process, leading to a neat and orderly wire arrangement that maximizes the performance of your drone. This power distribution block (PDB) is an essential tool for improving your drone’s power management and flying experience. It features short-circuit safety and the reliable HOLYBRO brand name.
This Power Distribution Board (PDB) is used for PM02, PM02D Power Module. Power modules with build-in power distribution such as the PM03, PM06, PM07 would not require this PDB.

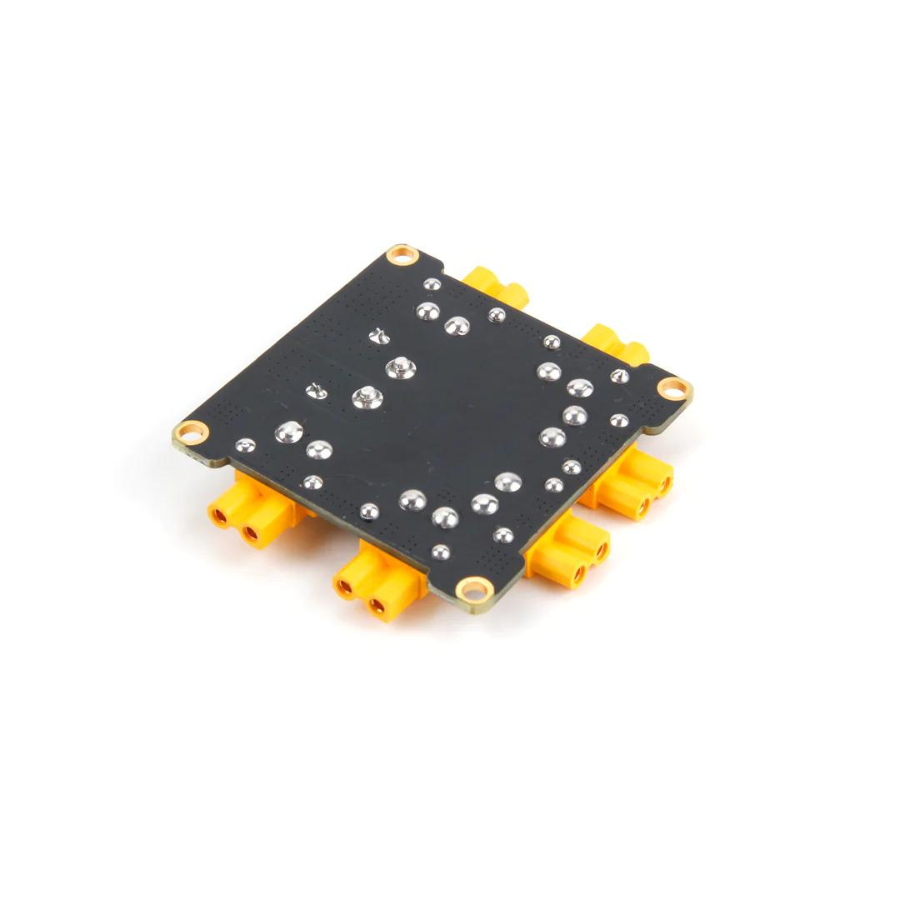

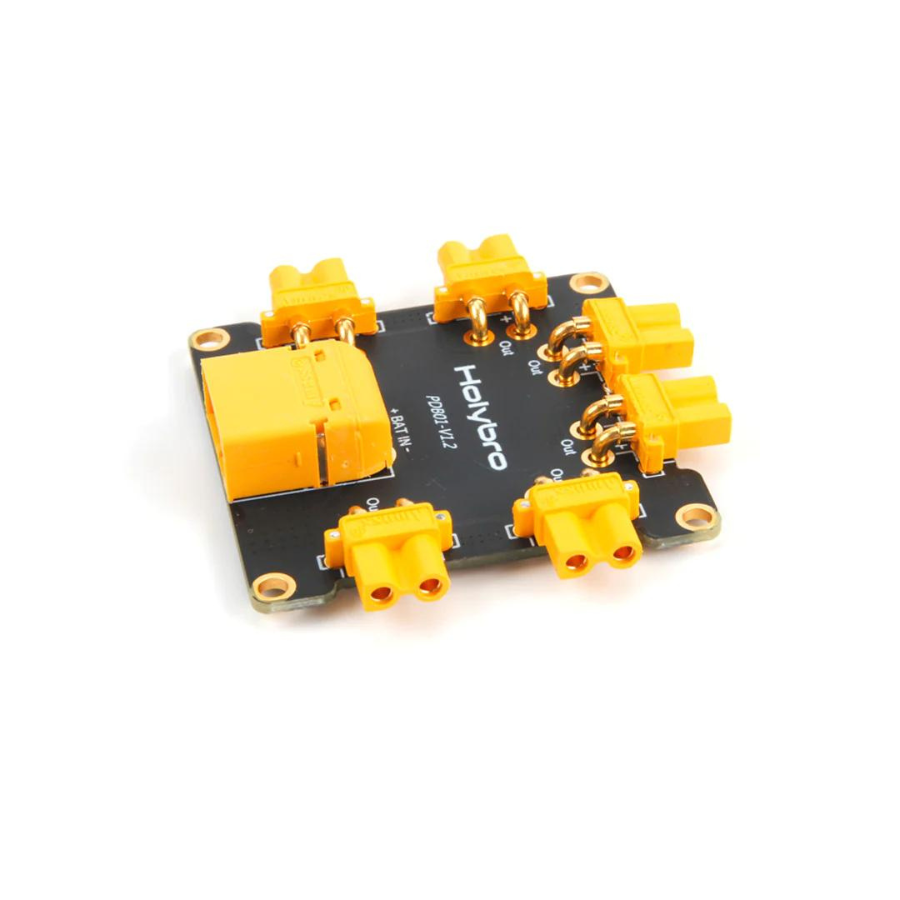

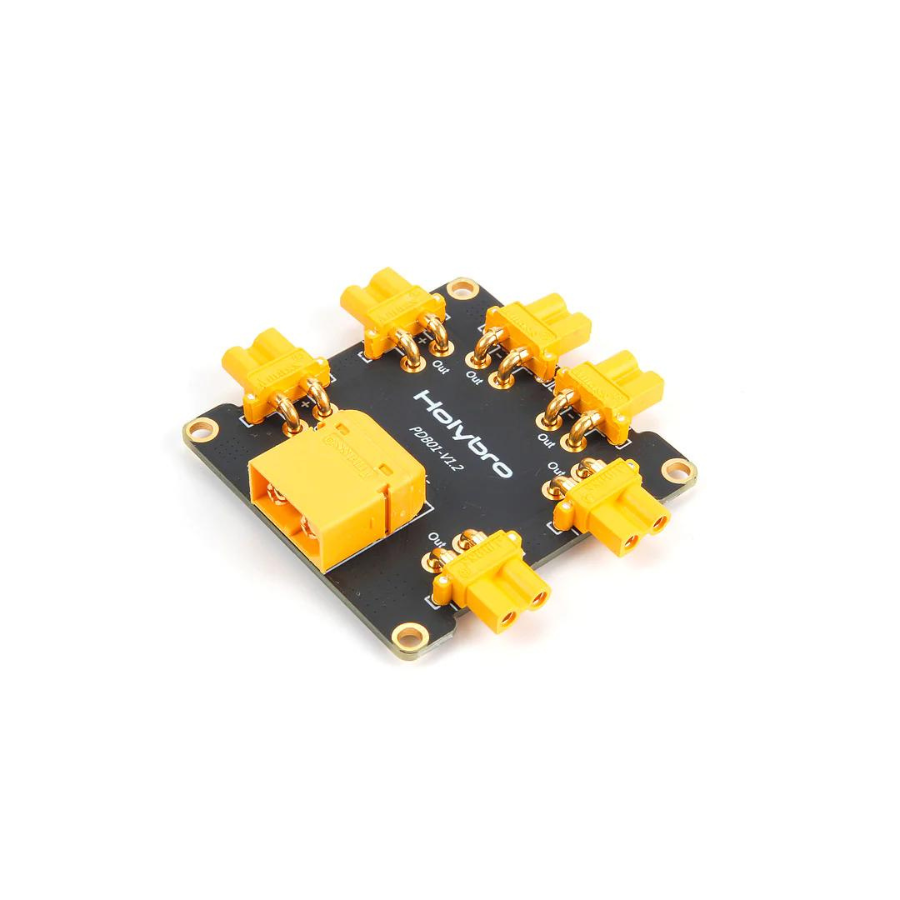

There are two options, with or without XT30 pre-soldered. The option with XT30 pre-soldered goes perfectly with the ESC & Motor on the X500 V2.

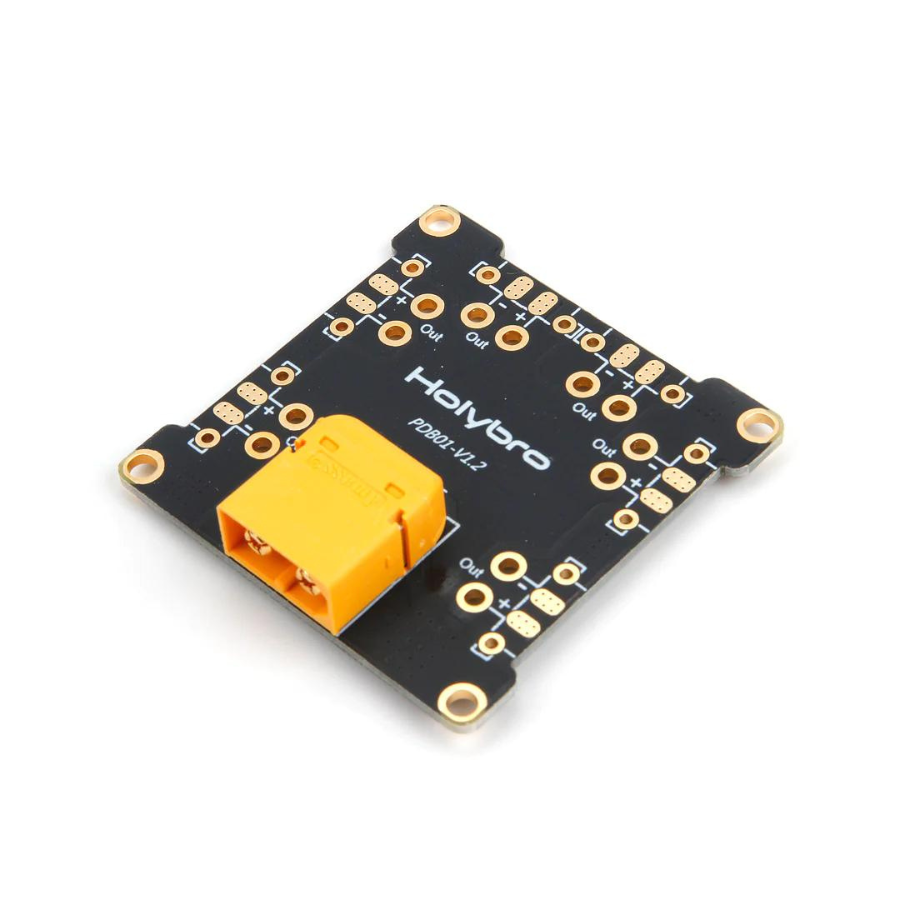

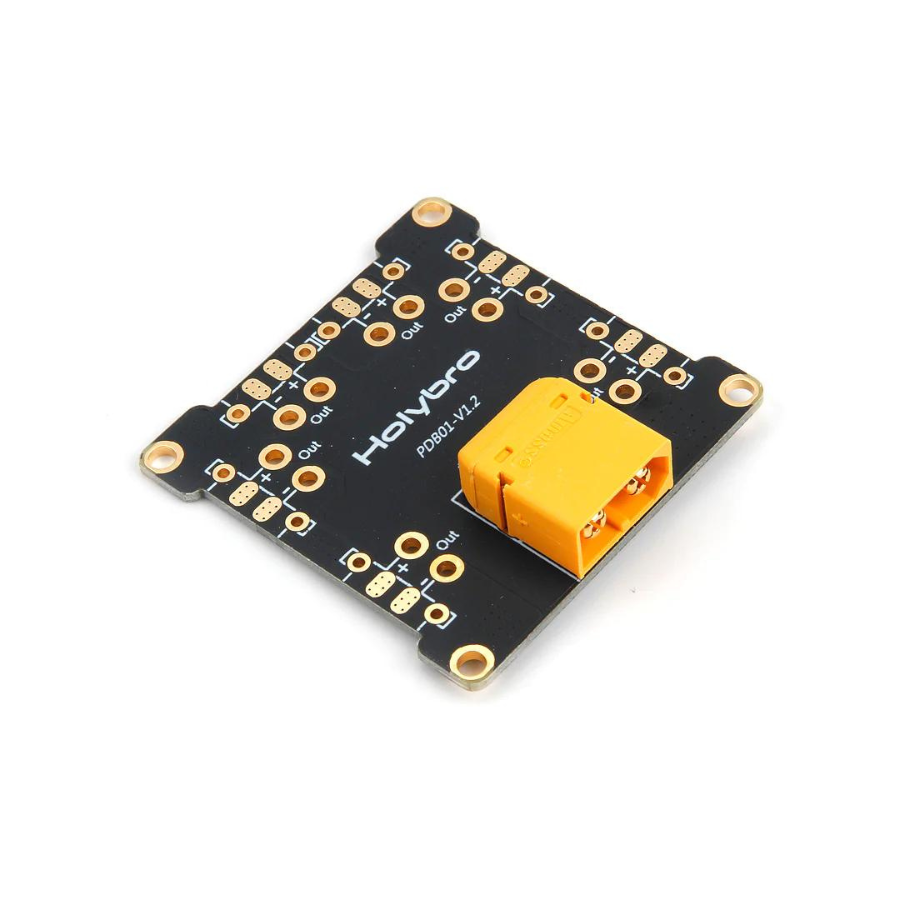

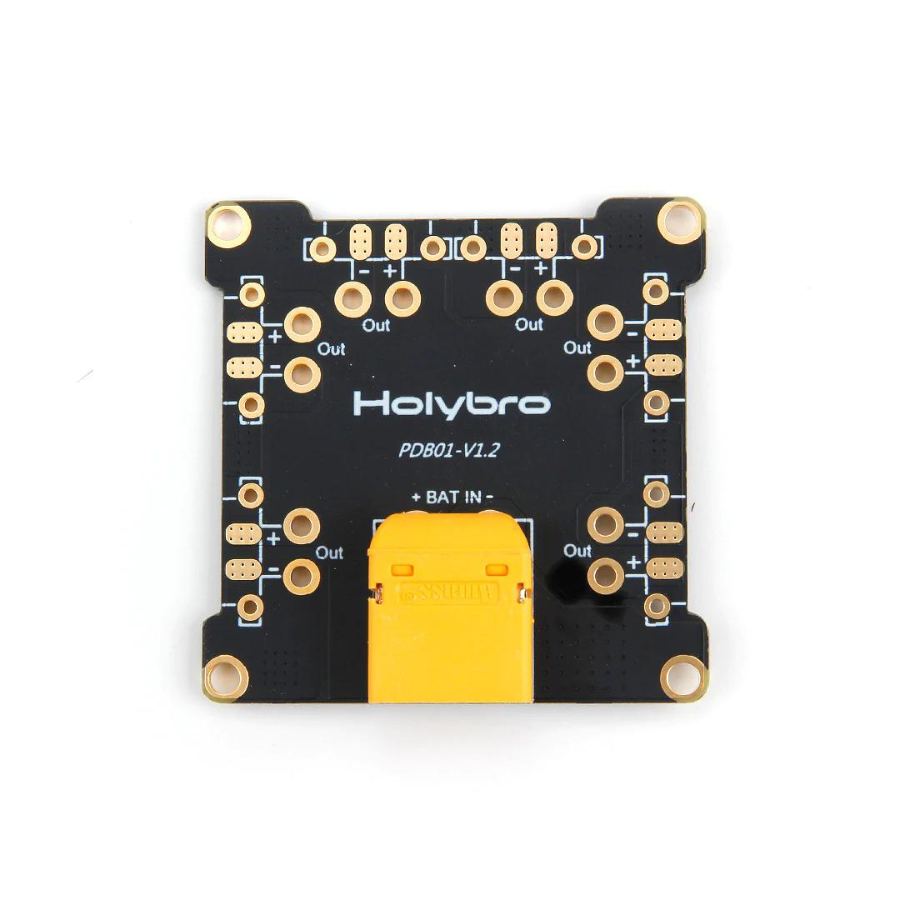

- Pre-soldered XT60 for Power Module & Battery
- Rated Current: 60A
- Max Current: 120A (<60 sec)
- 45x45mm Mounting Holes
