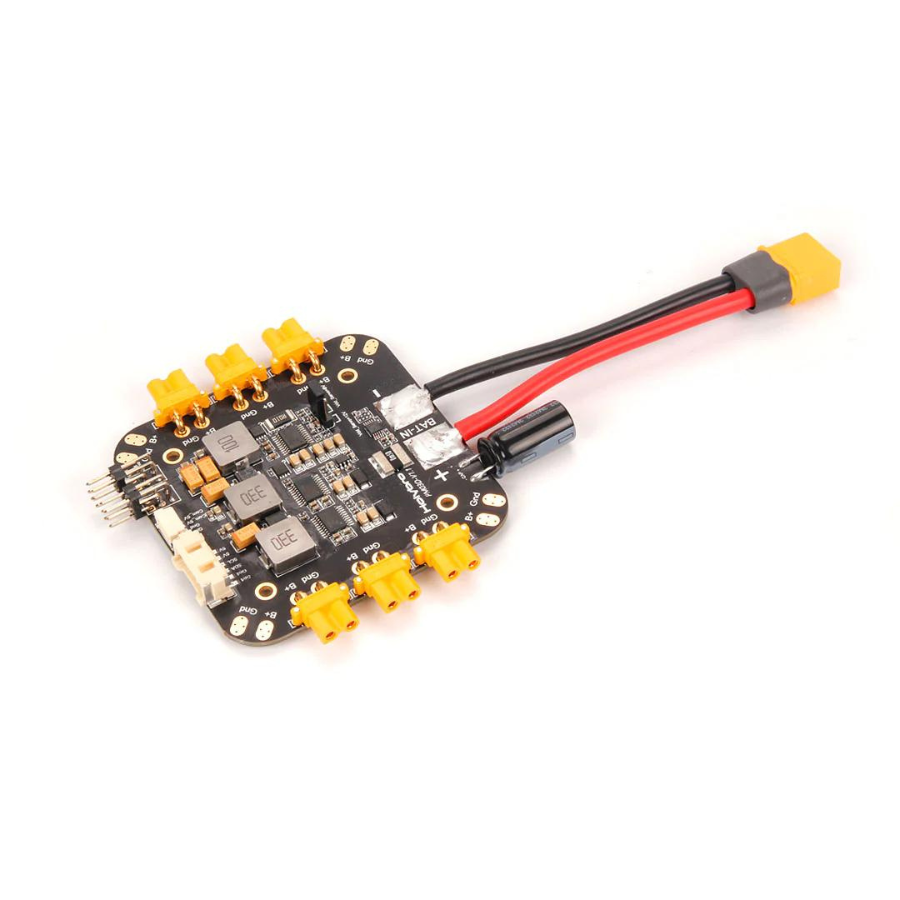

PM03D Power Module
Your reliable power supply option for a variety of radio control tasks is the PM03D Power Module. It gives you exact control over your power supply with real-time current monitoring and voltage adjustment for consistent power output. Its small size guarantees simple installation and adaptability to different configurations. The PM03D Power Module is a trustworthy part for your RC applications because it is made to last. It is a vital and adaptable tool for your RC projects, easy to integrate, and helps maintain a steady power supply during flight or operation.

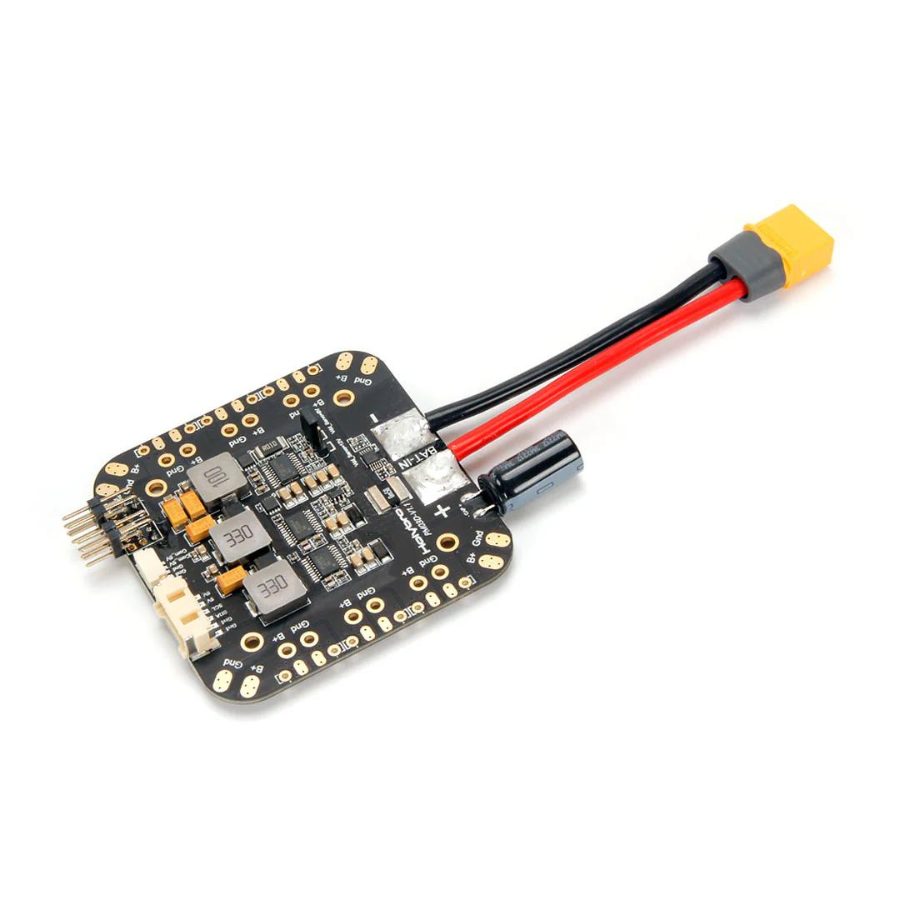

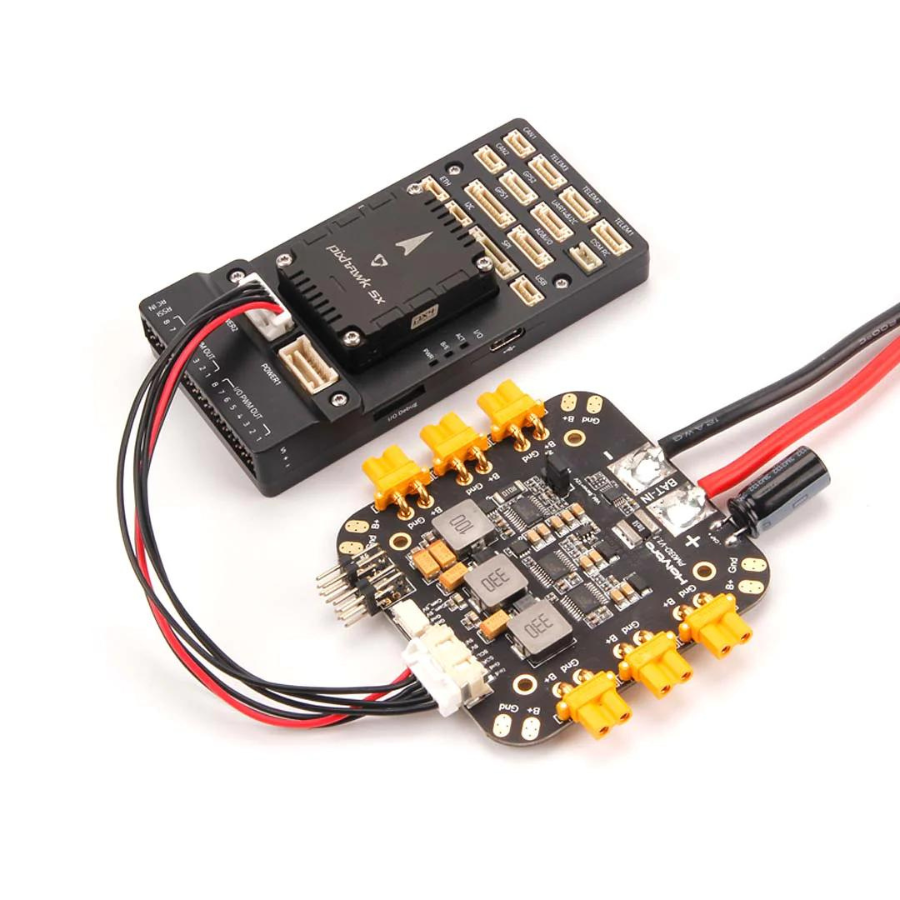

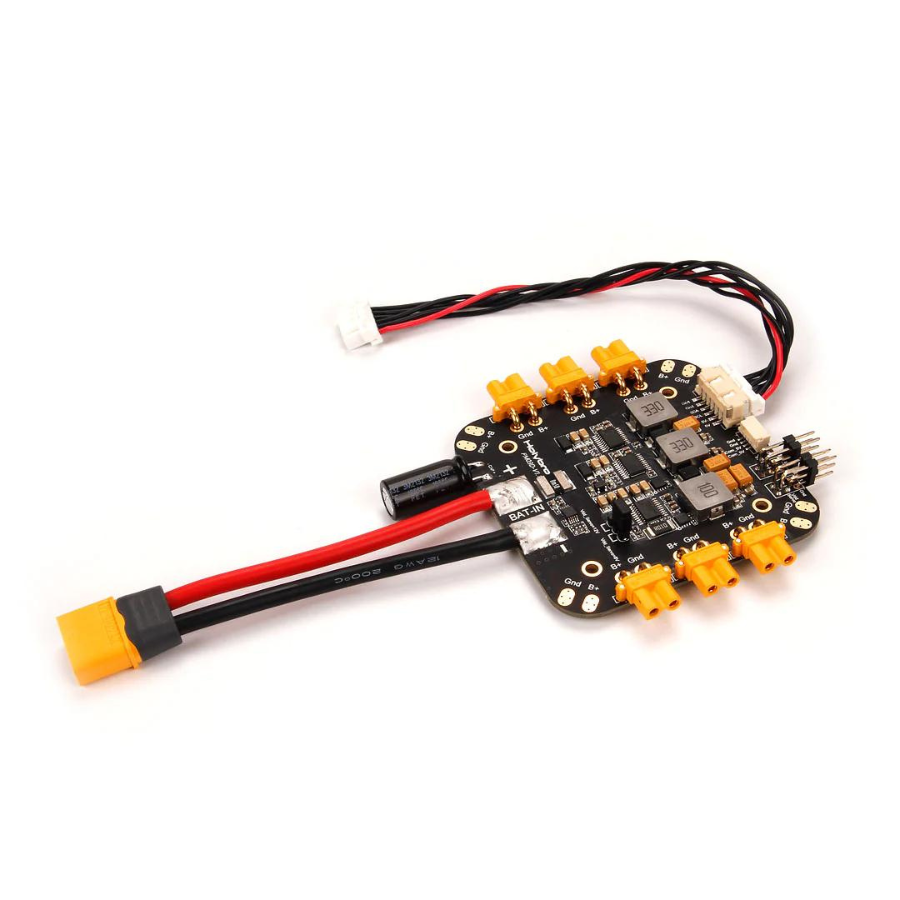

Through a 6pin 2.00mm CLIK-Mate connection, the PM03D offers controlled power supply, current usage, and battery voltage readings via I2C digital protocol. Compliant with flying controllers (Pixhawk 5X and higher) that employ I2C power monitors.

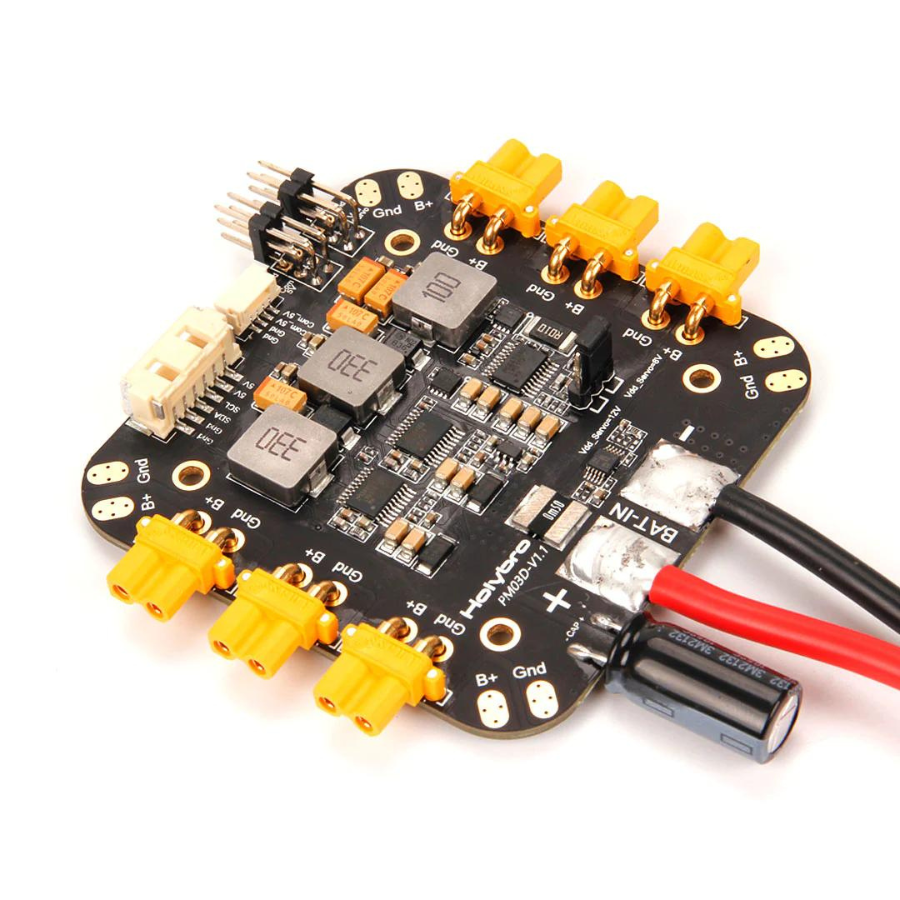

Features
• Plug & play, no additional setup required for QGroundcontrol & Mission Planner
• XT-30 connectors and solder pads for easy motor ESC connection
• Onboard voltage regulators: two 5.2V & one selectable 8V/12V
• 5V/A ports for powering companion computer or peripheral device
• Selectable 8V or 12V triple row pin header for powering peripheral device
Technical Specification
- Maximum input voltage: 6S battery
- Rated current: 60A
- Max current: 120A (<60 Sec)
- Max current sensing: 164A
- Connections
- XT-60 for battery
- XT-30 for motor & peripheral device (battery voltage)
- Solder pads in each corner (battery voltage)
- CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)
- JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)
- 2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)
- 2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)
- Dimension: 84*78*12mm (excluding wires)
- Mounting: 45*45mm
- Weight: 59g

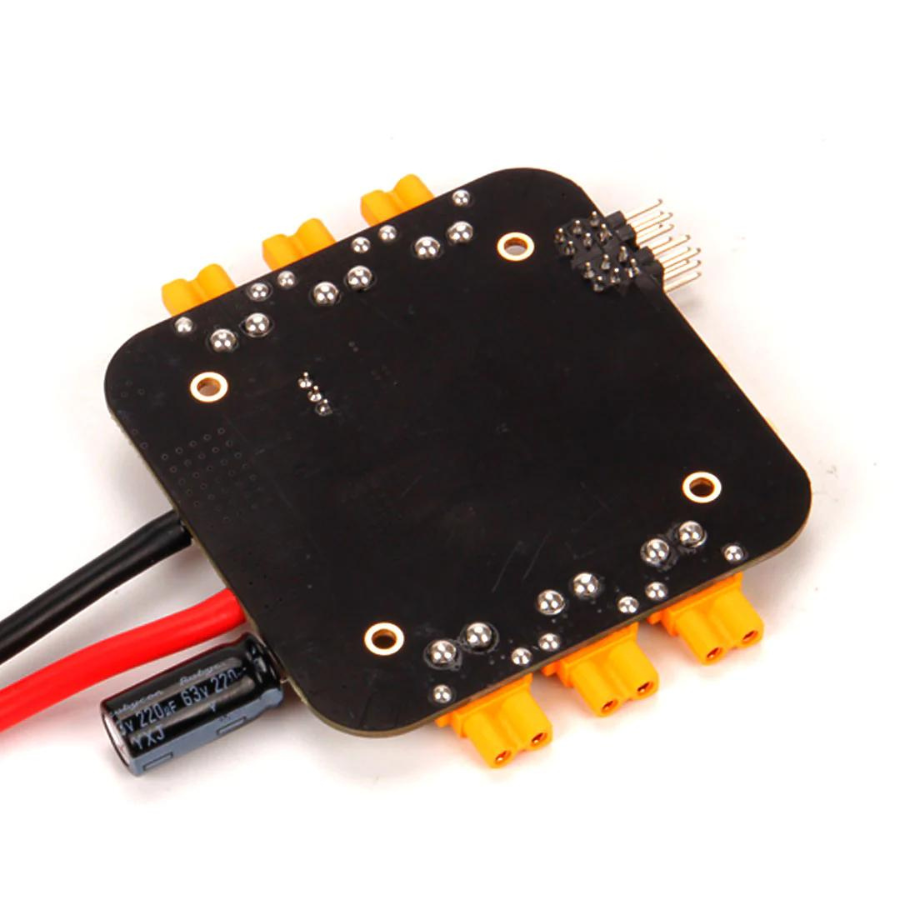

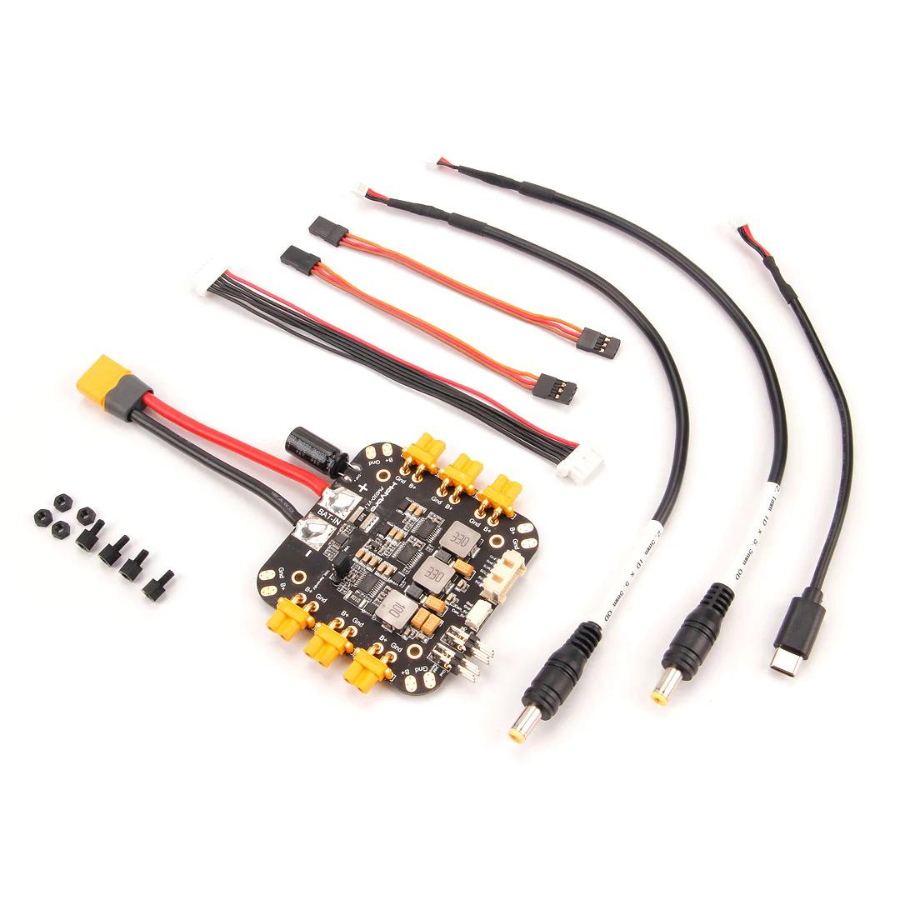

Package Includes
- 1x PM06 board
- 1x 80mm XT60 connector wire (pre-soldered)
- 1x Electrolytic capacitor: 220uF 63V (pre-soldered)
- 1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller)
- 4pin JST GH to USB Type C
- 4pin JST GH to barrel plug (2.1*5.5mm)
- 4pin JST GH to barrel plug (2.5*5.5mm)
- 4pin Pin Dupont Cable (2pc)
- Nylon standoffs & nuts
