Sale!

IFLIGHT-1404 4150KV FPV MOTOR

Original price was: ₹1,999.Current price is: ₹1,299.

  • Bearing Type: NMB
  • Max Watt: 200.8W
  • Input Volts: 4S
  • Rotation: CW
  • KV: 4150KV
1 Year Warranty
After Sales Service
Categories: , ,

Description

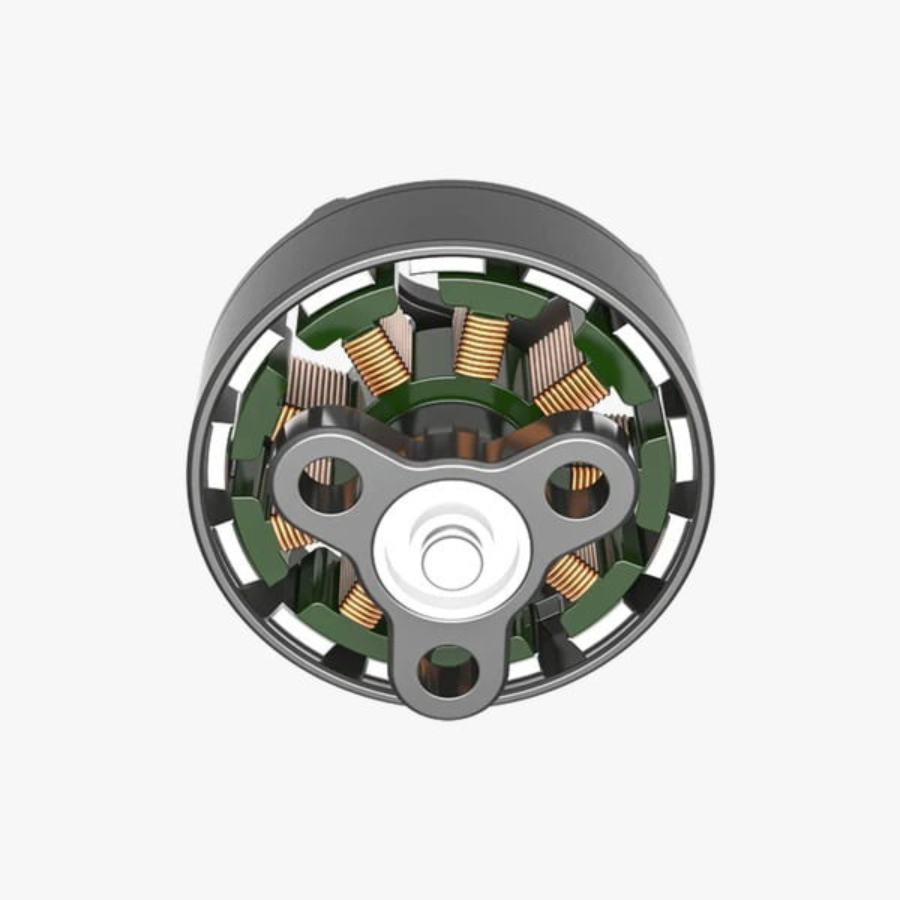

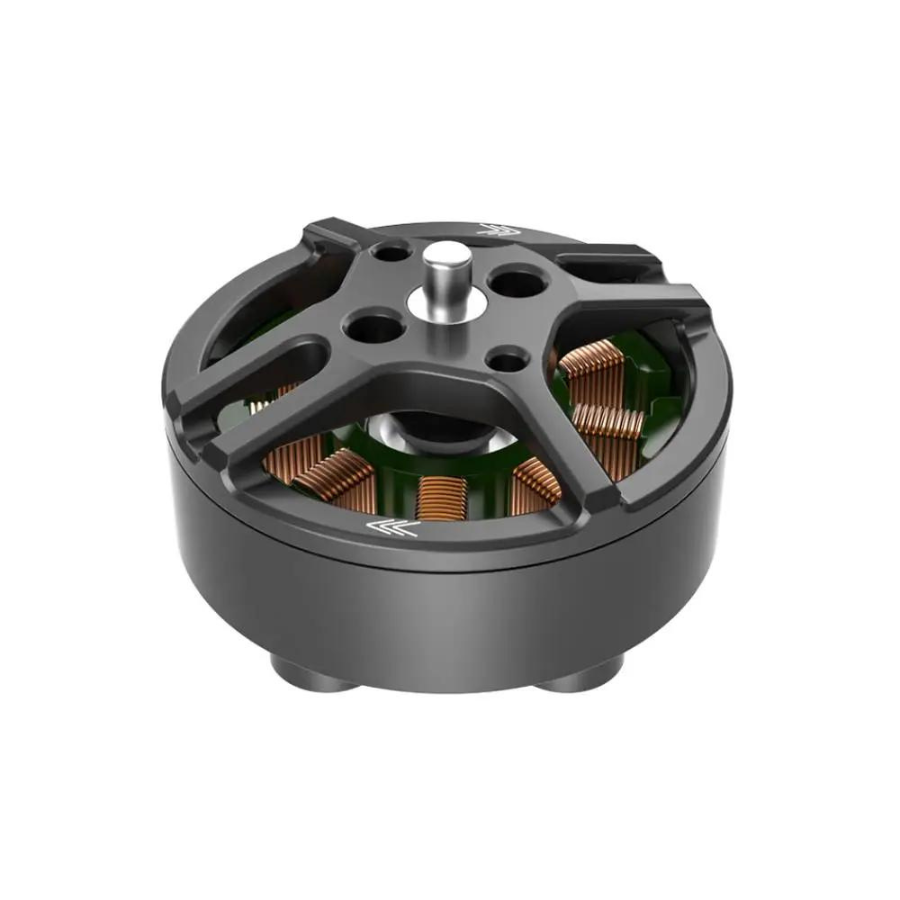

IFLIGHT-1404 4150KV FPV MOTOR

The iFlight Defender 25 Motor is expertly crafted for ultralight drone builds, perfect for enthusiasts aiming to stay within the Sub250g category. This 1404 4150KV motor is celebrated for its lightweight yet durable construction, ensuring long-lasting performance. It provides pilots with the ability to construct and fly drones that meet strict weight regulations without sacrificing power or durability. Ideal for both novice and experienced drone operators, the Defender 25 Motor facilitates enhanced agility and responsiveness. By incorporating this motor into their setups, users can enjoy a seamless flying experience that combines efficiency with high-quality aerial maneuverability.

Specifications

General

  • Mounting Holes: 3 x 9 x 9 /2mm (3 mounting holes)
  • Shaft Protruding Length: 1.8mm/0.2mm
  • Winding: Single Strand copper winding
  • Rotor Specifications: Segmented bell
  • Weight (including wire): 8g/0.5g
  • Interphase Resistance: 0.188Ω
  • Bearing Specification: 5x2x2.5
  • Model: Defender 25 Motor
  • Dimension: 17.7×12.5mm
  • Shaft Diameter: 1.5mm
  • Magnet: N52H Curved
  • Peak Current: 12.03A
  • Configuration: 9N12P
  • Lead: 65mm/26AWG
  • Bearing Type: NMB
  • Max Watt: 200.8W
  • Input Volts: 4S
  • Rotation: CW
  • KV: 4150KV

Features

  • Works well with the iFlight Defender 25
  • Ultralight Motor
  • CW

Recommended (Not Included)

  • iFlight Defender 25 1404 Motor – 4150KV (CCW)

Includes

  • 1x iFlight Defender 25 1404 Motor – 4150KV (CW)
  • 4x M2x5 Screws
