Description

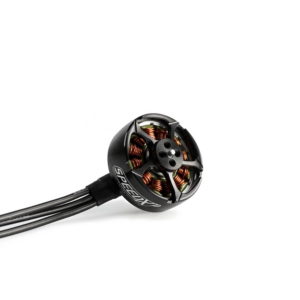

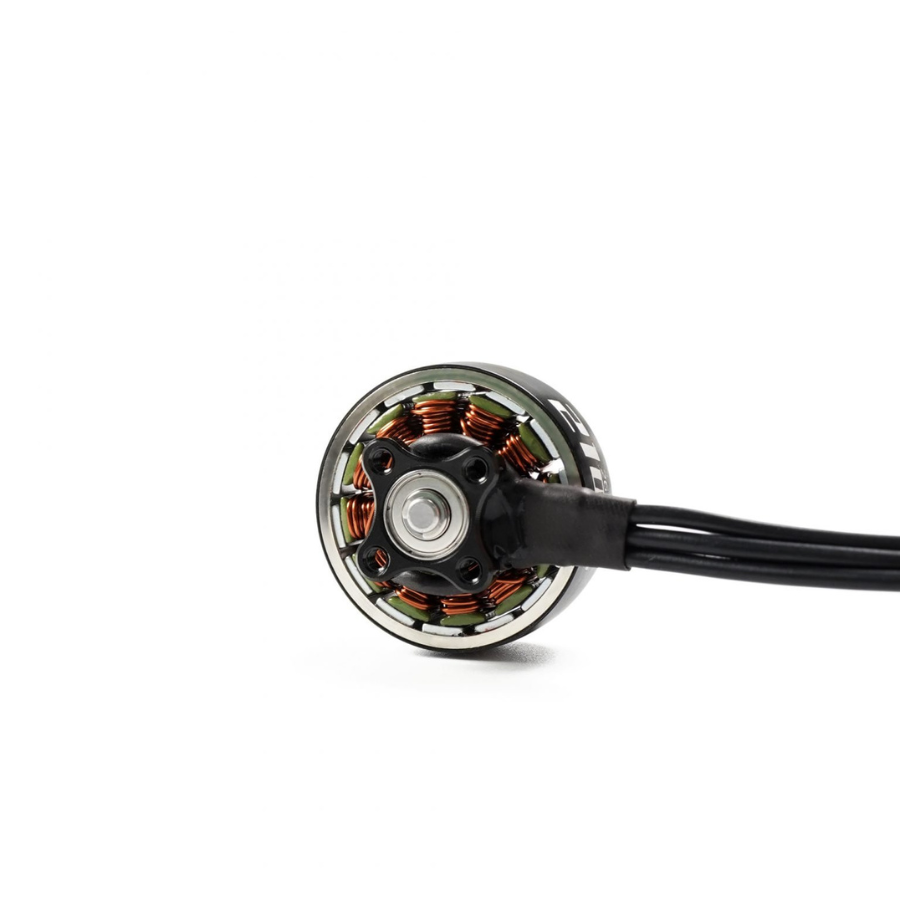

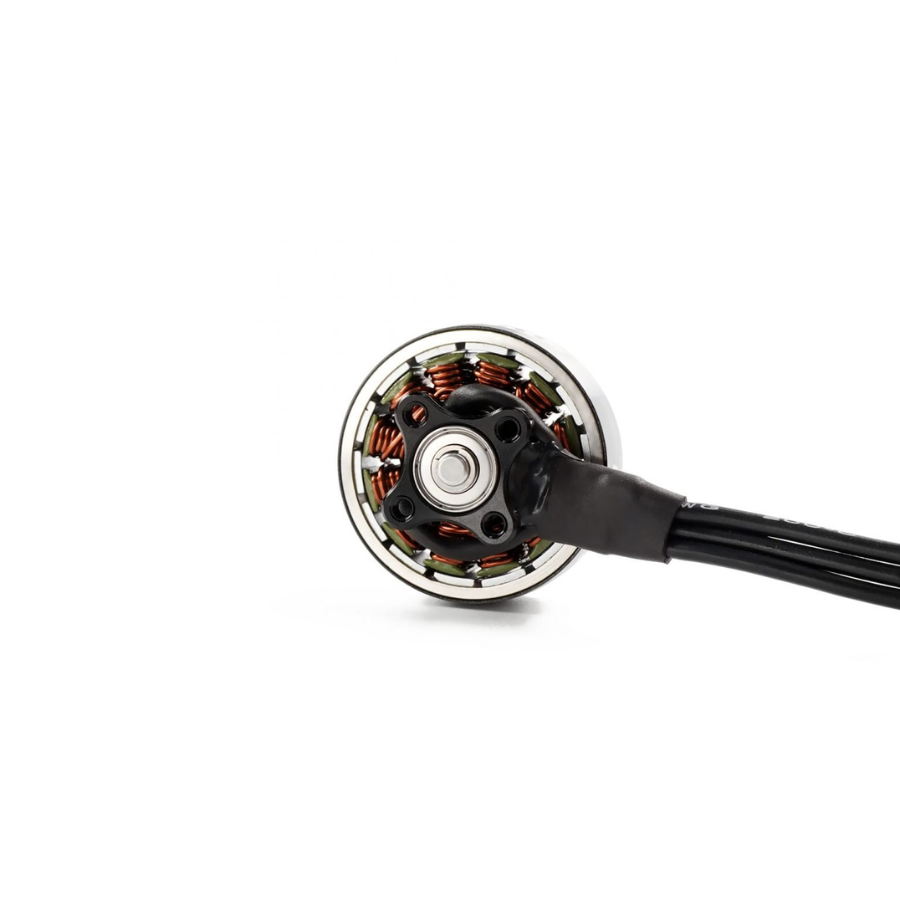

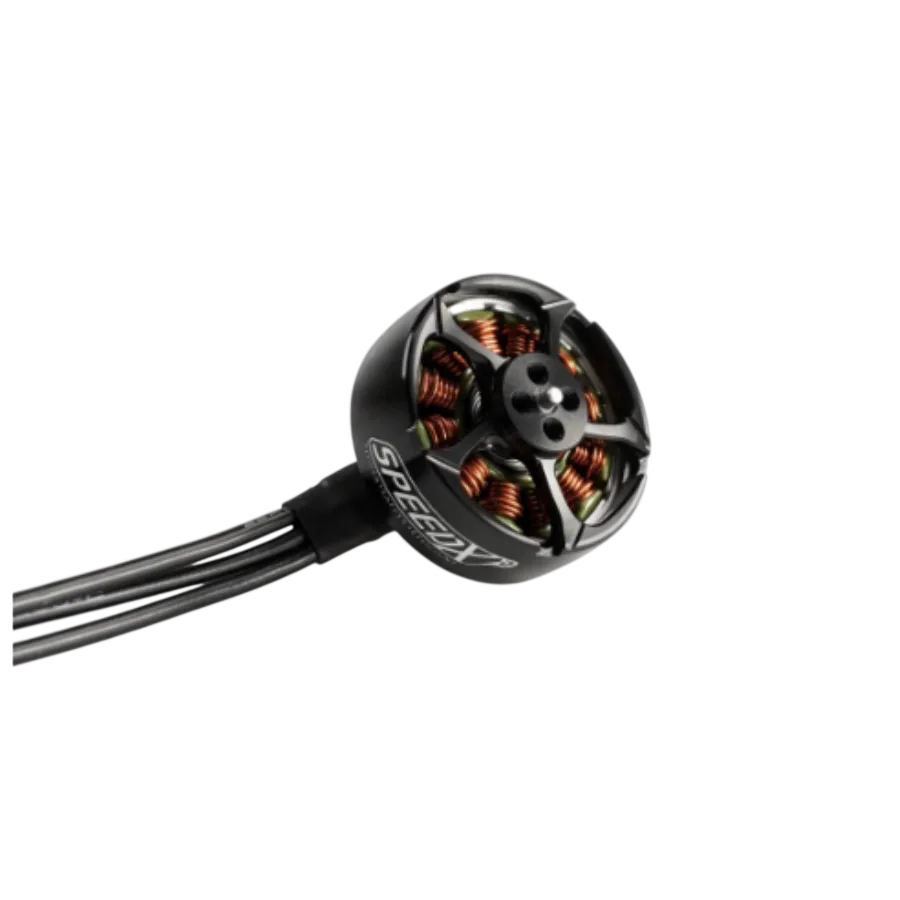

GEPRC SPEEDX2 2105.5 2650KV/3450KV Motor
The GEPRC new generation brushless motor SPEEDX2 2105.5 is an exceedingly innovative brushless motor with an avant-garde style and unique design.

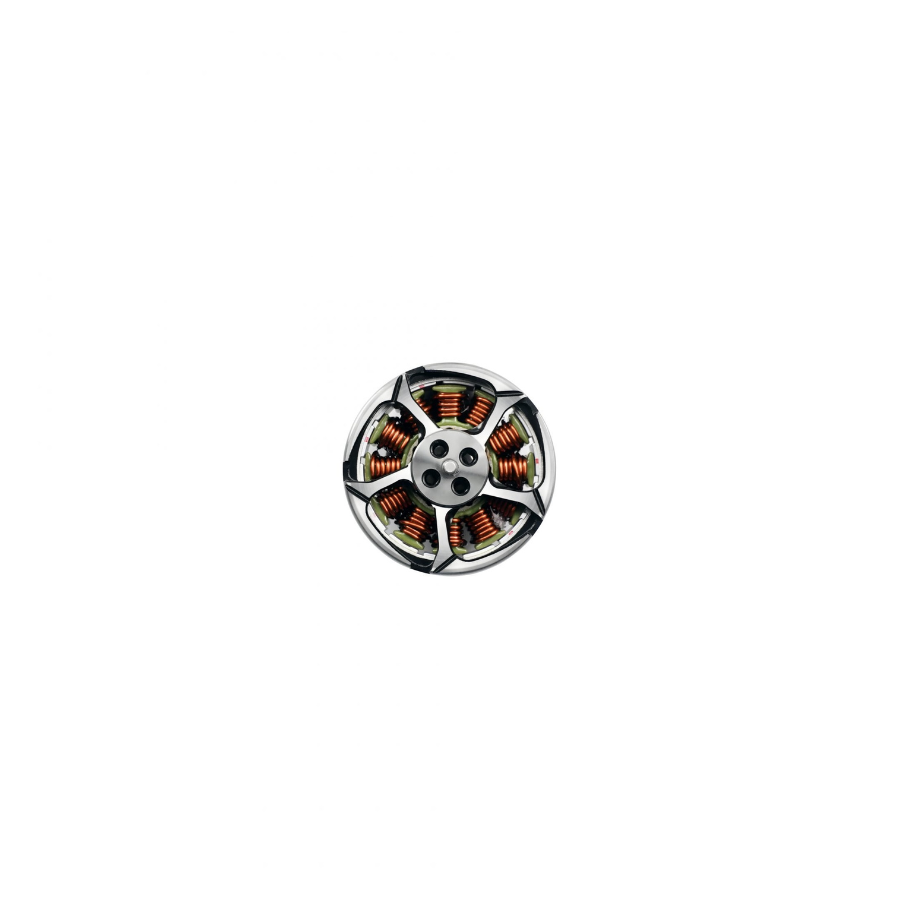

The lightweight design greatly reduces the weight, only 21.0g. The flat motor shape with the exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation, the advantage is maintaining a lower temperature for the running motor.
Using customized high-quality materials and professional magnetic circuit design,the SPEEDX2 2105.5 motor with good handling and stably aggressive power. Bringing pilots a super smooth flying experience.
In term of high strength structure design, SPEEDX2 2105.5 also has good durability and crash resistance.It’s a ideal motor for every pilot building their own 3-4 inch FPV quads or 4-5 inch long range FPV quads.
We’ve been pursuing a lighter weight, more responsive, more efficient and more powerful brushless motor.
specification

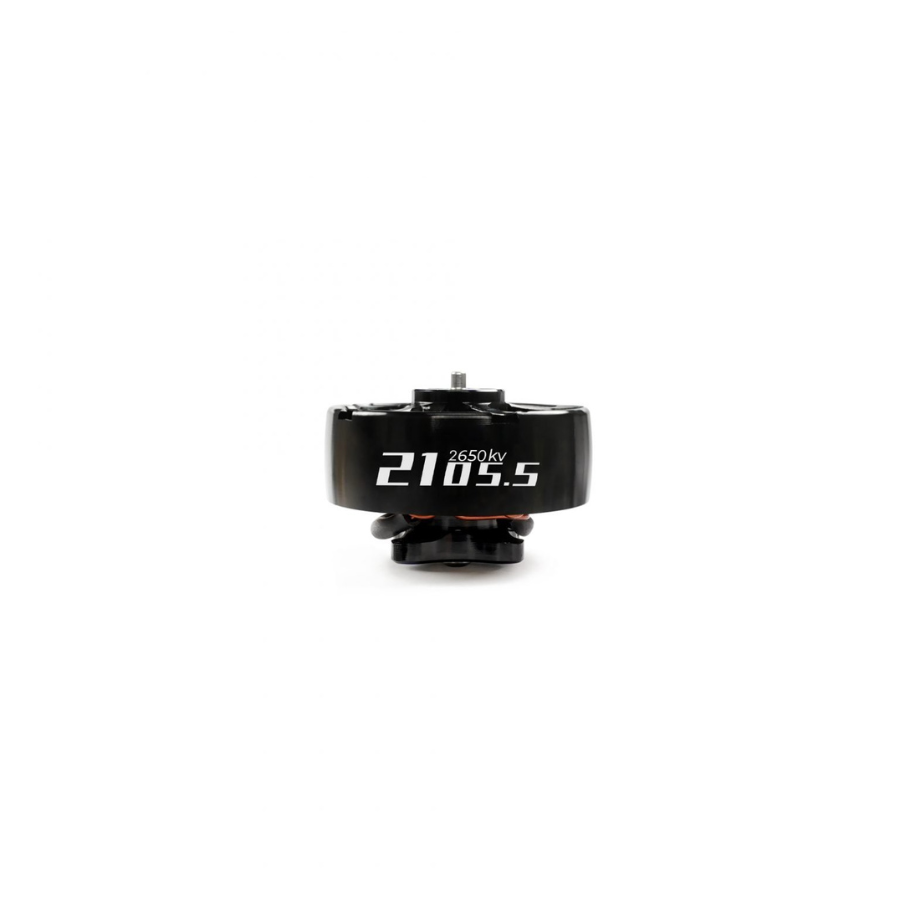

Item: SPEEDX2 2105.5-2650KV
- KV: 2650KV
- Configuration: 12N14P
- Magnet: N52H ARC
- Stator Diameter: 21mm
- Stator Height: 5.5mm
- Shaft Diameter: Φ3.0mm(in)Φ1.5(out)

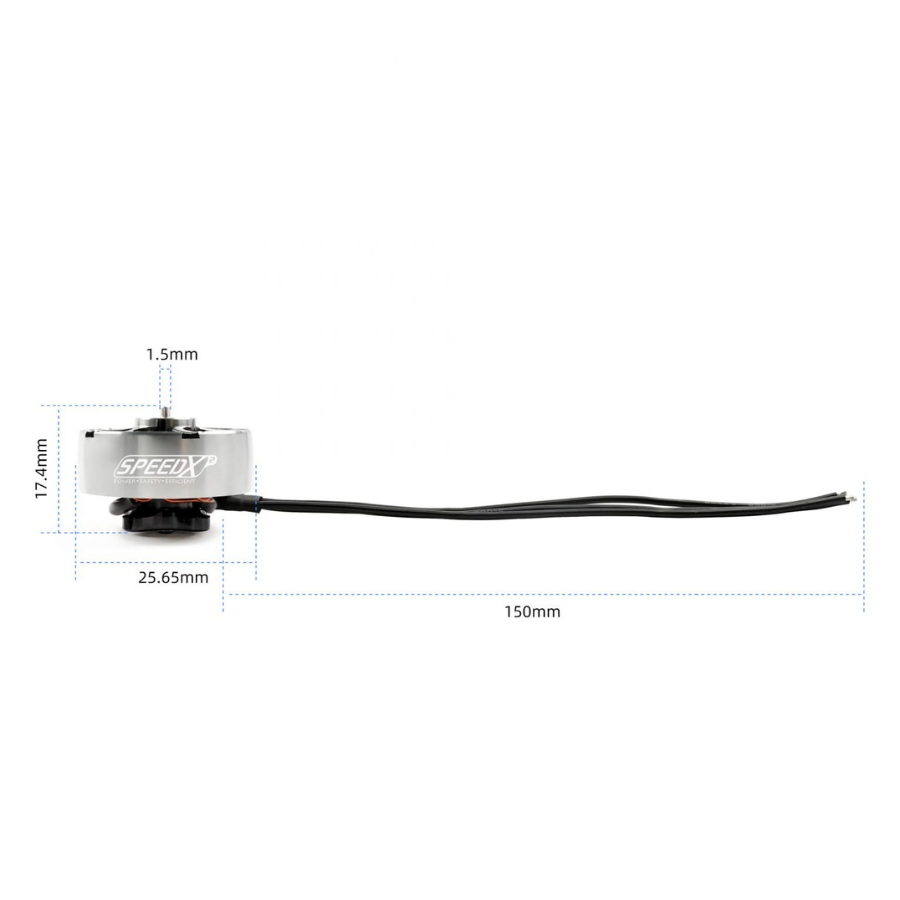

- Size: Φ25.65mm*15.7mm
- Lead Wires: 22#AWG 150mm
- No. of Cells (LiPo) : 2-6S
- Max Continuous Power(W) (5S): 559
- Max Current (5S) : 34.9A
- Mounting Holes:12mm x 12mm(M2 Screw)
- Color: Titanium, black

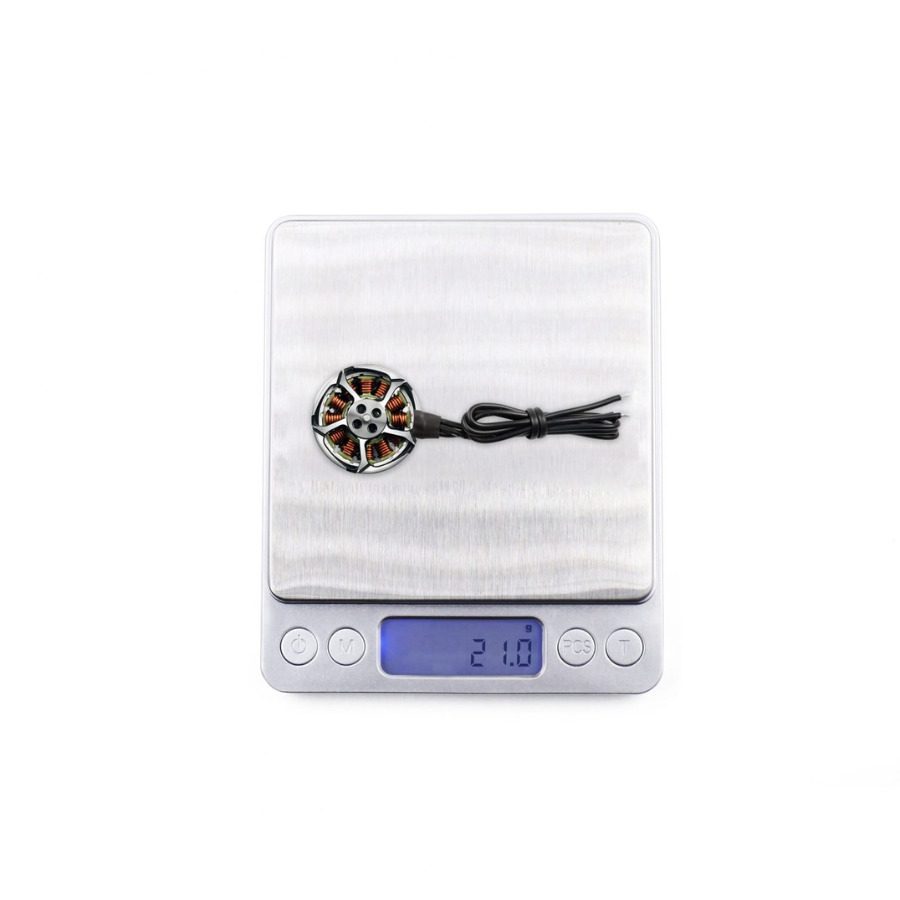

- Weight: 21.0 g
- Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV

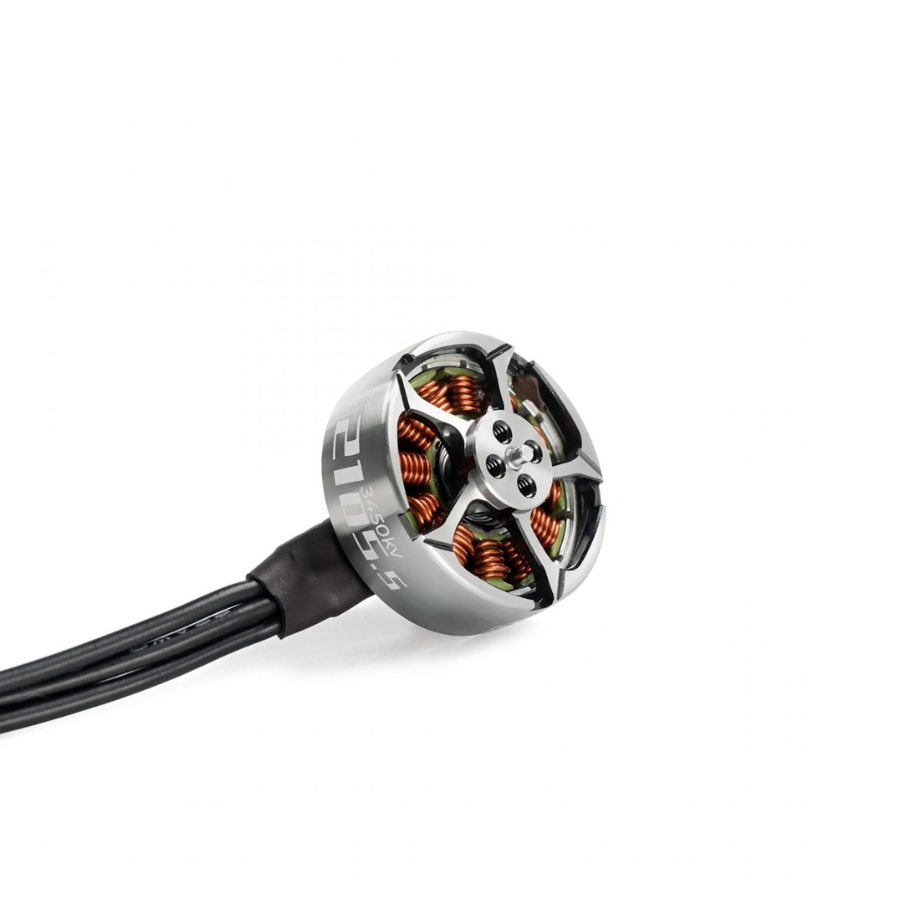

Item: SPEEDX2 2105.5-3450KV
- KV: 3450KV
- Configuration: 12N14P
- Magnet: N52H ARC
- Stator Diameter: 21mm
- Stator Height: 5.5mm
- Shaft Diameter: Φ3.0mm(in)Φ1.5(out)
- Size: Φ25.65mm*15.7mm
- Lead Wires: 22#AWG 150mm
- No. of Cells (LiPo) : 3-4S
- Max Continuous Power(W) : 558
- Max Current (A) : 34.9A
- Mounting Holes:12mm x 12mm(M2 Screw)
- Color: Titanium, black
- Weight: 21.0 g
- Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV
contains
Include
1 x SPEEDX2 2105.5 Motor
5 x M2*6mm Screw
5 x M2*7mm Screw
