Description

VEYRON 35 CR PUSHER CINEWHOOP FRAME KIT

Name: HGLRC-VEYRON 35 CR PUSHER CINEWHOOP FRAME KIT
Availability: InStock

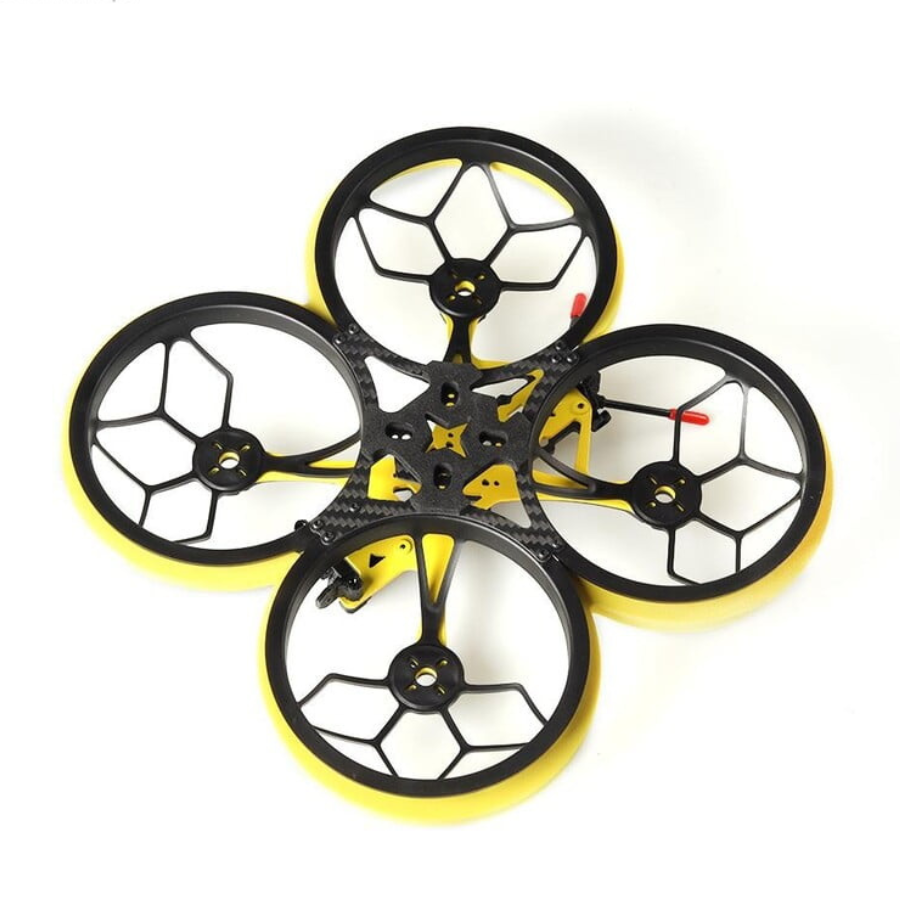

The Veyron35CR 3.5″ CineWhoop Frame Kit from HGLRC is a compact, pusher-style drone frame designed to comfortably carry a full GoPro camera. Crafted for lightweight efficiency, this kit is ideal for those looking to enhance their aerial photography without the bulk of traditional setups. It is distinguished by its EVA Foam protection guards, which are available in three colors: gray, white, and yellow. These guards not only add a visual appeal but also provide added safety and durability to the frame, making it a versatile choice for various filming conditions.

In The Box

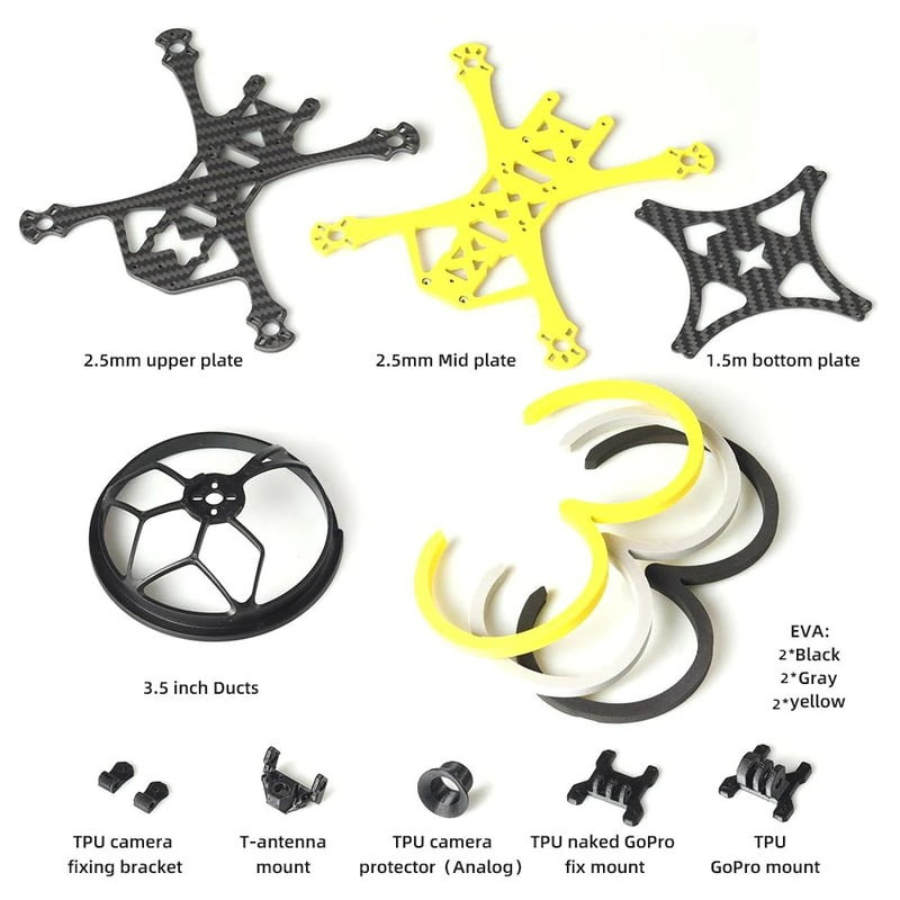

Shipping list:

1x 2.5mm top plate
1x 2.5mm Mid plate
1x 1.5mm base plate
4x 3.5 inch propeller guard
6x EVA Foam protection guard (2 black, 2 gray, 2 yellow)
1x EVA landing gear
2x M2*28mm black mesh Aluminum pillar
2x M2*8mm black Aluminum column
1x screw M5*20
4x screw M3*25
1x screw M3*20
4x screw M2*18
4x screw M2*9
2x screw M2*7
10x screw M2*5
2x screw M2*4
1x M5 self-locking nut
5x M3 self-locking nuts
4x M2 self-locking nuts
4x M3*8 shock absorbing ball
4x M2*O type shock absorbing ring
2x battery tie 15x200mm
1x battery non-slip mat
1x TPU GOPRO seat holder
1x TPU bare GOPRO holder
1x TPU antenna base
1x TPU camera mount
1x TPU lens protector

Specifications

General

Brand Name: HGLRC
Model: Veyron35CR Pusher frame
Material: 3K carbon fiber
Type:3.5 inch frame
Wheelbase: 155mm
Size:131*131mm
Top plate: 2.5mm
mid plate: 2.5mm
Base plate: 1.5mm
Space: 28mm
FC mounting hole: 20x20mm/25.5×25.5mm
Supported camera:19*19mm
Motor mounting hole:12*4/16*4mm
Weight: 113.4g
