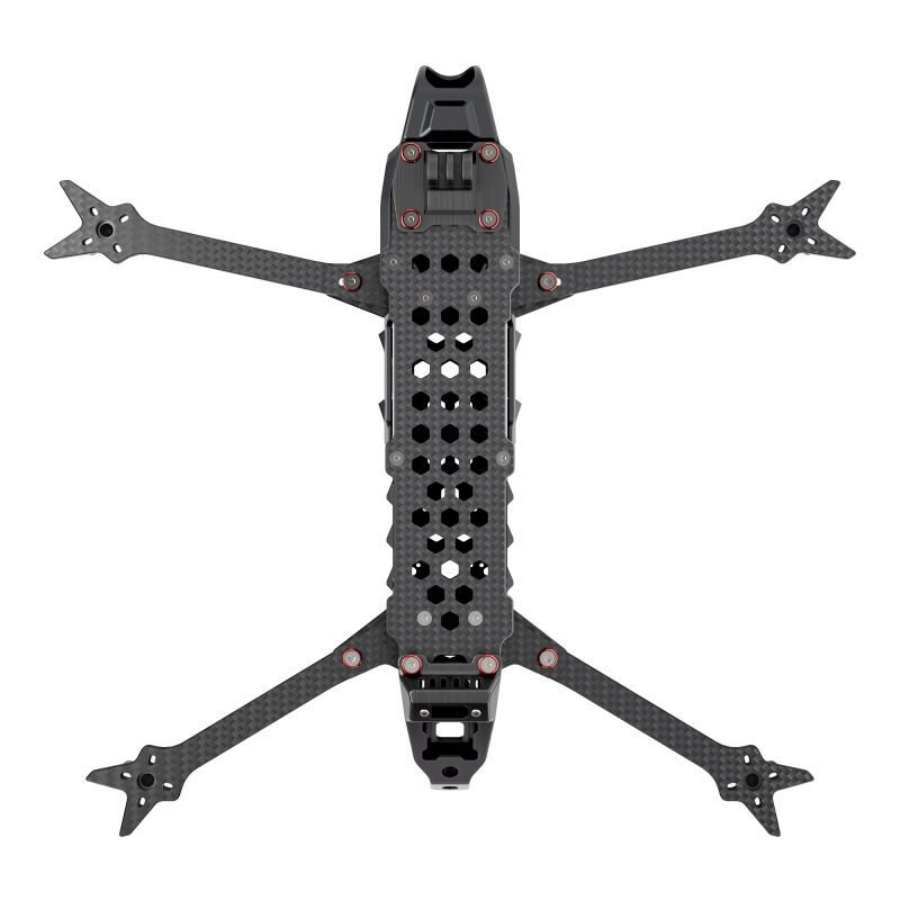

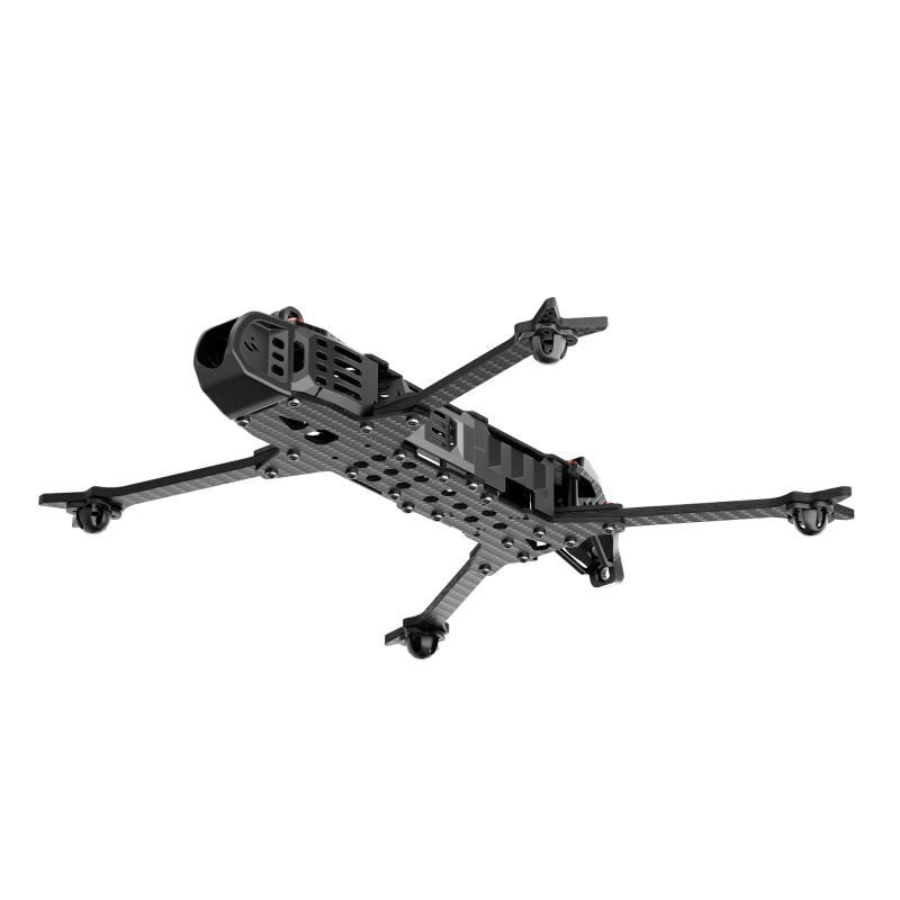

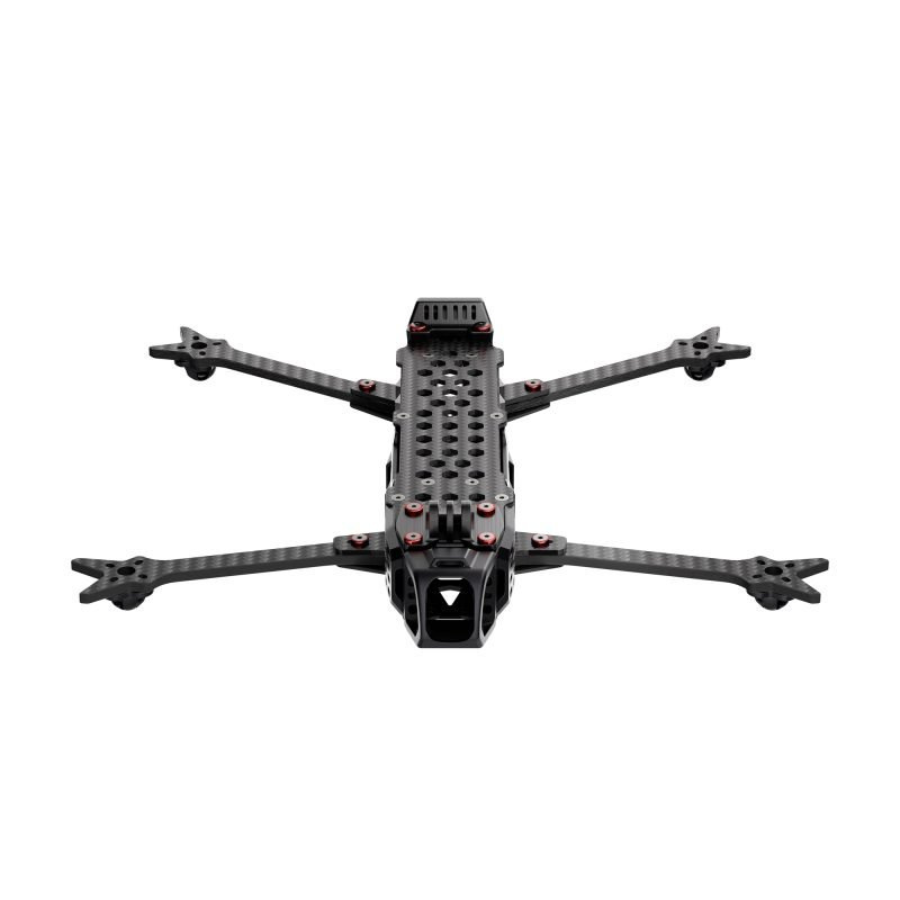

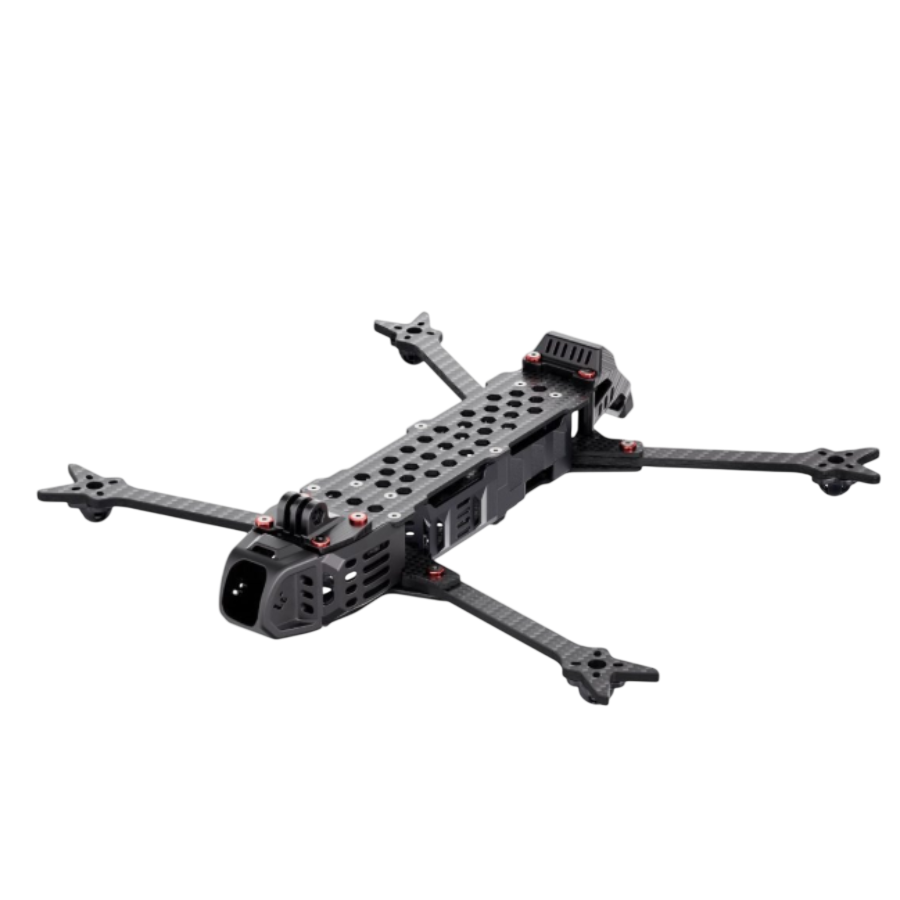

GEP-LC75 V3 is a long range frame, which uses H-shaped structure design and adds protective side panels to the fuselage to protect the electronic control system from dust pollution. The arm is made of 6mm thick carbon fiber plate to improve flight stability. The fuselage structure optimizes the strength of the main stress points to ensure strong crashworthiness.

Includes

Carbon plate list:

1 x GEP-LC75 V3 top plate
1 x GEP-LC75 V3 bottom plate
4 x GEP-LC75 V3 arms plate
1 x GEP-LC75 V3 front splint plate
1 x GEP-LC75 V3 front splint plate

Accessories:

1 x Header printed parts
1 x Tail printed parts
1 x GP camera base
4 x Motor damping pad
1 x Nylon front side plate (Pair)
1 x Nylon Rear side plate (Pair)(O3 version)
1 x Nylon Rear side plate (Pair) (universal version)
1 x XT60EW-M plug
2 x Rubber elastic anti-slip straps 20*250mm
4 x Motor wire hub 60mm*10mm

Screw kits:

4 x M3*5*30 mesh aluminum columns
4 x M3*5*21.5 mesh aluminum columns
10 x M3 Countersunk head Gaskets – wine red
6 x M3 pressed Rivet nuts
8 x M3*8 shock absorbing balls
10 x countersunk hexagon socket screws M3*8
4 x countersunk hexagon socket screws M3*12
4 x Hexagon socket screws with semicircular head M3*8
16 x Hexagon socket screws with semi-round head M3*11
8 x semi-round head hexagon socket screws M3*16
4 x countersunk hexagon socket screws M3*16
4 x Hexagon socket screws with semi-round head M3*25
6 x M3 aluminum alloy hexagonal lock nuts
2 x Hexagon socket screws with half round head M2*6
4 x round head hex socket screws with pad M2*4
4 x O3 Air Unit Silicone gasket
6 x Cup-head hex socket screws M1.6*12
4 x Hexagon socket screws with half round head M2*23
4 x Self-tightening nuts M2
4 x Nylon columns M2*5
4 x Hexagon socket screws with half round head _ Black Nickel plated M2*7
4 x M2 Nylon nuts
8 x Hexagon socket screws with semicircular head M3*6
4 x black mesh M3*13 aluminum columns

Specification

• Model: GEP-LC75 V3
• Size: 7.5 inch
• Wheelbase: 342mm
• Top plate: 2.5mm
• Bottom plate: 3.0mm
• Arm plate: 6.0mm
• FC mounting hole: 30.5mm*30.5mm
• VTX mounting hole:20mm*20mm / 25.5mm*25.5mm
• Motor mounting hole: 16mm*16mm / 19mm*19mm
• Camera mounting hole: 19mm / 20mm
• Recommended propeller size: 7-7.5inch
• Weight: 266g
