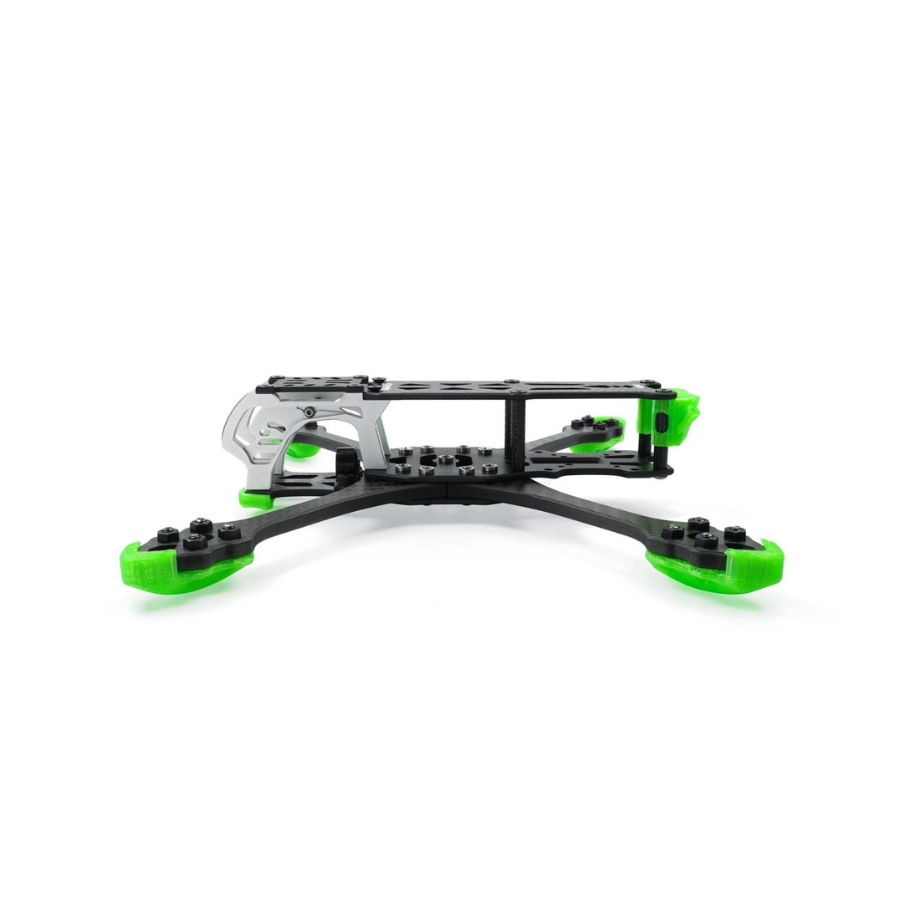

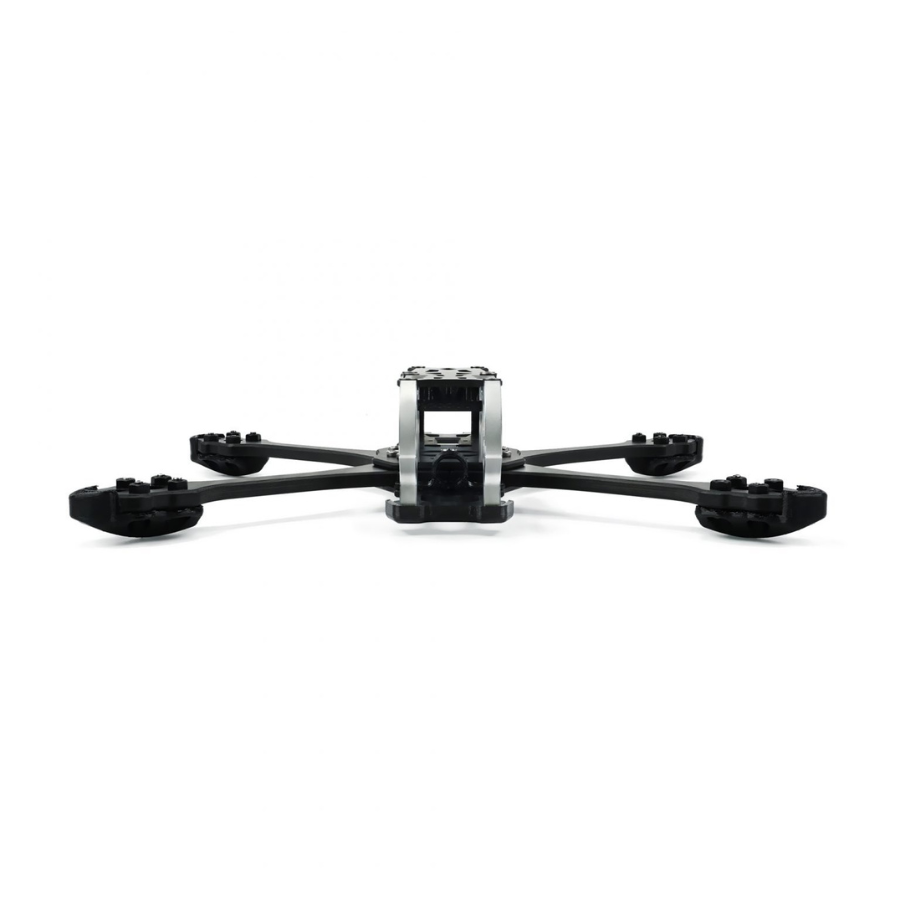

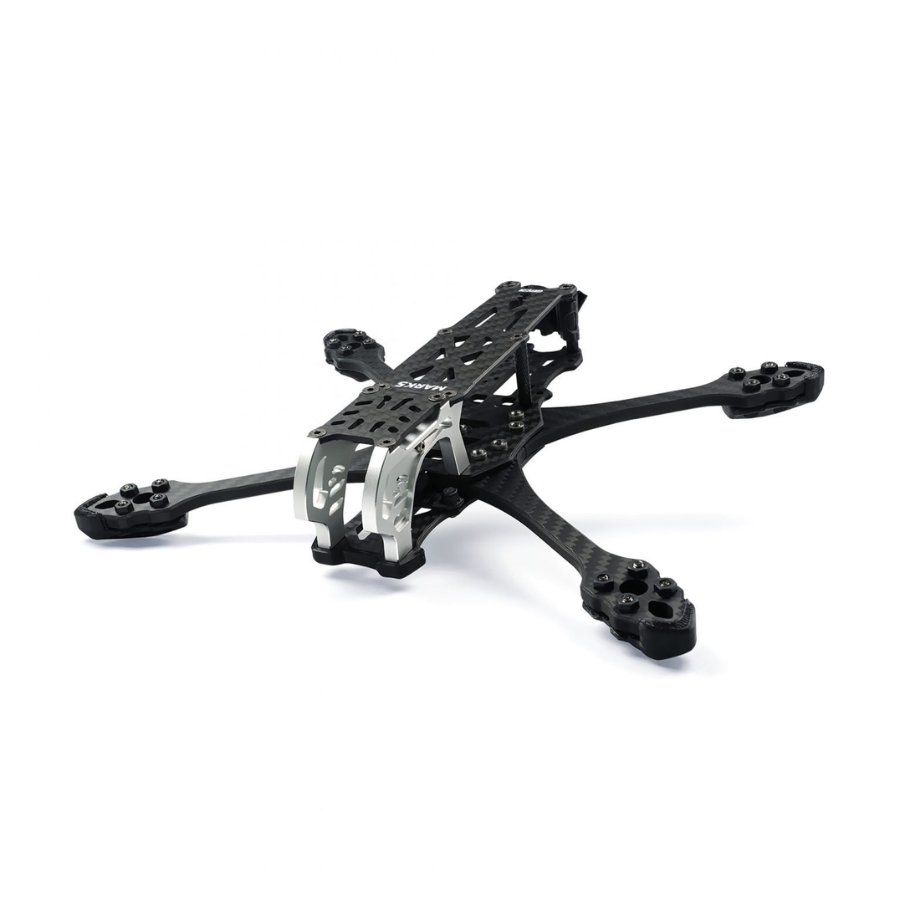

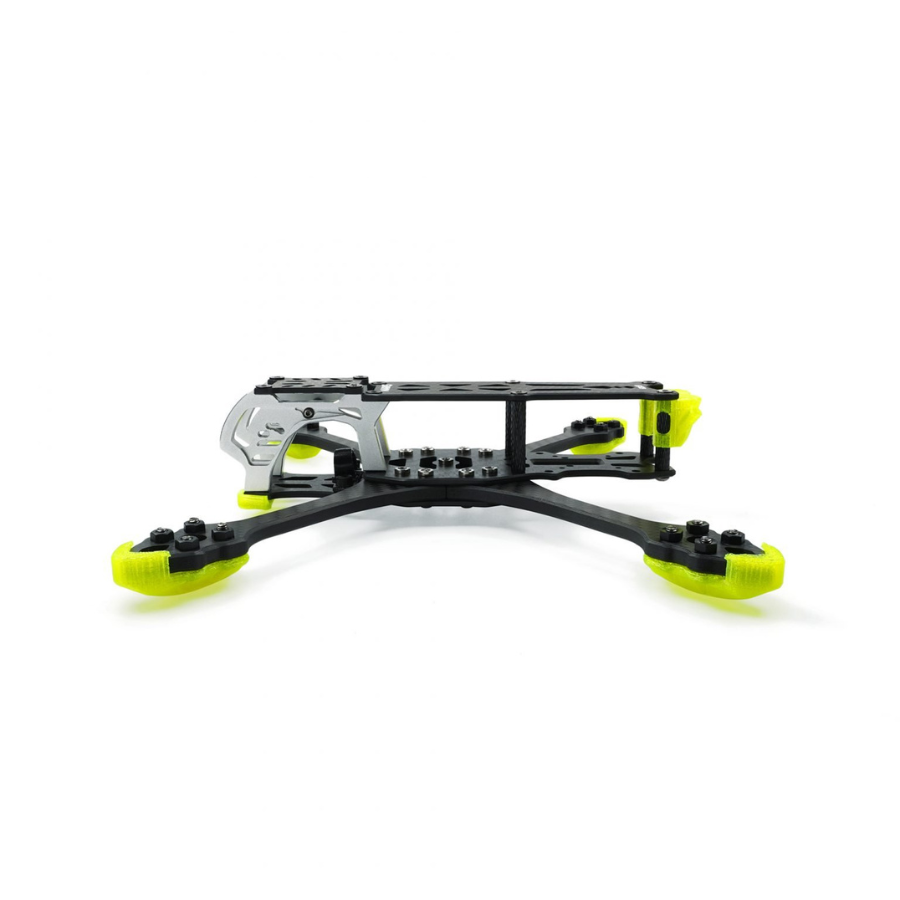

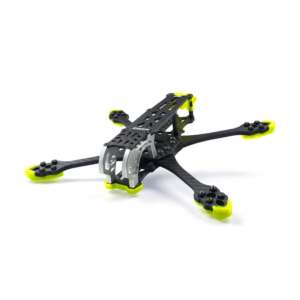

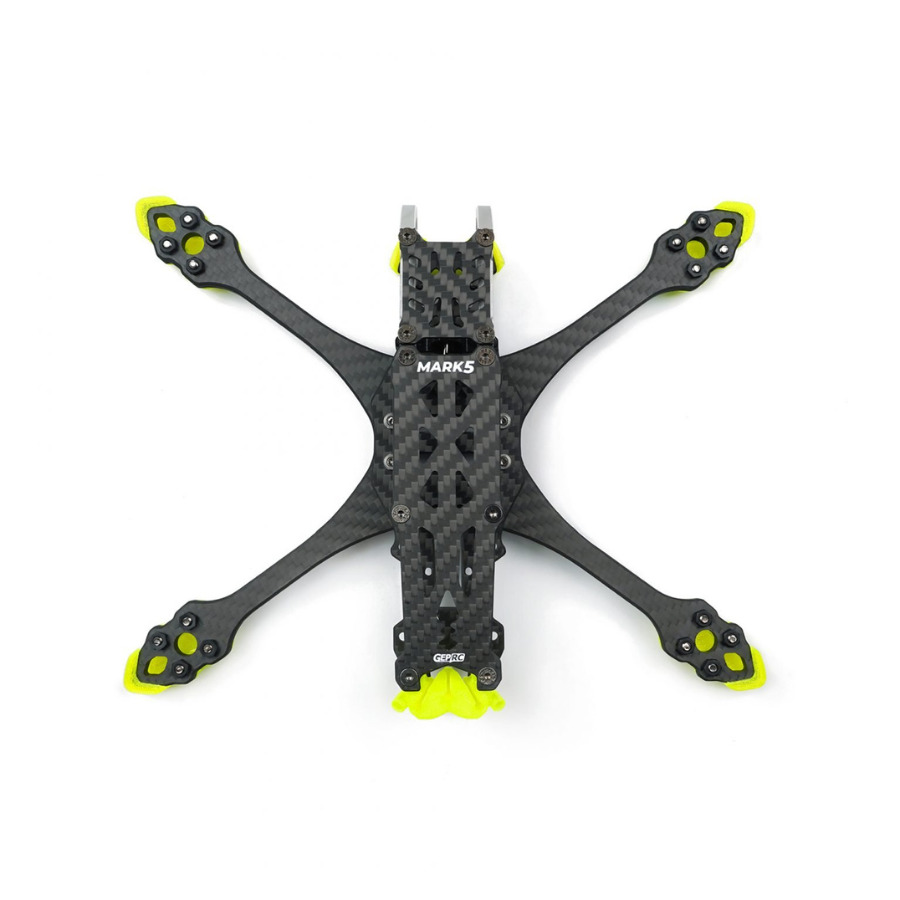

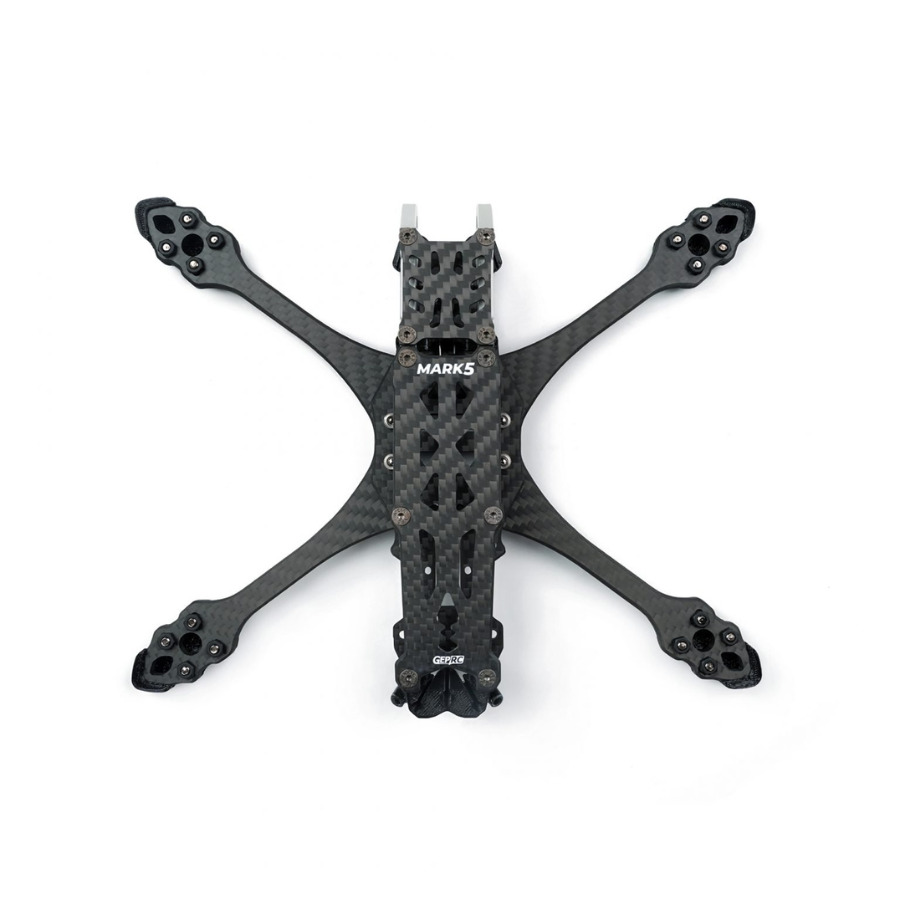

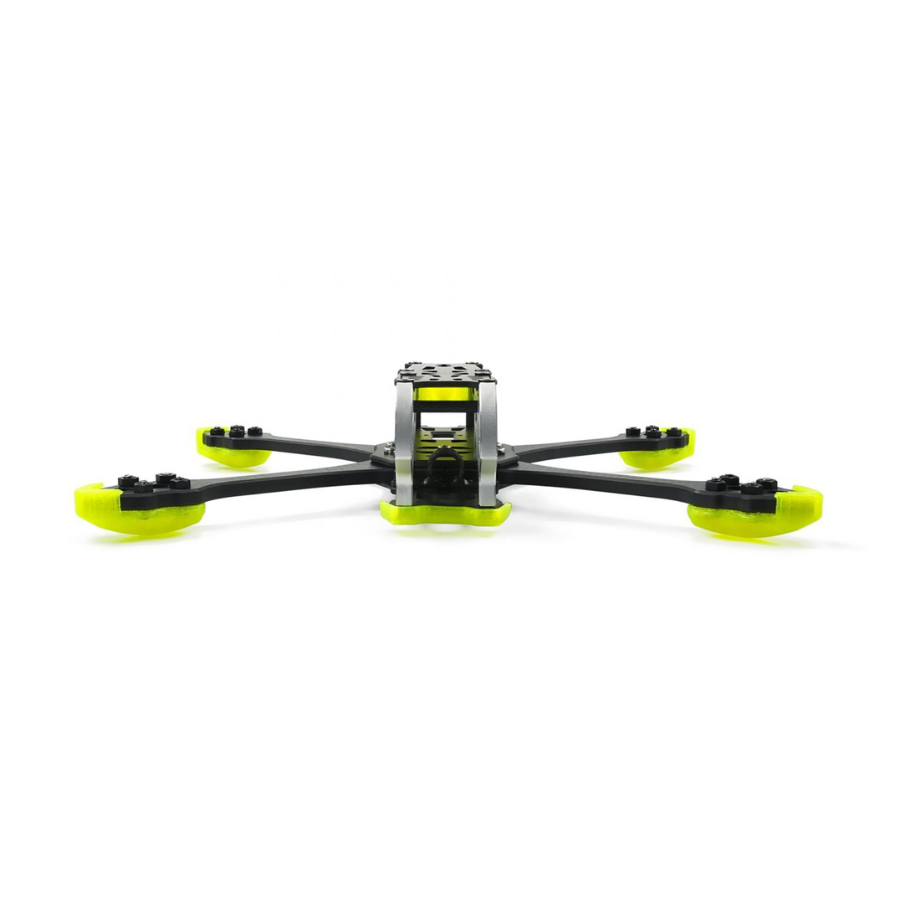

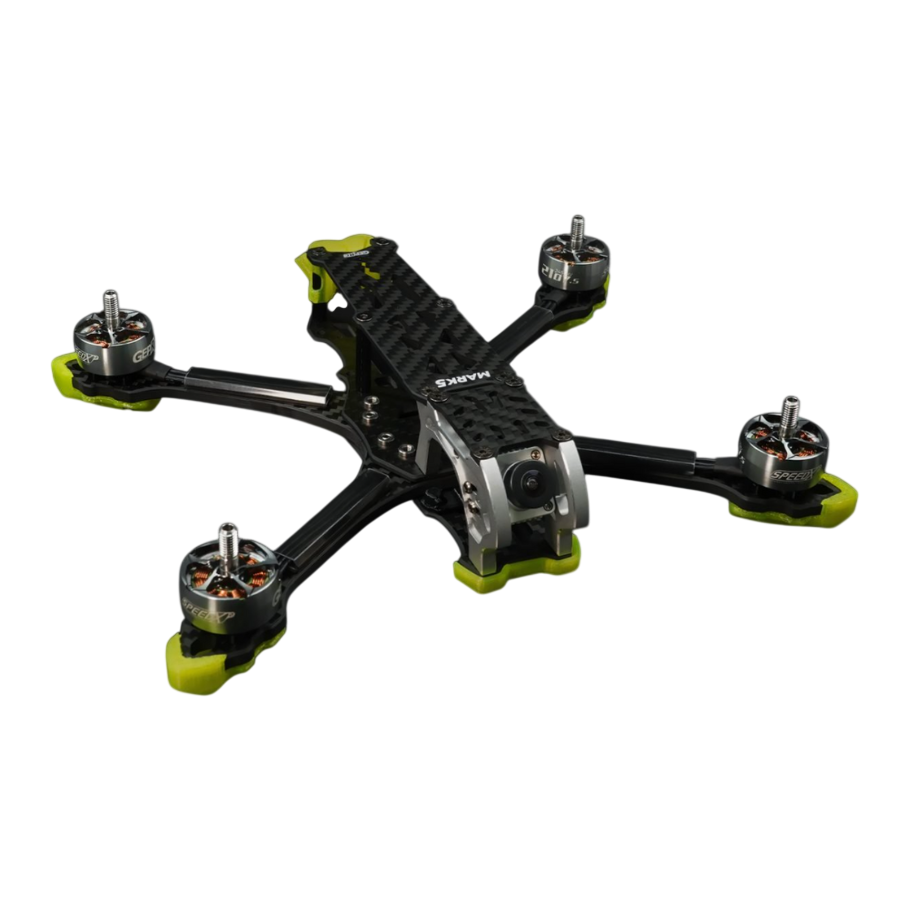

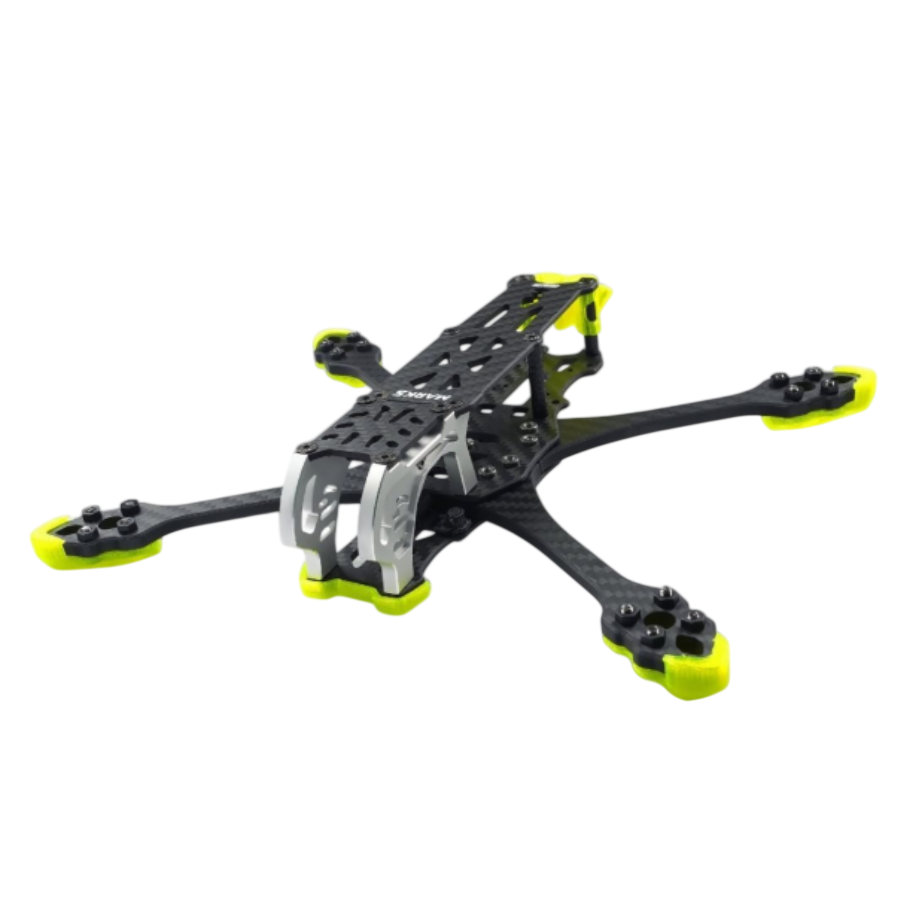

GEPRC GEP-MK5 Frame
Presenting the New Generation freestyle MARK5 frame, which comes with pro, standard, and upgrade kit options. Compatible with Analogue VTX, CADDX VISTA, and DJI AIR UNIT.
designed with a squashed X arm shape and a special shock-absorbing structure to lessen resonance and vibrations, especially for freestyle. The side plates made of aluminium alloy offer both durability and style.
It is adaptable for various installations because it supports common 30.5mm x 30.5mm Flight Controllers and has two sets of installation holes: 30.5mm x 30.5mm and 20mm x 20mm. It may also hold the DJI Air Unit directly.
Strong power output is provided via the frame’s motor holes (16 x 16 mm / 19 x 19 mm), which are designed to accommodate larger motors and 5-inch propellers.
For the GP, Naked GP 8, and Insta 360 GO2, two 3D printed mounts are included.
contains
Include
1 x MARK5 Frame Kits
1 x Battery strap M15x250mm
2 x Battery strap M20x220mm
2 x Battery Silicone Pads
1 x Set of 3D printings
2 x Action camera mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube
specification
Model: GEP-MK5
Motor to motor: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5.0mm
FC mounting holes: 30.5mm x 30.5mm
VTX mounting holes: 30.5mm x 30.5mm / 20mm x 20mm
Motor mounting holes: 16mm x 16mm / 19mm x 19mm
Camera installation space: 19-20mm
Suitable propeller size: 5″propeller
Dimension: 214mm x 168mm x 42mm
Weight: 130.0
1 x Antenna fixed tube
