Description
The GEP-CT30 O3 version of the frame developed by the GEPRC team specifically for the O3 Air Unit is now officially released.The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with multiple action cameras, TPU soft fixing method designed for O3 camera, to prevent the camera IMU resonance vibration. GEP-CT30 O3 frame supports the installation of mainstream AIO flight controllers with 25.5mm*25.5mm mounting holes, and is compatible with various VTX mounting holes on the market such as 20mm*20mm/25.5mm*25.5mm. With 12mm * 12mm motor mounting holes, can be installed with larger 15-18-20 series motors, with strong power output with 3-inch propeller. Ultra-light fuselage weight for more confident flying.Tuned by GEPRC professionals with high-qualityproduction process, explore endless possibilities for your flight shooting. In the face of the headwind, we only go up to the wind, never go with the wind. Salute to the filmmakers!

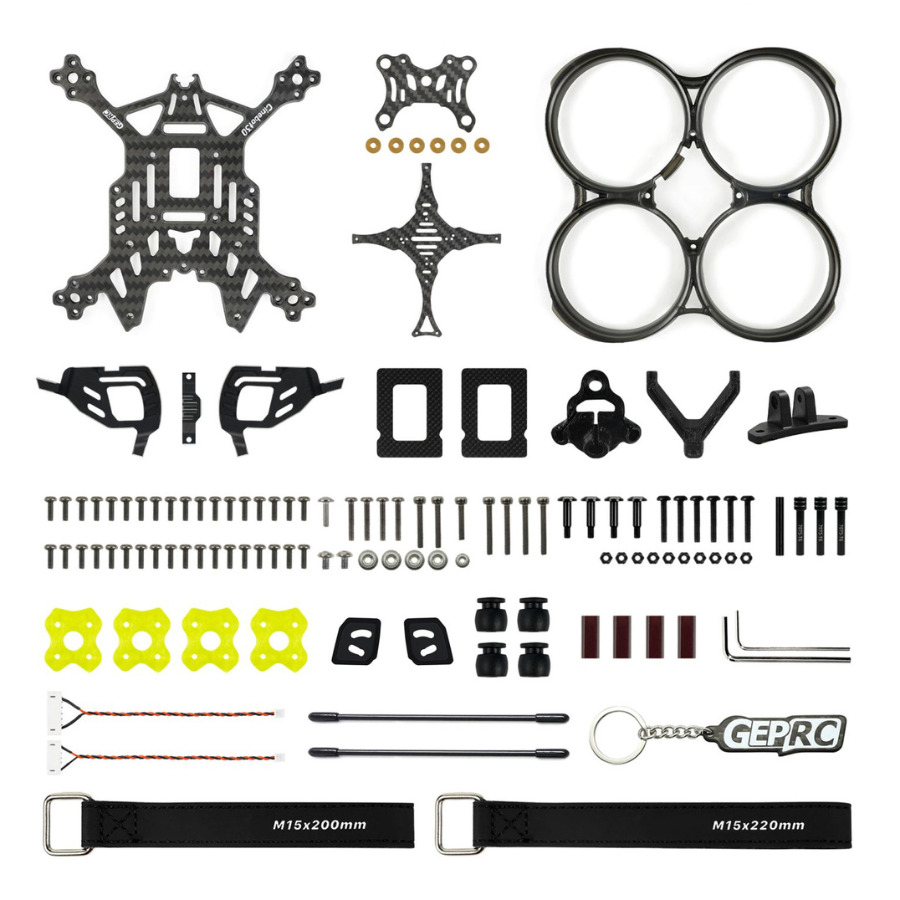

contains
1 x Main Plate 3.0mm
1 x Bottom Plate 1.5mm
1 x Isolation Plate 2.0mm
1 x Set of Screws
1 x Bec Module (optional)
1 x Cob Light Strip (optional)
1 x Set of 3D Printed Parts
1 x 3 inch One-piece Injection-molded Propeller Guard
1 x Naked GP Camera Base Mount
2 x Battery Non-slip Mat
2x Receiver Antenna Tube 100mm
1 x Battery Straps M15*200
1 x Battery Straps M15*220
1 x Naked GP Camera Power Cable 4S Balance Head
1 x Naked GP Camera Power Cable 6S Balance Head
1 x L-shaped Screwdriver 1.5mm
1 x L-shaped Screwdriver 2.0mm
1 x Carbon Fiber Keychain
2 x GEPRC Stickers
1 x Service Card
1 x Packaging Box
specification
- Brand: GEPRC
- Model: GEP-CT30 O3

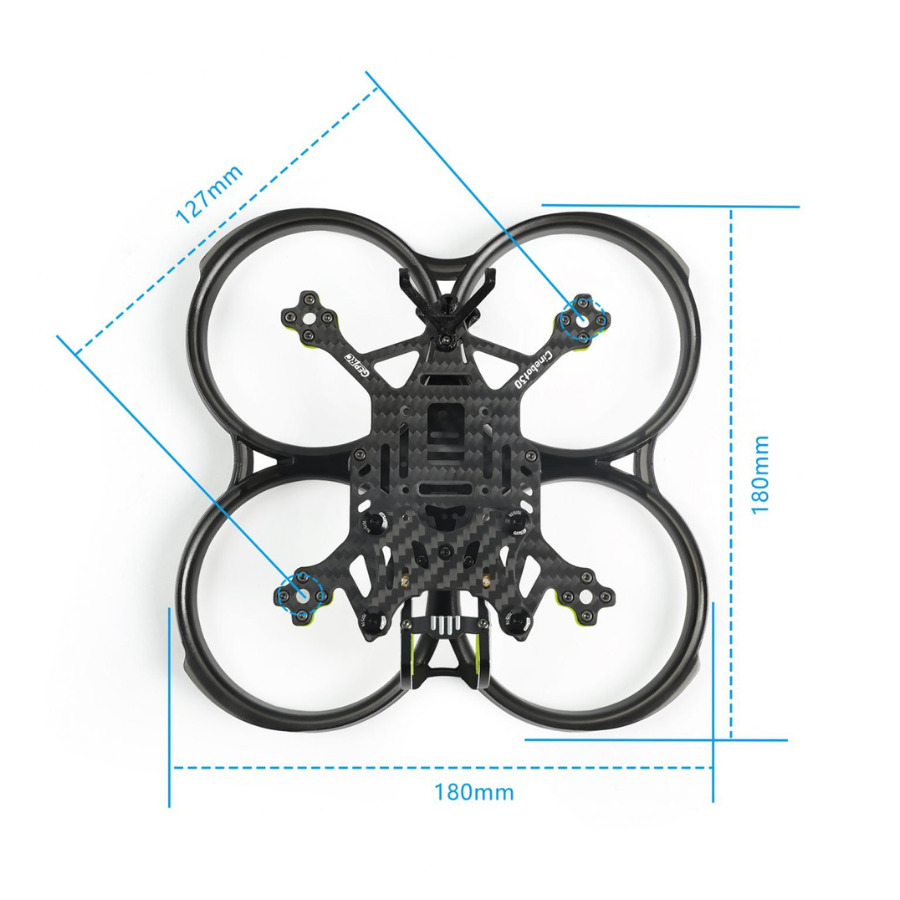

- Motor to Motor: 127mm
- Isolation Plate: 2.0mm
- Main Plate: 3.0mm
- Bottom Plate: 1.5mm
- FC Mounting Hole: 25.5mm x 25.5mm
- VTX Mounting Hole: 20mm x 20mm /25.5 x 25.5
- Motor Mounting Hole: 12mm x 12mm
- FPV Camera Spacing : 20mm
- Suitable propeller size: 3 inch propeller

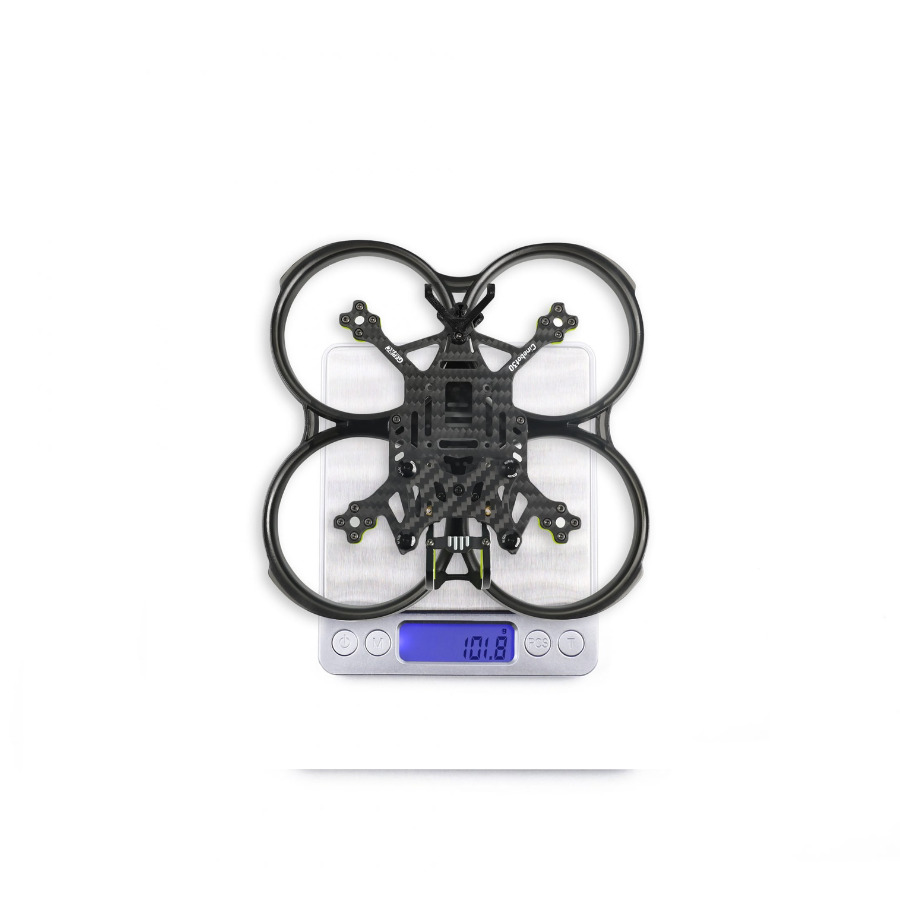

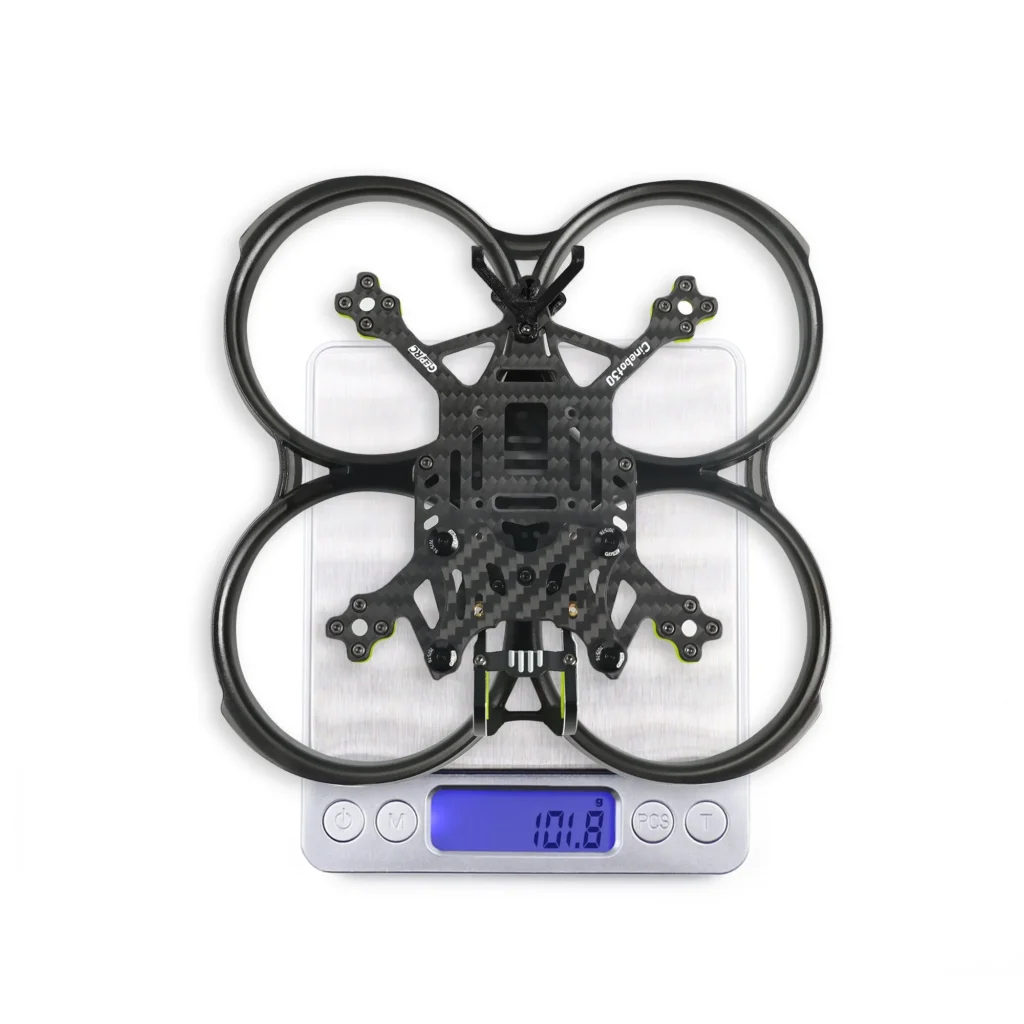

- Weight: 101.8g (without Led light strip) / 107.3g (with COB light strip)
