Description

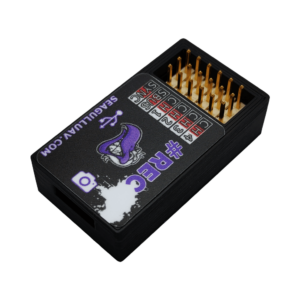

SEAGULL- REC 2
Using the on-board interface to easily power up your camera will transform your ability to carry out demanding mapping and surveillance tasks. With the #REC2, you won’t have to worry about running out of battery at critical times because it guarantees a steady power source for prolonged use.
With the customizable INPUT modes of #REC2, which include PWM and SBUS, you may finally say goodbye to the mess of cables on your UAV platforms. Simplify your setup so you can concentrate on what really matters: taking beautiful footage without having to worry about tangled cables.
With configurable Timelapse intervals, you can express your creativity and create time-defying sequences that present the world in a distinctive way. Achieving photo synchronisation with microsecond accuracy is crucial for a faultless cinematic experience when combined with #SYNC2.
#REC2 Features:
- USB Power Supply – extend the usage time of your camera!
- Video Record – START / STOP
- Shutter Release – photo capturing MANUAL / AUTOMATED
- Zoom Control – IN / OUT with variable speeds
- Manual Photo – separate stages for Focus and Shutter Release
- Timelapse – user defined interval for Shutter Release
- Shutter Feedback – #SYNC2 support for microsecond Timelapse precision
- Digital Capture – *shutter release only for Sony camcorders
- Selectable Input – control via PWM / SBUS interfaces
- Camera ON / OFF
#REC2 – Control / Power / Imagination.
Seagull #REC2 is a second edition of our popular Sony camera / camcorder controller. With #REC2 it is possible to supply power to the camera via on-board interface which extends the usage greatly for those long mapping and surveillance jobs! #REC2 now features configurable INPUT modes such as PWM or SBUS – which helps to limit the amount of wiring on UAV platforms. Last but not least users are able to adjust the desired Timelapse interval and when combined with #SYNC2 the precision between photos are within microseconds!
What it does
Seagull #REC2 supports the following functions
- INPUT SELECTION ( PWM or SBUS based INPUT to control modes )
- RECORD VIDEO ( START and STOP )
- SHUTTER RELEASE ( Capture photos via MANUAL or AUTOMATED activation )
- ZOOMING ( Variable speeds for ZOOM IN and OUT )
- MANUAL PHOTO ( 3 stage trigger mode NEUTRAL / FOCUS / SHUTTER )
- TIMELAPSE ( User defined interval repeated shutter release )
- SHUTTER FEEDBACK ( Support for #SYNC2 for microsecond Timelapse precision )
- Camera ON/OFF ( Turn camera ON or OFF – depending on previous state )
- Digital Capture ( *Shutter release ONLY for Sony CAMCORDERS )
What it supports
The following hardware is supported
Flight Controllers:
- Pixhawk 1
- Pixhawk 2.1
- Pixracer
- APM 2.6
- APM 2.5
- DJI Wookong
- DJI A2
- DJI A3
GENERAL
- Voltage: 3.9 – 12V (5 volts recommended – do NOT exceed 12V!)
- Current draw: 30.6mA (PS-DISABLED)
- Input signal: SBUS or Standard R/C PWM servo signal ( between 1000 – 2000uS )
PRODUCT DIMENSION
- Dimensions: 39.5mm x 21.5mm x 10.5mm
- Weight: 8g
