Description

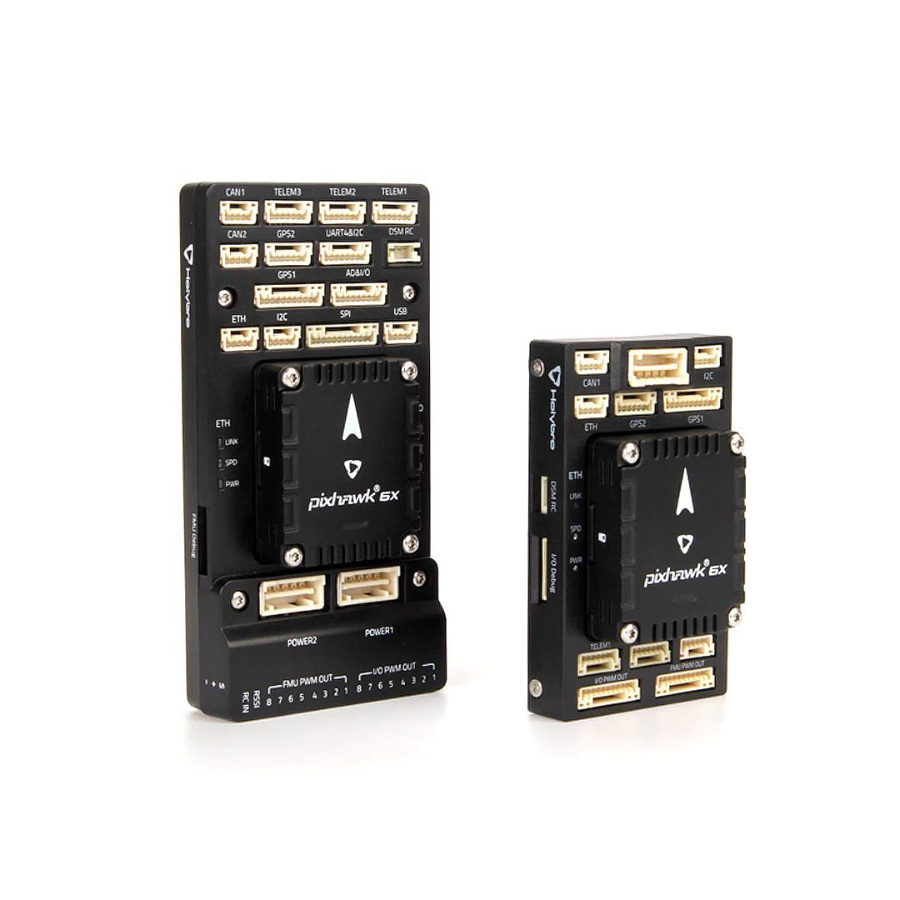

Pixhawk 6X
Your one-stop shop for accurate and dependable UAV flight control is the HOLYBRO Flight Controller Pixhawk 6X Standard Set. This kit comes with the state-of-the-art Pixhawk 6X technology, a power module for effective power distribution, and a GPS module for precise location and navigation. Installing and configuring it is simple thanks to its plug-and-play simplicity, regardless of experience level. This flight controller is designed to withstand the rigors of UAV use in a variety of situations and is compatible with a wide range of drone configurations and applications. Put your faith in HOLYBRO’s standing as a leader in the drone industry for performance and quality, and enhance your drone’s capabilities with the Pixhawk 6X Standard Set.
Key Design Points
- High performance STM32H753 Processor with clock speed up to 480 MHz
- Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Autopilot Bus connector.
- Redundancy: 3x IMU sensors & 2x Barometer sensors on separate buses
- Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
- Newly designed vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
- Ethernet interface for high-speed mission computer integration
- IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs

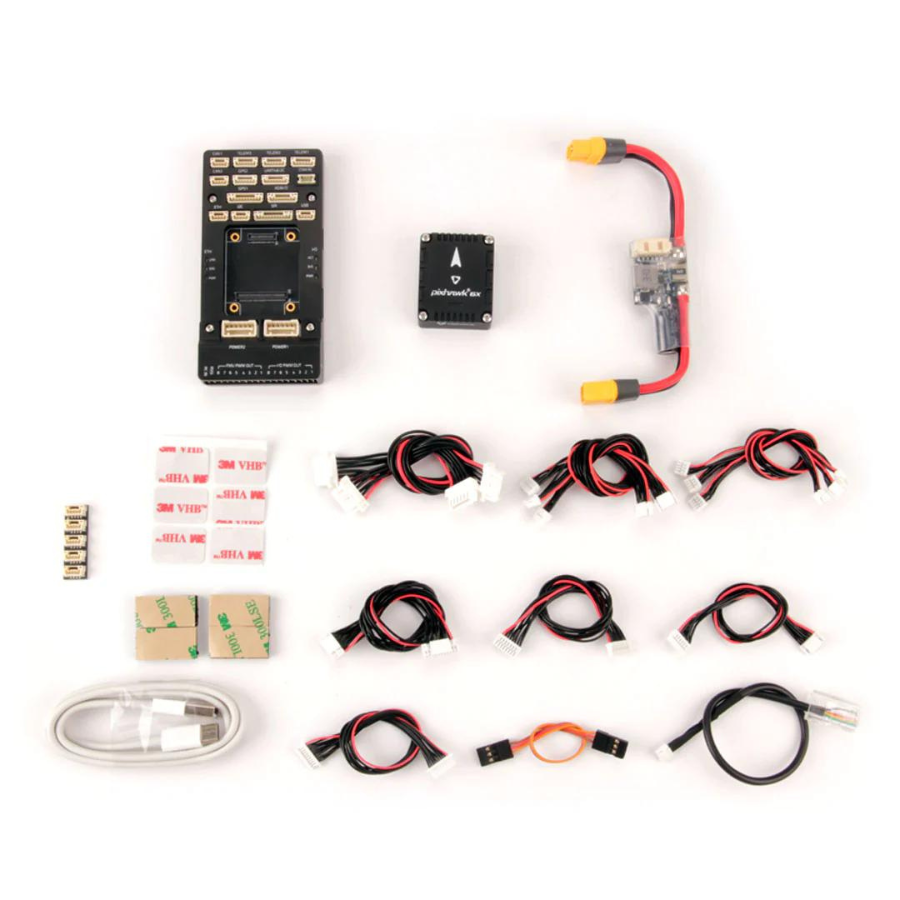

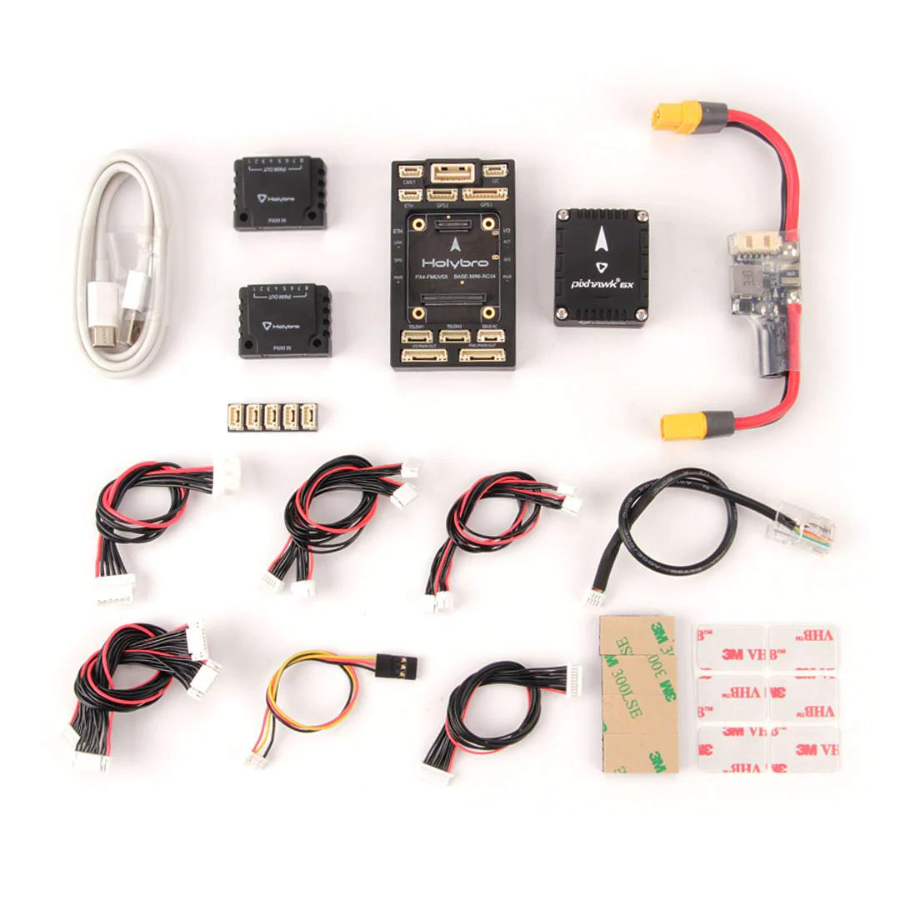

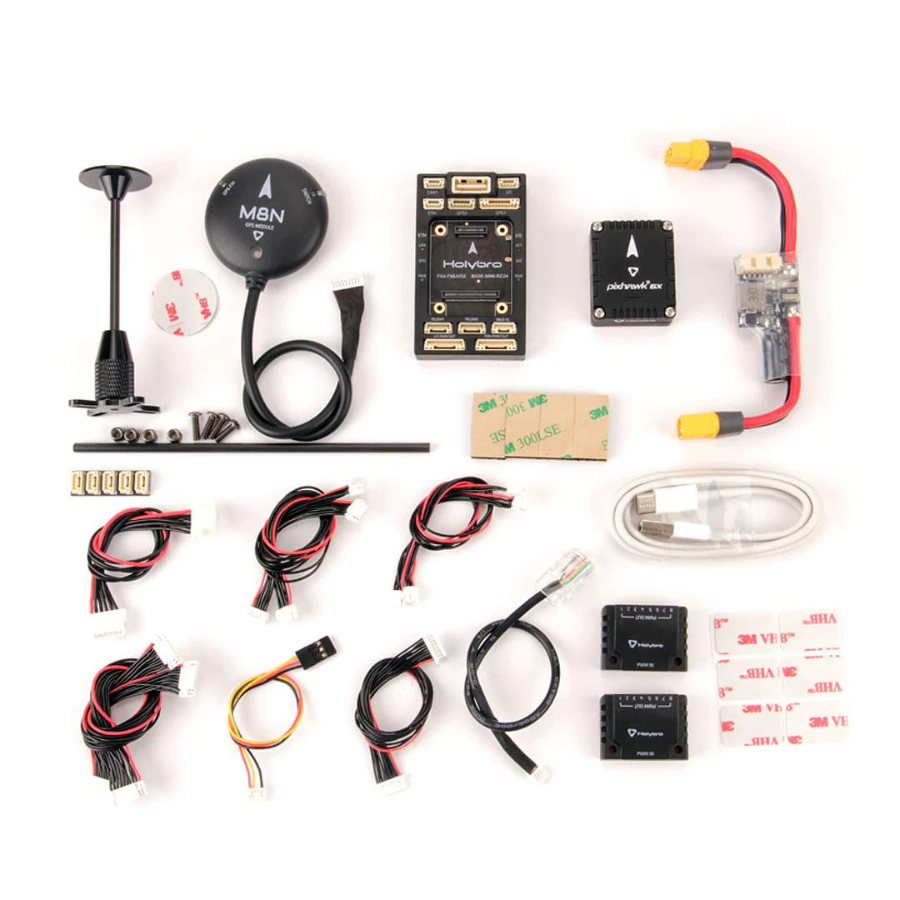

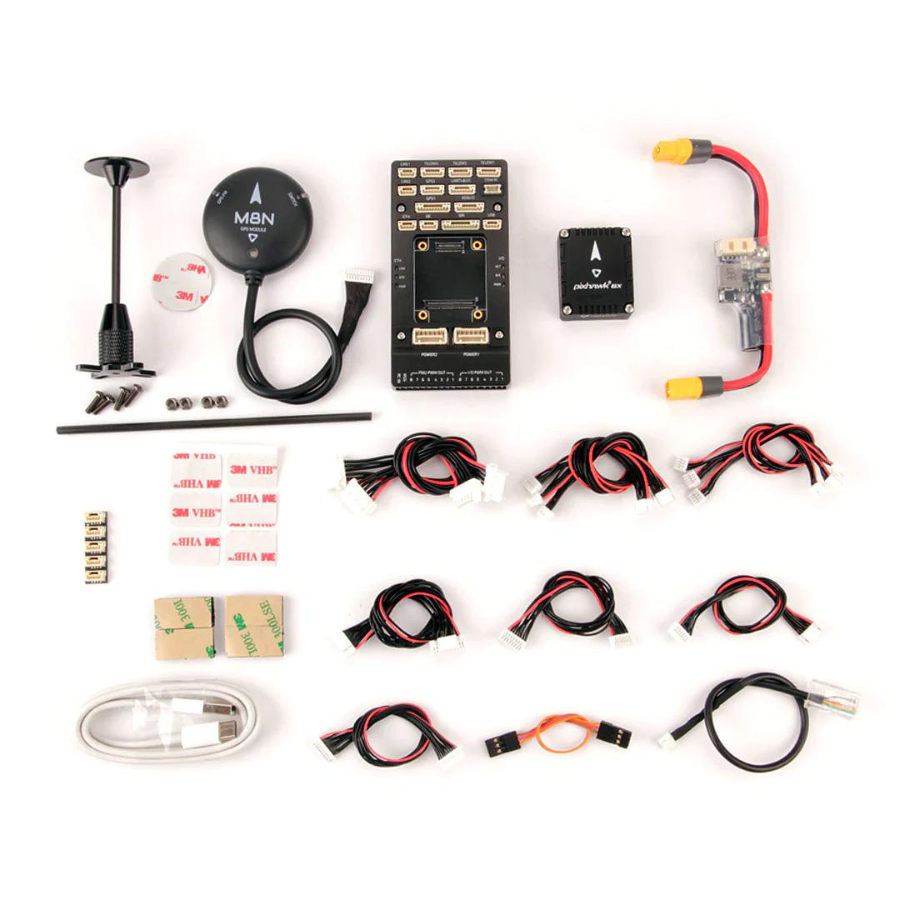

includes:
-

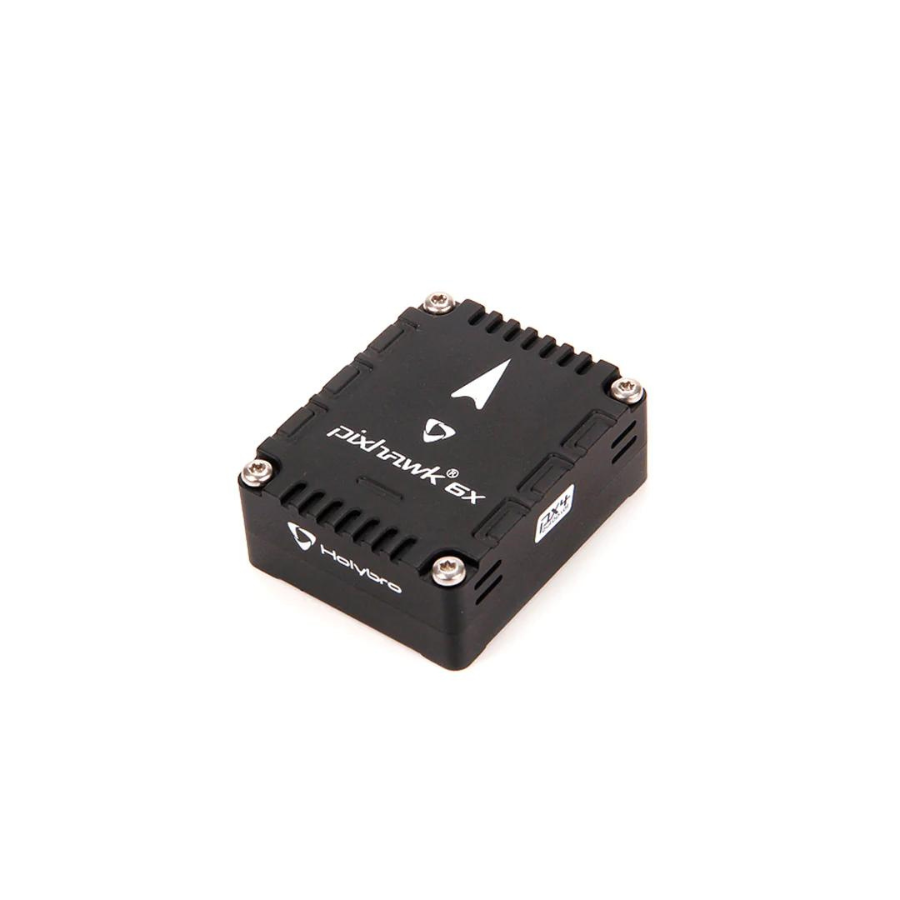

Pixhawk 6X Flight Controller Module
-
Pixhawk Standard Base / Pixhawk Mini Base
-
PM02D LV Power Module
-
Cable Set
