Description

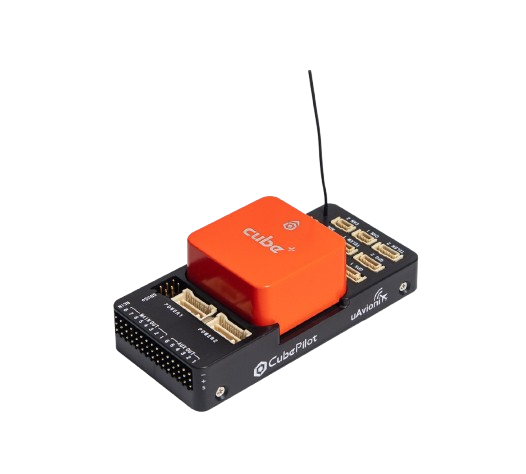

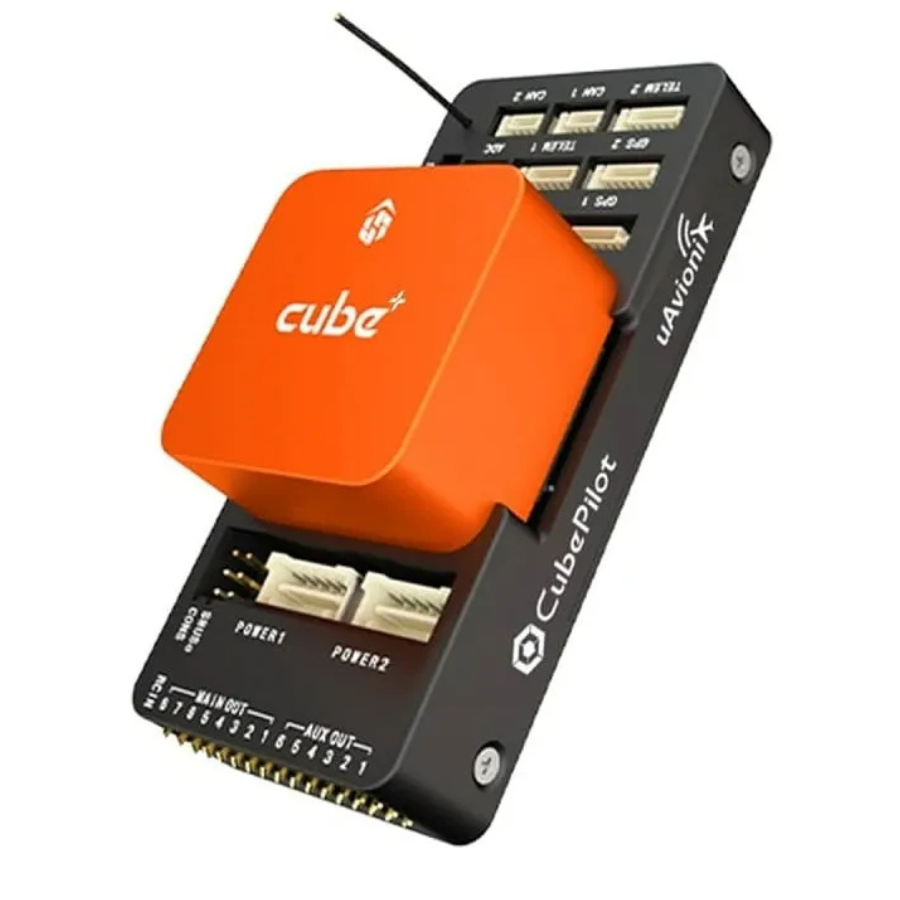

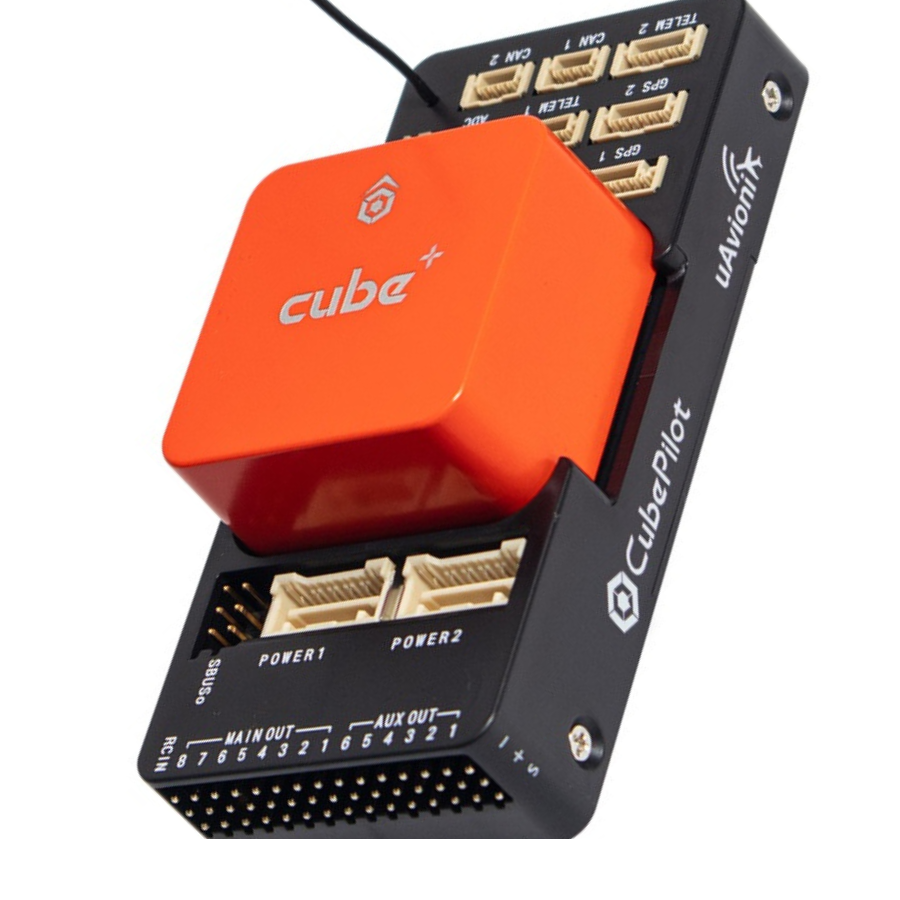

HEX Cube Orange+ with ADS-B Carrier Board
The HEX Cube Orange+ with ADS-B Carrier Board is a powerful autopilot system designed for professional and industrial UAV applications. It is an upgraded version of the Cube Orange, featuring a high-performance H7 processor, integrated ADS-B IN for real-time aircraft detection, and advanced fault-tolerant sensors for enhanced reliability. This system is optimized for fixed-wing, multirotor, VTOL, and hybrid drones, making it ideal for mapping, surveying, and defense applications. The ADS-B Carrier Board enhances situational awareness, allowing drones to detect and avoid manned aircraft, ensuring safer flight operations. With robust communication options and redundant IMU sensors, the Cube Orange+ delivers unmatched performance, precision, and safety in autonomous aerial systems.
Feature |
Specification |
|---|---|
| Processor | STM32H7 high-performance ARM processor |
| IMU Sensors | Triple Redundant IMUs with Vibration Isolation |
| GNSS Support | GPS, GLONASS, BeiDou, Galileo |
| ADS-B Integration | ADS-B IN for real-time aircraft detection |
| Communication | UART, CAN, I2C, SPI, PWM, Ethernet, USB |
| Failsafe Mechanisms | Redundant power inputs, emergency landing, RTH |
| Power Input | Wide voltage range with efficient power management |
| Flight Modes | Manual, Auto, Loiter, RTL, Follow-Me, Waypoint Mode |
| Compatibility | Fixed-Wing, Multirotor, VTOL, and Hybrid UAVs |
| Software Support | ArduPilot, PX4, Mission Planner, QGroundControl |
Includes
- 1x HEX Cube Orange+ Flight Controller – At the core of your system, this powers reliable and precise autonomous control.
- 1x ADS-B Carrier Board – Moreover, this includes integrated ADS-B IN for real-time manned aircraft detection.
- 1x Power Module & Cables – In addition, these components ensure stable power delivery throughout your setup.
- 1x Buzzer & Safety Switch – For added safety, this provides audible alerts and manual arming/disarming options.
- 1x Set of Vibration-Damping Mounts – These help reduce sensor noise and enhance flight data accuracy.
- 1x Set of Telemetry & GPS Cables – Also included, these allow seamless connectivity between modules.
- 1x User Manual & Setup Guide – Finally, this detailed guide walks you through installation and configuration step-by-step.
FAQS
1. What is the HEX Cube Orange+ used for?
The Cube Orange+ serves as a high-performance autopilot system. It supports fixed-wing, multirotor, VTOL, and hybrid UAVs. Moreover, it works well in applications such as mapping, surveying, agriculture, and defense.
2. What does the ADS-B Carrier Board do?
The ADS-B Carrier Board enables the Cube Orange+ to receive signals from nearby manned aircraft. As a result, it significantly improves situational awareness and helps maintain safer airspace operations.
3. Is the Cube Orange+ compatible with PX4 and ArduPilot?
Yes, it fully supports both PX4 and ArduPilot firmware. Additionally, it integrates smoothly with Mission Planner and QGroundControl for easy configuration.
4. What GNSS systems are supported?
The Cube works with multiple GNSS systems, including GPS, GLONASS, BeiDou, and Galileo. This ensures highly accurate and reliable navigation across different environments.
5. What communication interfaces are available?
It includes various interfaces such as UART, CAN, I2C, SPI, PWM, Ethernet, and USB. This wide range allows seamless integration into different UAV systems.
6. Does it support autonomous flight?
Yes, the Cube Orange+ supports several autonomous modes. These include waypoint navigation, return-to-home (RTH), loiter, and follow-me—making complex missions much easier to handle.
7. What drones is it compatible with?
It works with a broad range of drones, including fixed-wing aircraft, quadcopters, hexacopters, octocopters, VTOLs, and hybrid UAVs.
8. How does the Cube Orange+ ensure flight safety?
It includes triple-redundant IMU sensors, redundant power inputs, and smart fail-safes like emergency landing. Additionally, the built-in ADS-B IN system enhances collision avoidance.
