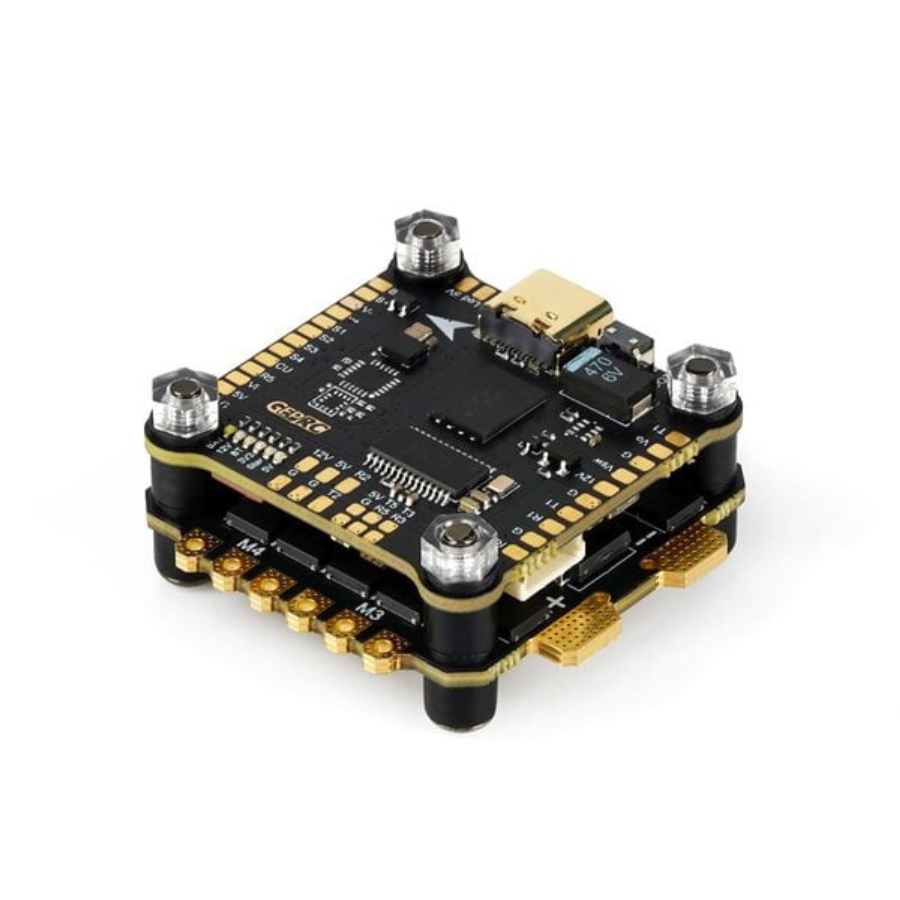

GEPRC-SPAN F722 50A BT HD V2 FC+ESC
The SPAN F722-BT-HD v2 stack, designed for seamless integration with the DJI Air Unit, offers a sophisticated flight tower system that combines a high-performance F722 chip flight controller with a BLheli_32 50A 96K 4-in-1 32-bit ESC. It features a 42688-P gyroscope, a 512MB onboard SD card for data storage, and built-in Bluetooth for easy parameter tuning. This setup allows for a refined flying experience without the need for soldering, thanks to its plug-and-play capability. The Type-C USB connector has been upgraded for increased durability and reduced connectivity issues. This flight controller is compatible with a wide range of receivers, such as Sbus, PPM, CRSF, DSMX, iBus, and DUMD, ensuring that it works with almost any remote controller you might already own. It is optimized for use with MARK5 drone frames but can also be fitted onto any frame with 30.5*30.5 FC mounting holes, providing flexibility in assembly and use.
In The Box
Includes
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*24 Screws
8 x Nylon nuts
4 x Silicone grommets
Specifications
General

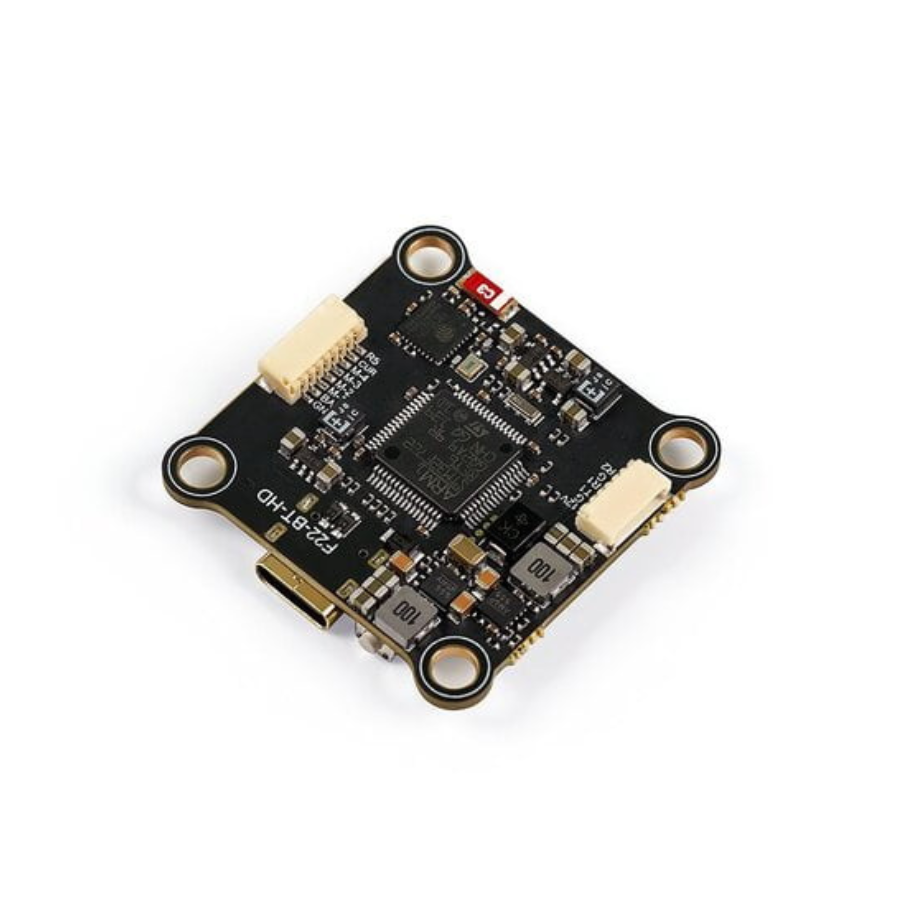

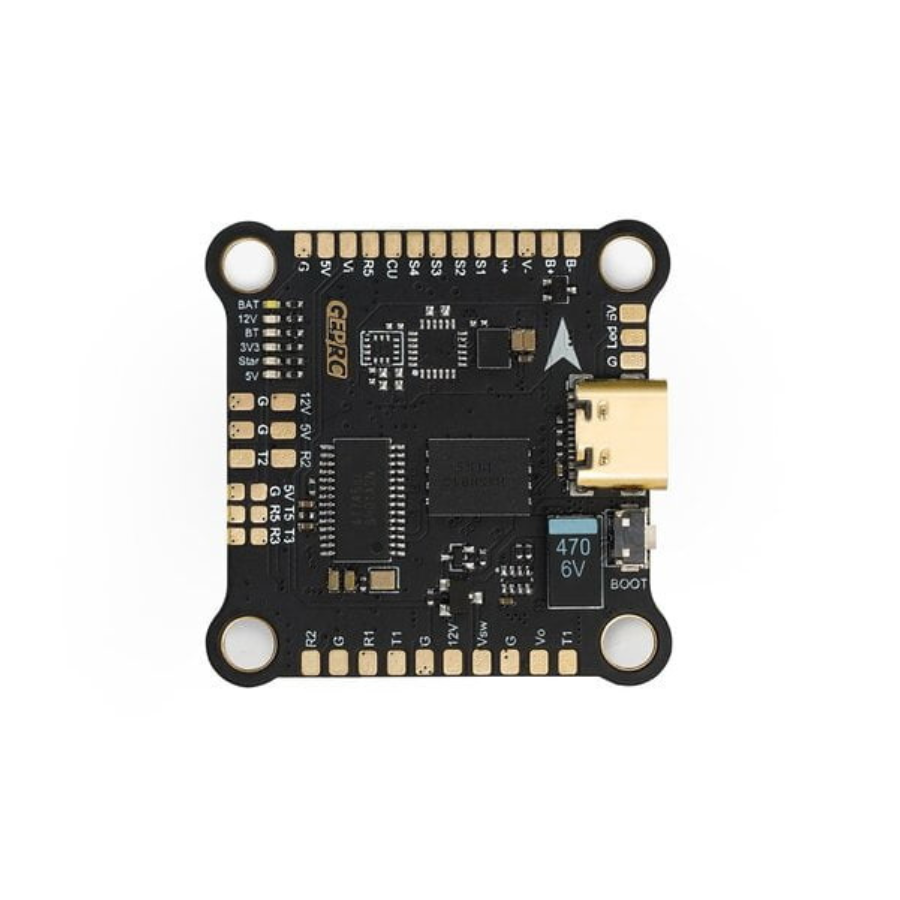

Model: SPAN F722-BT-HD v2 flight controller
- MCU: STM32F722RET6
- IMU: 42688-P(SPI)
- Black Box: 512MB onboard SD card
- USB Connector: Type-C
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC Output: 5V 3A / 12V 3A
- Integrated LC filtering
- Firmware: GEPRCF722-BT-HD
- Size: 36x36mm, φ4mm hole becomes φ3mm after using silicone grommets
- Input Voltage: LiPo 3-6S
- UARTS: 5
Other Features
1. Using mainstream STM32F722RET6 main control
2. Equipped with the latest 42688-P gyroscope
3. Support Bluetooth parameter tuning
4. 512MB on-board SD card
5. Integrated LC filtering
6. Upgraded type-C USB connector
7. Direct plugging into DJI Air Unit

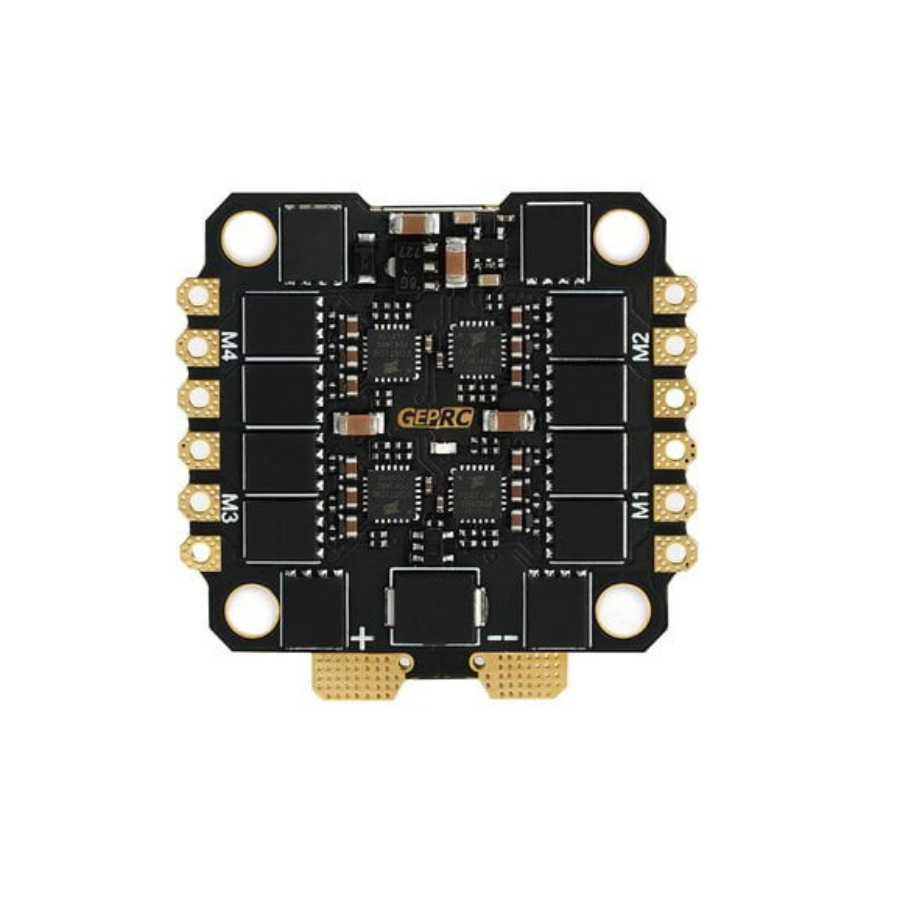

8. Combined with BLHeli_32 50A 96K 4IN1 ESC to achieve silky smooth flight experience
9. Simple and reasonable installation method, shock absorption ring can make the gyroscope work stably
10. Support major receivers: Sbus, PPM, CRSF, DSMX, iBus
