Description

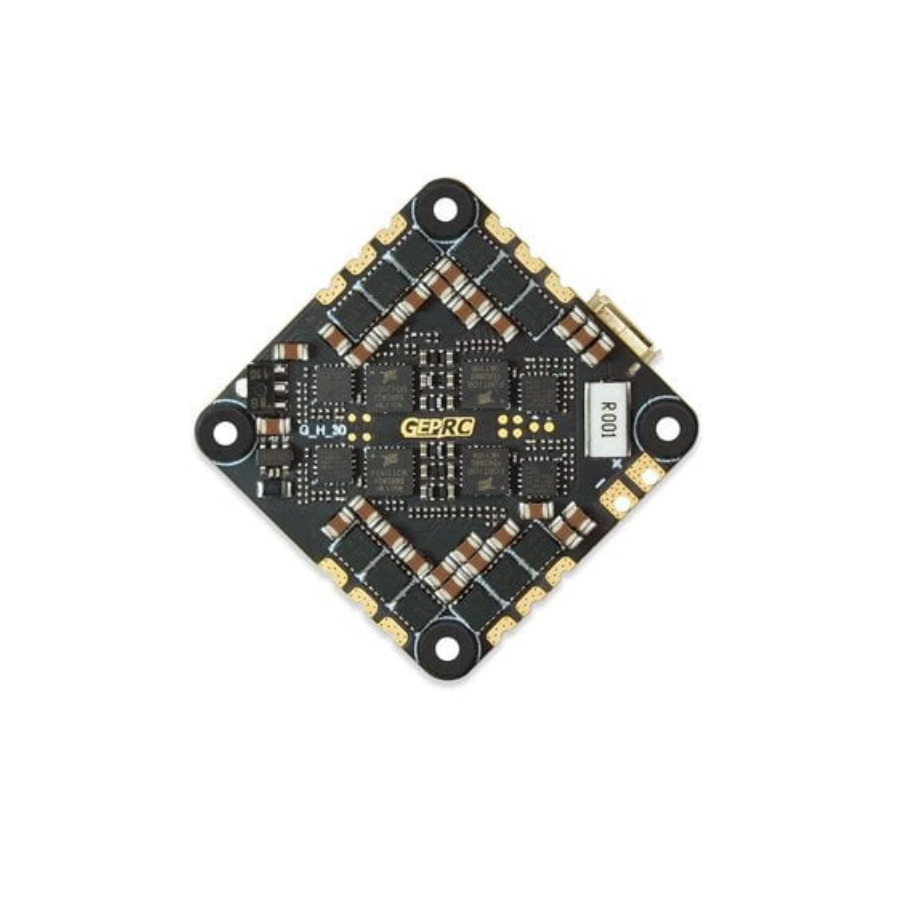

GEPRC-GEP F411 35A AIO (F411 FC 35A 2-6S 8bits BLS ESC 25.5mm)
The GEP-F4-35A is an advanced electronic speed controller (ESC) designed to handle a continuous current of 35A and a burst current of 40A. This model is an enhancement of the GEP-F4-20A, offering robust support for 2-6S lipo batteries. It is compatible with a range of motors including 1204, 1404, 1507, 1805, and 2004, and can accommodate 2-5 inch propellers. Additionally, it features OSD parameter adjustment capabilities, allowing for precise control settings. The ESC is exceptionally lightweight at 8.8g and comes with 25.5mm x 25.5mm mounting holes, making it versatile for integration into most drone frames currently available on the market. This makes it a suitable choice for a variety of drone building and upgrading projects.
In The Box
Includes
- 1 x GEP-F4-35A-AIO
- 1 x XT30-7CM-18AWG cables
- 1 x 35V220UF capacitance
- 8 x M2*6.5mm Damping rings
Specifications
General
- Model: GEP-F411-35A AIO
- MCU: STM32F411
- IMU: BMI270/accelerometer(SPI)
- Target: GEPRC_F411_AIO
- OSD: Betaflight OSD w/ AT7456Ev
- UART Ports: T1 R1 / T2 R2
- Beep: YES
- LED: YES
- USB Connector: micro USB
- ESC MCU: 8BB21F16G
- Intergrated LC Filter
- Continue Current: 35A
- Burst Current: 40A(10s)
- Input Voltage: 2~6S (LIPO Battery)
- ESC Protocol: Dshot300/600,Oneshot,Multishot
- Blackbox:16Mb
- ESC Target: G_H_30 BLS
- Size: 32x32mm Board
- Mount Holes: 25.5×25.5mm

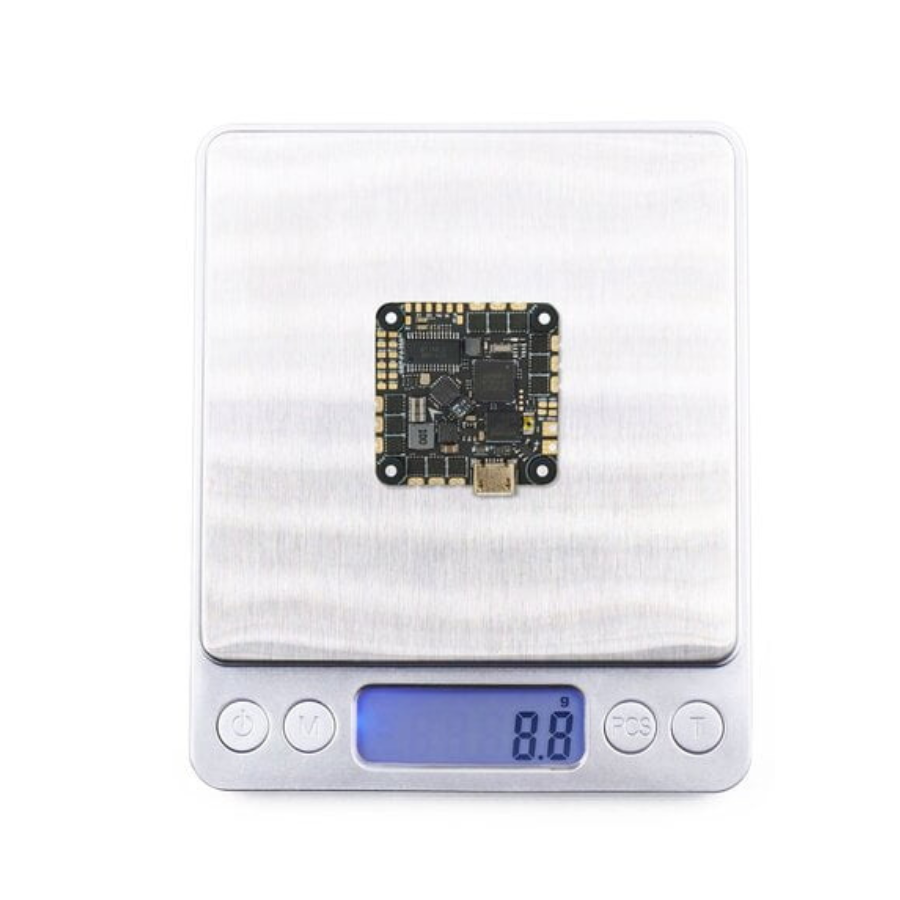

- Weight: 8.8g
Other Features
- BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.
- Mainstream STM32F411 FC and runs stably.
- BMI270 gyroscope with 8K sampling frequency.
- Rich external ports, it supports buzzer and LED light function.
- 25.5mm * 25.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.
