Description
MK32E Smart Controller
Professional drone operators and pilots will find the SIYI MK32E Enterprise Handheld Ground Station Smart Controller to be an ergonomic and state-of-the-art tool. This cutting-edge portable ground station functions as a centralized control center, providing unmanned aerial vehicle (UAV) operators with accurate and user-friendly control. With its high-resolution touchscreen interface, the MK32E offers live video feeds, real-time telemetry data, and simplified access to crucial flight parameters. Its adjustable controls and ergonomic design guarantee a productive and pleasant operation even for prolonged periods of time. Because it can be used with a variety of enterprise-grade UAVs, the smart controller provides an adaptable solution for a wide range of applications, including aerial photography, surveying, and industrial inspections. Professionals can now operate drones with greater control and situational awareness thanks to the powerful SIYI MK32E Enterprise Handheld Ground Station Smart Controller.
Specifications
Overall
Model: MK32E
Max Transmission Range: 5 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers:
PX4 / ArduPilot Open-source Flight Controllers:
– SIYI N7, etc.
Agriculture Flight Controllers:
– BOYING Paladin V2
– JIYI K++ V2 / K3A Pro
– VK V7 AG / V9 AG
Video Stream Compatible Android GCS:
SIYI Original Apps:
– SIYI FPV
Open-source GCS:
– QGroundControl
– Mission Planner
Agriculture GCS:
– BOYING Agriculture
– JIYI Agri-Assistant / IFLY
– VK Agriculture
Video Stream Compatible Windows GCS:
– QGroundControl
– Mission Planner (H264 only)
Ground Unit (Remote Controller)
Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 4G RAM & 64G ROM
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours
Antenna Gain:
– Omni Antenna: 5 dBi
– 2.4G Rod Antenna: 5 dBi

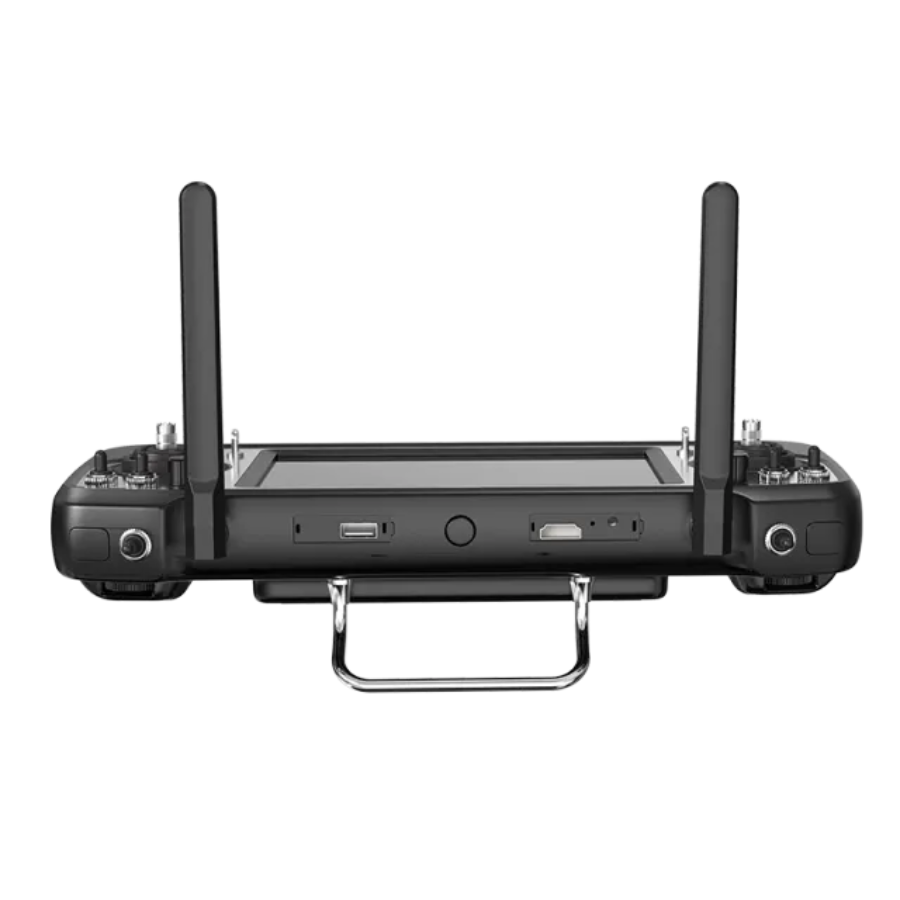

Interface & Ports:
– Video Output: Standard HDMI
– External Device (Mouse, USB Disk): USB-A
– Charging: Type-C
– Firmware Upgrade: Type-C
– File Transfer: Type-C / USB-A
– Mobile Network: SIM Card Slot
– External Storage: TF Card Slot / USB-A
– Communication: LAN (Ethernet)
– RC Signal Input / Output: Bottom Audio Port
Waterproof Level: IP4X
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g
Working Temperature: -10 to 50℃
Air Unit
Signal Output: 16 channels of S.Bus, 5 channels of PWM
Interface & Ports:
– S.Bus RC Signal Output: S.Bus Out (GH1.25 3-Pin)
– Datalink (to FC): UART (GH1.25 4-Pin)
– PWM Channel 1 to 5: PWM (GH1.25 6-Pin)
– Video Input / Network Communication: 2 x LAN & PWR (GH1.25 8-Pin)
– Firmware Upgrade: Type-C
Antenna Gain:
– Omni Antenna: 5 dBi
– 2.4G Rod Antenna: 5 dBi
Working Voltage:
MK15E Air Unit:
4S ~ 18S / 16.8 ~ 75.6 V
(Early lot supported 6S to 14S input only, please carefully confirm)
Power Consumption:
MK15E Air Unit:
– Average: 3.2 W
– Summit: 12 W
Dimensions (antenna excluded): 75 x 48 x 17 mm (fan included)
Weight (antenna excluded): 116 g
Working Temperature: -10 to 50℃
Air Unit HDMI Input Converter (Optional or Packed with HDMI Combo
Video Input: Micro HDMI
Video Output: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W
Video Recording Resolution:
– 1080p (1920 x 1080) @ 30 fps
– 720p (1280 x 720) @ 30 fps
Video Recording Bitrate: 12 Mbps (H.265 codec)
Video Recording Format: H.265
File Storage Format: FAT32
Supported TF / SD Card Type: MicroSD Class10, Max 32GB
Product Dimensions: 42 x 41 x 11 mm
Weight: 26 g
Working Temperature: -10 to 50℃
