Description
MK15E Mini Smart Controller
Compact and potent, the SIYI MK15E Mini HD Handheld Enterprise Smart Controller is made for professional drone operators and pilots. For enterprise applications, this handheld smart controller offers an easy-to-use and comfortable way to operate unmanned aerial vehicles (UAVs). The MK15E offers quick access to critical flight parameters, live HD video feeds, and real-time telemetry data through its high-definition touchscreen interface. Its small size makes it incredibly portable, making it ideal for operations while on the go, and its adjustable controls guarantee an easy-to-use and effective experience when flying drones. The SIYI MK15E Mini HD Handheld Enterprise Smart Controller is a highly adaptable and dependable instrument that can be used for a variety of enterprise-grade UAV applications, including mapping, aerial surveying, and inspections. It offers professionals improved situational awareness and accurate control.
Specifications
Overall
Model: MK15E
Max Transmission Range: 5 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers:
PX4 / ArduPilot Open-source Flight Controllers:
– SIYI N7, etc.
Agriculture Flight Controllers:
– BOYING Paladin V2
– JIYI K++ V2 / K3A Pro
– VK V7 AG / V9 AG
Video Stream Compatible Android GCS:
SIYI Original Apps:
– SIYI FPV
Open-source GCS:
– QGroundControl
– Mission Planner
Agriculture GCS:
– BOYING Agriculture
– JIYI Agri-Assistant / IFLY
– VK Agriculture
Video Stream Compatible Windows GCS:
– QGroundControl
– Mission Planner (H264 only)

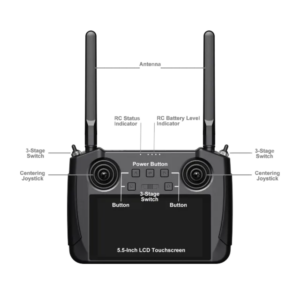

Ground Unit (Remote Controller)
Monitor: 5.5-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 2G RAM & 16G ROM
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 20W
Charging Time: 5 Hours (PD 20W Charging)
Battery Life: 13 hours
Antenna Gain:
– Omni Antenna: 5 dBi
– 2.4G Rod Antenna: 5 dBi
Interface & Ports:
– Video Output: Standard HDMI*Enterprise edition only
– External Device (Mouse, USB Disk): USB-A
– Charging: Type-C
– Firmware Upgrade: Upgrade Port (Bottom GH1.25 4-Pin)
– File Transfer: Type-C / USB-A
– Mobile Network: SIM Card Slot
– External Storage: TF Card Slot / USB-A
– Tripod Mount: 1/4-inch Standard Screw Hole
Waterproof Level: IP53
Dimension (antenna overlapped): 189 x 138 x 41 mm
Weight: 850 g
Working Temperature: -10 to 50℃
Air Unit
Signal Output: 16 channels of S.Bus, 5 channels of PWM
Interface & Ports:
– S.Bus RC Signal Output: S.Bus Out (GH1.25 3-Pin)
– Datalink (to FC): UART (GH1.25 4-Pin)
– PWM Channel 1 to 5: PWM (GH1.25 6-Pin)
– Video Input / Network Communication: 2 x LAN & PWR (GH1.25 8-Pin)
– Firmware Upgrade: Type-C
Antenna Gain:
– Omni Antenna: 5 dBi
– 2.4G Rod Antenna: 5 dBi
Working Voltage:
MK15E Air Unit:
4S ~ 18S / 16.8 ~ 75.6 V
(Early lot supported 6S to 14S input only, please carefully confirm)
Power Consumption:
MK15E Air Unit:
– Average: 3.2 W
– Summit: 12 W
Dimensions (antenna excluded): 75 x 48 x 17 mm (fan included)
Weight (antenna excluded): 116 g
Working Temperature: -10 to 50℃
Air Unit HDMI Input Converter (Optional or Packed with HDMI Combo)
Video Input: Micro HDMI
Video Output: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W
Video Recording Resolution:
– 1080p (1920 x 1080) @ 30 fps
– 720p (1280 x 720) @ 30 fps
Video Recording Bitrate: 12 Mbps (H.265 codec)
Video Recording Format: H.265
File Storage Format: FAT32
Supported TF / SD Card Type: MicroSD Class10, Max 32GB
Product Dimensions: 42 x 41 x 11 mm
Weight: 26 g
Working Temperature: -10 to 50℃
R1M Recording FPV Camera (Optional)
Video Output: Ethernet
Image Sensor: 1/2.9-inch, 2 MP
FOV:
– Diagonal: 90°
– Horizontal: 80°
Working Voltage: 12 V
Power Consumption: 2.5 W
Video Recording Resolution:
– 1080p (1920 x 1080) @ 30 fps
– 720p (1280 x 720) @ 30 fps
Video Recording Bitrate: 12 Mbps (H.265 codec)
Video Recording Format: MP4
File Storage Format: FAT32
Supported TF / SD Card Type: MicroSD Class10, Max 32GB
Product Dimensions: 42 x 42 x 25 mm
Weight: 23 g
Working Temperature: -10 to 50℃
