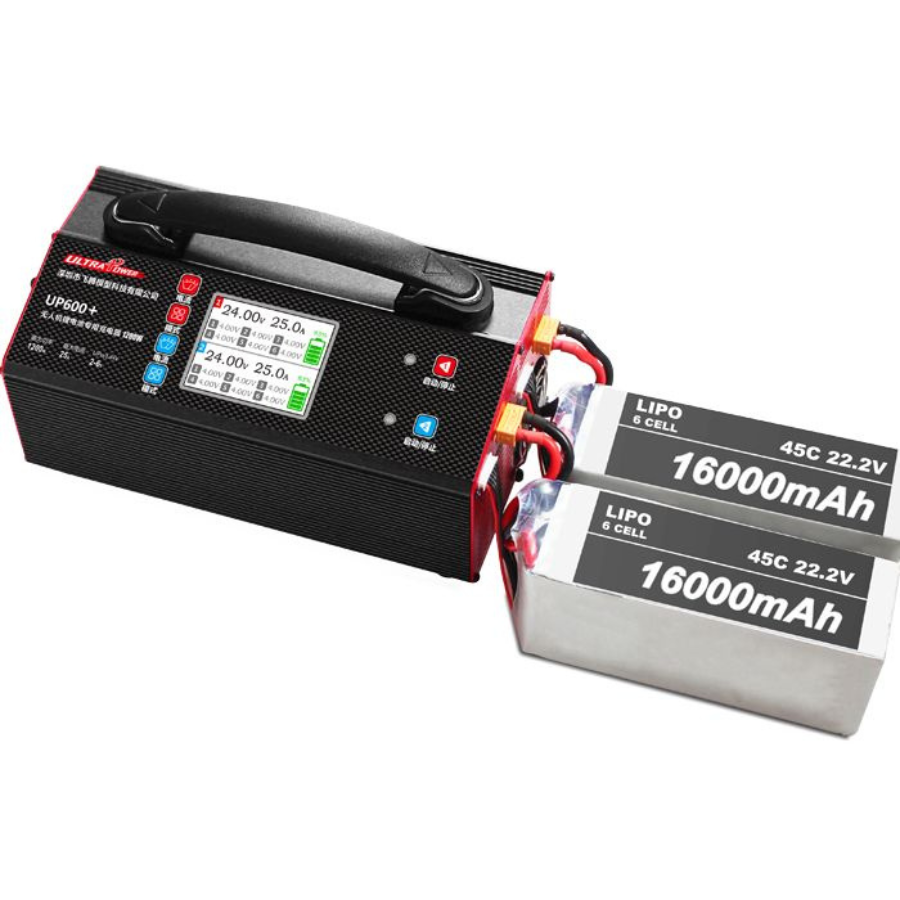

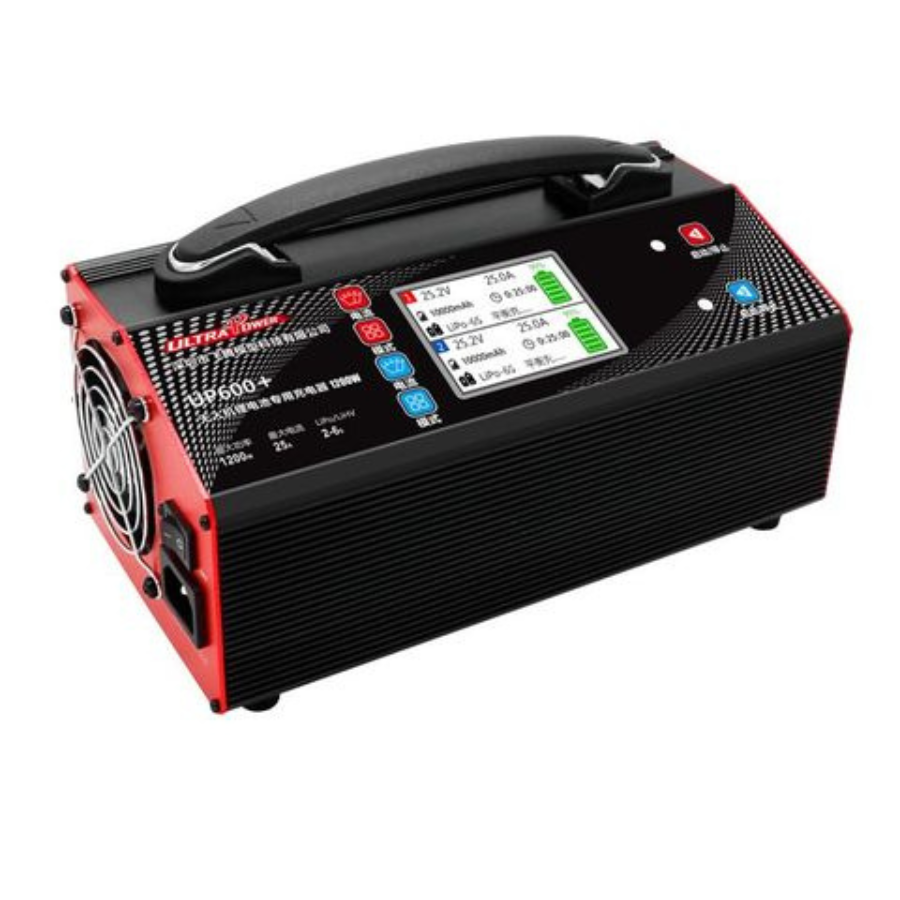

UP600+ AC Dual 1200W 2X600W 25A 2-6S Lipo/LiHV Battery Balance Charger Discharger
Designed for UAV drones in India, the Ultra Power UP600+ AC Dual 1200W is a strong and effective battery balance charger. It can charge two batteries at the same time with its dual 600W channels, giving it a total power output of 1200W. This charger meets the requirements of many UAV applications by supporting LiPo/LiHV batteries in the 2–6S range. Its 25A charging capacity guarantees quick and dependable charging of your drone’s batteries. For professional or hobbyist drone users alike, the Ultra Power UP600+ is a dependable option that will keep your drone fully charged and prepared for action in Indian airspace.
The UP600+ charger is made especially to charge and store ultra low voltage batteries for multi channels LiPo/LiHV batteries, such as the Diamond 6S 22000mAh and 30000mAh Semi-solid State Lipo Batteries. To safeguard the battery and increase its lifespan, a charge current of 1A is applied when the battery voltage is between 2.8 and 3.2 volts.
It is a twin-channel charger that can concurrently charge and store two pieces of 2–6S semi-solid/LiPo battery packs. You can vary the charge current from 5A to 25A (20A, 25A, and 10A). In addition, the 3.2-inch HD LCD display on the UP600+ makes charging and discharging data easy to see.
Specifications
Technical
Input voltage: AC 110V/220V
Charge current: 5A/10A/15A/20A/25A
Charge power: 1200W (600Wx2)
Discharge power: 80W (40Wx2)
Balance current: 1.5A/cell
Battery type: SemiSolid/LiPo
Support battery types: 2-6 S
Charging mode: balance charging mode / storage mode
Dimensions: 268x140x127mm
Weight: 3.1KG
In The Box
1 x FOXTECH UP600+ Charger
1 x Power Cord
2 x Adaptor Board
1 x Manual
