Description

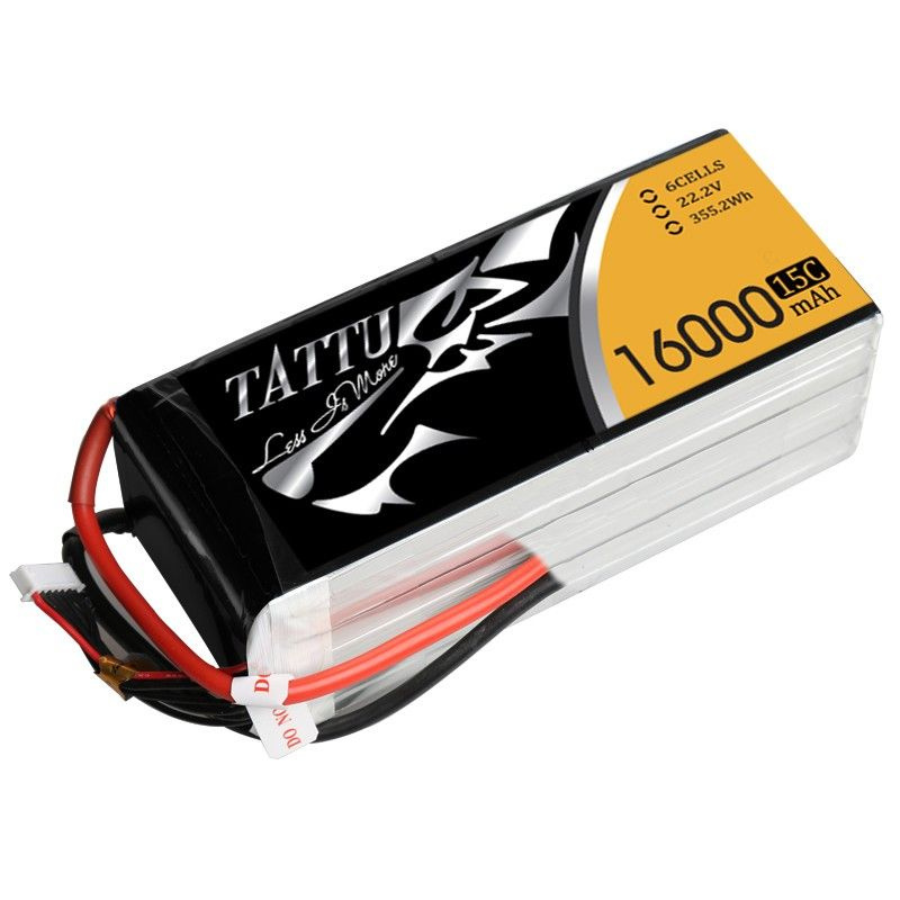

16000mAh 6S1P 15C Lipo Battery Pack
For all of your RC needs, the Tattu 16000mAh 6S1P 15C Lipo Battery is a powerful option. For large drones, airplanes, helicopters, and other high-demand applications, this battery delivers extended usage thanks to its substantial 16000mAh capacity and dependable 15C discharge rate. It is made with Tattu’s dedication to quality, which guarantees reliable and long-lasting performance. A wide range of RC devices are compatible with the 6S configuration, and its balanced charging support enhances longevity and safety. With the Tattu 16000mAh 6S1P 15C Lipo Battery, you may enhance your RC experience by having dependable and effective power for your aerial explorations.
Lipo Battery Guide
What’s a Lipo battery?
Lithium polymer battery, sometimes known as Li-po battery or, more accurately, lithium-ion polymer battery (abbreviated as LiPo, LIP, Li-poly and others), is the full name of the Li-po battery. Lipo is a lithium-ion rechargeable battery that uses a polymer electrolyte rather than a liquid one. This electrolyte is made of semisolid polymers with high conductivity. Comparing these lipo batteries to other lithium-battery kinds, the specific energy provided is higher. In many consumer electronics gadgets today, this more modern battery type is utilized. Over the past few years, they have become more and more well-liked in the radio control sector, becoming the go-to option for anyone seeking high power and extended run durations.
LiPo batteries have several advantages. Yet, each user must determine whether the advantages outweigh the disadvantages. More and more people find that they do. As long as you abide by the guidelines and treat the batteries with the decency they require, I don’t think there is anything to be afraid of with LiPo batteries.
The primary purpose of this tutorial is to provide an overview of basic knowledge regarding LiPo battery parameters, selection, care, safety, and Gens Ace Tattu Lipo battery service.
Lipo Battery Parameters Introduction
We can see there are some Parameters on this Lipo battery, they are Battery Capacity, Battery Voltage, Cell Configuration and Discharge Rate, our guide will introduce what are these parameters stand for?
Specifications
General
| Brand | Tattu |
|---|---|
| Capacity(mAh) | 16000 |
| Voltage(V) | 22.2 |
| Discharge Rate (C) | 15 |
| Max Burst discharge Rate (C) | 30 |
| Configuration | 6S1P |
| Net Weight(±20g) | 1915 |
| Length(±5mm) | 190 |
| Width(±2mm) | 75 |
| Height(±2mm) | 63 |
| Connector Type | XT90 ANTI SPARK |
| Wire Gauge | AWG10# |
| Discharge Wire Length(mm) | 120mm |
| Balancer Connector Type | JST-XHR |
BATTERY VOLTAGE
3.7V battery = 1 cell x 3.7V= 1S battery
7.4V battery = 2 cells x 3.7V= 2S battery
11.1V battery = 3 cells x 3.7V= 3S battery
14.8V battery = 4 cells x 3.7V= 4S battery
18.5V battery = 5 cells x 3.7V= 5S battery
22.2 V battery = 6 cells x 3.7V= 6S battery
29.6 V battery = 8 cells x 3.7V= 8S battery
37.0V battery = 10 cells x 3.7V= 10S battery
44.4V battery = 12 cells x 3.7V= 12S battery
FAQ's
- How does the high-energy capacity of the Tattu 22.2V 25C 6S 22000mAh Lipo Battery benefit drone pilots and RC enthusiasts?
- It offers extended flight or operation times, allowing for longer sessions of aerial photography, racing, or exploration without the need for frequent recharging.
- What types of devices are compatible with this battery?
- Primarily designed for advanced drones and RC vehicles requiring a 22.2V power supply and capable of handling a 25C discharge rate. Compatibility should be confirmed based on the device’s voltage and connector type requirements.
- How does the XT90-S Anti Spark Connector enhance the user experience?
- It minimizes the risk of electrical sparks upon connection, which not only improves safety but also protects both the battery and the device’s electrical systems from potential damage.
- Can I charge the Tattu 22.2V 25C 6S 22000mAh Lipo Battery with a standard Lipo battery charger?
- Yes, as long as the charger supports 6S Lipo batteries and the XT90-S connector type. Ensure the charger’s specifications match the battery’s requirements.
- What precautions should I take when charging this Lipo battery?
- Always use a compatible charger, charge in a fireproof location, monitor the charging process, and never leave the battery unattended while charging.
- How can I maximize the lifespan of this battery?
- Avoid complete discharges, do not overcharge, store at a partial charge in a cool and dry place, and balance charge the battery regularly.
- What is the best way to store the battery when not in use?
- Store the battery at a 40-60% charge level in a cool, dry place away from direct sunlight and heat sources to preserve its lifespan.
- Is it normal for the battery to heat up during use or charging?
- Some heat generation is normal during use or charging, but excessive heat may indicate a problem. Always monitor the battery’s temperature and use a charger with temperature protection.
- How does the discharge rate affect the performance of my drone or RC vehicle?
- The 25C discharge rate ensures that your device receives a steady and powerful energy flow, supporting high-performance demands and enhancing overall responsiveness and power output.
- Where should I turn if I encounter issues with my battery or need technical support?
- For technical support or warranty service, contact the retailer where you purchased the battery or reach out to Tattu’s customer service directly for assistance.
