Description

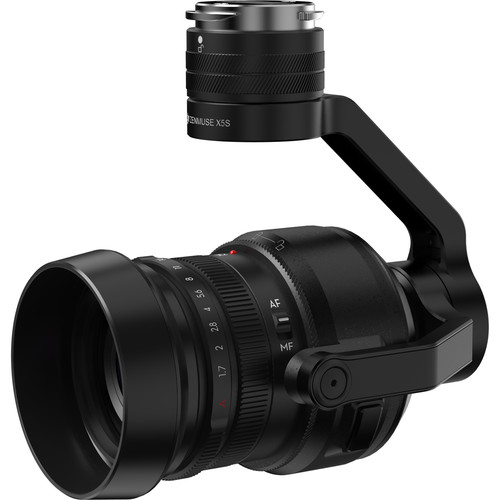

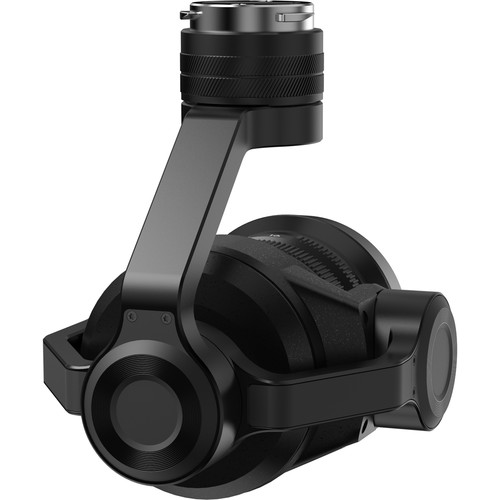

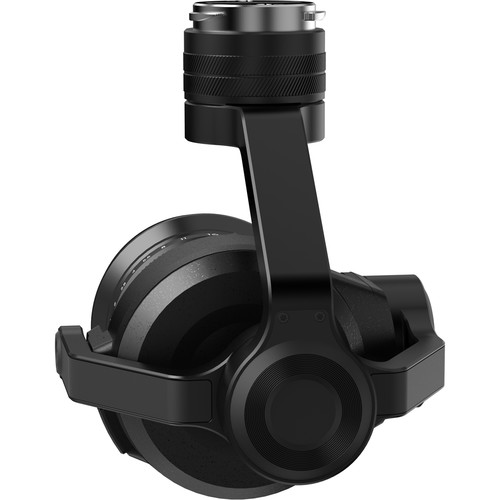

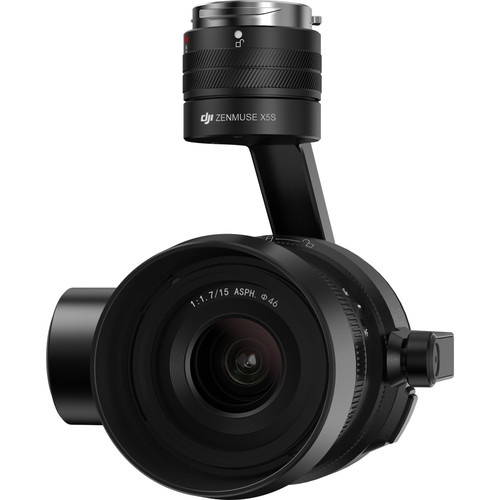

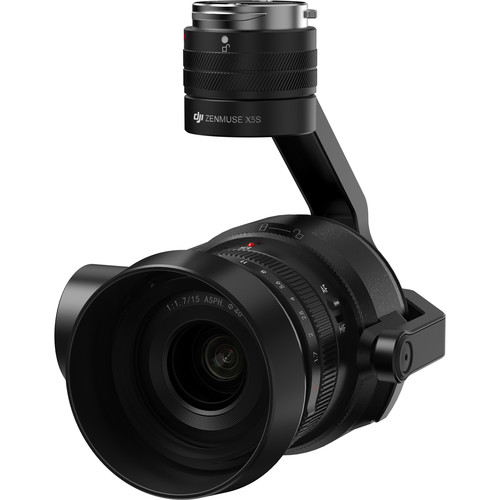

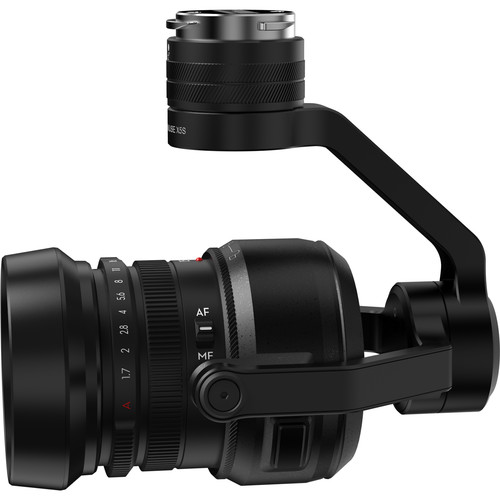

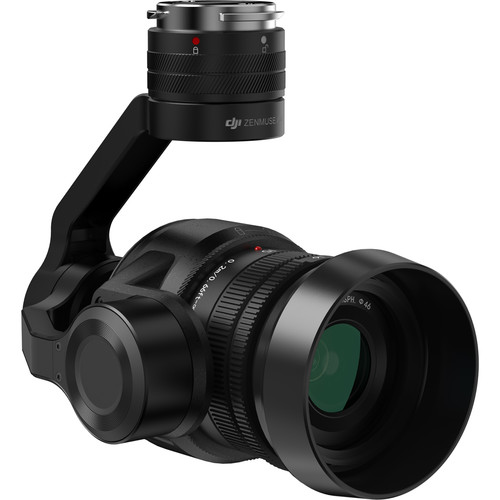

Zenmuse X5S
The DJI Zenmuse X5S is an exceptional aerial camera designed to elevate the standards of drone cinematography and photography. As an upgrade to the groundbreaking Zenmuse X5, the X5S features an advanced Micro Four Thirds sensor that captures stunning 5.2K video and 20.8MP still images with unparalleled clarity and detail. Compatible with the DJI Inspire 2 drone, it offers improved processing power, supporting both CinemaDNG and Apple ProRes recording formats for professional post-production workflows. The Zenmuse X5S also provides versatility through its compatibility with a wide range of interchangeable lenses, giving users creative control over composition and shot diversity. With enhanced dynamic range, better low-light performance, and a precision-engineered 3-axis gimbal for smooth, stable footage, the Zenmuse X5S is the ideal choice for filmmakers and photographers who demand the highest quality from their aerial equipment.
Introducing the DJI Zenmuse X5 Series | Next evolution of aerial camera technology
DJI – Inspire 2 – Behind the Scenes – X5S Camera
The Zenmuse X5S is a professional aerial camera that is compatible with the Inspire 2. Videos recorded by the Zenmuse X5S are processed by the CineCore 2.0 Image Processing System. A DJI Inspire 2 License Key unlocks CinemaDNG and/or Apple ProRes processing capabilities in CineCore 2.0.
Equipped with an uprated Micro 4/3 sensor, the Zenmuse X5S has a dynamic range of 12.8 stops with a much-improved signal-to-noise ratio and color sensitivity than the X5R. It supports up to eight standard M4/3 lenses (including zoom lenses) with focal lengths ranging from 9mm-45mm(equivalent to 18mm-90mm on a 35mm camera), allowing more creative flexibility. The new CineCore 2.0 image processing system on the Inspire 2makes the Zenmuse X5S capable of capturing 5.2K 30fps CinemaDNG video and Apple ProRes video* as well as 4K 60fps using H.264 and 4K 30fpsusing H.265 (both at 100Mbps). Continuous DNG burst shooting at 20fps with 20.8MP images is also supported. The Zenmuse X5S was designed to keep pace with the rigors of high-end professional aerial imaging.
INSPIRE 2 AERIAL IMAGING
Compared with Inspire 1, the Inspire 2 utilizes an innovative structure that separates the CineCore 2.0 image processing system from the camera and places it inside the aircraft. This means that the sensor and optical system are detachable and easily connected using a newly designed quick-release connector. Designing the camera system in this way effectively protects the sensor from magnetic interference originating from the processor. It also allows a range of lightweight camera units to be connected as required by different scenes. The uprated M4/3 sensor — and support for interchangeable lenses — allows the Zenmuse X5S to capture high-resolution images of incredibly high quality when combined with the extraordinary CineCore 2.0 image processing system.
LOSSLESS IN-VIDEO SINGLE AND BURST PHOTO CAPTURE
Capturing high-resolution stills is streamlined with the use of a Micro SD card, enabling 20.8MP images at 14fps in Burst Mode in both JPEG and DNG formats. Opting for the DJI CINESSD enhances this capability, offering a continuous 20fps DNG Burst Mode at the same maximum resolution of 20.8 megapixels. Additionally, the ability to snap still photographs during video recording ensures seamless multitasking without disrupting the video capture process.
IMPROVED MICRO 4/3 SENSOR
The onboard Micro 4/3 sensor has been upgraded, significantly improving image quality. With a pixel size of 3.4μm, this 20.8-megapixel sensor captures more detail than the previous sensor. It has 12.8 stops of dynamic range as well as a better signal to noise ratio and color sensitivity than the X5R, allowing it to create clear, low noise images in low light environments.
FAST, EFFICIENT WORKFLOWS
The DJI CINESSD card (PCIe3.0 NVMe SSD support) and a highly optimized FAT32/exFAT file system, allow Zenmuse X5Sfootage to be transferred directly through the DJI CINESSD STATION card reader to a computer at high speeds without any additional software. Footage also supports the DIT standard. CinemaDNG or Apple ProRes workflows can be used for post-processing.
ENHANCED CAMERA STABILIZATION
Stabilizing the Zenmuse X5S is a highly optimized 3-axis gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.01° powered by a dedicated processor. Rather than rely on electrical slip rings — as is common with many gimbals — the Zenmuse X5S uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using three damping balls and a lightweight damping board, creating a seamlessly smooth video.360° rotation remains possible through gimbal rotation and smooth aircraft yaw. Stable, smooth footage1 can be captured even when using a 90mm2 lens.
LONG-RANGE CAMERA AND FOCUS CONTROL
Take control over every camera setting from afar, including focus, aperture, and format, directly in the DJI GO 4 app. Precision control also extends to focus, with DJI GO 4 and the optional DJI Focus, offering focus control across the entire transmission range. Using DJI Focus, no additional cables or motors are needed and new Lightbridge technology sends all signals as far as 4.3mi (7km) away*.
Specifications
GENERAL
| Name | Zenmuse X5S |
|---|---|
| Dimensions | 140×98×132 mm |
| Weight | 461 g (Lens Kit) |
CAMERA
| Name | Zenmuse X5S |
|---|---|
| Dimensions | 140×98×132 mm |
| Weight | 461 g (Lens Kit) |
CAMERA:-
| Supported Lens | DJI MFT 15mm/1.7 ASPH (With Balancing Ring and Lens Hood) Panasonic Lumix 15mm/1.7 (With Balancing Ring and Lens Hood) Panasonic Lumix 14-42mm/3.5-5.6 HD Olympus M.Zuiko 12mm/2.0 (With Balancing Ring) Olympus M.Zuiko 17mm/1.8 (With Balancing Ring) Olympus M.Zuiko 25mm/1.8 Olympus M.Zuiko 45mm/1.8 Olympus M.Zuiko 9-18mm/4.0-5.6 |
|---|
| Sensor | CMOS, 4/3” Effective Pixels: 20.8MP |
|---|---|
| FOV | 72° (with DJI MFT 15mm/1.7 ASPH ) |
| Photo Resolutions | 4:3, 5280×3956 16:9, 5280×2970 |
Video Resolutions |
Aspect Ratio 17:9CinemaDNG 4K DCI: 4096×2160 23.976/24/25/29.97p, up to 2.4Gbps; 50/59.94p, up to 4.0GbpsH.264 4K DCI: 4096×2160 23.976/24/25/29.97/47.95/50/59.94p @100MbpsH.265 4K DCI: 4096×2160 23.976/24/25/29.97p @100MbpsAspect Ratio 16:9CinemaDNG 4K Ultra HD: 3840×2160 23.976/24/25/29.97p, up to 2.4Gbps; 50/59.94p, up to 4.0GbpsProRes 4K Ultra HD: 3840×2160 23.976/24/25/29.97p, 422 HQ @900Mbps; 23.976/24/25/29.97p, 4444 XQ @2.0GbpsH.264 4K Ultra HD: 3840×2160 23.976/24/25/29.97/47.95/50/59.94p @100Mbps 2.7K: 2720×1530 23.976/24/25/29.97p @80Mbps; 47.95/50/59.94p @100Mbps FHD: 1920×1080 23.976/24/25/29.97p @60Mbps; 47.95/50/59.94p @80Mbps; 119.88p @100Mbps H.265 Aspect Ratio 2.44:1 CinemaDNG ProRes H.264/H.265 |
|---|---|
| Photo Formats | DNG，JPEG，DNG+JPEG |
| Video Formats | RAW，ProRes，MOV，MP4 |
| Operation Modes | Capture, Record, Playback |
| Still Photography Modes | Micro SD: Single shot, Burst Shooting: 3/5/7/10/14 frames, Auto Exposure Bracketing, 3/5 bracketed frames at 0.7EV bias, Interval SSD: RAW Burst Shooting: 3/5/7/10/14/20/∞ frames |
| Exposure Mode | Auto, Manual, Shutter, Aperture |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Center-weighted metering, Spot metering (area option 12×8) |
| AE Lock | Supported |
| Electronic Shutter Speed | 8-1/8000s |
| White Balance | Auto, Sunny, Cloudy, Incandescent, Neon Custom (2000K–10000K) |
| ISO Range | 100 – 6400 (Video) 100 – 25600 (Stills) |
| Video Captions | Supported |
| Anti-Flicker | Auto, 50Hz, 60Hz |
| PAL/NTSC | Supported |
GIMBAL
| Angular Vibration Range | ±0.01° |
|---|---|
| Mount | Detachable |
| Controllable Range | Tilt: +40° to -130°; Pan: ±320°; Roll: ±20° |
| Mechanical Range | Tilt: +50°to -140°, Pan: ±330°, Roll: +90° to -50° |
| Max Controllable Speed | Tilt: 180° /s; Pan: 270° /s; Roll: 180° /s |
ENVIRONMENTAL
| Operating Temperature | 14°–104°F (-10 to 40℃) |
|---|---|
| Storage Temperature | -4°–140°F (-20 to 60℃) |
ZENMUSE X5S FAQ
1. How is the Zenmuse X5S different from Zenmuse X4S?
While both cameras capture 20-megapixel photos, the X4S features a 1-inch Exmor R CMOS sensor and a fixed prime lens specially designed to fit the sensor and the imaging engine. Additionally, the X4S captures 4K video in the H.264 and H.265 formats. The Zenmuse X5S features an M4/3 sensor and an interchangeable lens mount for M4/3 lenses. Combined with the Inspire 2’s internal CineCore 2.0 image processing system, the Zenmuse X5S can capture video H.264 and H.265 formats as well as CinemaDNG and Apple ProRes and is suitable for a wide range of professional filmmaking and television production applications.
2.How is the Zenmuse X5S different from the Zenmuse X5R?
The Zenmuse X5R was DJI’s first M4/3 camera dedicated to aerial photography. With a 16-megapixel sensor it is capable of recording 4K/30 in CinemaDNG RAW at an average bitrate of 1.7Gbps. The Zenmuse X5S is a major upgrade over this camera. New features include:
A. A new quick-release connector to connect the Inspire 2 and the Zenmuse X5S. As it has been separated from its image processing system, the camera sensor is protected from magnetic interference and thermal noise.
B. An uprated 20.8-megapixel sensor has a better signal-to-noise ratio and improved color sensitivity. Working with advanced oversampling technology, creates clear, low-noise images.
C. When used with the CineCore 2.0 image processing system on the Inspire 2, the Zenmuse X5S is able to record 4k/30 oversampling video in both H.264 and H.265 codecs, with a maximum bitrate of 100Mbps. When DJI Inspire 2 License Keys are used and the DJI CINESSD is equipped, the Zenmuse X5S can record 5.2K/30 or 4K/60 video in CinemaDNG, 5.2K/30 in Apple ProRes 422 HQ, and 4K/30 in Apple ProRes 4444 XQ video (no alpha). When shooting at 5.2K, the Zenmuse X5S has a maximum bitrate of 4.2Gbps.
3. Can I use the Zenmuse X5S separately as a stand-alone camera?
No. The Zenmuse X5S must be used with the Inspire 2. It will be supported on additional products in the future.
4. What storage devices does the Zenmuse X5S support?
Micro SD card and DJI CINESSD. A Micro SD card is required for image capture, while the CINESSD is necessary only for high-end productions requiring specific video formats.
5. Where are Zenmuse X5S images stored?
JPEG and DNG pictures (not including RAW images captured in Burst Mode) and videos recorded in H.264 and H.265 codecs are saved to the Micro SD card, while RAW images captured in Burst Mode are stored in the DJI CINESSD. After unlocking using a DJI Inspire 2 License Key, CinemaDNG and Apple ProRes videos will be saved in the DJI CINESSD.
Read More
The Zenmuse X5S stands as a testament to DJI’s relentless pursuit of perfection in aerial imaging technology. Available on xboom.in, this advanced camera system is engineered to meet the needs of professional filmmakers, photographers, and content creators who demand the highest quality and flexibility from their aerial equipment. The Zenmuse X5S is not just a camera; it’s a comprehensive solution that transforms aerial photography and videography, allowing users to capture the world from above with stunning clarity, detail, and color accuracy.
Introducing the Zenmuse X5S
The Zenmuse X5S is designed to push the boundaries of aerial imaging, featuring a powerful Micro Four Thirds sensor that captures high-resolution photos and videos with exceptional detail and dynamic range. Its compatibility with a wide range of lenses offers unparalleled creative freedom, making it the ideal tool for a variety of applications, from cinematic productions to industrial inspections.
Why Choose the Zenmuse X5S?
Selecting the Zenmuse X5S means opting for the pinnacle of aerial camera technology. Its ability to shoot 5.2K video at 30fps and capture 20.8MP stills ensures that every frame is a work of art, filled with lifelike details and vivid colors. The Zenmuse X5S’s superior image quality, combined with its versatility and precision, makes it a game-changer in the world of aerial photography and videography.
Advanced Imaging for Professional Results
At the heart of the Zenmuse X5S’s excellence lies its advanced imaging capabilities. The camera’s Micro Four Thirds sensor, significantly larger than those found in typical drones, provides a higher dynamic range and better low light performance. Whether you’re capturing the golden hour or exploring the nuances of urban landscapes at night, the Zenmuse X5S delivers professional-grade results that impress.
Unmatched Versatility and Compatibility
The Zenmuse X5S redefines versatility with its compatibility with a wide array of lenses, including zooms and primes, offering users the flexibility to select the perfect focal length for each project. This adaptability makes the Zenmuse X5S suitable for everything from expansive landscape shots to detailed close-ups, ensuring that creative visions are not limited by technical constraints.
Seamless Integration and Workflow
Integrating the Zenmuse X5S into your workflow is seamless, thanks to DJI’s ecosystem of drones and accessories. Compatible with platforms like the Inspire 2, the Zenmuse X5S enables smooth, efficient operations, from flight planning to data capture. Its user-friendly interface and compatibility with various post-processing software streamline the creative process, allowing for a focus on artistry rather than logistics.
Elevating Industrial and Creative Projects
The Zenmuse X5S is not just for filmmakers and photographers. Its precision and high-resolution capabilities make it an invaluable tool for industrial applications, such as infrastructure inspection, construction monitoring, and environmental research. The Zenmuse X5S empowers professionals across industries to capture detailed aerial data that supports decision-making and innovation.
Why xboom.in is Your Destination for Zenmuse X5S
Choosing xboom.in for your Zenmuse X5S purchase guarantees more than just a competitive price. It ensures access to a trusted source of DJI products, backed by expert support and comprehensive service. Whether you’re a professional filmmaker, a photographer, or an industry specialist, xboom.in is committed to providing the tools and guidance you need to succeed with the Zenmuse X5S.
Future-Proofing Your Aerial Imaging
Investing in the Zenmuse X5S is an investment in the future of aerial imaging. As demands for higher quality and more versatile imaging solutions continue to grow, the Zenmuse X5S stands ready to meet these challenges. Its combination of high-resolution capabilities, lens compatibility, and integration with DJI’s ecosystem makes the Zenmuse X5S a tool that will remain at the forefront of aerial technology for years to come.
Conclusion: A New Horizon with Zenmuse X5S
The Zenmuse X5S, available on xboom.in, represents a leap forward in the evolution of aerial photography and videography. With its unmatched image quality, versatility, and ease of integration, the Zenmuse X5S offers creative professionals and industry specialists the opportunity to explore new horizons and capture the world from above in ways never before possible.
Step into the future of aerial imaging with the Zenmuse X5S. Visit xboom.in today and discover how this revolutionary camera can transform your projects and elevate your creative and professional capabilities.
