Description

Elevate Your Vision: Multi-Sensor Precision in Every Flight

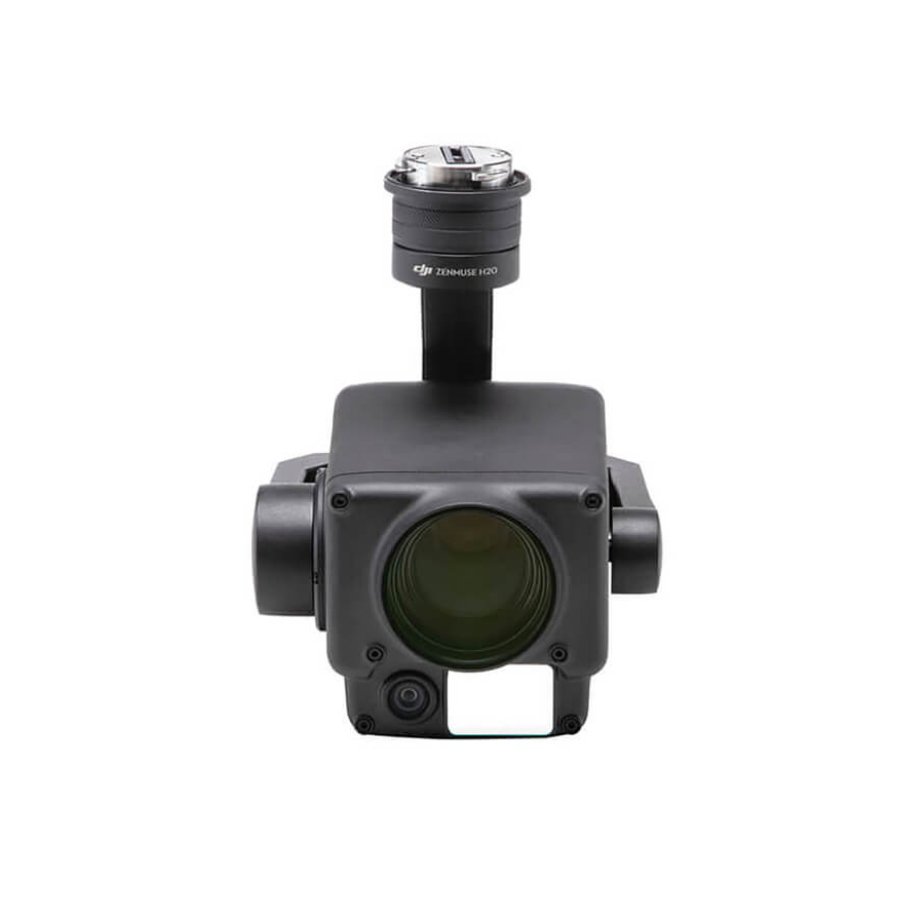

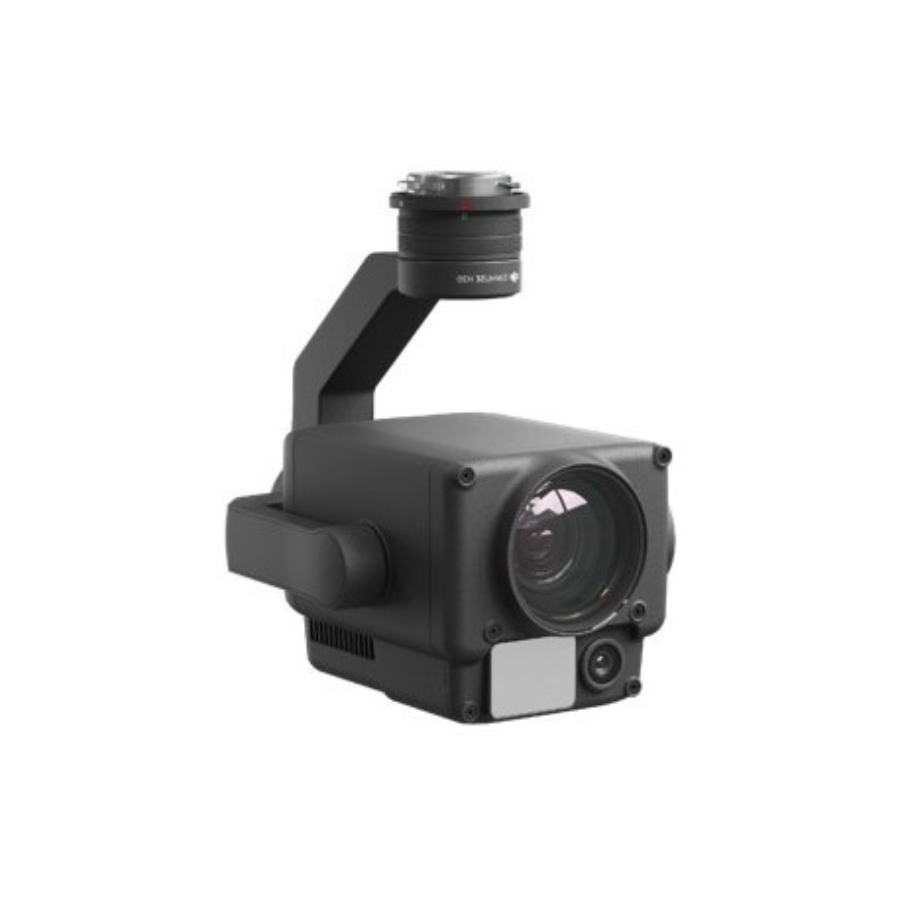

Name: DJI Zenmuse H20
SKU: 108459
Price: 413000 INR
Availability: InStock

The DJI Zenmuse H20 is a versatile, multi-sensor payload designed for aerial inspection and data collection, compatible with DJI’s Matrice series of drones. This advanced camera system integrates multiple powerful sensors into one compact unit, offering an array of capabilities to enhance operational efficiency and precision for a variety of applications. It features a 20MP zoom camera with a 23x hybrid optical zoom, a 12MP wide-angle camera, and a laser rangefinder with a range of up to 1200 meters. The H20 also includes a radiometric thermal camera, allowing for temperature measurements from the air, which is invaluable for tasks such as infrastructure inspection, search and rescue operations, and environmental monitoring. Its integrated AI capabilities enable smart features like subject tracking and automatic identification, making it a powerful tool for professionals seeking to leverage aerial technology for detailed, accurate data gathering and analysis.

The DJI Zenmuse H20 series elevates aerial imaging for industrial and public safety operations with its multifaceted capabilities. Here’s an in-depth exploration of its comprehensive feature set:

📸 Triple-Sensor Configuration: This configuration integrates a high-resolution 20MP Zoom Camera for detailed imagery, a 12MP Wide Camera for expansive coverage, and a Laser Rangefinder for precise distance measurements up to 1,200 meters, offering a holistic view of operational environments from the air.

🔍 Advanced Hybrid Zoom Technology: The zoom camera’s 23x hybrid optical zoom, extending to a 200x maximum zoom, allows operators to capture exceptionally detailed images from great distances. This capability is crucial for maintaining operator safety while ensuring thorough surveillance and inspection accuracy.

🌙 Enhanced Night Vision Capabilities: The wide camera’s high-sensitivity starlight sensor ensures clear, detailed images in low-light conditions or complete darkness, making the H20 series indispensable for night-time operations and emergency response.

🎯 Laser Rangefinder Accuracy: With the ability to measure distances accurately within a range of 3m to 1,200m, the laser rangefinder supports diverse applications, including precise mapping, surveying, and strategic planning, by providing exact location data.

💧 Robust IP44 Rating: Its construction is designed to resist water and dust from any direction, granting reliable performance under various adverse conditions, from rain-soaked environments to dusty operational sites, ensuring mission continuity.

🔁 Intelligent Smart Tracking: Utilizing sophisticated algorithms, the H20 series can automatically identify and follow moving subjects, greatly simplifying tasks in dynamic scenarios such as search and rescue missions or continuous surveillance activities.

🔄 Automated AI Spot-Check: This feature revolutionizes routine inspections by enabling the camera to autonomously revisit and capture identical shots over time at the same angle, zoom level, and location, greatly enhancing inspection efficiency for infrastructure and environmental monitoring.

🗺️ Immediate Real-Time Mapping: The capability to generate real-time maps directly during flight missions provides instant insights, allowing decision-makers to act swiftly without the delay of data processing, critical in time-sensitive operations.

✅ Simplified One-Tap Capture: A user-friendly interface allows operators to mark objects of interest with a single tap, instantly calculating their coordinates. This information is then projected across all camera views, streamlining target tracking and operational workflows.

🌐 Comprehensive 360° Scanning: Continuous 360-degree rotation capability ensures complete area coverage, eliminating blind spots during surveillance or inspection tasks, and offering a panoramic view for thorough analysis.

🕒 Optimized Efficient Power Management: Designed to maximize flight times when used with compatible DJI drones, the H20 series enables longer missions, expanding operational scope and enhancing the efficiency of aerial tasks.

⚙️ Seamless Platform Integration: Specifically engineered for compatibility with the DJI Matrice 300 RTK and other DJI platforms, the H20 series offers easy, plug-and-play deployment, facilitating rapid readiness for a variety of missions.

🌡️ High-Resolution Thermal Imaging (H20T Model): The H20T model incorporates a radiometric thermal camera, vital for capturing detailed temperature data across vast areas. This is especially beneficial for firefighting, search and rescue operations, and energy infrastructure inspections, where thermal data can pinpoint hotspots or areas of heat loss.

👀 Versatile Multiple Payload Configurations: The ability to use all sensors simultaneously allows for flexible operation, enabling users to switch between different feeds with ease or view multiple feeds concurrently for a multi-dimensional understanding of the operational environment.

💨 Advanced Active Image Stabilization and EIS: Ensures that footage remains smooth and stable under challenging conditions, including windy environments or high-speed movements. This technology is key to obtaining high-quality, usable imagery and video for analysis and decision-making.

The DJI Zenmuse H20 series sets a benchmark for aerial imaging systems, combining unparalleled versatility, advanced technology, and user-friendly features to support a wide range of industrial and public safety applications, demonstrating DJI’s leadership in UAV innovation.

“H” for hybrid

Multi-sensor payloads redefine mission efficiency through their unparalleled intelligence and cohesive design, offering groundbreaking aerial imaging capabilities for diverse commercial UAV applications. These advanced systems deliver unmatched efficiency and versatility, enabling a wide array of operations from surveillance to mapping with unprecedented precision and ease. The integrated design streamlines workflow, ensuring that commercial UAV operations can leverage cutting-edge technology to achieve superior results across various industries, enhancing productivity and operational capabilities.

AI SPOT CHECK

The innovative AI Spot Check feature in the DJI Zenmuse H20T revolutionizes aerial inspections by automating the process, significantly saving time. It recognizes and returns to pre-marked targets to capture photos with consistent angle, zoom, heading, and location, eliminating manual navigation and framing for each inspection point. This groundbreaking functionality streamlines workflows, ensuring precise, repeatable imagery critical for monitoring and assessing infrastructure integrity or environmental changes efficiently.

HIGH-RES GRID PHOTO

In an inspection, by framing an area of interest, the operator marks the asset, prompting the H20T to capture a series of 20 MP zoomed-in and wide-angle photos. This method ensures comprehensive coverage. During data processing, these images are saved alongside an overview, enriching the dataset with greater detail. This process not only enhances the precision of inspections but also streamlines data organization, providing a thorough visual documentation of the asset examined.

SMART TRACK

The new Smart Track feature simplifies the process of identifying and tagging moving objects, enhancing operational efficiency. It enables the real-time streaming of the subject’s dynamic location to an alternative controller or DJI FlightHub. This advanced functionality ensures seamless tracking and coordination, opening up new possibilities for dynamic monitoring and management in various applications, from search and rescue operations to surveillance and wildlife tracking, by providing precise, real-time data on moving subjects.

PIN POINT

By simply tapping a target, users can mark it, allowing the sensors to automatically capture its coordinates, which are then displayed as an AR icon. This streamlined process enables the real-time streaming of the object’s location to another remote controller or DJI FlightHub. This feature enhances operational efficiency, providing a seamless way to track and manage targets during various missions, from surveillance to search and rescue, by offering precise, real-time location data effortlessly.

Camera Quality

The innovative DJI Zenmuse H20 merges a 20MP zoom and a 12MP wide-angle camera with a precision laser rangefinder, creating a multifunctional aerial imaging tool. Its 20MP zoom camera boasts a 20x hybrid zoom, reaching up to 200x zoom, attached to a 1/1.7″ CMOS sensor, capable of delivering crisp 20MP stills and 4K videos at 30fps. Complementing this, the wide-angle camera features a 12MP 1/2.3″ CMOS sensor with a 24mm equivalent wide-angle lens, offering an expansive 82.9º field of view. This combination enhances the versatility and efficiency of aerial missions, from detailed inspections to broad landscape assessments.

Additional, The DJI Zenmuse H20 elevates aerial imaging with its integrated laser rangefinder, offering a 3m to 1,200m range with exceptional accuracy, allowing for precise distance measurements of distant objects. Enhanced by the innovative High-Res Grid Photo feature, pilots can effortlessly capture detailed 20MP images of specified areas using a simple screen tap, seamlessly storing these alongside an overview photo for comprehensive analysis. Certified with an IP44 rating, the H20 guarantees resilience against water and dust from any direction, and operates reliably across a wide temperature range from -20ºC to 50ºC (-4ºF to 122ºF), ensuring its durability in challenging environments. It incorporates advanced image stabilization technologies, guaranteeing smooth videos and sharp images under various conditions. Designed to integrate seamlessly with the Matrice 300 RTK airframe, the H20 attaches effortlessly to its gimbal mount, ensuring immediate operational readiness and optimal performance. This synergy between hardware and functionality makes the H20 an indispensable tool for diverse applications, from precision surveying to critical public safety missions, providing unparalleled efficiency and clarity.

In the box

Specifications

H20 – Triple-Sensor Solution

20 MP Zoom Camera

12 MP Wide Camera

1200 m LRF

Powerful Zoom Camera

23× Hybrid Optical Zoom, 200× Max Zoom

20 MP 1/1.7” CMOS Sensor

Video Resolution: 4K/30fps

Wide Camera

Equivalent Focal Length: 24mm, DFOV: 82.9°

12 MP 1/2.3” CMOS Sensor

Laser Rangefinder

Range: 3 m – 1200 m

Accuracy: ± (0.2 m + D×0.15%)

IP Rating

Boasts an IP44 rating, providing protection against water splashes and dust, making it suitable for operation in challenging environmental conditions.

Image Stabilization

Features both active and electronic image stabilization technology to ensure smooth video capture and sharp still images, even in windy conditions.

Operational Temperature Range

Designed to function in a wide range of temperatures, from -20ºC to 50ºC (-4ºF to 122ºF), ensuring reliability in diverse climates.

Compatibility

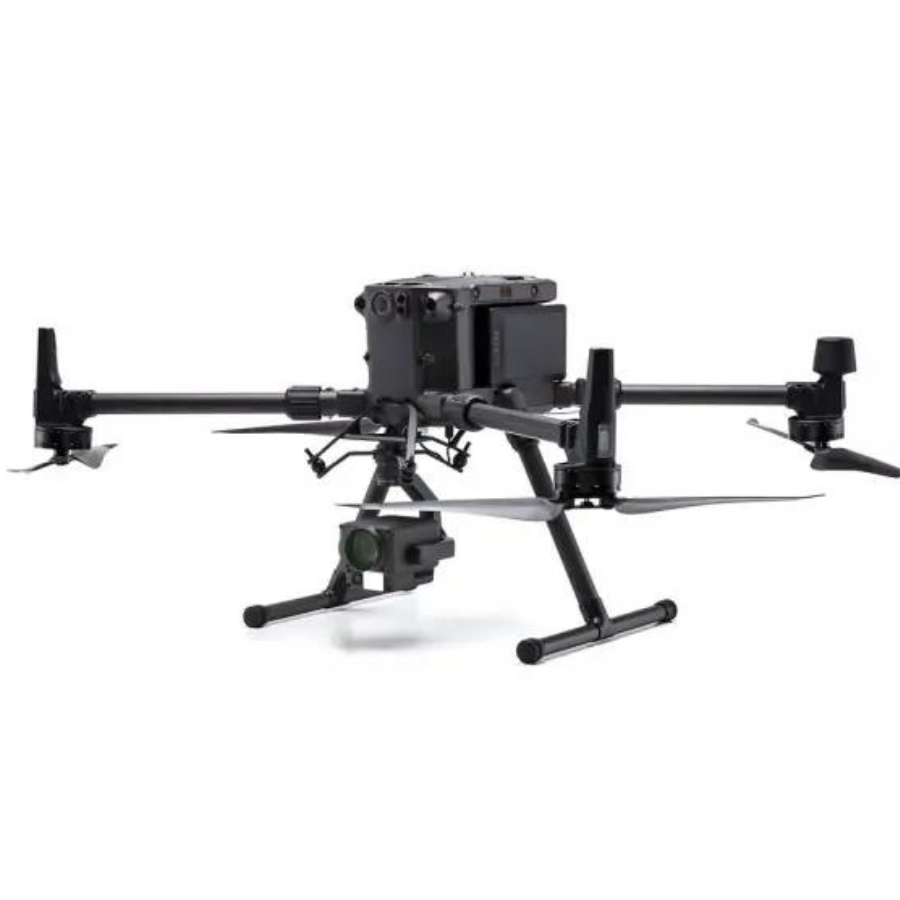

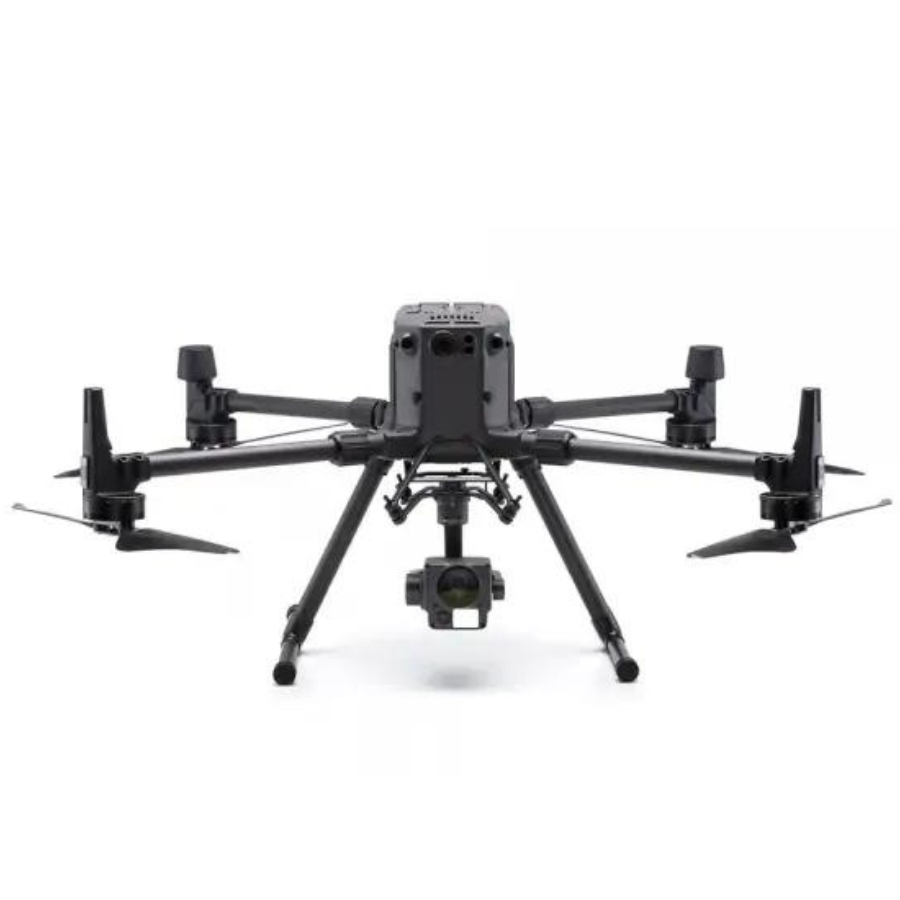

Specifically developed to integrate seamlessly with the DJI Matrice 300 RTK, enabling quick attachment to the drone’s gimbal mount for optimized performance.

FAQs for DJI Zenmuse H20

What drones are compatible with the DJI Zenmuse H20?
The DJI Zenmuse H20 is primarily compatible with the DJI Matrice 300 RTK. Its integration is designed to enhance the capabilities of this drone platform, offering users a versatile solution for various applications.

How do I update the firmware on my Zenmuse H20?
To update the firmware on your Zenmuse H20, connect the camera to the DJI Pilot app or DJI Assistant 2 for Matrice. Follow the on-screen instructions to complete the firmware update process, ensuring your device has a stable internet connection.

Can the Zenmuse H20 operate in low-light conditions?
Yes, the Zenmuse H20 is equipped with a wide-angle and zoom camera that can capture high-quality images in low-light conditions. Its night vision capabilities make it suitable for operations during the evening or in poorly lit areas.

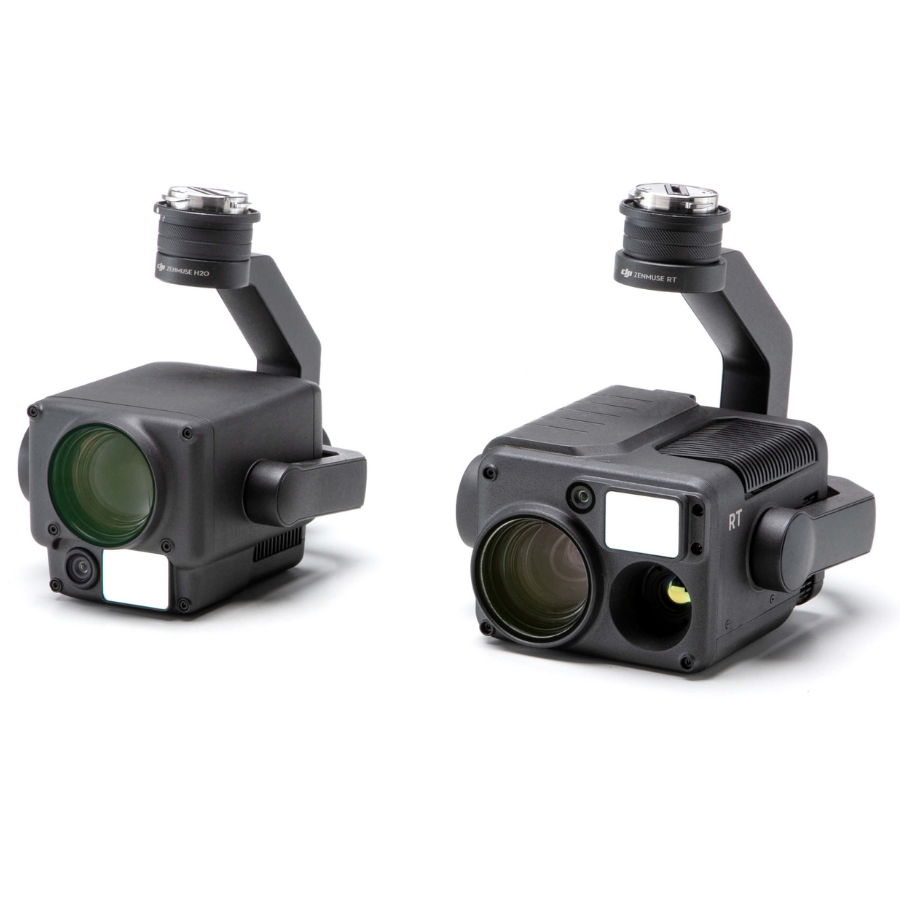

What are the main differences between the Zenmuse H20 and H20T?
The primary difference between the Zenmuse H20 and H20T is the inclusion of a radiometric thermal camera in the H20T. This addition allows the H20T to capture thermal imaging, making it ideal for search and rescue, firefighting, and inspection tasks.

How can I troubleshoot connectivity issues with my Zenmuse H20?
If you encounter connectivity issues, ensure that all firmware is up to date, check the connections between the H20 and the drone, and restart both devices. If problems persist, consult the DJI support center for further assistance.

What accessories are recommended for enhancing the Zenmuse H20’s capabilities?
Recommended accessories include additional microSD cards for extended storage, a lens cleaning kit to maintain image quality, and protective cases to safeguard the camera system during transport.

How does the hybrid zoom function work on the Zenmuse H20?
The hybrid zoom function on the Zenmuse H20 combines optical and digital zoom, allowing users to magnify the subject without compromising on image quality significantly. This feature is particularly useful for detailed inspection tasks from a distance.

What is the maximum resolution of the Zenmuse H20?
The Zenmuse H20 features a 20 MP zoom camera capable of capturing high-resolution images and 4K video, ensuring detailed and clear imagery for various applications.

Can the Zenmuse H20 be used for indoor inspections?
Yes, the Zenmuse H20 can be used for indoor inspections, thanks to its precision zoom capabilities and high-resolution imaging. However, operators should be mindful of the indoor environment’s lighting conditions and space constraints.

What warranty options are available for the Zenmuse H20?
DJI offers a standard warranty for the Zenmuse H20, covering manufacturing defects. Additional DJI Care packages may be available for purchase, offering extended protection and coverage for accidental damage. Users are encouraged to check the official DJI website for the latest warranty and support options.
