Description

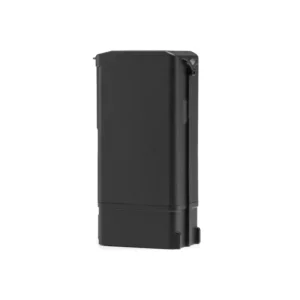

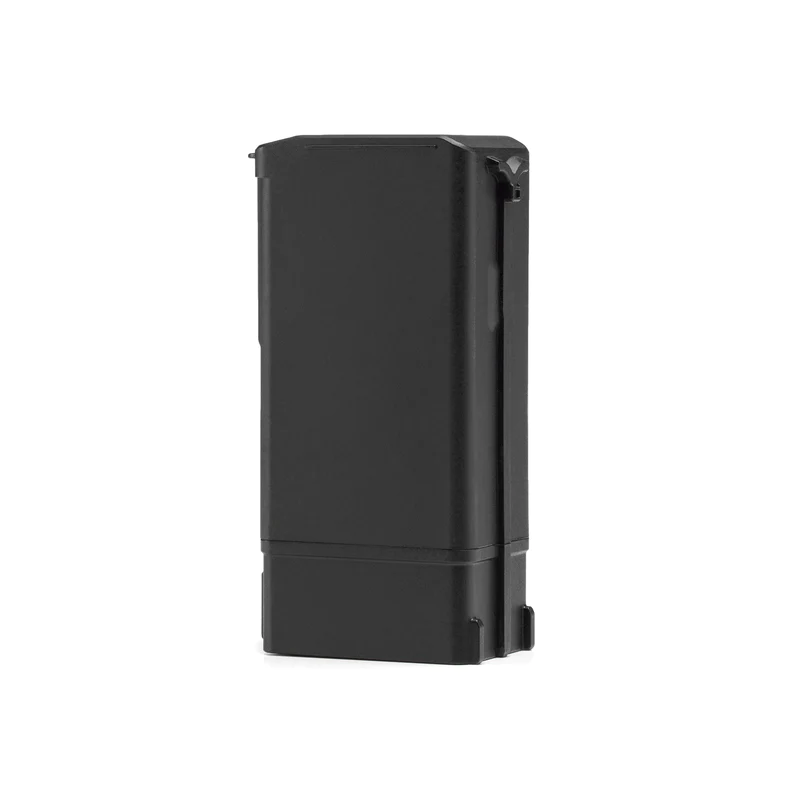

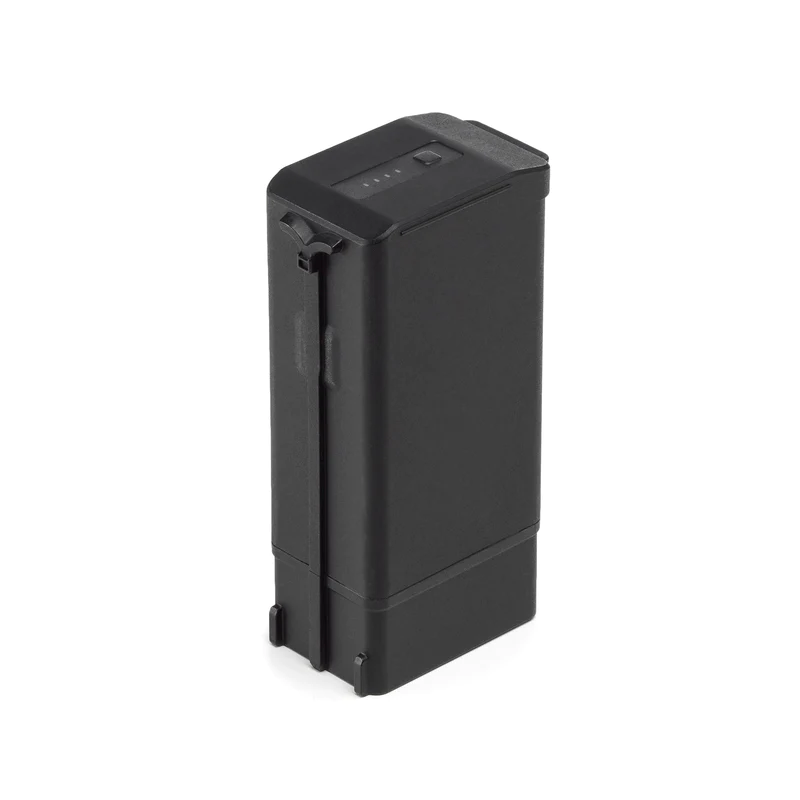

DJI Matrice 30 TB30 Intelligent Flight Battery
The DJI Matrice 30 TB30 Intelligent Flight Battery is a 5,880 mAh LiPo battery for the DJI Matrice 30 (M30) lineup of commercial drones. The TB30 battery has a maximum flight time of 41 minutes or about 36 minutes in hover. TB30 batteries are charged using the DJI Matrice 30 BS30 Charging Station. Each battery supports self-heating for cold environments, hot-swapping for fast turnarounds, and 400 charge cycles for increased operational efficiency.
The DJI Matrice 30 TB30 Intelligent Flight Battery is designed with a suite of advanced features that enhance the functionality and reliability of the DJI Matrice 30 series drones. Here are some of its standout features:
High-Capacity Power: The TB30 battery is engineered to offer a significant power capacity, providing extended flight times that are crucial for professional and industrial drone operations, ensuring users can maximize their productivity and efficiency during missions.
Intelligent Power Management: Featuring DJI’s sophisticated power management system, the TB30 battery delivers precise updates on its status, including remaining power and overall battery health. This system optimizes the battery’s performance and longevity by actively managing its power output based on current flight conditions.
Self-Heating Functionality: Equipped with a self-heating capability, the TB30 battery is capable of warming itself up to optimal operating temperatures, making it ideal for use in colder environments. This ensures that the drone’s performance remains consistent and reliable, even in sub-optimal weather conditions.
Rapid Charging: The TB30 battery supports fast charging, reducing downtime between flights. This feature is especially beneficial in time-sensitive operations, allowing drones to be quickly prepared for their next mission.
Enhanced Safety Features: With built-in protections against overcharging, over-discharging, and overheating, the TB30 battery ensures safe operation throughout its lifespan. These safety measures are crucial for maintaining the integrity of the battery and the safety of the operations it powers.
Durable Design: Crafted to meet the demands of professional use, the TB30 battery boasts a robust construction that withstands the rigors of frequent flying and harsh operational environments, ensuring reliability and durability.
LED Status Indicators: The battery includes LED indicators that provide immediate visual feedback on its current charge level, allowing operators to quickly assess battery status and plan their missions accordingly.
Compatibility with Matrice 30 Series: Specifically designed for the DJI Matrice 30 series, the TB30 battery seamlessly integrates with these drones, providing a perfect fit and optimal performance, ensuring that users experience no compatibility issues.
Eco-Friendly Sleep Mode: To conserve energy and extend battery life, the TB30 features an eco-friendly sleep mode that activates when the battery is not in use, reducing power consumption and maintaining the battery’s health over time.
Multiple Charging Options: The TB30 Intelligent Flight Battery can be charged using the standard DJI charging accessories designed for the Matrice 30 series, including single chargers and multi-battery charging stations, offering flexibility in how and where the battery can be recharged.
These features make the DJI Matrice 30 TB30 Intelligent Flight Battery a highly advanced and reliable power source, engineered to meet the exacting demands of professional drone operators and to enhance the capabilities of the DJI Matrice 30 series drones.
Specifications
General
| Capacity | 5880 mAh |
| Voltage | 26.1 V |
| Battery Type | LiPo 6S |
| Energy | 131.6 wH |
| Net Weight | Approx. 685 grams |
| Operating Temperature | -20 to 50 °C (-4° to 122°F) |
| Storage Temperature | 20° to 30 °C (68° to 86°F) |
| Charging Temperature | -20° to 40°C (-4° to 104°F) (When the temperature is lower than 10°C (50°F), the self-heating function will be automatically enabled. Charging in a low temperatures may shorten the lifespan of the battery) |
| Chemical System | LiNiMnCoO2 |
FAQ's
- What is the capacity of the DJI Matrice 30 TB30 Intelligent Flight Battery?
- The TB30 Intelligent Flight Battery is designed with a high capacity to support extended flight times, though specific capacity details should be referenced from official DJI specifications to ensure accuracy.
- How long does it take to fully charge the TB30 battery?
- Charging times can vary based on the charging equipment used, but generally, it takes approximately 90 minutes to fully charge the TB30 battery using the recommended DJI charging solutions.
- Can the TB30 battery be charged with standard DJI chargers?
- Yes, the TB30 battery can be charged using the charging accessories specifically designed for the Matrice 30 series, including single chargers and multi-battery charging stations.
- Is the TB30 battery equipped with a self-heating function for cold weather operation?
- Yes, the TB30 Intelligent Flight Battery features a self-heating function to ensure optimal performance and reliability in colder environments.
- What are the safety features of the TB30 battery?
- The TB30 battery includes several safety features, such as overcharge protection, over-discharge protection, and overheating protection, to ensure safe operation during both flight and charging.
- How do I check the charge level of the TB30 battery?
- The battery is equipped with LED status indicators that show the current charge level at the press of a button, allowing you to easily monitor its status.
- Can the TB30 battery be used with other drones outside the Matrice 30 series?
- The TB30 battery is specifically designed for compatibility with the DJI Matrice 30 series drones and may not be compatible with other drone models.
- What should I do if the TB30 battery does not charge properly?
- Ensure that the charger and battery contacts are clean and properly connected. If issues persist, contact DJI support for assistance as the battery may need to be inspected or replaced.
- How should I store the TB30 battery when not in use?
- For optimal long-term storage, the battery should be discharged to approximately 40%-60% of its capacity and stored in a cool, dry place. Utilize the battery’s storage mode if available.
- Does DJI offer a warranty for the TB30 Intelligent Flight Battery?
- Yes, DJI provides a limited warranty for the TB30 battery, covering defects in materials and workmanship for a specified period from the date of purchase. Please consult DJI’s warranty policy for detailed terms and conditions.
