Description
The DJI Matrice 300 RTK is a rugged and reliable drone suitable for use in industrial, commercial, and rescue operations. It features a built-in RTK module that enables it to withstand magnetic interference from metal structures and provides highly accurate positioning data with an optional D-RTK 2 GNSS mobile station. The drone is also IP45 rated for rain and dust resistance and can operate in temperatures ranging from -4 to 122°F. It is compatible with a variety of Zenmuse and third-party gimbal camera payloads (not included) and can be controlled from up to 9.3 miles away using the included OcuSync Enterprise controller. With a maximum flight speed of 51.5 mph and a flight time of up to 55 minutes (with a fully charged battery, not included), the Matrice 300 RTK is well-suited for a wide range of applications. It also has technologies for obstacle avoidance, course-plotting, and more.
Advanced RTK Navigation: The DJI Matrice 300 RTK utilizes Real-Time Kinematic (RTK) navigation technology to achieve centimeter-level accuracy in its positioning data. This precision is crucial for detailed mapping, surveying, and complex inspection tasks, ensuring that every flight is guided by the most accurate GPS data available.
Enhanced Transmission System: With a robust OcuSync Enterprise transmission system, the Matrice 300 RTK offers up to 15 kilometers of transmission range. This extended range ensures stable, high-bandwidth connectivity even in challenging environments, allowing operators to maintain control and receive high-definition video feeds from great distances.
Extended Flight Time: Boasting a flight time of up to 55 minutes, the Matrice 300 RTK sets a new benchmark for operational efficiency. This extended endurance allows for longer missions, reducing the need for frequent battery swaps and ensuring that you can cover more ground on each flight.
All-Weather Operation: Designed to withstand adverse weather conditions, the Matrice 300 RTK is rated IP45 for ingress protection. This makes it capable of operating in rain and windy conditions, providing reliability and performance when you need it most, regardless of the weather.
Six Directional Sensing: Featuring an advanced obstacle sensing system, the Matrice 300 RTK can detect obstacles in all directions—up, down, forward, backward, left, and right. This 360-degree awareness enhances safety during flight, allowing for confident navigation through complex environments.
Versatile Camera Payloads: The drone supports a range of payloads, including the Zenmuse H20 series and the L1 LiDAR sensor. This versatility allows users to equip the drone with high-resolution cameras, zoom lenses, thermal imaging, and LiDAR technology, making it suitable for a wide variety of applications.
Dual-Operator Mode: With support for dual-operator control, one pilot can focus on flying the drone while another manages the camera and payload operations. This collaborative approach enhances mission flexibility and precision, allowing for complex maneuvers and detailed inspections without compromising on safety or control.
Easy Maintenance and Upgrades: The Matrice 300 RTK features a modular design, simplifying maintenance and upgrades. Quick-swap battery systems and easy-access components ensure that the drone is always ready for action, minimizing downtime and keeping you in the air longer.
AI-Powered Features: Integrated AI capabilities facilitate advanced functions such as smart tracking and object recognition. These features streamline operations for tasks like search and rescue, surveillance, and wildlife monitoring, allowing for automated detection and tracking of subjects of interest.
Comprehensive Data Analysis: When used in conjunction with DJI’s FlightHub software, the Matrice 300 RTK enables detailed data analysis and management. This comprehensive approach to data allows for in-depth analysis of aerial imagery and sensor data, supporting informed decision-making across various industries.
The DJI Matrice 300 RTK combines cutting-edge technology with robust design features to offer unmatched precision, versatility, and reliability in aerial operations. Tailored for professionals who demand the best, this drone camera system sets a new standard in commercial drone applications.
Six Directional Sensing and Positioning System
The DJI Matrice 300 RTK is equipped with a six-directional sensing and positioning system that allows the drone to be aware of its surroundings and protect people and property during critical missions. This system includes dual-vision and Time-of-Flight (ToF) depth sensors on all six sides of the drone, which have a detection range of up to 131 feet. The sensitivity of these sensors can be adjusted using the DJI Pilot app. This system helps the M300 RTK navigate and operate safely in various environments.
DJI MATRICE 300 RTK Superior Performance
Improved Transmission System
The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel3 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz4 enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.
Live Mission Recording
The DJI Matrice 300 RTK has a feature called Live Mission Recording, which allows you to record various actions during a mission, such as movement, gimbal orientation, image capture, and zoom. This information is saved as a template mission file, which can be used to automate future inspection flights. This feature is useful for quickly and efficiently completing tasks such as inspections of buildings, structures, or other assets, as it allows you to replicate successful missions in the future.
Live Mission Recording
Capture and log key mission parameters including aircraft maneuvers, gimbal positions, photography instances, and zoom adjustments to generate prototype mission files. These files serve as templates for future automated inspections, streamlining the process by replicating successful flight patterns and camera settings for consistent, efficient operations.
Smart Pin & Track | Pin Point: Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub9.
Smart Track: Identify and follow moving subjeacts like people, vehicles, and boats with the Smart Track function, where auto-zoom is applied for steady tracking and viewing. The subject’s dynamic location is continuously acquired and shared to another remote controller or to DJI FlightHub9
Accessories
WHAT’S IN THE BOX
| Item | Quantity |
| Aircraft Body | x1 |
| DJI Smart Controller Enterprise | x1 |
| USB-C Cable | x1 |
| 2110 Propeller (CW) | x2 |
| 2110 Propeller (CCW) | x2 |
| Landing Gear | x2 |
| Spare Stick Cover (pair) | x1 |
| Spare Propeller Holder | x2 |
| Spare Gimbal Damper | x4 |
| USB Cable (with Double A Ports) | x1 |
| Vision System Calibration Plate | x1 |
| Carrying Case | x1 |
| Smart Controller Lanyard | x1 |
| Rubber Port Cover (Set) | x1 |
| MScrews and Tools | x1 |
| Power Lead | x1 |
DJI Matrice 300 RTK Specifications
Aircraft
- Dimensions
-
Unfolded, propellers excluded, 810×670×430 mm (L×W×H)
Folded, propellers included, 430×420×430 mm (L×W×H)
- Diagonal Wheelbase
-
895 mm
- Weight (with single downward gimbal)
-
Approx. 3.6 kg (without batteries)
Approx. 6.3 kg (with two TB60 batteries)
- Max Payload
-
2.7 kg
- Max Takeoff Weight
-
9 kg
- Operating Frequency
-
2.4000-2.4835 GHz
5.725-5.850 GHz
- EIRP
-
2.4000-2.4835 GHz:
29.5 dBm (FCC); 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
28.5 dBm (SRRC)
- Hovering Accuracy (P-mode with GPS)
-
Vertical:
±0.1 m (Vision System enabled)
±0.5 m (GPS enabled)
±0.1 m (RTK enabled)Horizontal:
±0.3 m (Vision System enabled)
±1.5 m (GPS enabled)
±0.1 m (RTK enabled)
- RTK Positioning Accuracy
-
When RTK enabled and fixed:
1 cm+1 ppm (Horizontal)
1.5 cm + 1 ppm (Vertical)
- Max Angular Velocity
-
Pitch: 300°/s, Yaw: 100°/s
- Max Pitch Angle
-
30° (P-mode, Forward Vision System enabled: 25°)
- Max Ascent Speed
-
S mode: 6 m/s
P mode：5 m/s
- Max Descent Speed (vertical)
-
S mode: 5 m/s
P mode：4 m/s
- Max Descent Speed (tilt)
-
S Mode: 7 m/s
- Max Speed
-
S mode: 23 m/s
P mode：17 m/s
- Service Ceiling Above Sea Level
-
5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)
- Max Wind Resistance
-
15 m/s
- Max Flight Time
-
55 min
- Supported DJI Gimbals
-
Zenmuse XT2/XT S/Z30/H20/H20T
- Supported Gimbal Configurations
-
Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals
- Ingress Protection Rating
-
IP45
- GNSS
-
GPS+GLONASS+BeiDou+Galileo
- Operating Temperature
-
-20°C to 50°C (-4
Vision System
- Obstacle Sensing Range
-
Forward/Backward/Left/Right: 0.7-40m
Upward/Downward: 0.6-30m
- FOV
-
Forward/Backward/Downward: 65° (H), 50° (V)
Left/Right/Upward: 75°(H), 60°(V)
- Operating Environment
-
Surfaces with clear patterns and adequate lighting (> 15 lux)
Infrared ToF Sensing System
- Obstacle Sensing Range
-
0.1-8m
- FOV
-
30° (±15°)
- Operating Environment
-
Large, diffuse and reflective obstacles (reflectivity >10%)
Top and bottom auxiliary light
- Effective lighting distance
-
5 m
FPV Camera
- Resolution
-
960p
- FOV
-
145°
- Frame rate
-
30 fps
Intelligent Flight Battery
- Name
-
TB60
- Capacity
-
5935 mAh
- Voltage
-
52.8 V
- Battery Type
-
LiPo 12S
- Energy
-
274 Wh
- Net Weight
-
Approx. 1.35 kg
- Operating Temperature
-
-4°F to 122°F (-20°C to 50°C)
- Ideal storage temperature
-
71.6°F to 86°F (22°C to 30°C)
- Charging Temperature
-
-4°F to 104°F (-20°C to 40°C)
(When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) - Charging time
-
Using BS60 Intelligent Battery Station:
220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)

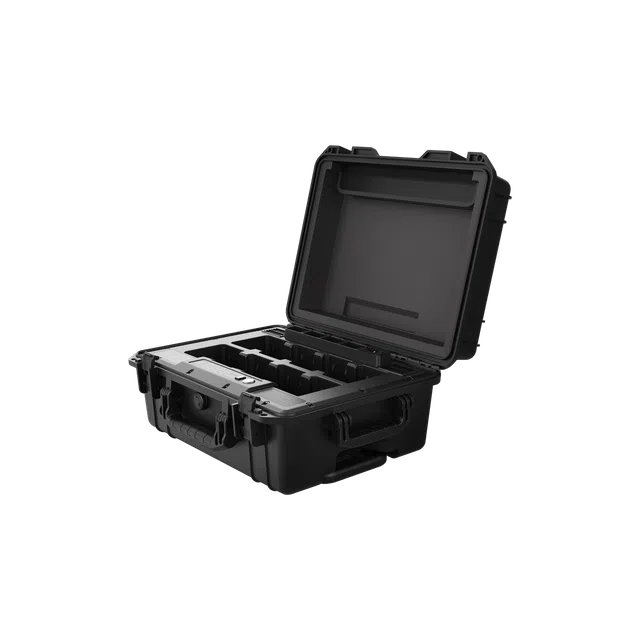

BS60 Intelligent Battery Station
- Dimensions
-
501*403*252mm
- Net Weight
-
8.37kg
- Maximum Capacity
-
TB60 Intelligent Flight Battery × 8
WB37 Intelligent Battery × 4
- Input
-
100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz
- Max. Input Power
-
1070W
- Output Power
-
100-120 V: 750 W
220-240 V: 992 W
- Operating Temperature
-
-4°F to 104°F (-20°C to 40°C)
- Built-in battery
-
Type: 18650 lithium ion battery (5000 mAh @ 7.2 V)
Charging: Use a USB charger with specification of 12V / 2A
Rated power: 17 W
Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A)
- Battery Life
-
Built-in battery: Approx. 2.5h
Built-in battery+External battery: Approx. 4.5h
- USB Power Supply
-
5 V / 1.5 A
Remote Controller
- perating Frequency
-
2.4000-2.4835 GHz
5.725-5.850 GHz
- Max Transmitting Distance (unobstructed, free of interference)
-
NCC/FCC: 15 km
CE/MIC: 8 km
SRRC: 8 km
- EIRP
-
2.4000-2.4835 GHz:
29.5 dBm (FCC) 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
20.5 dBm (SRRC)
- External battery
-
Name: WB37 Intelligent Battery
Capacity: 4920 mAh
Voltage: 7.6V
Type: LiPo
Energy: 37.39Wh
Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C)
- Operating Temperature
-
-20°C to 40°C (-4 °F to 104 °F)
DJI MATRICE 300 RTK Frequently Asked Questions (FAQs)
Can the downward single gimbal connector be replaced with a dual gimbal connector?
A: Yes.
To ensure safety, before replacing the gimbal connector, it is recommended to power off the aircraft and remove the TB60 Intelligent Flight Batteries.
What is the ingress protection rating of the M300 RTK? Can I fly in the rain?
A: The Matrice 300 RTK has a protection rating of IP45. However, the protection rating is not permanently effective and may decrease due to wear and tear. Do not fly in rain heavier than 100mm/24h.
Which propellers come with the M300 RTK?
How many batteries can the Battery Station charge at the same time?
Read More
In the rapidly evolving world of drone technology, the DJI MATRICE 300 RTK stands out as a monumental leap forward, offering unparalleled capabilities for industrial and professional applications. Now available on xboom.in, this advanced drone camera is engineered to meet the rigorous demands of critical missions, from infrastructure inspection to public safety operations, providing operators with unmatched precision, efficiency, and reliability.
Introducing the DJI MATRICE 300 RTK
The DJI MATRICE 300 RTK is not just a drone; it’s a comprehensive aerial solution designed for the most challenging environments and tasks. With its robust build, extended flight time, and advanced AI capabilities, the MATRICE 300 RTK is built to excel where others simply cannot compete, making it an indispensable asset for industries across the spectrum.
Unmatched Precision and Reliability
Choosing the DJI MATRICE 300 RTK means opting for a drone that delivers precision and reliability in every flight. Its RTK (Real-Time Kinematic) module ensures centimeter-level accuracy, significantly enhancing the quality of data captured and reducing the time needed for post-processing. Whether it’s mapping a construction site or inspecting critical infrastructure, the MATRICE 300 RTK provides data you can trust.
Advanced Imaging for Comprehensive Data Collection
At the heart of the DJI MATRICE 300 RTK’s capabilities lies its advanced imaging system. Compatible with a range of payloads, including the Zenmuse H20 series and the L1 LiDAR sensor, the MATRICE 300 RTK can capture detailed aerial photographs, generate 3D models, and perform multispectral analysis, making it an incredibly versatile tool for a wide array of applications.
Enhanced Operational Efficiency
The DJI MATRICE 300 RTK is designed for operational efficiency, boasting up to 55 minutes of flight time and a range of smart features that automate routine tasks. Its advanced flight modes, including waypoint and area mapping, allow operators to focus on mission objectives rather than piloting, significantly enhancing productivity and safety.
Seamless Integration and Workflow
Integrating the DJI MATRICE 300 RTK into your workflow is seamless, thanks to its compatibility with DJI FlightHub and other software solutions. This allows for easy mission planning, real-time monitoring, and data management, ensuring that the MATRICE 300 RTK fits perfectly into any operational ecosystem, from search and rescue to environmental monitoring.
Redefining Industrial and Public Safety Operations
The DJI MATRICE 300 RTK is set to redefine the standards for industrial and public safety operations. Its ability to provide real-time aerial surveillance, conduct precise inspections, and gather critical data makes it an invaluable tool for enhancing the efficiency and safety of operations in sectors such as energy, construction, and law enforcement.
Why xboom.in is Your Trusted Partner
Selecting xboom.in for your DJI MATRICE 300 RTK purchase not only ensures access to the latest drone technology but also guarantees comprehensive support and service. As an authorized DJI retailer, xboom.in is committed to providing customers with authentic products, expert advice, and after-sales service, making it the ideal destination for professionals seeking to leverage the power of the MATRICE 300 RTK.
Future-Proofing Your Aerial Operations
Investing in the DJI MATRICE 300 RTK is an investment in the future of your aerial operations. Its cutting-edge technology, robust build, and scalability ensure that it will remain a valuable asset for years to come, capable of adapting to evolving mission requirements and integrating with future technological advancements.
Conclusion: Elevate Your Operations with DJI MATRICE 300 RTK
The DJI MATRICE 300 RTK, available on xboom.in, represents the future of industrial and professional drone operations. With its unparalleled precision, advanced imaging capabilities, and enhanced efficiency, the MATRICE 300 RTK is poised to transform how industries conduct aerial surveillance, inspection, and data collection.
Unlock the full potential of aerial technology with the DJI MATRICE 300 RTK. Visit xboom.in today to explore how this advanced drone camera can elevate your operations and provide the competitive edge needed in today’s fast-paced industrial landscape.
