Description

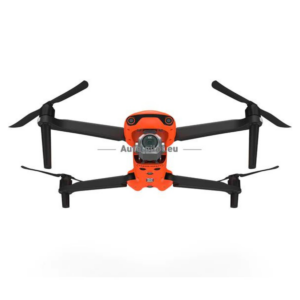

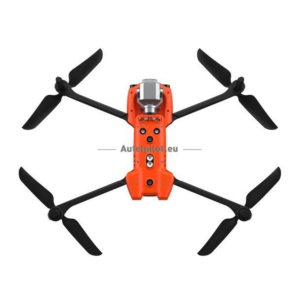

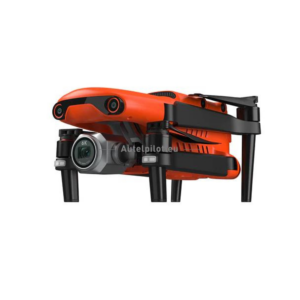

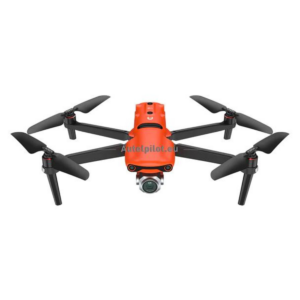

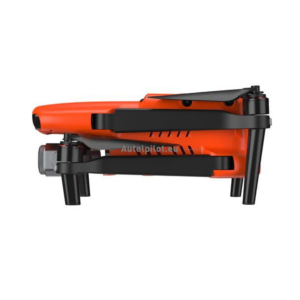

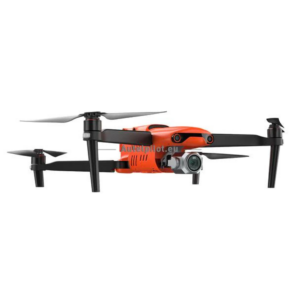

Autel EVO II Pro V3 Rugged Bundle
6K Ultra HD Camera: The drone is equipped with a cutting-edge camera that captures breathtaking 6K ultra-high-definition images and videos, offering unparalleled detail and clarity. This high-resolution capability is perfect for professionals who demand the highest quality for aerial photography and videography, ensuring that every frame is captured with vivid colors and sharp details.
Adjustable Aperture: Featuring a versatile adjustable aperture range from f/2.8 to f/11, the EVO II Pro V3 allows for superior control over lighting and depth of field. This flexibility is essential for adapting to changing light conditions throughout the day, enabling the capture of stunning visuals in a wide array of environments.
Extended Flight Time: With up to 40 minutes of flight time per charge, this drone sets a new standard for operational endurance in the field. This extended airtime is crucial for conducting thorough surveys, capturing extensive footage, and completing missions without the disruption of frequent battery changes.
Rugged Carrying Case: The bundle’s rugged carrying case is designed to withstand the rigors of tough field conditions, offering optimal protection for the drone and its accessories against impacts, dust, and water. This durability ensures that your equipment is always ready for action, no matter where your missions take you.
360° Obstacle Avoidance: With 12 visual sensors providing 360° obstacle avoidance, the drone intelligently navigates around obstacles, ensuring safe flight in complex environments. This comprehensive sensor array is invaluable for maintaining the integrity of the drone and ensuring the safety of your operations in cluttered or unpredictable spaces.
All-Weather Operation: Engineered to perform reliably in a broad range of weather conditions, the EVO II Pro V3 offers consistent operation in both hot and cold climates, as well as in windy and rainy conditions. This all-weather capability ensures that your missions can proceed uninterrupted, regardless of the environmental challenges.
Advanced GPS Positioning: The drone’s advanced GPS and GLONASS systems provide precise hovering and tracking, enabling stable flights and accurate positioning. This feature is particularly beneficial for applications requiring high precision, such as detailed aerial inspections, mapping, and cinematic shot composition.
Modular Payload System: Offering unparalleled versatility, the drone’s modular payload system allows for the swift integration of a variety of sensors and accessories. This adaptability enables users to customize their drone setup to suit specific mission requirements, from thermal imaging to multispectral analysis.
Secure Data Encryption: Prioritizing data security, the EVO II Pro V3 features robust encrypted communication and secure data storage options. This security is essential for operations that handle sensitive information, ensuring that data captured during flights is kept confidential and protected from unauthorized access.
Integrated Mission Planning: The drone supports integrated mission planning tools and is compatible with leading third-party applications like Pix4D and DroneDeploy. This functionality streamlines mission planning and execution, enabling efficient data capture and analysis for a variety of professional applications.
BVLOS Capabilities: With its advanced communication system, the drone is capable of beyond visual line of sight operations. This extended range capability is crucial for conducting remote inspections, surveillance, and mapping over large areas, offering greater operational flexibility and efficiency.
Real-Time Notifications: Users receive instant updates and notifications about critical flight information, including battery levels, flight status, and environmental conditions. These real-time alerts enhance situational awareness and allow for swift decision-making during flights, improving overall operational safety and efficiency.
Professional Applications: The EVO II Pro V3 Rugged Bundle is designed to meet the demands of a wide range of professional applications, including cinematic filmmaking, infrastructure inspection, environmental monitoring, and public safety operations. Its advanced features and high-quality outputs make it a valuable tool for professionals seeking to elevate their aerial imaging capabilities.
Easy Maintenance: Engineered with maintenance in mind, the drone allows for easy access to replaceable parts and firmware upgrades, ensuring it remains at the forefront of drone technology. This design philosophy ensures long-term reliability and performance, keeping the drone ready for the challenges of professional use.
AI-Enhanced Features: Utilizing advanced AI technology, the drone offers intelligent features such as automated tracking and flight planning. These AI-enhanced capabilities simplify complex operations, enabling users to focus on their mission objectives while the drone autonomously manages flight dynamics and data capture.
Comprehensive Data Analysis: Compatible with sophisticated analysis software, the drone provides detailed insights through comprehensive data analysis tools. This feature supports informed decision-making and strategy development across various industries, including agriculture, construction, and environmental science, by offering valuable information derived from aerial data.
The Autel Robotics EVO II Pro V3 Rugged Bundle Drone combines advanced imaging technology, robust design, and versatile capabilities to deliver a comprehensive solution for professionals requiring the utmost in aerial photography, videography, and operational efficiency.
Moonlight Algorithm 2.0
Achieve remarkable night photography with the EVO II Pro V3, featuring a powerful 6K 1″ CMOS sensor and the advanced Moonlight Algorithm 2.0 from Autel Robotics. This combination ensures brilliant low-light performance, capturing stunningly clear and vibrant images under the night sky, elevating your nocturnal aerial photography to new heights.
Specifications
In The Box
– EVO II Pro V3 Rugged Bundle –
- EVO II Pro Aircraft *1
- Remote Controller*1
- Battery*2
- Charger*1
- Power cable *1
- Propellers*1 pair
- Micro-USB cable
- Remote control cable*2 (standard micro usb connector/Type c connector)
- Carry Case*1
Aircraft
Takeoff weight | 1191 g |
Max takeoff weight | 2000 g |
Wheelbase | 397 mm |
Size(L*W*H) | 230x130x108 mm (folded) 457x558x108 mm (unfolded) |
Maximum service ceiling altitude | 7000 m |
Max ascent speed | 8 m/s (Ludicrous) |
Max descent speed | 4 m/s (Ludicrous) |
Max horizontal flight speed | 20m/s (Ludicrous) |
Max flight distance (no wind) | 25 km |
Max tilt angle | 33° (Ludicrous) |
Max angular velocity | 120°/s |
Max flight time (no wind) | 40 min |
Max hovering time (no wind) | 35 min |
Operating temperature range | -10℃ ~ 40℃ |
Maximum resistance to wind | 12 m/s (Take-off and landing) |
Operating frequency | 902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only) |
Transmission power | 900M FCC/ ISED:≤31dBm 2.4G FCC/ ISED:≤32dBm SRRC/CE/MIC/RCM:≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC:≤33dBm CE/ RCM:≤14dBm |
Hovering accuracy | Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally) |
GNSS | GPS/Beidou/Glonass/Gallieo |
Internal storage | 8GB |
SD storage | max. support 256GB (UHS-3 or Class 10) |
Gimbal
Gimbal | 3-axis stabilization |
Mechanical range | Tilt: -135° to +45°; Pan: -100° to +100° |
Controllable rotation range | Tilt: -90° to +30°; Pan: -90° to +90° |
Max control speed (Tilt) | 300°/s |
Angular Vibration Range | ±0.005° |
Remote controller and image transmission
Operating frequency | 902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only) |
Transmission power | FCC:≤33dBm CE:≤20dBm@2.4G,≤14dBm@5.8G SRRC:≤20dBm@2.4G,≤33dBm@5.8G/5.7G |
Max Transmission Distance (unobstructed, free of interference) | FCC:15km CE:8km |
Display screen | 2340×1080 60fps |
Battery | 1900mAh |
Operating time | ~2 hours (Max. Brightness) ~3 hours (50% Brightness) |
Charging time | 90 minutes |
Internal Storage | ROM 128GB + expandable storage via micro-SD card |
Sensing system
Sensing system type | Omnidirectional sensing system |
Forward | Accurate measurement range: 0.5-18 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80° |
Backward | Accurate measurement range: 0.5-16 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80° |
Upward | Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50° |
Downward | Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 100°, vertical: 80° |
Left and right | Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: horizontal: 65°, vertical: 50° |
Operating Environment | Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) |
Camera
Sensor | 1 inch CMOS; 20M pixels |
Lens | FOV: 82° Equivalent focal length: 29 mm Aperture: f/2.8 – f/11 Focus range: 0.5 m to infinity |
ISO range | Video: 100-44000 Photo: 100-6400 |
Shutter speed | Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates |
Zoom | 1-16x (up to 3x lossless zoom) |
Photo mode | Single shot/Burst shooting/AEB/Time Lapse/HDR |
Maximum photo size | 5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9) |
Image Format | JPG (default) / DNG / JPG+DNG |
Photo mode | 5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24 |
Video format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
Max bitrate | 120Mbps |
Supported file system | FAT32/exFAT |
Battery
Capacity | 7100 mAh |
Voltage | 11.55 V |
Battery type | LiPo 3S |
Energy | 82 Wh |
Weight | 365 g |
Charging temperature range | 5℃ to 45℃ |
Storage temperature and humidity | -10~30℃,65±20%RH |
Recommended storage temperature | 22-28℃ |
Max charging power | 93W |
Charging time | 90 minutes |
Charger
Input | 100-240 V, 50/60 Hz, 1.5A |
Output | 13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A |
Voltage | 13.2±0.1V |
Rated power | 66W |
Multi-Charger
Voltage | 13.2 V |
Charging temperature range | 5℃ to 45℃ |
FAQs
FAQs for Autel Robotics EVO II Pro V3 Rugged Bundle Drone
- What is included in the Autel Robotics EVO II Pro V3 Rugged Bundle?
- The Rugged Bundle includes the EVO II Pro V3 Drone, a remote controller, additional propellers, a battery, a charger, a charging hub, a rugged carrying case, and all necessary cables and manuals for operation.
- How long can the EVO II Pro V3 fly on a single charge?
- The EVO II Pro V3 can fly for up to 40 minutes on a single charge under ideal conditions, offering one of the longest flight times available in the consumer drone market.
- What is the maximum video resolution of the EVO II Pro V3?
- The drone is capable of capturing 6K video at up to 30 frames per second, providing stunning, high-resolution footage for professional and recreational users alike.
- Can the EVO II Pro V3 Drone fly in the rain?
- While the EVO II Pro V3 has a degree of resistance against dust and light moisture, it is not waterproof. Flying in heavy rain is not recommended as it can damage the drone’s electronics.
- What is the maximum transmission range of the EVO II Pro V3?
- The EVO II Pro V3 offers a maximum transmission range of up to 9 km (5.6 miles) with a stable, clear video feed, depending on local regulations and conditions.
- Does the EVO II Pro V3 support obstacle avoidance?
- Yes, the drone is equipped with 12 computer vision sensors for omnidirectional obstacle avoidance, ensuring safer flight in complex environments.
- Is the EVO II Pro V3 compatible with third-party apps or software?
- While Autel provides its own app for optimal performance, the drone supports certain third-party software for professional photography, videography, and mapping purposes. Compatibility should be checked on a case-by-case basis.
- What is the weight of the EVO II Pro V3 Drone?
- The drone weighs approximately 1191 grams (2.62 pounds), which makes it subject to certain regulations in many countries, including registration.
- How does the Rugged Bundle enhance the drone’s portability and durability?
- The Rugged Bundle’s carrying case is designed to protect the drone and its accessories from physical damage and the elements, making it ideal for transporting and using the drone in harsh or remote environments.
- Where can I find technical support or repair services for the EVO II Pro V3?
- Technical support and repair services are provided through Autel Robotics’ official channels. Customers can contact Autel Robotics via their website or authorized dealers for assistance with troubleshooting, repairs, or replacement parts.
