Description
Fly Higher, See Further: Autel EVO Lite, Your Aerial Companion.
Taking to the skies has never been more fun than it is with the Autel EVO Lite Standard Drone. It is uncomplicated, lightweight, and inexpensive, yet it is capable of capturing amazing aerial photographs and films for priceless recollections. Utilising this intuitive and adaptable drone, you can effortlessly explore the sky and share the one-of-a-kind viewpoints you get along the way.
The Autel EVO Lite Standard Drone boasts an array of impressive features tailored for both enthusiasts and professional drone users. Here are some of its key features:
Camera and Imaging: The drone features a 50MP camera with a 1/1.28-inch CMOS sensor, enhanced by an RYYB color filter array that absorbs 40% more light than traditional arrays, allowing for superior image capture. It supports 4K HDR video, PDAF+CDAF autofocus system, and HDR photography for improved contrast and dynamic range. The camera is capable of tracking fast-moving subjects with precise autofocus and offers various automatic shooting modes for cinematic shots.
Design and Build: Available in three colors (Arctic White, Deep Space Gray, and Autel Orange), the EVO Lite is designed for style and functionality. It also features a world’s first 4-axis gimbal design for vertical shooting, providing unparalleled stabilization and shooting flexibility.
Transmission and Connectivity: The drone uses Autel SkyLink for video transmission, offering a range of 7.4 miles with 2.7K/30FPS quality, and includes advanced anti-interference capabilities. It supports SoundRecord to bring videos to life by recording voices and ambient sounds through the smartphone. SuperDownload enables quick photo and video downloads at 160Mbps using the Autel Sky app.
Obstacle Avoidance and Flight Time: It introduces an ultra-wide-angle obstacle avoidance system, improving safety and confidence in flight. The EVO Lite leads its size class with a 40-minute flight endurance, providing 30% more flight time compared to competitors.
Specifications and Package Contents: The drone weighs 835g, with dimensions allowing for compact storage and ease of transport. It can reach a maximum ascent speed of 5m/s and a descent speed of 4m/s, with a maximum level flight speed of 18m/s. The maximum flight distance is 24km, and it can resist winds up to Level 7. The standard package includes the drone, a remote controller, power adapter, vertical shooting stand, charging cables, spare propeller, and manuals.
Make Your Way Through The Shadows. Reclaim the night as your own.
Explore the World When the Moon Is Out.
Even when the ISO is turned all the way up, the EVO Lite+’s 1-inch CMOS image sensor and Autel’s sophisticated moonlight algorithm allow it to capture clear, bright details at night with low noise levels. This is the case even when the ISO is turned all the way up.
Gain Command With An Aperture That Is Fully Adjustable
You have the chance to show off your distinctive artistic style by adjusting the exposure as well as the depth of field thanks to an aperture that is adjustable from f/2.8 to f/11. This gives you more room to exercise your imagination.
- 1″ CMOS
- F2.8~F11
- 6K/30FPS Video
- 20MP
Bring Back the Original Colours!
When photographing scenes with an excessive amount of contrast, set the camera to automatically adjust the exposure so that the resulting photographs are both sharper and have more layers.
Defog Mode
Whether you’re flying over a cloudy hilltop at dawn or hovering at the base of a waterfall, you can cut through the haze with a fog penetration feature that cuts through the haze with a function that automatically adjusts the camera’s vibrance settings to make your film look crisp and clear. This function cuts through the haze whether you’re flying over a cloudy hilltop at dawn or hovering at the base of a waterfall.
Camera with a sensitivity of 50 megapixels
Discover an entirely new level of image quality with the help of a CMOS sensor measuring 1/1.28 inches in size and a supersensitive 50 megapixel camera. As a result of the camera’s use of a RYYB colour filter array design, which is capable of soaking up 40 percent more light than the more conventional RGGB arrays, you will be able to record the splendour of natural settings.
HDR will produce darker shadows. Highlights with more brightness.
When HDR is turned on, the Lite and Lite+ cameras will take many pictures at varying exposures and then automatically patch them together. The end result will be a picture that has greater contrast and dynamic range.
Instant Focus, Instant Capture is the Goal.
Using a phase detection autofocus and dual focus technology, you can keep up with subjects that are moving quickly and get a perfect autofocus that can lock in within milliseconds.
Your Own Personal Paparazzi: SkyPortrait
When a button is pressed, the Lite will launch into the air and take a picture of you and your pals while automatically adjusting the lens to include everyone. Whether it’s the peak of a mountain or your own garden, you can dramatically showcase your magnificent destination by automatically blurring the background for added theatrical effect.
Tracking Master Subjects in Dynamic Track 2.1
Employ your Lite to follow anyone automatically so you may concentrate on your activities as it takes care of the cinematic aspect.
Avoiding Obstacles from an Ultra Wide Angle
With Autel’s new super wide angle obstacle avoidance cameras, you can fly more safely, confidently, and quickly than ever before. The 150 degree front field of view provided by the sensors allows the EVO Lite to reduce the number of cameras required while removing more blind spots than conventional systems.

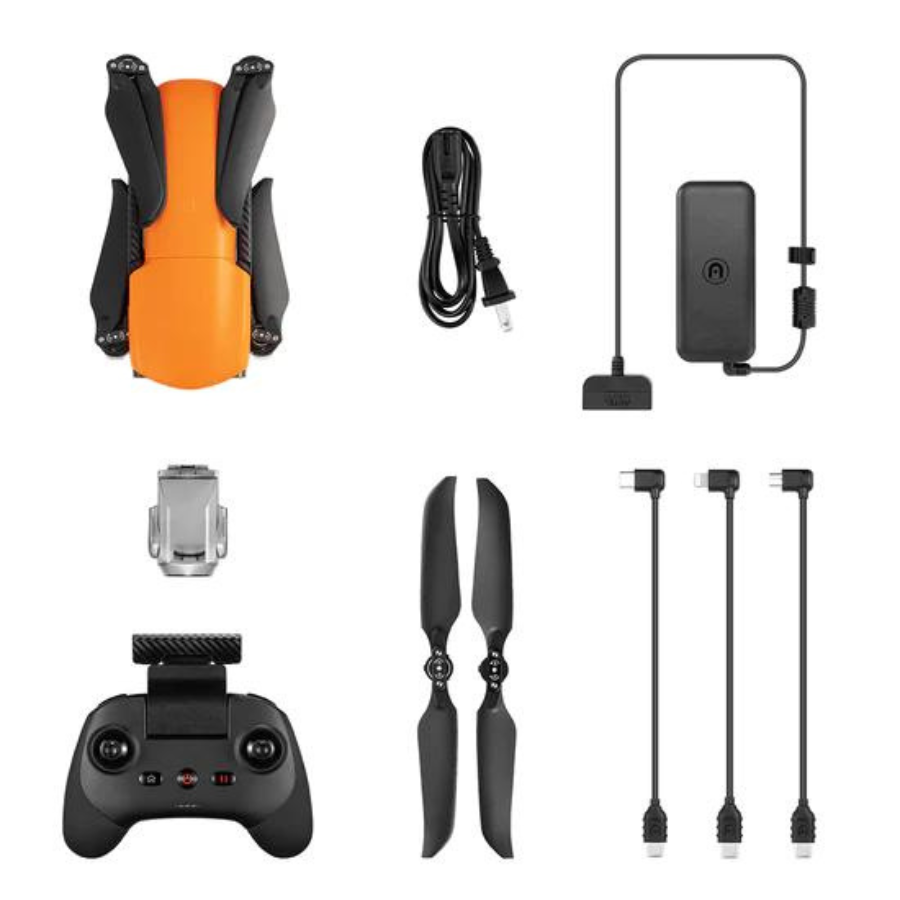

In The Box
Specification
Aircraft
| Takeoff weight | 835g |
| Dimensions (including blades) | Folded: 210×123×95mm Unfolded: 427×384×95mm |
| Wheelbase | 368mm |
| Max ascent speed | 5m/s (sport), 4m/s (standard), 3m/s (smooth) |
| Max descent speed | 4m/s (sport), 3m/s (standard), 2m/s (smooth) |
| Max level flight speed(no wind, near sea level) | 18m/s (sport), 10m/s (standard), 5m/s (smooth) |
| Max takeoff altitude | 4000m |
| Max flight time (no wind) | 40min |
| Max hovering time (no wind) | 38min |
| Max flight distance (no wind) | 24km |
| Max wind resistance | Level 7 |
| Max tilt angle | 33°(sport), 25°(standard), 25°(smooth) |
| Max angular velocity | 200°(sport), 120°(standard), 60°(smooth) |
| Operating temperature | 0°C ~ 40°C |
| Operating frequency | 2.400-2.4835GHz，5.725-5.850GHz,5.150-5.250GHz |
| Transmission power (EIRP) | FCC:≤30dBm；CE:≤20dBm |
| GNSS | GPS, GLONASS, Galileo |
| Hovering accuracy | Vertical:±0.1m (when the visual positioning is active), ±0.5m (with GPS positioning); Horizontal:±0.3m (when the visual positioning is active), ±1.5m (with GPS positioning); |
Gimbal
| Mechanical range | Pitch: -135°~45° Roll: -45°~45° Yaw: -90°~90° Rotate: -400°~400° |
| Controllable range | Pitch: -90°~30° Yaw: -80°~80° Rotate: -360°~360° |
| Stabilization | 4-axis,(horizontal/vertical/tilt/rotation shooting) |
| Max control speed (pitch) | 30°/s |
| Angular vibration range | ±0.003° |
Sensing System
| orward | Accurate measurement range: 0.5~18m Effective sensing speed: <12m/s FOV: horizontal <70°, vertical <88° |
| Backward | Accurate measurement range: 0.5~18m Effective sensing speed: <12m/s FOV: horizontal <40°, vertical <30° |
| Downward | Accurate measurement range: 0.5~22m Visual hovering range: 0.5~40m FOV: horizontal <40°, vertical <30° |
| Operating environment | Forward, backward: Surface with clear pattern and adequate lighting(lux> 15) Downward: Surface with clear pattern and adequate lighting(lux> 15); Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.) |
Camera
| Sensor | CMOS: 1/1.28 inch Effective pixels: 50M Pixel size: 1.22μm*1.22μm |
| Lens | FOV: 85° Equivalent focal length: 23mm Aperture: f/1.9 Focus range: 0.5m ~ ∞ Focus mode: PDAF+CDAF/MF |
| Shooting mode | Automatic mode (P gear): EV adjustable, ISO/Shutter automatic Manual mode (M gear): ISO/Shutter adjustable, EV not adjustable Shutter priority (S gear): Shutter/EV adjustable, ISO automatic |
| ISO range | Video: ISO100 ~ ISO6400 Photo: ISO100 ~ ISO6400 Night scene mode: ISO up to 64000 |
| Shutter speed | Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates |
| Portrait blur | Real-time image transmission portrait blur and photo portrait blur |
| Defog mode | Support |
| Zoom range | Digital zoom: 1 ~ 16 times Lossless zoom: 4K: 2 times; 1080p: 4 times Note: 4K: more than 2 times the digital, the following is lossless 1080P: more than 4 times the digital, the following is lossless |
| Photo format | JPG / DNG / JPG+DNG |
| Photo resolution | 50MP：8192×6144（4:3） 12.5MP（default）：4096×3072（4:3） 4K：3840×2160（16:9） |
| Photo shooting mode | Single shot Burst shooing: 3/5 Auto exposure bracketing(AEB): 3/5 shots Interval: 2s/3s/4s/5s (default)/6s/…/60s (DNG min 5s) HDR imaging: 8192×6144/4096×3072/3840×2160 Night shot: 8192×6144/4096×3072/3840×2160 |
| Video coding format | H265/H264 |
| Video resolution | 3840×2160 p60/50/48/30/25/24 2720×1528 p60/50/48/30/25/24 1920×1080 p120/60/50/48/30/25/24 HDR: 3840×2160 p30/25/24 2720×1528 p30/25/24 1920×1080 P60/50/48/30/25/24 |
| Max bitrate | 120Mbps |
| Timelapse | Original image：3840*2160，JPG/DNG Video：4K P25 |
| Panorama | Horizontal/Vertical/Wide-angle/Spherical Original image: 4096*3072，JPG/DNG |
| Supported file system | Fat32、exFat |
| Video format | MP4/MOV |
| WIFI transfer | 20MB/s |
Remote Controllor & Transmission
| Operating frequency | 2.400-2.4835GHz，5.725-5.850GHz,5.150-5.250GHz |
| Max transmission distance (unobstructed, free of interference) | FCC：12km；CE：6km |
| Operating temperature | 0°C ~ 40°C |
| Transmission power (EIRP) | FCC:≤30dBm；CE:≤20dBm |
| Battery capacity | 3930mAh |
| Max battery life | ~ 2.5h (when charging a mobile phone) ~ 3.5h (when not charging mobile phone) |
| Interface type | Type C |
| Transmission system | Autel SkyLink |
| Realtime transmission quality | Transmission distance<1km：2.7K 30fps Transmission distance>1km：1080P 30fps |
| Transmission bitrate | 90Mbps |
| Transmission delay | ≤200ms |
Adaptar
| Input | 100-240V/50-60HZ |
| Output | 12.75V⎓5A |
| Rated power | 63.75W |
Battery
| capacity | 6175mAh |
| Voltage | 11.13V |
| Max charging voltage | 12.75V |
| Battery Type | Li-Po 3S |
| Energy | 68.7Wh |
| Charging temperature | 5~45℃ |
| Single battery charging time | 90min |
| Max charging power | 78W |
FAQs for Autel EVO lite Standard Drone
1. What is the flight time of the Autel EVO Lite Standard Drone?
A: The Autel EVO Lite Standard Drone offers up to 40 minutes of flight time under ideal conditions, allowing for extended periods of aerial photography and videography.
2. Does the Autel EVO Lite Standard Drone support 4K video recording?
A: Yes, the Autel EVO Lite Standard Drone supports 4K video recording, enabling users to capture high-quality, detailed videos from an aerial perspective.
3. What is the maximum control range of the Autel EVO Lite Standard Drone?
A: The Autel EVO Lite Standard Drone can be controlled from up to 12 kilometers away, providing extensive coverage for capturing footage over large areas without losing connection.
4. Can the Autel EVO Lite Standard Drone perform automatic obstacle avoidance?
A: Yes, the drone is equipped with an advanced obstacle avoidance system, using multiple sensors to detect and navigate around obstacles during flight, ensuring safer operation.
5. How does the Autel EVO Lite Standard Drone handle windy conditions?
A: The Autel EVO Lite is designed to be stable in windy conditions, capable of flying in winds up to Level 5 on the Beaufort scale, ensuring steady footage even in less than ideal weather.
6. Is there a follow-me mode on the Autel EVO Lite Standard Drone?
A: Yes, the drone features a follow-me mode, allowing it to automatically follow and film the user while they move, perfect for dynamic action shots and solo adventures.
7. How can I share the photos and videos captured by the Autel EVO Lite Standard Drone?
A: Photos and videos can be easily shared via the Autel Sky app, which allows for quick downloading to your smartphone and sharing with social media or storage services.
8. Does the Autel EVO Lite Standard Drone come with a warranty?
A: Yes, it comes with a standard one-year warranty that covers manufacturing defects, providing peace of mind to consumers.
9. What is the weight of the Autel EVO Lite Standard Drone?
A: The drone is lightweight, weighing just under 600 grams, making it portable and easy to carry on adventures.
10. Can I fly the Autel EVO Lite Standard Drone in no-fly zones?
A: Flying in no-fly zones is restricted, and the Autel EVO Lite Standard Drone is equipped with geofencing technology to prevent flight in these areas for safety and regulatory compliance.
