Sale!

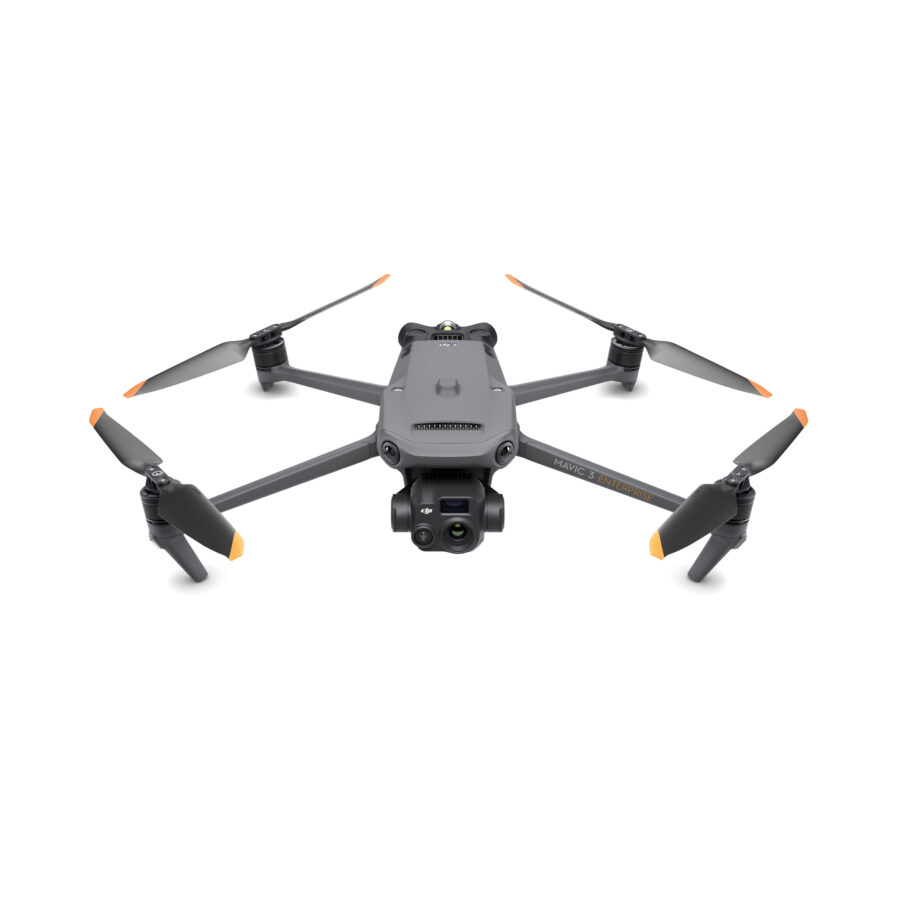

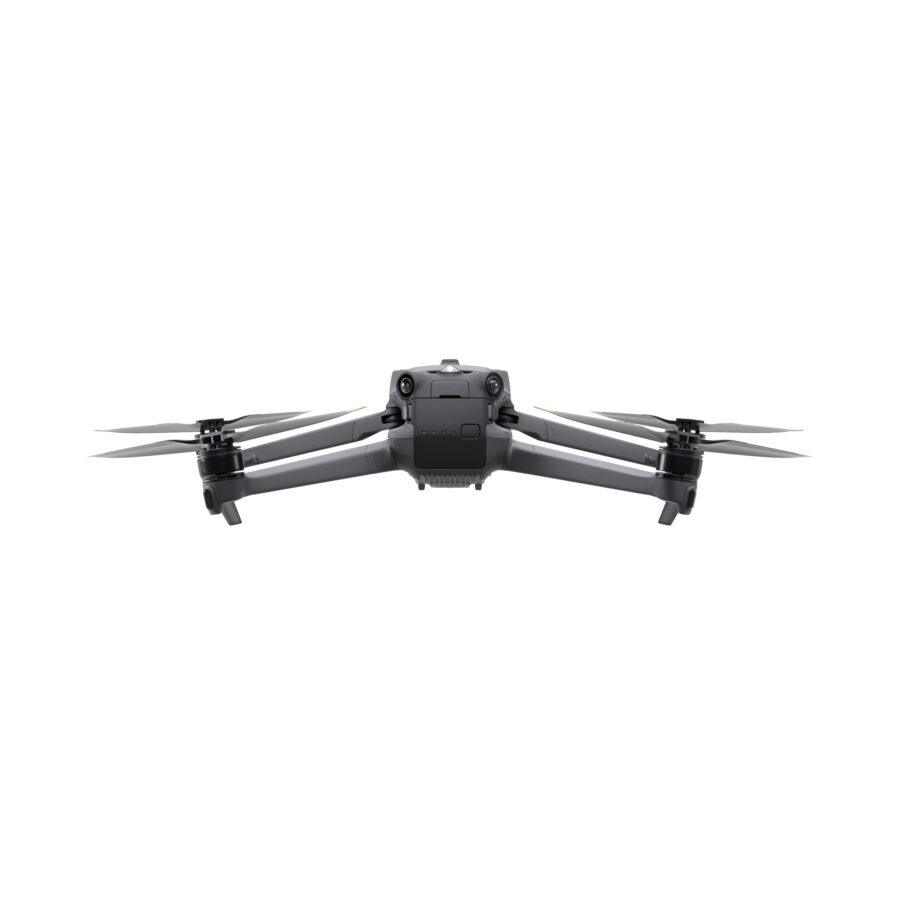

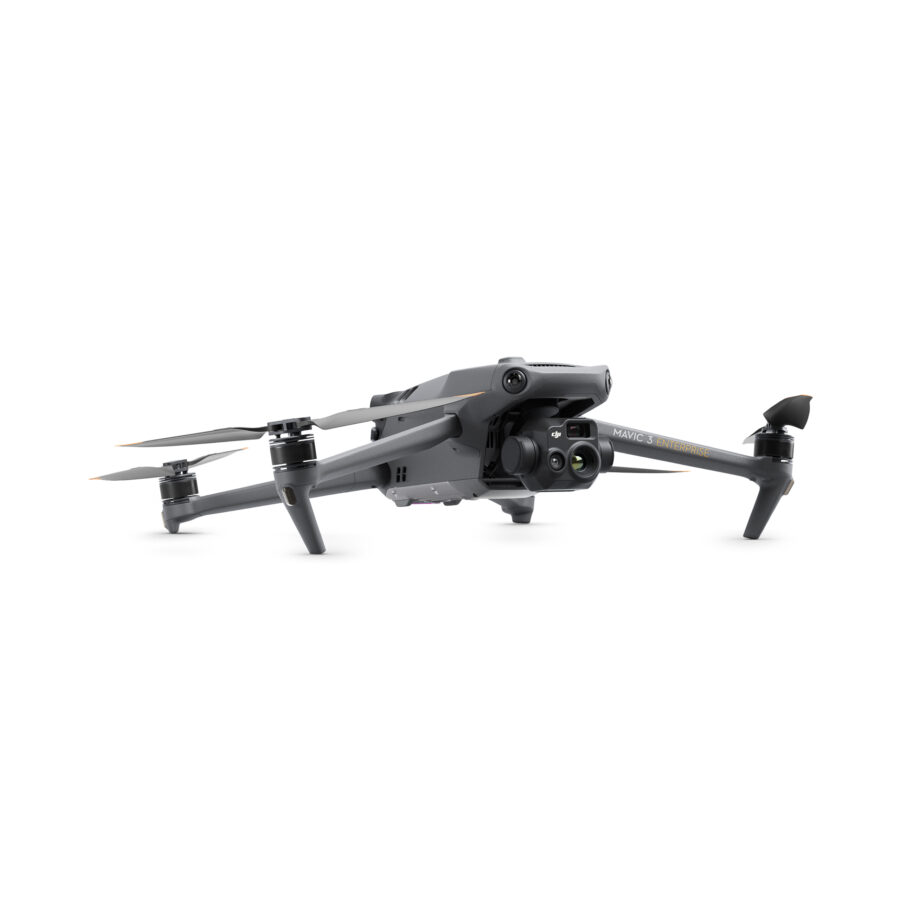

DJI Mavic 3 Thermal Enterprise Drone (TE)

8 customer reviews

Original price was: ₹730,599.Current price is: ₹576,450.

  • Compact and Portable
  • 45-min maximum Flight Time
  • 4/3 CMOS Wide Camera
  • 56× Hybrid Zoom
  • 640×512 px Thermal Camera
  • DJI O3 Enterprise Transmission
  • Centimeter-level Positioning with RTK
  • High-Volume Loudspeaker
1 Year Warranty
After Sales Service

Description

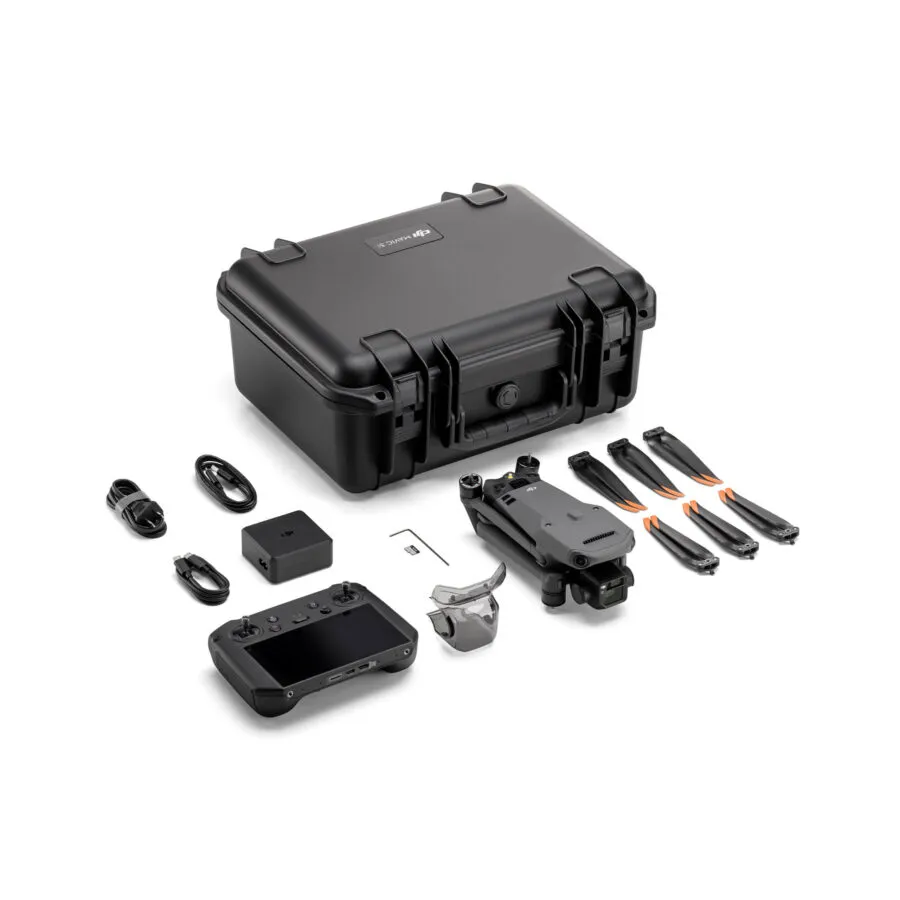

DJI Mavic 3T Worry- Basic Combo (Thermal Enterprise Drone)

The DJI Mavic 3 Thermal Enterprise Drone (TE) is a cutting-edge aerial tool designed for professionals seeking advanced thermal imaging capabilities. Equipped with a dual camera system that combines high-resolution thermal and visual cameras, the Mavic 3 TE excels in a variety of critical applications, from search and rescue missions to precision agriculture and infrastructure inspection. Its thermal sensor captures detailed heat signatures, while the 4K visual camera ensures crisp, clear footage. Enhanced with automated flight paths, real-time data transmission, and an obstacle avoidance system, this drone is built for efficiency and safety. Its compact, foldable design and extended battery life make it highly portable and operational over vast areas, making the DJI Mavic 3 TE an indispensable asset for industry professionals.

Feature Description
Dual Camera System The DJI Mavic 3 TE boasts a sophisticated dual camera system, integrating a high-resolution thermal camera for capturing precise thermal data alongside a 4K visual camera for detailed RGB imagery. This powerful combination is ideal for a multitude of applications, offering comprehensive insights from the air.
Advanced Thermal Imaging Equipped with a state-of-the-art thermal sensor, the drone excels in detecting minute temperature variations, crucial for applications such as search and rescue, environmental monitoring, and infrastructure evaluation, providing essential data for critical decision-making.
Crisp 4K Visual Camera The 4K RGB camera captures exceptionally detailed and clear visual footage, making it perfect for tasks requiring high-resolution imaging like detailed inspections, surveillance, and condition documentation across various sectors.
Seamless Image Switching Operators can swiftly switch between thermal and visual feeds in real-time during flight, enhancing situational awareness and operational efficiency. This feature is invaluable in dynamic environments where rapid response and adaptability are key.
In-depth Image Analysis Supported by advanced analysis software, the Mavic 3 TE enables comprehensive examination of thermal data. Features such as adjustable isotherm settings and precise temperature measurements provide deep insights, facilitating thorough assessments and informed interventions.
Automated Flight and Data Collection Intelligent flight modes automate data collection processes, ensuring uniform coverage and consistent data capture across targeted areas. This automation is critical for efficient monitoring, analysis, and management of resources in agriculture, environmental conservation, and urban planning.
Extended Flight Duration The drone’s enhanced battery technology offers extended flight times, allowing operators to conduct longer missions and cover vast areas without frequent stops for recharging. This increased efficiency is vital for large-scale operations and time-sensitive missions.
Robust Obstacle Avoidance With an advanced obstacle avoidance system, the Mavic 3 TE ensures safe navigation in complex environments, significantly reducing the risk of collisions and enhancing the safety of both the drone and its operational surroundings.
Superior Connectivity and Transmission Featuring a robust transmission system, the drone delivers stable, long-range transmission of thermal and visual feeds, ensuring operators have a clear and uninterrupted view of the data, which is crucial for precision tasks and detailed inspections.
Compact and Portable Its foldable and compact design significantly enhances the drone’s portability, facilitating easy transportation and rapid deployment across diverse operational contexts, from emergency response scenarios to routine agricultural surveys.
Accessory Compatibility The Mavic 3 TE’s compatibility with various accessories, including spotlights for night operations and loudspeakers for emergency communications, expands its utility across a wide range of professional tasks, enhancing its versatility and application in the field.
All-Weather Operation Designed to withstand a variety of weather conditions, the drone ensures reliable operation and data collection in both hot and cold climates, guaranteeing its readiness and performance regardless of environmental challenges.
GPS Tagging Every captured image and video is embedded with GPS location data, enabling precise mapping and tracking of thermal anomalies and points of interest. This feature is invaluable for coordinated response efforts, detailed mapping, and effective tracking in complex operational scenarios.

The DJI Mavic 3 Thermal Enterprise Drone (TE) sets a new standard for thermal and visual aerial imaging, offering an array of advanced features that cater to the needs of professionals in various industries. Its capabilities in providing detailed thermal and visual data, combined with its ease of use and versatility, make it an indispensable tool for enhancing operational effectiveness, safety, and decision-making.

Lightweight and Portable

A lightweight, compact, and a foldable design makes it easy to carry for solo operation, enabling fast deployments for more flexibility.

Endless Expansion Options

Optional loudspeaker, RTK Module, DJI Cellular Dongle, and other official accessories are available to do more in the air

Omnidirectional Sensing

Equipped with wide-angle lenses on all sides and APAS 5.0 for omnidirectional obstacle avoidance with zero blind spots.

Fly Longer, Charge Faster

45-min flight duration lets you cover more ground in a single flight to increase efficiency. Batteries charge fast with a 100W charging hub.

Powerful Payloads

Equipped with a 56x hybrid zoom camera, a 4/3 CMOS wide-angle camera for precise mapping, and a thermal camera for inspecting heat sources, this device offers versatile imaging capabilities suited for detailed surveillance and complex analyses.

Specifications

Aircraft

  • Weight (with propellers, without accessories) [1]

  • DJI Mavic 3E: 915 g
    DJI Mavic 3T: 920 g
  • Max Takeoff Weight

  • DJI Mavic 3E: 1,050 g
    DJI Mavic 3T: 1,050 g
  • Dimensions

  • Folded (without propellers): 221×96.3×90.3 mm (L×W×H)
    Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)
  • Diagonal Distance

  • 380.1 mm
  • Max Ascent Speed

  • 6 m/s (Normal Mode)
    8 m/s (Sport Mode)
  • Max Descent Speed

  • 6 m/s (Normal Mode)
    6 m/s (Sport Mode)
  • Max Flight Speed (at sea level, no wind)

  • 15 m/s (Normal Mode)
    Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) [2]
  • Max Wind Speed Resistance

  • 12 m/s [3]
  • Max Take-off Altitude Above Sea Level

  • 6000 m (without payload)
  • Max Flight Time (no wind)

  • 45 mins [4]
  • Max Hover Time (no wind)

  • 38 mins
  • Max Flight Distance

  • 32 km
  • Max Pitch Angle

  • 30° (Normal Mode)
    35° (Sport Mode)
  • Max Angular Velocity

  • 200°/s
  • GNSS

  • GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)
  • Hovering Accuracy

  • Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
    Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)
  • Operating Temperature Range

  • -10° to 40° C (14° to 104° F)
  • Internal Storage

  • N/A
  • Motor Model

  • 2008
  • Propeller Model

  • 9453F Propellers for Enterprise
  • Beacon

  • Built into the aircraft

Wide Camera

  • Sensor

  • DJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MP
    DJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP
  • Lens

  • DJI Mavic 3E:
    FOV: 84°
    Format Equivalent: 24 mm
    Aperture: f/2.8-f/11
    Focus: 1 m to ∞DJI Mavic 3T:
    FOV: 84°
    Format Equivalent: 24 mm
    Aperture: f/2.8
    Focus: 1 m to ∞
  • ISO Range

  • DJI Mavic 3E: 100-6400
    DJI Mavic 3T: 100-25600
  • Shutter Speed

  • DJI Mavic 3E:
    Electronic Shutter: 8-1/8000 s
    Mechanical Shutter: 8-1/2000 sDJI Mavic 3T:
    Electronic Shutter: 8-1/8000 s
  • Max Image Size

  • DJI Mavic 3E: 5280×3956
    DJI Mavic 3T: 8000×6000
  • Still Photography Modes

  • DJI Mavic 3E:
    Single: 20 MP
    Timed: 20 MP
    JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
    JPEG+RAW: 3/5/7/10/15/20/30/60 s
    Smart Low-light Shooting: 20 MP
    Panorama: 20 MP (raw image)DJI Mavic 3T:
    Single: 12 MP/48 MP
    Timed: 12 MP/48 MP
    JPEG: 2/3/5/7/10/15/20/30/60 s*
    Panorama: 12 MP (raw image); 100 MP (stitched image)* Shooting 48MP photo does not support 2s interval
    Smart Low-light Shooting: 12 MP
  • Video Resolution

  • H.264
    4K: 3840×2160@30fps
    FHD: 1920×1080@30fps
  • Bitrate

  • DJI Mavic 3E:
    4K: 130 Mbps
    FHD: 70 MbpsDJI Mavic 3T:
    4K: 85 Mbps
    FHD: 30 Mbps
  • Supported File Formats

  • exFAT
  • Photo Format

  • DJI Mavic 3E: JPEG/DNG (RAW)
    DJI Mavic 3T: JPEG
  • Video Format

  • MP4 (MPEG-4 AVC/H.264)

Tele Camera

  • Sensor

  • 1/2-inch CMOS, Effective pixels: 12 MP
  • Lens

  • FOV: 15°
    Format Equivalent: 162 mm
    Aperture: f/4.4
    Focus: 3 m to ∞
  • ISO Range

  • DJI Mavic 3E: 100-6400
    DJI Mavic 3T: 100-25600
  • Shutter Speed

  • Electronic Shutter: 8-1/8000 s
  • Max Image Size

  • 4000×3000
  • Photo Format

  • JPEG
  • Video Format

  • MP4 (MPEG-4 AVC/H.264)
  • Still Photography Modes

  • DJI Mavic 3E:
    Single: 12 MP
    Timed: 12 MP
    JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
    Smart Low-light Shooting: 12 MPDJI Mavic 3T:
    Single: 12 MP
    Timed: 12 MP
    JPEG: 2/3/5/7/10/15/20/30/60 s
    Smart Low-light Shooting: 12 MP
  • Video Resolution

  • H.264
    4K: 3840×2160@30fps
    FHD: 1920×1080@30fps
  • Bitrate

  • DJI Mavic 3E:
    4K: 130 Mbps
    FHD: 70 MbpsDJI Mavic 3T:
    4K: 85 Mbps
    FHD: 30 Mbps
  • Digital Zoom

  • 8x (56x hybrid zoom)

Thermal Camera

  • Thermal Imager

  • Uncooled VOx Microbolometer
  • Pixel Pitch

  • 12 μm
  • Frame Rate

  • 30 Hz
  • Lens

  • DFOV: 61°
    Format Equivalent: 40 mm
    Aperture: f/1.0
    Focus: 5 m to ∞
  • Noise Equivalent Temperature Difference (NETD)

  • ≤50 mK@F1.0
  • Temperature Measurement Method

  • Spot Meter, Area Measurement
  • Temperature Measurement Range

  • -20° to 150° C (-4° to 302° F, High Gain Mode)
    0° to 500° C (32° to 932° F, Low Gain Mode)
  • Palette

  • White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2
  • Photo Format

  • JPEG (8-bit)
    R-JPEG (16-bit)
  • Video Resolution

  • 640×512@30fps
  • Bitrate

  • 6 Mbps
  • Video Format

  • MP4 (MPEG-4 AVC/H.264)
  • Still Photography Modes

  • DJI Mavic 3T:
    Single: 640×512
    Timed: 640×512
    JPEG: 2/3/5/7/10/15/20/30/60 s
  • Digital Zoom

  • 28x
  • Infrared Wavelength

  • 8-14 μm
  • Infrared Temperature Measurement Accuracy

  • ±2° C or ±2% (using the larger value)

Gimbal

  • Stabilization

  • 3-axis (tilt, roll, pan)
  • Mechanical Range

  • DJI Mavic 3E:
    Tilt: -135° to 100°
    Roll: -45° to 45°
    Pan: -27° to 27°DJI Mavic 3T:
    Tilt: -135° to 45°
    Roll: -45° to 45°
    Pan: -27° to 27°
  • Controllable Range

  • Tilt: -90° to 35°
    Pan: Not controllable
  • Max Control Speed (tilt)

  • 100°/s
  • Angular Vibration Range

  • ±0.007°

Sensing

  • Type

  • Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.
  • Forward

  • Measurement Range: 0.5-20 m
    Detection Range: 0.5-200 m
    Effective Sensing Speed: Flight Speed ≤15 m/s
    FOV: Horizontal 90°, Vertical 103°
  • Backward

  • Measurement Range: 0.5-16 m
    Effective Sensing Speed: Flight Speed ≤12 m/s
    FOV: Horizontal 90°, Vertical 103°
  • Lateral

  • Measurement Range: 0.5-25 m
    Effective Sensing Speed: Flight Speed ≤15 m/s
    FOV: Horizontal 90°, Vertical 85°
  • Upward

  • Measurement Range: 0.2-10 m
    Effective Sensing Speed: Flight Speed ≤6 m/s
    FOV: Front and Back 100°, Left and Right 90°
  • Downward

  • Measurement Range: 0.3-18 m
    Effective Sensing Speed: Flight Speed ≤6 m/s
    FOV: Front and Back 130°, Left and Right 160°
  • Operating Environment

  • Forward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)
    Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)

Video Transmission

  • Video Transmission System

  • DJI O3 Enterprise Transmission
  • Live View Quality

  • Remote Controller: 1080p/30fps
  • Operating Frequency [6]

  • 2.400-2.4835 GHz
    5.725-5.850 GHz
  • Max Transmission Distance (unobstructed, free of interference) [7]

  • DJI Mavic 3E:
    FCC: 15 km
    CE: 8 km
    SRRC: 8 km
    MIC: 8 kmDJI Mavic 3T:
    FCC: 15 km
    CE: 8 km
    SRRC: 8 km
    MIC: 8 km
  • Max Transmission Distance (Obstructed) [8]

  • Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
    Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
    Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)
  • Max Download Speed[9]

  • 15 MB/s (with DJI RC Pro Enterprise)
  • Latency (depending on environmental conditions and mobile device)

  • Approx. 200 ms
  • Antenna

  • 4 Antennas, 2T4R
  • Transmission Power (EIRP)

  • 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
    5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

Battery

  • Capacity

  • 5000 mAh
  • Standard Voltage

  • 15.4 V
  • Max Charging Voltage

  • 17.6 V
  • Type

  • LiPo 4S
  • Chemical System

  • LiCoO2
  • Energy

  • 77 Wh
  • Weight

  • 335.5 g
  • Charging Temperature

  • 5° to 40° C (41° to 104° F)

Read More

The DJI Mavic 3T Worry Basic Combo stands as a monumental advancement in the realm of aerial thermal imaging, offering professionals across various industries a tool that combines high efficiency, unmatched precision, and portability. Available on xboom.in, this drone is meticulously engineered to cater to the needs of search and rescue operations, infrastructure inspection, environmental monitoring, and much more. With the DJI Mavic 3T Worry Basic Combo, users gain access to cutting-edge technology that elevates operational capabilities to new heights, ensuring that every mission is backed by reliability and exceptional image quality.

Elevating Aerial Thermal Imaging

The DJI Mavic 3T Worry Basic Combo is not merely a drone; it’s a comprehensive solution designed to transform how professionals conduct thermal imaging from the air. Featuring a sophisticated thermal camera alongside a high-resolution visual camera, the Mavic 3T enables users to capture detailed thermal data and crisp visuals simultaneously, making it an indispensable tool for a wide array of applications.

Why Choose the DJI Mavic 3T Worry Basic Combo?

Opting for the DJI Mavic 3T Worry Basic Combo means selecting a drone package that stands at the forefront of aerial thermal technology. Its dual-camera system ensures that users can seamlessly switch between thermal and visual feeds, offering a comprehensive overview of the operational area. Whether it’s identifying heat sources during a search and rescue mission, inspecting solar panels for efficiency, or monitoring wildlife, the Mavic 3T delivers with precision and clarity.

Unmatched Efficiency and Precision

The heart of the DJI Mavic 3T Worry Basic Combo’s capabilities lies in its efficiency and precision. The thermal camera, equipped with advanced sensors, provides accurate temperature measurements, allowing users to detect issues or objects invisible to the naked eye. Combined with the visual camera’s high-resolution imagery, the Mavic 3T offers a level of detail and operational efficiency unmatched by traditional imaging methods.

Portable Design for Field Operations

One of the key features of the DJI Mavic 3T Worry Basic Combo is its portability. Designed with field operations in mind, this drone is lightweight, compact, and easily deployable, ensuring that professionals can carry it to remote locations without hassle. Its quick setup and launch capabilities mean that users can respond to situations rapidly, making the Mavic 3T an essential tool for time-sensitive missions.

Enhanced Operational Capabilities

The DJI Mavic 3T Worry Basic Combo enhances operational capabilities through its extended flight time, robust transmission system, and advanced flight modes. These features ensure that the drone can cover large areas efficiently, maintain stable communication in complex environments, and navigate challenging terrains autonomously, providing users with reliable data collection and analysis tools.

Why xboom.in is Your Ideal Partner

Choosing xboom.in for your DJI Mavic 3T Worry Basic Combo purchase not only guarantees competitive pricing but also ensures that you receive an authentic product backed by comprehensive customer support. xboom.in is dedicated to providing customers with the latest DJI technology, expert advice, and after-sales service, making it the go-to destination for professionals seeking advanced aerial imaging solutions.

Revolutionizing Industries with Thermal Imaging

The DJI Mavic 3T Worry Basic Combo is set to revolutionize various industries by providing a new perspective on thermal imaging. From enhancing agricultural management through precise crop monitoring to improving public safety by aiding in firefighting efforts, the Mavic 3T offers a versatile solution that adapts to the unique needs of each sector, driving efficiency and innovation.

Investing in Advanced Aerial Technology

Investing in the DJI Mavic 3T Worry Basic Combo is an investment in the future of aerial technology. As the demand for sophisticated thermal imaging solutions continues to grow, the Mavic 3T stands ready to meet these challenges, offering users a drone that not only captures high-quality data but also streamlines workflows and enhances decision-making processes.

Conclusion: Transforming Operations with DJI Mavic 3T Worry Basic Combo

The DJI Mavic 3T Worry Basic Combo, available on xboom.in, represents a significant leap forward in the integration of aerial thermal imaging into professional operations. With its advanced features, operational efficiency, and unmatched precision, the Mavic 3T is designed to support a wide range of missions, from critical search and rescue operations to detailed infrastructure inspections. Whether you’re a seasoned drone operator or a professional looking to incorporate aerial thermal imaging into your workflow, the Mavic 3T Worry Basic Combo offers the technology, performance, and reliability needed to achieve exceptional results.

Embark on a new era of aerial thermal imaging with the DJI Mavic 3T Worry Basic Combo. Visit xboom.in today and discover how this innovative drone can elevate your projects and operational capabilities to unprecedented levels.

FAQ's

What makes the DJI Mavic 3 TE ideal for emergency response operations?
The Mavic 3 TE’s advanced thermal imaging capability allows for the detection of heat signatures from people or animals in various conditions, making it invaluable for search and rescue operations. Its ability to capture high-quality visual and thermal data simultaneously ensures rapid assessment and response in emergencies.

Can the Mavic 3 TE be used for agricultural purposes?
Absolutely. The thermal imaging technology can monitor crop health, identify irrigation needs, and detect pest or disease outbreaks, making the Mavic 3 TE a powerful tool for precision agriculture and sustainable farming practices.

How does the dual camera system benefit infrastructure inspections?
The dual camera system, featuring both thermal and 4K visual sensors, enables inspectors to visually identify structural issues and verify them with thermal data. This comprehensive approach is critical for assessing energy efficiency, detecting water leaks, or identifying electrical faults.

What is the flight time of the DJI Mavic 3 TE?
The Mavic 3 TE boasts an extended flight time, allowing operators to conduct thorough inspections, surveys, or monitoring tasks on a single charge. This capability is crucial for covering large areas efficiently.

How does the obstacle avoidance system work?
The drone’s obstacle avoidance system utilizes sensors to detect and navigate around obstacles in its path, ensuring safe flight in complex environments. This system is vital for protecting the drone and its surroundings during operation.

Is the Mavic 3 TE difficult to transport?
No, the Mavic 3 TE features a compact and foldable design, making it highly portable and easy to deploy. This design is particularly beneficial for professionals who need to transport the drone to various locations for field operations.

Can the thermal data be analyzed in real-time?
Yes, the Mavic 3 TE supports real-time transmission of thermal data, allowing operators to analyze and interpret heat signatures immediately. This feature is essential for making quick decisions in time-sensitive situations.

Is the DJI Mavic 3 TE weather-resistant?
Designed to operate in various weather conditions, the Mavic 3 TE ensures reliable performance in both hot and cold climates, offering flexibility for year-round operations across different industries.

How accurate is the GPS tagging feature?
The GPS tagging feature provides precise location data for every image and video captured, facilitating accurate mapping and tracking of thermal events and areas of interest, enhancing situational awareness and operational coordination.

What applications can benefit from the Mavic 3 TE’s thermal and visual imaging capabilities?
The Mavic 3 TE is versatile and can be utilized across multiple sectors, including emergency response, precision agriculture, infrastructure inspection, environmental monitoring, and security. Its imaging capabilities provide critical data for informed decision-making and operational efficiency

Mavic 3 Enterprise Brochure

Aircraft

undefined



8 reviews for DJI Mavic 3 Thermal Enterprise Drone (TE)

  1. Tapish k

    It has become an essential asset in my professional toolkit, delivering exceptional performance in thermal imaging applications. With an outstanding flight time and an extensive flight range, this drone has redefined the possibilities for capturing thermal data in various scenarios.

  2. Bhavik Bhatnagar

    Good Product. Its durability and stability are evident in every mission, ensuring reliable results whether I’m conducting inspections, capturing high-resolution imagery, or overseeing a project site.

  3. Zaid Ali

    In my opinion, Its combination of an impressive flight time, extended range, and advanced thermal imaging features makes it an optimal choice for tasks where accurate and reliable thermal data is essential. This drone has seamlessly integrated into my workflow, offering efficiency and precision in every thermal imaging mission.

  4. Amrish Katyal

    Amazed!!! The 45-minute flight time is a standout feature, allowing me for prolonged operations without the need for frequent battery changes. This extended airtime is crucial for conducting comprehensive thermal surveys or inspections, ensuring that I have ample time to capture the necessary data.

  5. Anshuman Kapoor

    The drone’s thermal imaging capabilities allow me to detect temperature variations and anomalies with unprecedented clarity, enhancing the accuracy of my assessments.

  6. Param Singh

    Thank you for the fast delivery. It has redefined the possibilities for professional drone applications, particularly in the realm of thermal imaging. With an impressive flight time and an extensive flight range.
    JUST go for it…….

  7. Kashish Pathak

    This drone has seamlessly integrated into my toolkit, offering efficiency and precision in every thermal imaging mission.
    Its impressive flight time, extended range, and advanced thermal imaging features make it an ideal choice for tasks where precise and reliable thermal data is paramount.

  8. Chirag

    I am Just Stunned with the drone and its features. The thermal capabilities of the Mavic 3 Thermal Enterprise are exceptional, providing invaluable insights in various applications such as search and rescue, inspections, and environmental monitoring.

Add a review

Your email address will not be published. Required fields are marked *
