Description

Autel EVO II Pro V3 Rugged Bundle

The Autel Robotics EVO II Pro V3 Rugged Bundle is the ultimate package for professionals seeking unmatched aerial imaging capabilities combined with durability. This drone features a 6K Ultra HD camera for capturing breathtaking, high-resolution images and videos. Its adjustable aperture and HDR capabilities ensure superior image quality in diverse lighting conditions. Designed to endure the rigors of any mission, the bundle includes extra batteries for extended flight times, a rugged carrying case for enhanced protection, and additional accessories for comprehensive field readiness. With 360° obstacle avoidance, advanced flight modes, and up to 40 minutes of flight time, the EVO II Pro V3 Rugged Bundle is ideal for demanding applications such as inspection, surveillance, and cinematic productions.

The Autel Robotics EVO II Pro V3 Rugged Bundle is the ultimate package for professionals seeking unmatched aerial imaging capabilities combined with durability. This drone features a 6K Ultra HD camera for capturing breathtaking, high-resolution images and videos. Its adjustable aperture and HDR capabilities ensure superior image quality in diverse lighting conditions. Designed to endure the rigors of any mission, the bundle includes extra batteries for extended flight times, a rugged carrying case for enhanced protection, and additional accessories for comprehensive field readiness. With 360° obstacle avoidance, advanced flight modes, and up to 40 minutes of flight time, the EVO II Pro V3 Rugged Bundle is ideal for demanding applications such as inspection, surveillance, and cinematic productions.

6K Ultra HD Camera: The drone is equipped with a cutting-edge camera that captures breathtaking 6K ultra-high-definition images and videos, offering unparalleled detail and clarity. This high-resolution capability is perfect for professionals who demand the highest quality for aerial photography and videography, ensuring that every frame is captured with vivid colors and sharp details.

 Adjustable Aperture: Featuring a versatile adjustable aperture range from f/2.8 to f/11, the EVO II Pro V3 allows for superior control over lighting and depth of field. This flexibility is essential for adapting to changing light conditions throughout the day, enabling the capture of stunning visuals in a wide array of environments.

 Extended Flight Time: With up to 40 minutes of flight time per charge, this drone sets a new standard for operational endurance in the field. This extended airtime is crucial for conducting thorough surveys, capturing extensive footage, and completing missions without the disruption of frequent battery changes.

 Rugged Carrying Case: The bundle’s rugged carrying case is designed to withstand the rigors of tough field conditions, offering optimal protection for the drone and its accessories against impacts, dust, and water. This durability ensures that your equipment is always ready for action, no matter where your missions take you.

 360° Obstacle Avoidance: With 12 visual sensors providing 360° obstacle avoidance, the drone intelligently navigates around obstacles, ensuring safe flight in complex environments. This comprehensive sensor array is invaluable for maintaining the integrity of the drone and ensuring the safety of your operations in cluttered or unpredictable spaces.

 All-Weather Operation: Engineered to perform reliably in a broad range of weather conditions, the EVO II Pro V3 offers consistent operation in both hot and cold climates, as well as in windy and rainy conditions. This all-weather capability ensures that your missions can proceed uninterrupted, regardless of the environmental challenges.

 Advanced GPS Positioning: The drone’s advanced GPS and GLONASS systems provide precise hovering and tracking, enabling stable flights and accurate positioning. This feature is particularly beneficial for applications requiring high precision, such as detailed aerial inspections, mapping, and cinematic shot composition.

 Modular Payload System: Offering unparalleled versatility, the drone’s modular payload system allows for the swift integration of a variety of sensors and accessories. This adaptability enables users to customize their drone setup to suit specific mission requirements, from thermal imaging to multispectral analysis.

 Secure Data Encryption: Prioritizing data security, the EVO II Pro V3 features robust encrypted communication and secure data storage options. This security is essential for operations that handle sensitive information, ensuring that data captured during flights is kept confidential and protected from unauthorized access.

 Integrated Mission Planning: The drone supports integrated mission planning tools and is compatible with leading third-party applications like Pix4D and DroneDeploy. This functionality streamlines mission planning and execution, enabling efficient data capture and analysis for a variety of professional applications.

 BVLOS Capabilities: With its advanced communication system, the drone is capable of beyond visual line of sight operations. This extended range capability is crucial for conducting remote inspections, surveillance, and mapping over large areas, offering greater operational flexibility and efficiency.

 Real-Time Notifications: Users receive instant updates and notifications about critical flight information, including battery levels, flight status, and environmental conditions. These real-time alerts enhance situational awareness and allow for swift decision-making during flights, improving overall operational safety and efficiency.

 Professional Applications: The EVO II Pro V3 Rugged Bundle is designed to meet the demands of a wide range of professional applications, including cinematic filmmaking, infrastructure inspection, environmental monitoring, and public safety operations. Its advanced features and high-quality outputs make it a valuable tool for professionals seeking to elevate their aerial imaging capabilities.

 Easy Maintenance: Engineered with maintenance in mind, the drone allows for easy access to replaceable parts and firmware upgrades, ensuring it remains at the forefront of drone technology. This design philosophy ensures long-term reliability and performance, keeping the drone ready for the challenges of professional use.

 AI-Enhanced Features: Utilizing advanced AI technology, the drone offers intelligent features such as automated tracking and flight planning. These AI-enhanced capabilities simplify complex operations, enabling users to focus on their mission objectives while the drone autonomously manages flight dynamics and data capture.

 Comprehensive Data Analysis: Compatible with sophisticated analysis software, the drone provides detailed insights through comprehensive data analysis tools. This feature supports informed decision-making and strategy development across various industries, including agriculture, construction, and environmental science, by offering valuable information derived from aerial data.

The Autel Robotics EVO II Pro V3 Rugged Bundle Drone combines advanced imaging technology, robust design, and versatile capabilities to deliver a comprehensive solution for professionals requiring the utmost in aerial photography, videography, and operational efficiency.

Autel Robotics EVO II Pro V3 Rugged Bundle
Autel Robotics EVO II Pro V3 Rugged Bundle
Autel Robotics EVO II Pro V3 Rugged Bundle

Moonlight Algorithm 2.0

Achieve remarkable night photography with the EVO II Pro V3, featuring a powerful 6K 1″ CMOS sensor and the advanced Moonlight Algorithm 2.0 from Autel Robotics. This combination ensures brilliant low-light performance, capturing stunningly clear and vibrant images under the night sky, elevating your nocturnal aerial photography to new heights.

Autel Robotics EVO II Pro V3 Rugged Bundle
Autel Robotics EVO II Pro V3 Rugged Bundle
Autel Robotics EVO II Pro V3 Rugged Bundle
Autel Robotics EVO II Pro V3 Rugged Bundle
Autel Robotics EVO II Pro V3 Rugged Bundle
Autel Robotics EVO II Pro V3 Rugged Bundle
Autel Robotics EVO II Pro V3 Rugged Bundle

Specifications

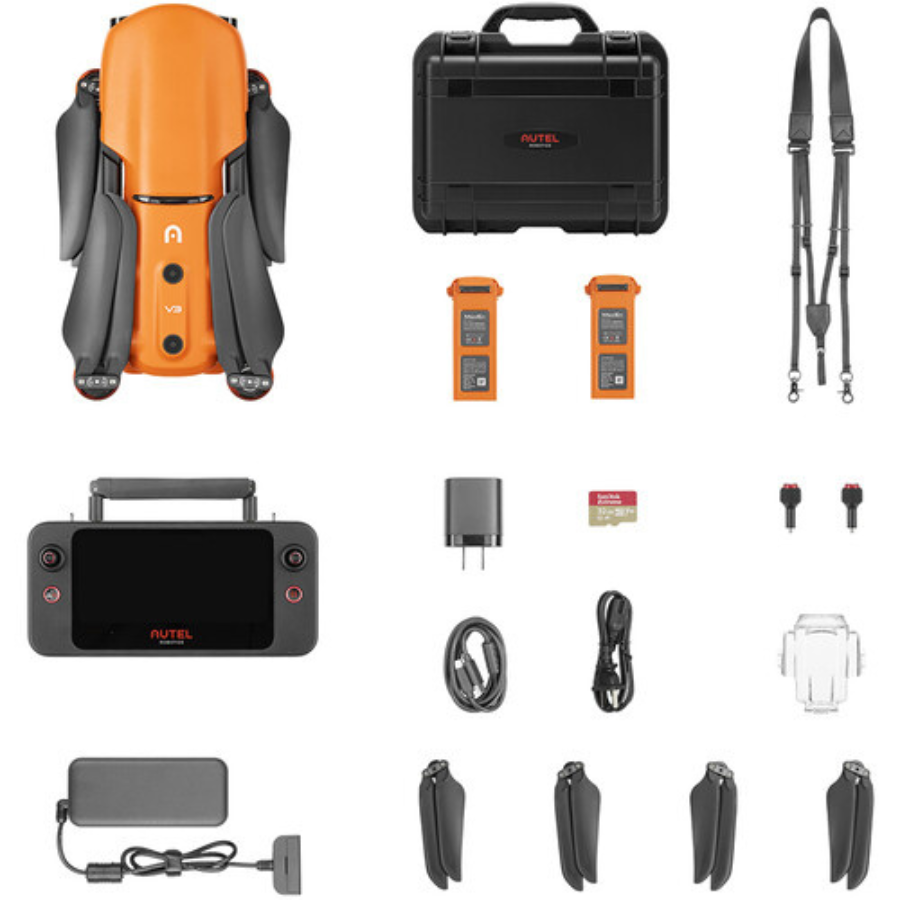

In The Box

– EVO II Pro V3 Rugged Bundle –

  • EVO II Pro Aircraft *1
  • Remote Controller*1
  • Battery*2
  • Charger*1
  • Power cable *1
  • Propellers*1 pair
  • Micro-USB cable
  • Remote control cable*2 (standard micro usb connector/Type c connector)
  • Carry Case*1

Aircraft

Takeoff weight 1191 g
Max takeoff weight 2000 g
Wheelbase 397 mm
Size(L*W*H) 230x130x108 mm (folded)
457x558x108 mm (unfolded)
Maximum service ceiling altitude 7000 m
Max ascent speed 8 m/s (Ludicrous)
Max descent speed 4 m/s (Ludicrous)
Max horizontal flight speed 20m/s (Ludicrous)
Max flight distance (no wind) 25 km
Max tilt angle 33° (Ludicrous)
Max angular velocity 120°/s
Max flight time (no wind) 40 min
Max hovering time (no wind) 35 min
Operating temperature range -10℃ ~ 40℃
Maximum resistance to wind 12 m/s (Take-off and landing)
Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)
Transmission power 900M
FCC/ ISED:≤31dBm
2.4G
FCC/ ISED:≤32dBm
SRRC/CE/MIC/RCM:≤20dBm
5.8G (non-Japan) ; 5.7G (Japan)
FCC/ISED/SRRC/MIC:≤33dBm
CE/ RCM:≤14dBm
Hovering accuracy Vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GPS works normally)
Horizontal: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GPS works normally)
GNSS GPS/Beidou/Glonass/Gallieo
Internal storage 8GB
SD storage max. support 256GB (UHS-3 or Class 10)

Gimbal

Gimbal 3-axis stabilization
Mechanical range Tilt: -135° to +45°;
Pan: -100° to +100°
Controllable rotation range Tilt: -90° to +30°;
Pan: -90° to +90°
Max control speed (Tilt) 300°/s
Angular Vibration Range ±0.005°

Remote controller and image transmission

Operating frequency 902-928MHz (FCC Only)
2.400-2.4835GHz
5.725-5.850GHz (non-Japan)
5.650-5.755GHz (Japan Only)
Transmission power FCC:≤33dBm
CE:≤20dBm@2.4G,≤14dBm@5.8G
SRRC:≤20dBm@2.4G,≤33dBm@5.8G/5.7G
Max Transmission Distance (unobstructed, free of interference) FCC:15km
CE:8km
Display screen 2340×1080 60fps
Battery 1900mAh
Operating time ~2 hours (Max. Brightness)
~3 hours (50% Brightness)
Charging time 90 minutes
Internal Storage ROM 128GB + expandable storage via micro-SD card

Sensing system

Sensing system type Omnidirectional sensing system
Forward Accurate measurement range: 0.5-18 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°
Backward Accurate measurement range: 0.5-16 m
Effective sensing speed:<12m/s
Viewing angle: Horizontal: 60°, Vertical: 80°
Upward Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: Horizontal: 65°, Vertical: 50°
Downward Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: horizontal: 100°, vertical: 80°
Left and right Accurate measurement range: 0.5-10 m
Effective sensing speed:<5m/s
Viewing angle: horizontal: 65°, vertical: 50°
Operating Environment Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)

Camera

Sensor 1 inch CMOS; 20M pixels
Lens FOV: 82°
Equivalent focal length: 29 mm
Aperture: f/2.8 – f/11
Focus range: 0.5 m to infinity
ISO range Video: 100-44000
Photo: 100-6400
Shutter speed Photo mode: 1/8000 ~ 8s
Other: 1/8000 ~ 1/frame rates
Zoom 1-16x (up to 3x lossless zoom)
Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR
Maximum photo size 5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9)
Image Format JPG (default) / DNG / JPG+DNG
Photo mode 5472x3076P30/P25/P24
3840x2160P60/P50/P48/P30/P25/P24
2720x1528P60/P50/P48/P30/P25/P24
1920x1080P60/P50/P48/P30/P25/P24
Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Max bitrate 120Mbps
Supported file system FAT32/exFAT

Battery

Capacity 7100 mAh
Voltage 11.55 V
Battery type LiPo 3S
Energy 82 Wh
Weight 365 g
Charging temperature range 5℃ to 45℃
Storage temperature and humidity -10~30℃,65±20%RH
Recommended storage temperature 22-28℃
Max charging power 93W
Charging time 90 minutes

Charger

Input 100-240 V, 50/60 Hz, 1.5A
Output 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5A
Voltage 13.2±0.1V
Rated power 66W

Multi-Charger

Voltage 13.2 V
Charging temperature range 5℃ to 45℃

FAQs

FAQs for Autel Robotics EVO II Pro V3 Rugged Bundle Drone

  1. What is included in the Autel Robotics EVO II Pro V3 Rugged Bundle?
    • The Rugged Bundle includes the EVO II Pro V3 Drone, a remote controller, additional propellers, a battery, a charger, a charging hub, a rugged carrying case, and all necessary cables and manuals for operation.
  2. How long can the EVO II Pro V3 fly on a single charge?
    • The EVO II Pro V3 can fly for up to 40 minutes on a single charge under ideal conditions, offering one of the longest flight times available in the consumer drone market.
  3. What is the maximum video resolution of the EVO II Pro V3?
    • The drone is capable of capturing 6K video at up to 30 frames per second, providing stunning, high-resolution footage for professional and recreational users alike.
  4. Can the EVO II Pro V3 Drone fly in the rain?
    • While the EVO II Pro V3 has a degree of resistance against dust and light moisture, it is not waterproof. Flying in heavy rain is not recommended as it can damage the drone’s electronics.
  5. What is the maximum transmission range of the EVO II Pro V3?
    • The EVO II Pro V3 offers a maximum transmission range of up to 9 km (5.6 miles) with a stable, clear video feed, depending on local regulations and conditions.
  6. Does the EVO II Pro V3 support obstacle avoidance?
    • Yes, the drone is equipped with 12 computer vision sensors for omnidirectional obstacle avoidance, ensuring safer flight in complex environments.
  7. Is the EVO II Pro V3 compatible with third-party apps or software?
    • While Autel provides its own app for optimal performance, the drone supports certain third-party software for professional photography, videography, and mapping purposes. Compatibility should be checked on a case-by-case basis.
  8. What is the weight of the EVO II Pro V3 Drone?
    • The drone weighs approximately 1191 grams (2.62 pounds), which makes it subject to certain regulations in many countries, including registration.
  9. How does the Rugged Bundle enhance the drone’s portability and durability?
    • The Rugged Bundle’s carrying case is designed to protect the drone and its accessories from physical damage and the elements, making it ideal for transporting and using the drone in harsh or remote environments.
  10. Where can I find technical support or repair services for the EVO II Pro V3?
    • Technical support and repair services are provided through Autel Robotics’ official channels. Customers can contact Autel Robotics via their website or authorized dealers for assistance with troubleshooting, repairs, or replacement parts.
