Description

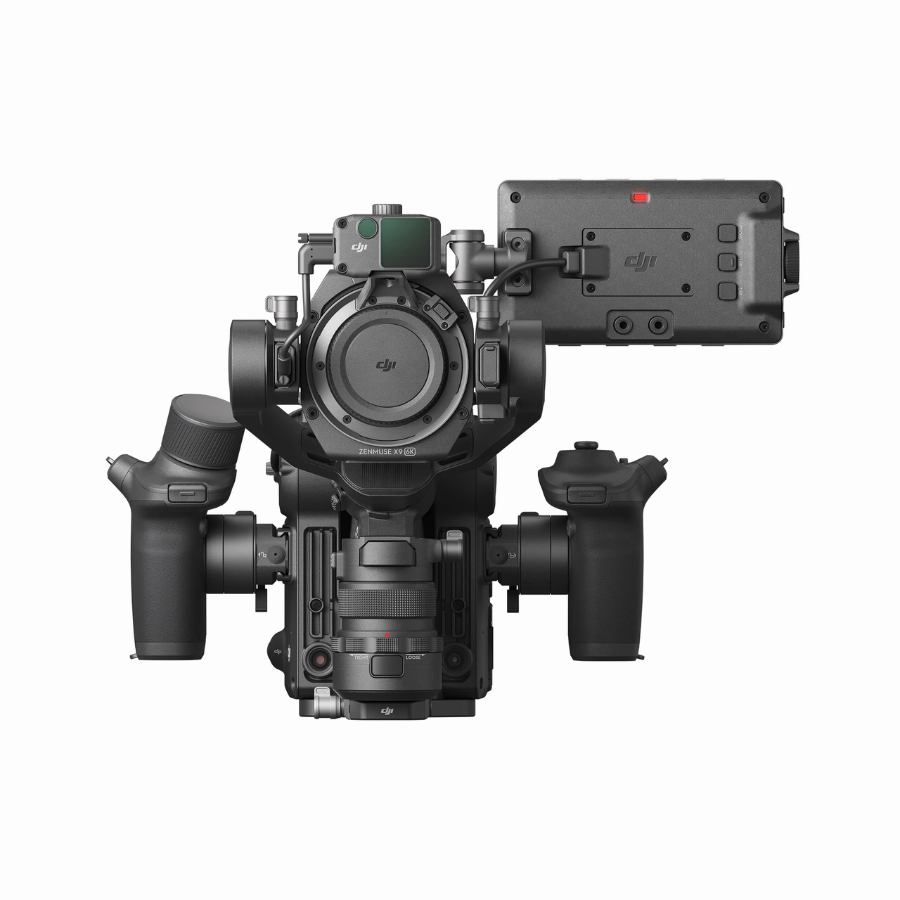

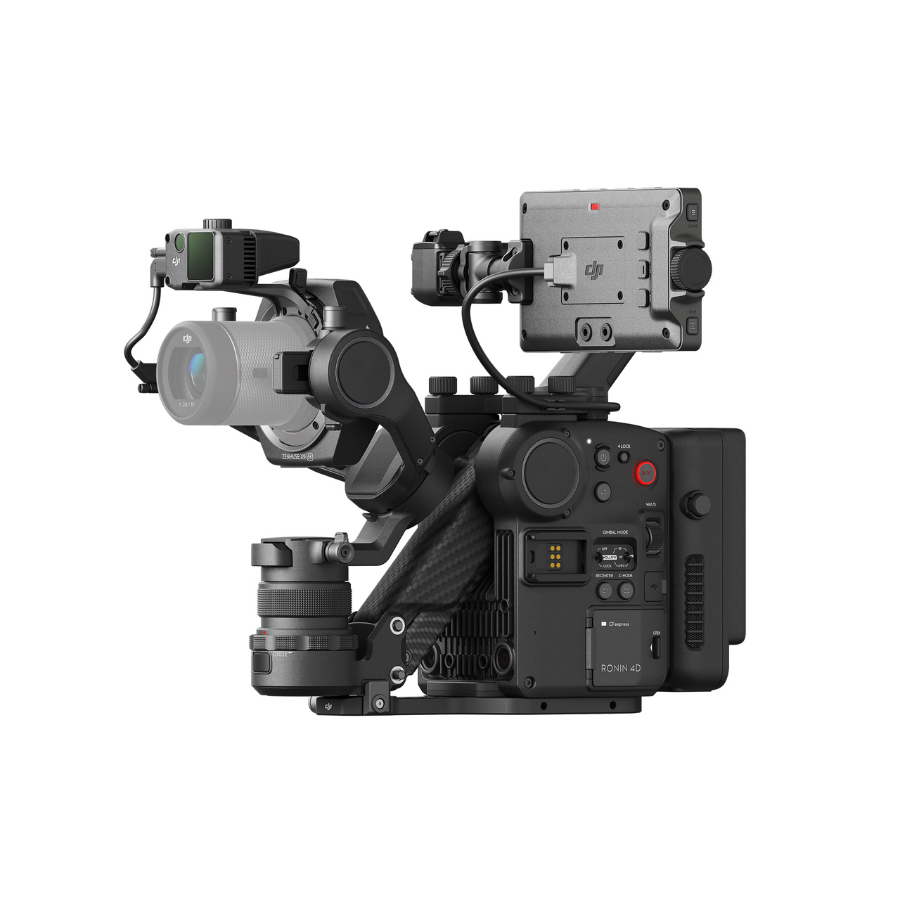

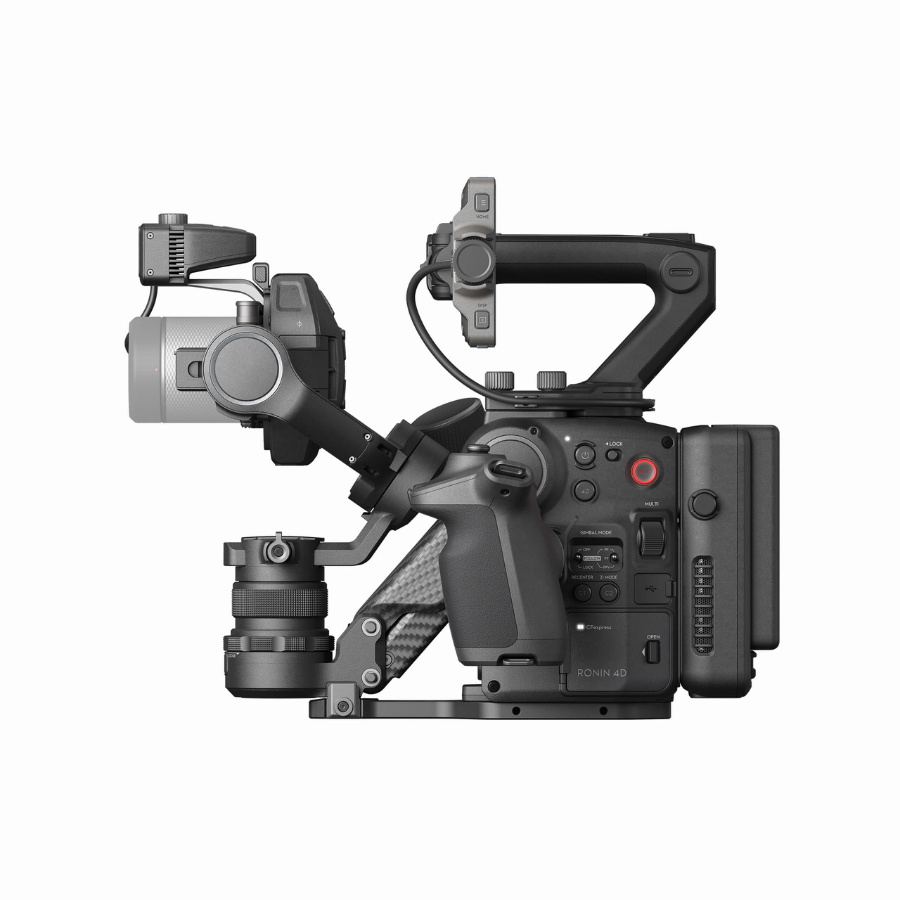

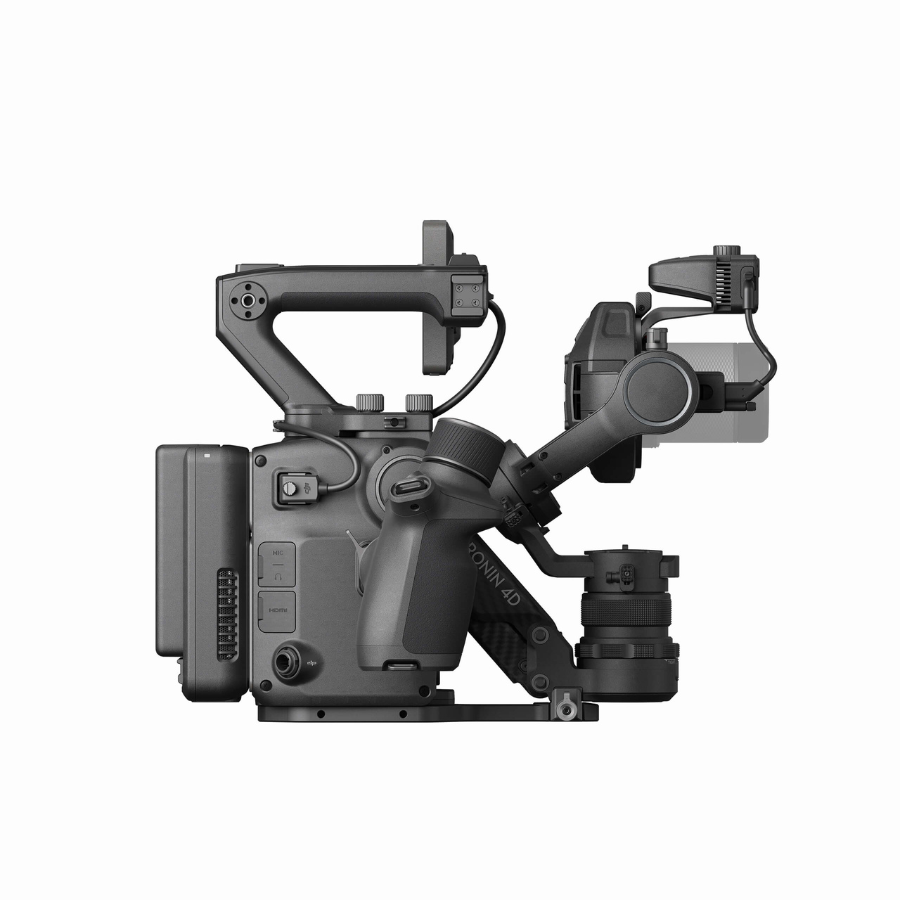

DJI Ronin 4D-6K/8K
The DJI Ronin 4D-6K/8K is an advanced camera system designed for professional filmmakers and content creators who demand the highest level of image quality and versatility. This cutting-edge camera combines a state-of-the-art 4D stabilization system with an 6K/8K resolution sensor, delivering stunningly detailed and smooth footage.
Integrated and Modular Design, Both Realized in One Camera
DJI Ronin 4D integrates cinematic imaging, a 4-axis gimbal, LiDAR focusing, and wireless video transmission and control, [1] making it incredibly convenient for you to start shooting quickly. Its modular design supports expansion accessories, offering more creative possibilities.
Full-Frame Gimbal Camera for Cinematic Footage
The full-frame X9 gimbal camera can internally record in Apple ProRes RAW, and supports 14+ stops of dynamic range, dual native ISO, built-in 9-stop ND filters, and interchangeable lens mounts to put cinematic imagery within your reach.
Precise and Intuitive LiDAR Focusing
Autofocus is fast, accurate, and reliable even in low-lit environments, and is now available on manual lenses. LiDAR Waveform makes manual focusing more intuitive and convenient. Automated Manual Focus delivers an unrivaled focusing experience.
4-Axis Active Stabilization on Par with a Dolly
The Z-Axis effectively eliminates vertical camera shake and works with visual sensors and Active Track Pro to let you create smooth, stable footage effortlessly.
Up to 20,000-foot Wireless Transmission and Control Range [2]
O3 Pro Video Transmission Technology adds DFS frequency bands and enables 1080p/60fps video transmission. It supports one transmitter with multiple receivers and can remotely control gimbal, focusing, and camera settings.

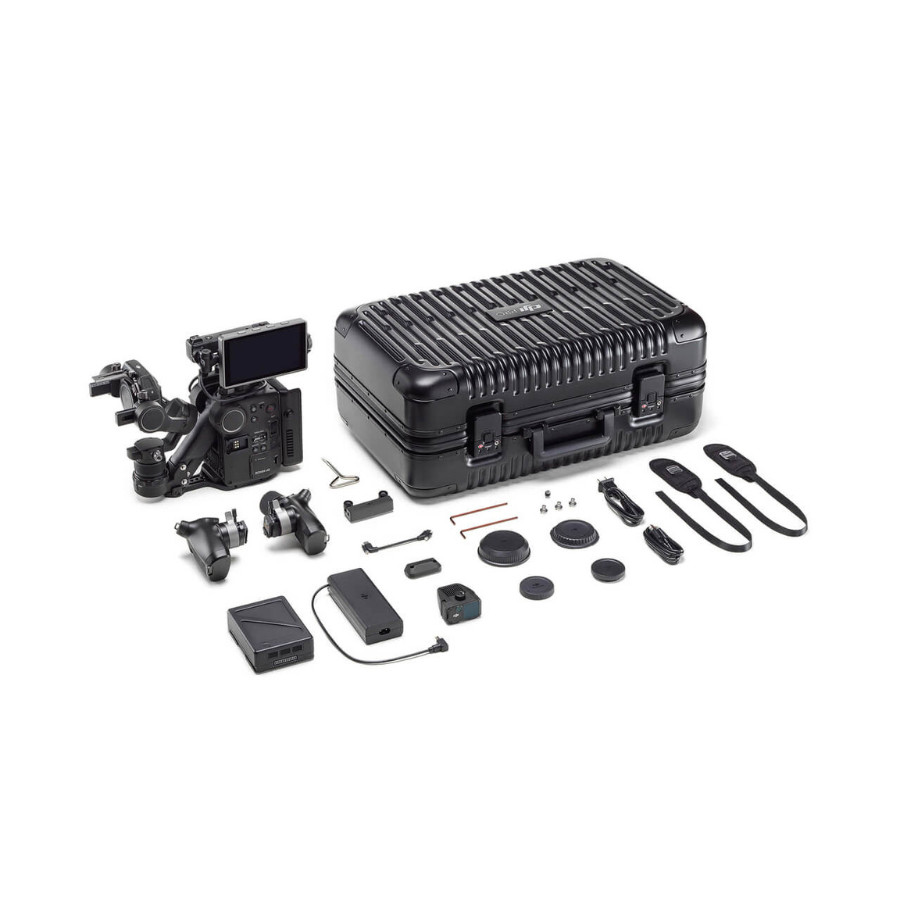

In The Box
Specifications
Imaging
| Lens Mount | DJI DL |
| Sensor Resolution | Effective: 35.4 Megapixel |
| Image Sensor | Full-Frame CMOS |
| Image Stabilization | Digital, 4-Axis |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 1-Stop (1/2), 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 5-Stop (1/32), 6-Stop (1/64), 7-Stop (1/128), 8-Stop (1/256), 9-Stop (1/512) ND Filters |
| Internal Filter Holder | Yes |
| Capture Type | Video Only |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 1/24 Second |
| ISO Sensitivity | 800 to 5000 200 to 12,800 |
| Advertised Dynamic Range | 14 Stops |
| White Balance | 2000 to 11,000K Presets: Manual |
Gimbal
| Rotation Range | Controllable Range Yaw (Pan): 285° Pitch (Tilt): 210° (-55 to 155°) Roll: 70° (-35 to 35°) Mechanical Range Yaw (Pan): 330° Pitch (Tilt): 250° (-75 to 175°) Roll: 320° (-90 to 230°) |
| Z-Axis Adjustment Range | 5.1″ / 130 mm |
| Follow Speed | Using DJI Master Wheels or Pro Force: Pan/Tilt/Roll: 360°/s Using Ronin 4D Handgrip: Pan/Tilt/Roll: 120°/s |
| Load Capacity | 2.1 lb / 960 g |
Video Capture
| Internal Recording Modes | ProRes 422 HQ 8192 x 4320 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/48.00/50/59.94/120 fps H.264 4:2:0 10-Bit 4096 x 2160 at 23.98/24.00/25/29.97/48.00/50/59.94 fps |
| External Recording Modes | SDI/BNC / USB 8192 x 4320 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97/50/59.94 fps |
| Gamma Curve | HDR-HLG, Rec709 |
| Built-In Microphone Type | Stereo |
| Audio Recording | 2-Channel 48-Bit LPCM Audio |
| IP Streaming | None |
Interface
| Media/Memory Card Slot | Single Slot: CFexpress Type B (Supports Optional DJI ProSSD Module) [1 TB Maximum] |
| Internal Memory | 1 TB |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output |
| Audio I/O | 1 x 1/8″ / 3.5 mm TRS Stereo Mic/Line Input 1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1 x Barrel (12 to 30VDC) Input |
| Other I/O | 1 x USB-C (USB 3.2 / 3.1 Gen 1) Data/Video Input/Output 1 x Proprietary Monitor Output 1 x BNC (Timecode) |
| Wireless | Wi-Fi Video Output |
| Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
| Size | 5.5″ |
| Resolution | 1920 x 1080 |
| Display Type | Tilting Touchscreen LCD |
General
| Battery Type | DJI TB50 |
| Accessory Mount | 2 x 1/4″-20 Female 1 x 3/8″-16 Female 2 x Cold Shoe Mount |
| Material of Construction | Aluminum, Carbon Fiber, Magnesium Alloy |
| Dimensions (W x H x D) | 12.2 x 11.4 x 10.9″ / 309 x 290 x 277 mm (With Protrusions) 9.3 x 6.3 x 4.5″ / 235 x 160 x 115 mm (Without Protrusions) |
| Weight | 10.3 lb / 4.67 kg (With Battery, Grip, Handle, Monitor, Recording Media, Viewfinder) 3.2 lb / 1.45 kg (Body Only) 2.29 lb / 1.04 kg (Gimbal) |
