DJI Goggles 3

  • Smooth real-time visuals with DJI drones.
  • 24ms latency for optimal control.
  • Stream flights via DJI Fly app.
  • Adjustable diopters and lightweight design.
  • One-tap defogging for all weather.



1 Year Warranty
After Sales Service

Description

Introducing The DJI Goggles 3

The DJI Goggles 3 offer an immersive FPV experience that elevates drone flying to new heights. With advanced features such as a 1080p Micro-OLED display, ultra-low latency video transmission, and seamless compatibility with a variety of DJI drones, these goggles deliver smooth, crystal-clear visuals for pilots of all skill levels. Designed for comfort and safety, the DJI Goggles 3 ensure an enhanced flight experience with built-in defogging, motion control, and wireless streaming capabilities. Perfect for those looking to immerse themselves fully in the world of drone flying, the DJI Goggles 3 offer both performance and convenience.

Features

Feature Description
1080p Micro-OLED Screen Provides stunning visuals with a refresh rate of up to 100 Hz for smooth and clear FPV flying.
Ultra-Low Latency (24ms) O4 video transmission delivers ultra-low latency and 60Mbps bitrate for seamless, real-time video.
Real View PiP View your surroundings without removing the goggles for improved flight safety and situational awareness.
Motion Control Pair with DJI RC Motion 3 for a fully immersive motion control experience for smooth flying.
Diopter Adjustment Adjustable from -6.0D to +2.0D to cater to both nearsighted and farsighted users.
Battery and Headband Integration Comfortable, lightweight design with integrated battery offering up to 3 hours of operating time.
One-Tap Defogging Convenient automatic defogging system to maintain clear vision in varying temperatures or humidity levels.
Wireless Streaming Stream your flight live to the DJI Fly app via Wi-Fi, sharing the experience with others in real-time.
Panoramic & 3D Video Playback Play back panoramic and 3D videos directly from an SD card for an immersive viewing experience.
Ergonomic Design Well-balanced and designed for comfort, allowing for long flight sessions without discomfort.

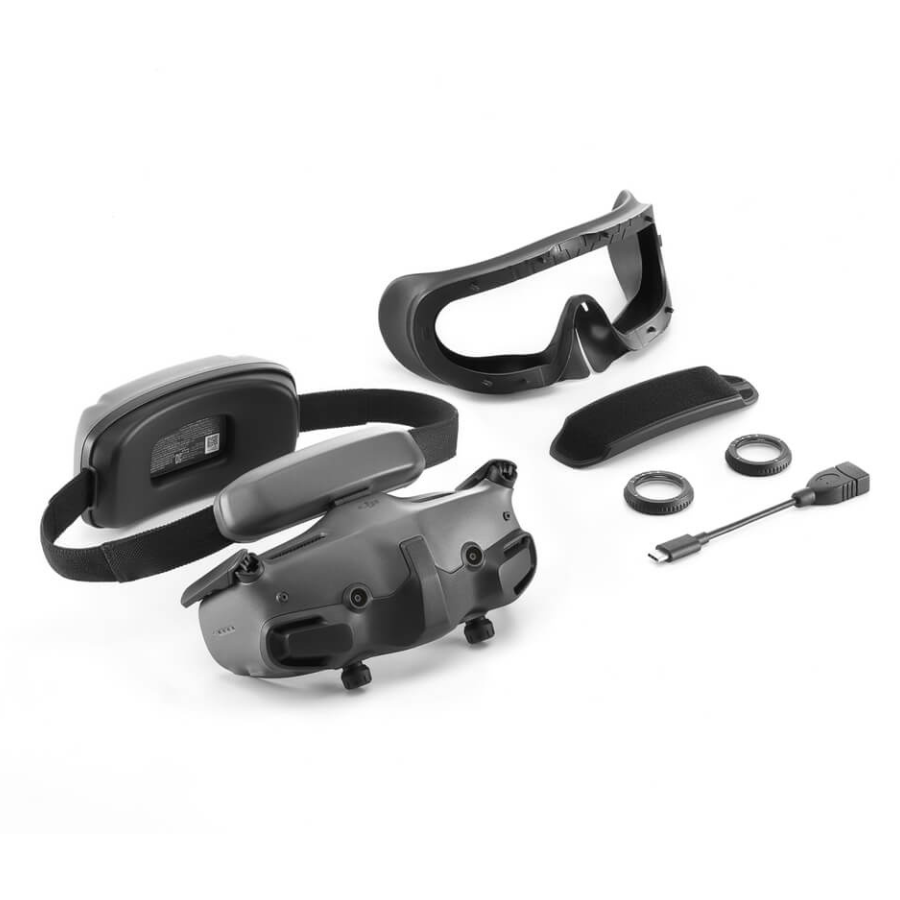

In The Box

  • DJI Goggles 3 × 1
  • DJI Goggles 3 -2.0D Corrective Lenses (Pair) × 1
  • USB-C OTG Cable × 1

Compatibility

  • DJI Avata 2
  • DJI Mini 4 Pro
  • DJI Air 3
  • DJI Neo
  • DJI O3 Air Unit

Immersive Flight, Broaden Your Horizons

The DJI Goggles 3 take your drone flying experience to the next level by offering immersive, crystal-clear views through a 1080p Micro-OLED display. Paired with advanced features like motion control, ultra-low latency transmission, and seamless integration with DJI drones, these goggles provide an unmatched FPV experience. Whether you’re piloting through scenic landscapes or navigating complex structures, the Goggles 3 allow you to broaden your horizons and fully experience the world from the sky.

Seeing is Believing

The DJI Goggles 3 can be paired with the DJI Avata 2 and DJI RC Motion 3, enabling intuitive control through body movements. Simply tilt your head or wrist, and you’ll be seamlessly piloting the Avata 2, immersing yourself in a thrilling flight experience. With the innovative Real View PiP feature and DJI O4 low-latency video transmission, Goggles 3 ensures a stable and safe flying experience, allowing you to fully enjoy the view from the sky.

Effortless Control with AR Cursor

When paired with the DJI RC Motion 3, the Motion 3 acts as an AR cursor, allowing you to easily navigate the menu on the Goggles 3 screen. This intuitive AR cursor simplifies the process of enabling functions, adjusting camera settings, and modifying transmission settings, making the entire experience more efficient and user-friendly.

Real View PiP Effortless Awareness

A quick double tap on the right panel of the goggles lets you switch between the interactive interface and a live view of your surroundings. Meanwhile, real-time flight footage stays visible in the upper-left corner of the screen. This feature allows you to stay aware of your environment without removing the goggles, ensuring enhanced flight safety.

Revolutionary O4 HD Video Transmission

The DJI Goggles 3 uses advanced O4 transmission with a 2-transmitter, 4-receiver, 6-antenna setup for strong anti-interference. With 24 ms latency, 13 km range, and auto frequency switching, it ensures stable visuals. The 60 Mbps rate and SyncSmooth Technology provide clear, seamless imagery for an immersive experience.

Ultimate Comfort and Practicality

The DJI Goggles 3 feature integrated forehead padding within the foam lining, effectively reducing pressure and minimizing light leakage around the nose. This design ensures a snug, soft, and comfortable fit for extended use.

All-Around Comfort and Convenience

DJI Goggles 3

One-Tap Defogging

When defogging is activated, an internal fan rapidly reaches full speed, ensuring the lenses remain clear by circulating air quickly. This offers a convenient solution for sudden temperature changes or high-humidity environments, preventing fog build-up and ensuring uninterrupted viewing. It’s a practical feature that enhances the overall flying experience by maintaining optimal visibility, even in challenging weather conditions, so you can focus on the flight without distractions or visibility issues.

DJI Goggles 3

Battery and Headband Integration

The DJI Goggles 3 feature a sleek and lightweight design, weighing just 470 g with balanced weight distribution for maximum comfort. The battery is integrated directly into the headband, eliminating the need for cables, offering easy on-and-off functionality and freedom of movement. With an impressive 3-hour operating time, it provides plenty of power for extended immersive flights. You can soar through the sky multiple times while having sufficient battery reserve, making these goggles ideal for long, uninterrupted drone flying sessions.

DJI Goggles 3

Refraction Adjustment, Instant Clarity

The goggles allow diopter adjustments from -6.0 D to +2.0 D, making it simple for users to achieve instant clarity while viewing. This easy adjustment ensures real-time visibility onscreen, accommodating both nearsighted and farsighted users with convenience. Whether you’re adjusting to new environments or different lighting conditions, the Goggles 3 enable swift, precise modifications to the refraction, ensuring a sharp and clear view for a more enjoyable and effective flying experience.

Simplifying Complex Interactions

DJI Goggles 3

More Fun With Wireless Streaming

DJI Goggles 3 connects wirelessly via Wi-Fi to your smart device, displaying live video from Avata 2 directly on the DJI Fly app interface. With a connection range of up to 5 meters, sharing your FPV experience is now easier than ever. This feature allows for more accessible learning, and you can effortlessly stream and share your flights in real-time. You can also import 3D and panoramic videos to an SD card and relive the immersive flying experience anytime with the Goggles 3 for a truly engaging adventure.

DJI Goggles 3

A New Flight Experience With Camera Drones

DJI Goggles 3 are compatible with the DJI Air 3 and DJI Mini 4 Pro, enabling a fresh and immersive flight experience. By using the DJI RC Motion 3, RC 2, or RC-N2 remote controllers, pilots can enjoy an entirely new level of drone control. Whether you’re capturing breathtaking views or simply flying for fun, these goggles provide a dynamic experience that enhances your aerial adventures. With intuitive controls and seamless connectivity, DJI Goggles 3 offers effortless operation for an extraordinary flight experience.

Specifications

Goggles

Specification Details
Model TKGS3
Weight Approx. 470 g (battery included)
Dimensions (L×W×H) With antennas folded: 170×109×112 mm
With antennas unfolded: 205×109×112 mm
Screen Size (single screen) 0.49 inch
Resolution (single screen) 1920×1080
Refresh Rate Up to 100 Hz
Interpupillary Distance Range 56-72 mm
Diopter Adjustment Range -6.0 D to +2.0 D
FOV (single screen) 44°
Video Recording Format MOV
Supported Video and Audio Playback Formats MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)
Panoramic Video: Spherical 2D panoramic videos.
3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU).
Max Video Specification 4K/60fps
Real View FOV 44°
Operating Temperature -10°C to 40°C (14°F to 104°F)
Power Input Built-in battery
Supported SD Cards microSD (up to 512 GB)
Recommended microSD Cards Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC
Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC
Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
Lexar Professional 1066x 512GB U3 A2 V30 microSDXC

Video Transmission

Specification Details
Video Transmission Automatically selects firmware based on the connected aircraft.
Compatible Aircraft DJI Avata 2 (with DJI O4)
Operating Frequency 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz
Prohibited Frequencies Some countries prohibit 5.1 GHz or 5.8 GHz or allow 5.1 GHz for indoor use.
Transmitter Power (EIRP) 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
5.1 GHz: < 23 dBm (CE)
5.8 GHz: < 33 dBm (FCC), < 30 dBm (SRRC), < 14 dBm (CE)
Latency (with DJI Avata 2) 1080p/100fps: 24 ms, 1080p/60fps: 40 ms
Max Transmission Distance 13 km (FCC), 10 km (CE/SRRC/MIC)
Max Video Bitrate 60 Mbps
Transmission Environment Measured in an open outdoor environment without interference; actual data may vary.

Wi-Fi

Specification Details
Protocol 802.11 a/b/g/n/ac
Operating Frequency 2.4000-2.4835 GHz, 5.170-5.250 GHz, 5.725-5.850 GHz
Prohibited Frequencies Some regions prohibit 5.1 GHz or 5.8 GHz or allow 5.1 GHz for indoor use.
Transmitter Power (EIRP) 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.1 GHz: < 20 dBm (FCC/CE/MIC)
5.8 GHz: < 20 dBm (FCC/SRRC), < 14 dBm (CE)

Bluetooth

Specification Details
Protocol Bluetooth 5.0
Operating Frequency 2.400-2.4835 GHz
Transmitter Power (EIRP) < 10 dBm

GFSK

Specification Details
Operating Frequency 2.4000-2.4835 GHz
Transmitter Power (EIRP) < 20 dBm (CE/SRRC/MIC)

Battery

Specification Details
Dimensions 121×65×52.5 mm (L×W×H)
Capacity 3000 mAh
Voltage 5.6-8.4 V
Category Li-ion
Chemical System LiNiMnCoO2
Energy 21.6 Wh
Charging Temperature 0° C to 50° C (32° F to 122° F)
Max Charging Power 20 W (charging when powered off)
Runtime Approx. 3 hours

Note: The 3-hour max operating time was measured at an ambient temperature of 25°C (77°F), with screen brightness set to 4, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, Real View off, and the battery of the goggles fully charged without supplying power to external devices such as smartphones.
