DJI Dock 3

Hurry! Deals Disappear In -
  • DGI Dock 3 Designed for 24/7 autonomous operations with Matrice 4D and Matrice 4TD drones.
  • Fast Charging: Charges drones from 15% to 95% in just 27 minutes for minimal downtime.
  • Extended Flight Time: Provides up to 10 extra minutes of flight time compared to previous models.
  • Mobile Deployment: Supports vehicle-mounted operation for in-transit charging and data transfer.
  • Durability: IP56-rated dock and IP55-rated drones withstand harsh weather conditions.
  • Wide Operating Temperature: Operates in temperatures ranging from -30°C to 50°C (-22°F to 122°F).
  • Obstacle Sensing Radar: Detects obstacles as small as 12mm at speeds up to 15m/s.
  • D-RTK 3 Relay Integration for enhanced signal quality over long-range or mountainous terrain.
  • FlightHub 2 Integration: Enables automated route planning, object detection, and anomaly alerts.
  • Battery Backup: Operates for more than 4 hours during power outages.
  • On-Premises Deployment (Planned for H2 2025): Local server integration for enhanced security and control.
  • Third-Party Software Compatibility: Allows seamless integration with external applications.
Categories: , , ,

Description

Transform Remote Drone Operations with the DJI Dock 3

Designed for round-the-clock operation, the DJI Dock 3 seamlessly pairs with Matrice 4D and Matrice 4TD drones, empowering businesses to conduct continuous, high-performance aerial missions. With vehicle-mounted support for rapid deployment across multiple locations, Dock 3 guarantees rapid drone charging and ensures rugged protection with its IP-rated design. Powered by DJI FlightHub 2’s intelligent detection system, this solution streamlines operations, lowers labor costs, and enhances mission efficiency.



A single DJI Dock 3 System will require:

  • DJI DOCK 3
  • DJI Matrice 4D Series Aircraft (Thermal or Non-Thermal) – Bought Separately
  • DJI Matrice 4D Intelligent Flight Battery – Bought Separately
  • DJI RC Pro Enterprise Controller – Bought Separately

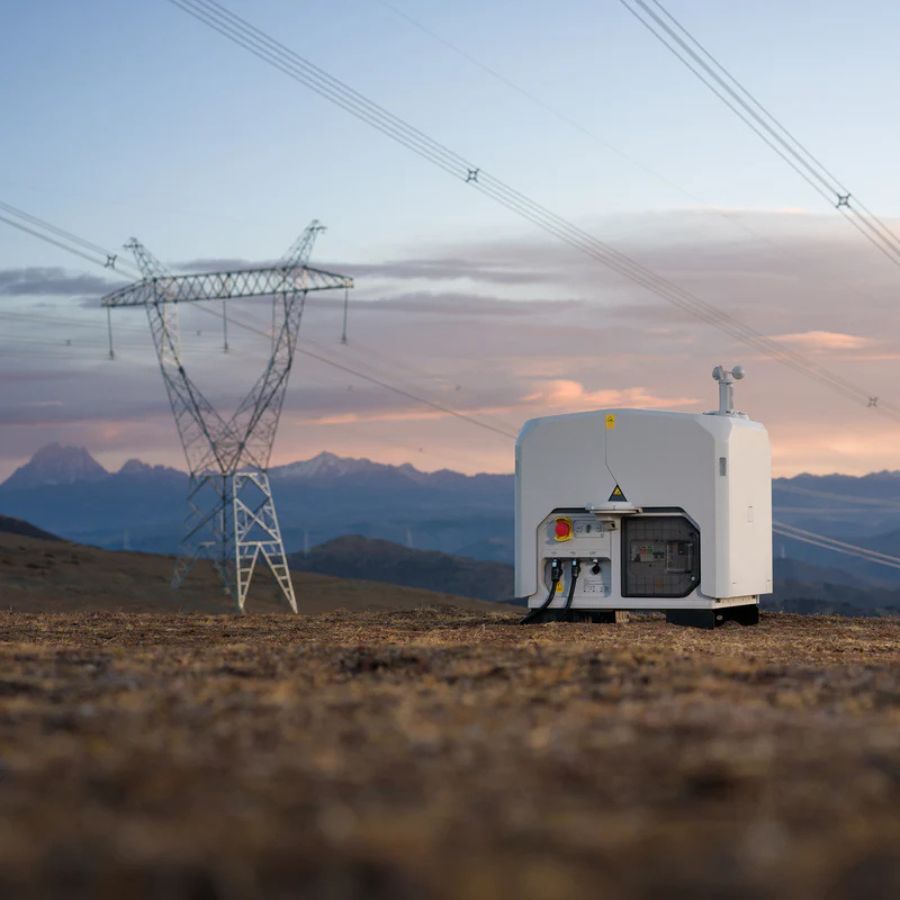

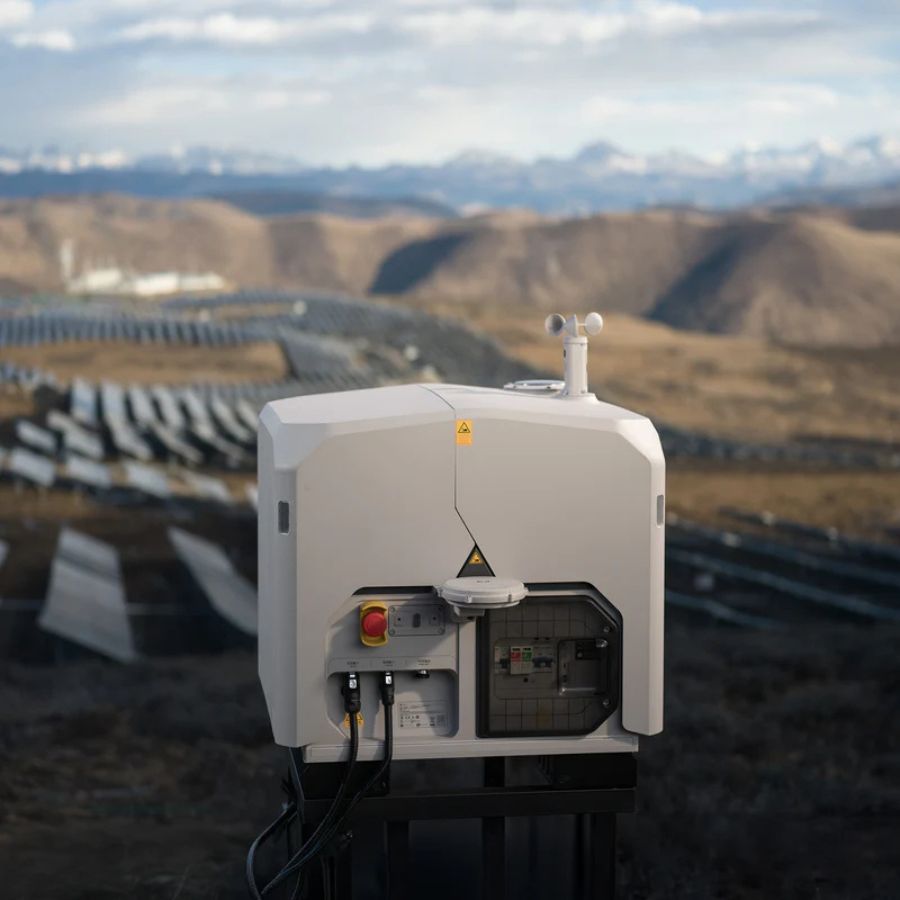

The DJI Dock 3 is engineered to thrive in the most challenging environments, offering unmatched resilience, flexibility, and operational efficiency. From extreme temperatures to harsh weather conditions, this robust solution ensures uninterrupted drone deployment and performance, allowing for seamless operations no matter the environment.

Environmental Resilience: Built to Endure Extreme Conditions

  • Heat Resistance:
    The  Dock 3 operates flawlessly in temperatures up to 50°C (122°F). Whether in scorching deserts or hot industrial environments, it ensures consistent performance and efficient charging without compromise.

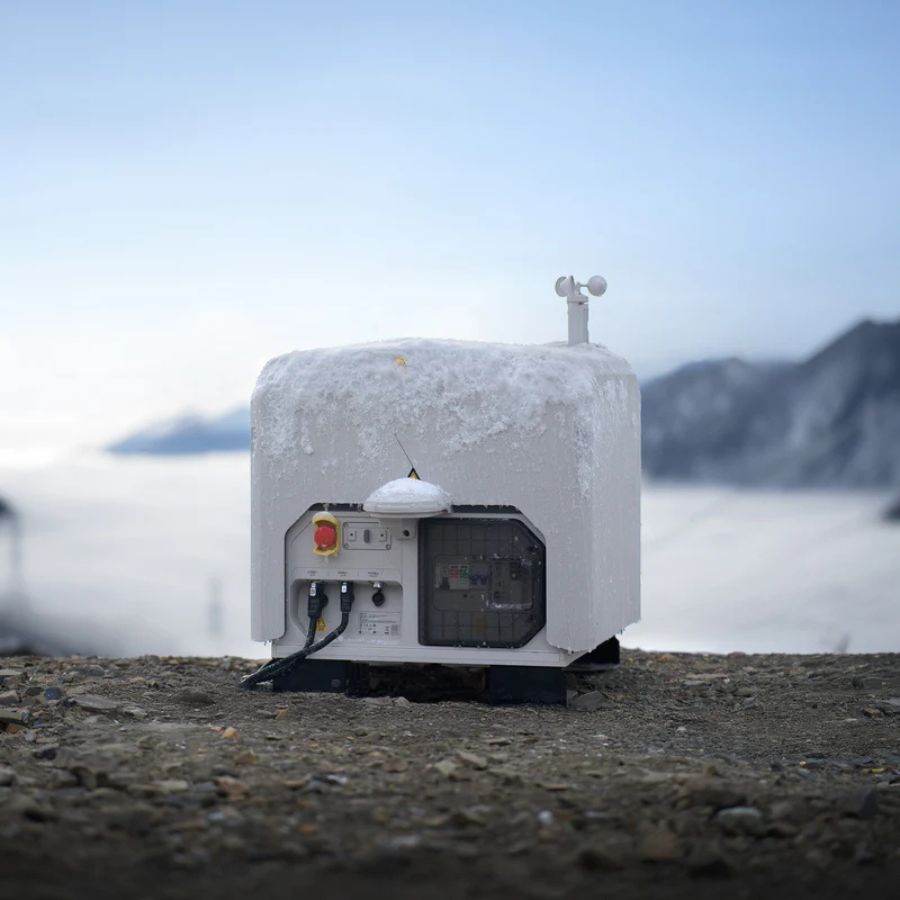

  • Cold Resistance:
    Designed for cold environments, the Dock 3 remains functional even in freezing conditions, with the ability to operate in temperatures as low as -30°C (-22°F) after preheating. It’s built to perform critical tasks reliably in frigid environments where most equipment would fail.
  • Wind Resistance:
    With Matrice 4D and Matrice 4TD drones capable of stable flight in winds up to 12 m/s, the DJI Dock 3 is ready for takeoff in challenging weather. Whether performing long-duration missions or precise inspections, the drones ensure optimal stability in high winds.
  • Rugged and Dependable Design:
    The Dock 3’s rugged design encapsulates its internal systems, safeguarding electronic components from environmental hazards like dust and rain. It’s engineered to keep operations running smoothly in even the harshest weather conditions.
  • Low-Noise & Anti-Ice Propellers:
    Standard-equipped low-noise anti-ice propellers ensure that the Matrice 4D and 4TD drones maintain stable flight even during freezing rain. This noise-reducing design enhances the stealth and efficiency of drone missions in sensitive or noise-restricted areas.

Flexible Deployment & Ultra-Long Transmission Range

  • Ultra-Flexible Deployment Options:
    The Dock 3 can be deployed in a variety of settings, making it a truly adaptable solution for remote operations. For fixed deployments, signal quality can be enhanced by installing the next-gen D-RTK 3 Relay at elevated positions, giving you more flexibility in site selection.
  • Vehicle-Mounted Deployment:
    For the first time, the Dock 3 supports vehicle-mounted deployment, providing the flexibility to relocate quickly and efficiently for urgent operations and long-distance inspections.
  • Smartphone Deployment:
    With the new DJI Enterprise App, deploying the Dock 3 is easy and intuitive, allowing you to complete the setup using just a smartphone. This streamlines the entire process, enabling rapid deployment across various operational settings.

High-Performance Drones: Tailored for Precision and Versatility

  • Water and Dust-Resistant Design:
    The Matrice 4D and Matrice 4TD drones are built for reliability in all conditions, with IP-rated water and dust resistance. They are specifically designed to pair with the Dock 3 for continuous operations in tough environments.
  • Extended Flight Time:
    Both drones offer extended flight times for longer missions, and with the DJI RC Plus 2 Enterprise controller, you can achieve precise control for standalone operations.
  • Advanced Cameras and Sensors:
    Equipped with a wide-angle camera, medium telephoto camera, telephoto camera, and Laser Range Finder, the Matrice 4D excels in high-precision mapping and surface inspections. The Matrice 4TD, equipped with an infrared thermal camera and NIR auxiliary light, is ideal for infrastructure inspections, emergency response, and public safety.

Enhanced Intelligence with DJI FlightHub 2

  • Automated Flight Routes:
    Integrated with DJI FlightHub 2, the Dock 3 elevates remote operations with automated flight paths. This feature is particularly useful for public safety, inspections, and other automated tasks. The drones can autonomously detect and capture critical data like vehicle movements, vessels, temperature anomalies, and more.
  • Real-Time Notifications:
    FlightHub 2 enables drones to send real-time notifications to operators, ensuring that timely responses are made during critical events.

Security and Compliance for Enterprise Operations

  • Custom Permission Management:
    DJI FlightHub 2 allows users to configure custom permissions for team members, enhancing control over operational tasks and ensuring that sensitive data remains secure.
  • ISO 27001 Certification:
    FlightHub 2 adheres to the highest security standards with ISO/IEC 27001 certification, ensuring secure data storage and management. All data is processed through Amazon Web Services (AWS), which further guarantees compliance and protection of your critical operational data.

4G Dongle Private Deployment:
The DJI Cellular Dongle 2 enables the DJI Dock 3 to connect to 4G networks, enhancing the stability and security of data transmission. This system supports 4G enhanced video transmission, ensuring uninterrupted video feeds and flight stability during long-range operations.

Dock 3 Flexible Deployment, Ultra-Long Transmission

Mobile Vehicle-Mounted Deployment

DJI Dock 3 is DJI’s first Dock to support mobile vehicle-mounted deployment. Optimized for this purpose, the Dock’s overall structure, components, and air conditioning have undergone vehicle vibration testing, with new features such as horizontal calibration and cloud-based dock location calibration. For emergency operations or long-distance inspections, using Dock 3 Vehicle-Mounted Gimbal Mount for mobile deployment provides a convenient solution when fixed deployment is impractical in temporary scenarios.

Dock 3 High-Performance Drones

High-Performance Drones

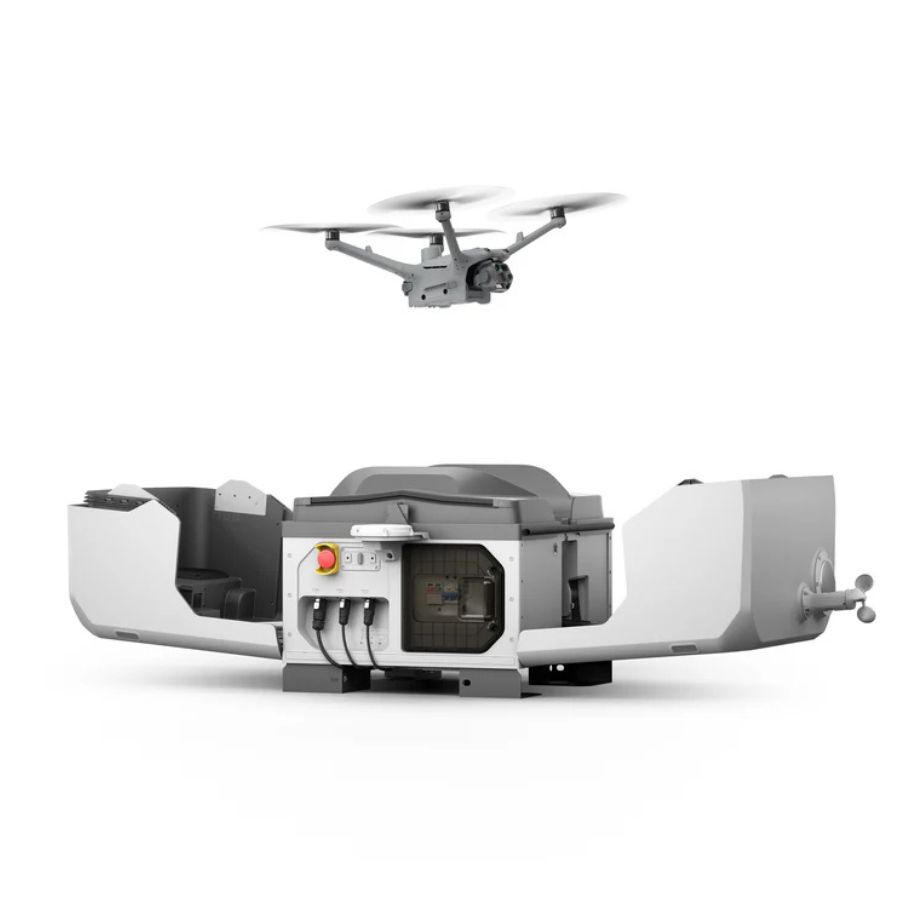

The all-new water and dust-resistant DJI Matrice 4D and 4TD are specifically designed for DJI Dock 3, offering extended flight time, and can pair with DJI RC Plus 2 Enterprise for standalone use. Both drones are equipped with a wide-angle camera, a medium tele camera, a tele camera and a Laser Range Finder. Matrice 4D is highly effective for professional high-precision mapping and detailed surface inspections. Matrice 4TD is equipped with an infrared thermal camera and a new NIR auxiliary light, making it suitable for a wide range of applications such as infrastructure inspections, emergency response, and public safety.

Dock 3 offering Seamless Airborne Relay for Mountainous Terrains

Seamless Airborne Relay for Mountainous Terrains

Matrice 4D Series can operate with the DJI RC Plus 2 Enterprise remote controller for standalone use while featuring an innovative onboard relay function. With this setup, one drone can fly high as a relay, allowing another drone to operate at a greater distance. The relay drone automatically faces the operating drone, ensuring smooth video transmission without a 4G signal or in obstructed conditions. This capability significantly extends the transmission range, making it ideal for SAR tasks and inspections in mountainous areas.

Purchase DJI Matrice 4D/4TD Series and
Get 1 Year of DJI Care Enterprise Plus
or 1 Year of Official Extended Warranty Service for Free

DJI Care Enterprise Plus for DJI Dock 3

Specifications

General

Specification DJI Dock 3
Weight 55 kg (without aircraft)

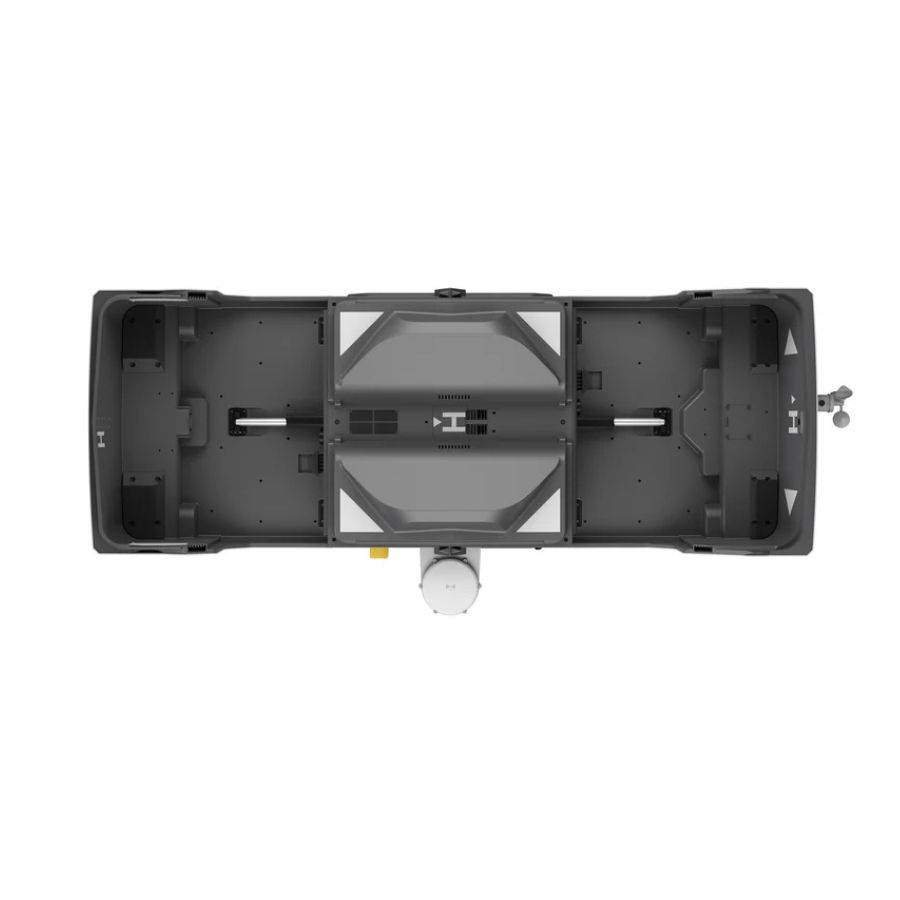

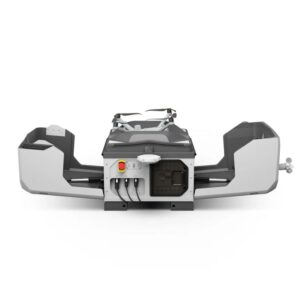

Size (Open Dock) 1760 x 745 x 485 mm
Size (Dock Closed) 640 x 745 x 770 mm
Input Voltage 100 ~ 240 V (AC), 50/60 Hz
Input Power Max 800 W
Operating Temperature -30°C to 50°C (-22°F to 122°F)
Max Operating Altitude 4500 m
Max Operating Radius 10 km
Charging Time 27 minutes
Battery Cycles 400 times
Battery Backup More than 4 hours
Development Cloud API + Peripheral Calculation
Applications DJI Enterprise App (Android)
Cloud Platform FlightHub 2, FlightHub 2 On-Premises Version, FlightHub 2 FlightHub Sync, DJI Cloud API
Dock Security Camera (External) Resolution: 1920 x 1080, FOV: 151°, Auxiliary Light: White Light
Dock Security Camera (Internal) Resolution: 1920 x 1080, FOV: 151°, Auxiliary Light: White Light

FAQs for DJI Dock 2

  1. 1. What drones are compatible with DJI Dock 3?

    The new Dock 3 is designed for compatibility with the Matrice 4D and Matrice 4TD models. These high-performance drones are ideal for seamless integration with the DJI Dock 3 system.

    2. How does DJI Dock 3 handle power outages?

    The new Dock 3 is equipped with a backup battery that ensures continued operation for more than 4 hours during unexpected power outages, allowing uninterrupted drone operations in critical situations.

    3. What are the dimensions and weight of DJI Dock 3 compared to its predecessor?

    • DJI Dock 3 weighs 55 kg (without the aircraft) and has dimensions of 1760 x 745 x 485 mm (open) and 640 x 745 x 770 mm (closed).
    • Compared to DJI Dock 2, it is designed to be more compact, with better portability and streamlined deployment.

    4. How long does it take for DJI Dock 3 to charge a drone from 20% to 90%?

    DJI Dock 3 can charge drones to 32 minutes of flight time, from 20% to 90% of the battery capacity, ensuring quick turnarounds for continuous missions.

    5. Can DJI Dock 3 operate in harsh weather conditions?

    Yes, DJI Dock 3 is built with an IP55 rating for dust and water resistance, which allows it to operate reliably even in challenging environmental conditions such as rain, snow, and dust storms.

    6. What automated functions does DJI Dock 3 support?

    DJI Dock 3 supports automated charging, deployment, and environmental monitoring through internal and external cameras. Additionally, it integrates with DJI FlightHub 2, allowing real-time data analysis and automatic flight route adjustments. Notifications for mission failures or emergencies are also supported.

    7. How does DJI Dock 3 improve site selection for drone operations?

    The new Dock 3 features vision sensors and advanced software tools that allow for quick GNSS signal strength assessments, reducing the time needed for site selection. This process is much faster than traditional methods, cutting site assessment time to minutes.

    8. What is the maintenance schedule for DJI Dock 3?

    DJI Dock 3 requires minimal maintenance, typically only once every six months. This efficient schedule helps reduce downtime and lowers operational costs, ensuring continuous and reliable service.

    9. How does DJI Dock 3 enhance operational efficiency?

    The new Dock 3 boosts operational efficiency with quick drone charging, dual RTK antennas for precise location without waiting for data convergence, and vehicle-mounted deployment for rapid relocation during urgent operations. These features streamline workflows and minimize delays.

    10. What type of notifications does DJI Dock 3 send during emergencies or task failures?

    The new Dock 3 sends real-time SMS and email notifications in case of mission failures, emergencies, or critical issues. This allows operators to react swiftly and troubleshoot problems promptly, ensuring mission continuity and reducing downtime.
