Description

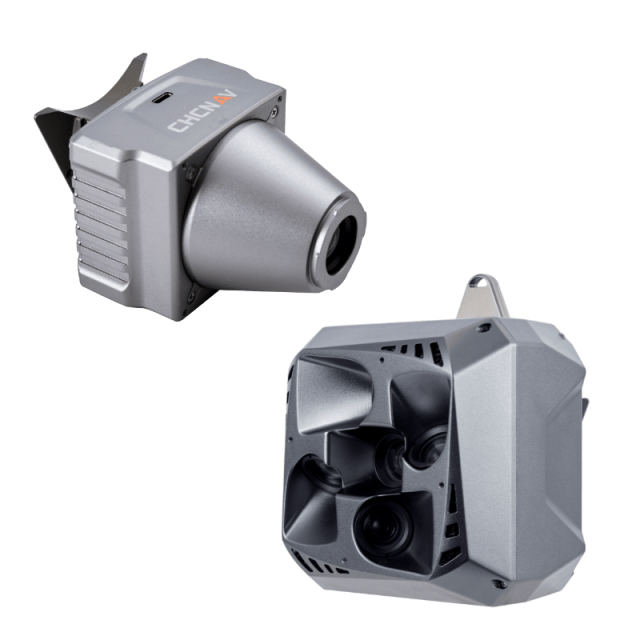

Discover the CHCNAV C30 Advanced Aerial Orthographic Camera System
CHCNAV C30 is a professional, high-performance, and lightweight oblique photogrammetry camera designed for precision aerial imaging. Engineered for clarity and accuracy, the C30 captures high-resolution oblique photos, making it ideal for photogrammetric applications. Its advanced design ensures superior image quality, supporting detailed 3D modeling and mapping. The C30 integrates seamlessly with CHCNAV’s BB4 Mini, P330 Pro UAVs, DJI M300 RTK, and other fixed-wing and rotor UAV platforms, providing versatile installation options. It is also compatible with CHCNAV’s AlphaUni LiDAR series, enhancing aerial survey capabilities.
Experience next-level aerial imaging with the CHCNAV C30
COMPACT AND LIGHTÂ
Optimal setup without weighing down the UAV

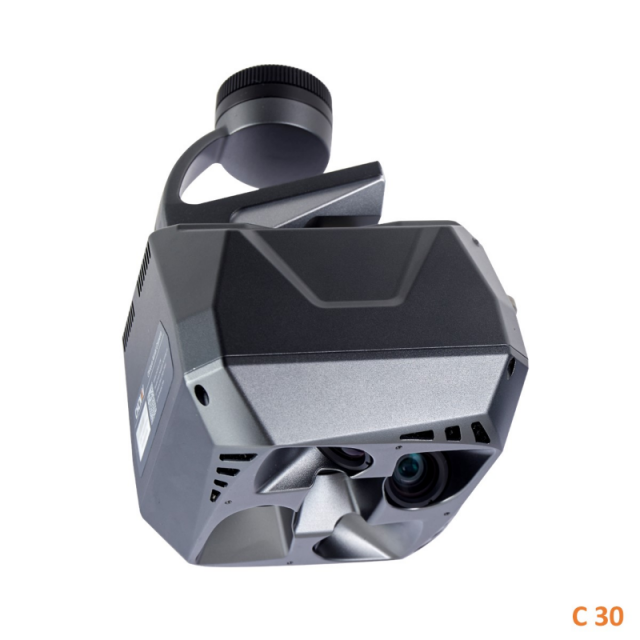

The C30 camera’s weight is about 600 grams with a size of 110x108x85 mm, and it is the smallest and lightest industry-grade camera that can be mounted on most UAVs. The advanced and lightweight design of both cameras matches the mounting requirements of various UAVs available on the market and ensures it does not impact the drone’s performance or maneuverability.
PLUG-IN MEMORY CARD
Keep data secure and easily accessible
The C30 camera comes with a 640 GB plug-in memory card for fast copy speeds of up to 300 Mb/s and easy transfer of images directly from the memory card to your computer. With the C30 cameras, large amounts of data can be transferred quickly and easily without performance issues.
UNIVERSAL INSTALLATION
Easy integration into existing UAV platforms

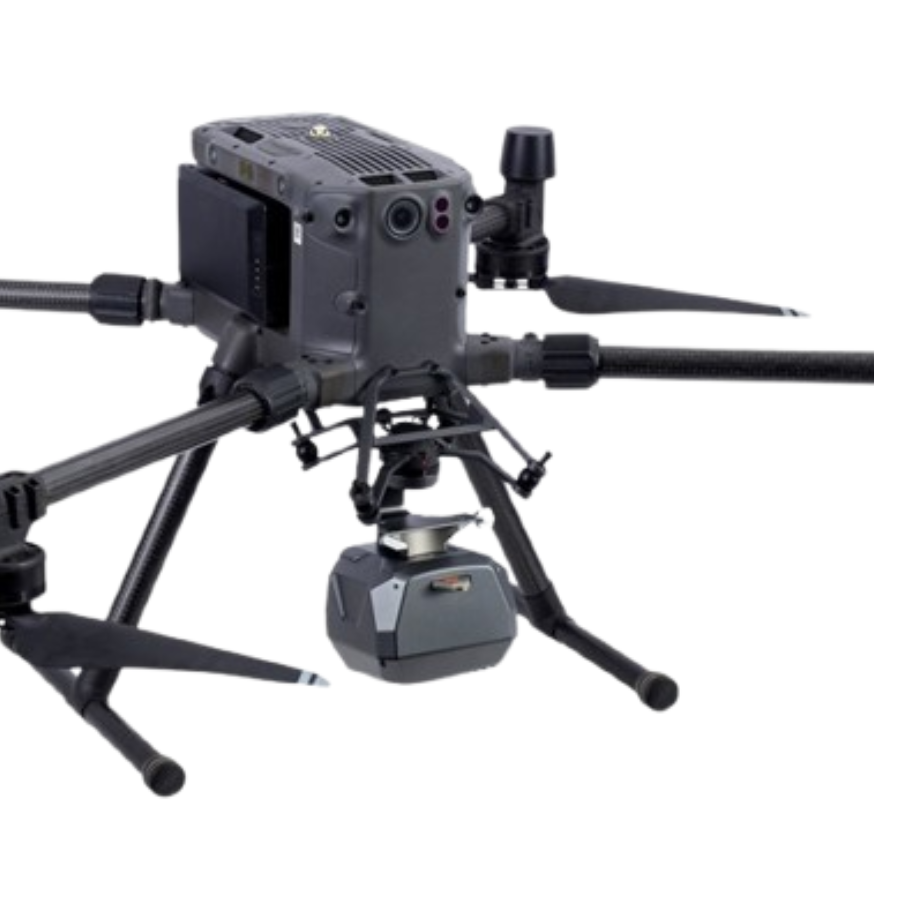

The C30 camera design makes it compatible with a wide range of fixed-wing and rotor UAVs. C30 camera is supported by the CHCNAV’s BB4 Mini and P330 Pro drones, as well as the DJI’s M300 RTK. The Alphaport (quick-mount hardware interface) allows the C30 to be easily mounted into various UAVs and can also be converted into the DJI Skyport connector for even extended compatibility.
EFFICIENT WORKFLOW
Field-to-finish turnkey solution
CHCNAV offers a comprehensive portfolio of LiDAR and aerial camera solutions, helping users enhance their geomatics services. Its CoPre software provides an integrated field-to-finish solution, enabling users to process aerial imagery and LiDAR data from a single flight. With CoPre, users can efficiently process and analyze large volumes of data, generating accurate and actionable insights in less time.
INTEGRATED QUICK RELEASE INTERFACE
Fast and easy installation
Alphaport speeds up and secures the installation and disconnection of cameras on UAVs without requiring additional tools or complicated procedures. It integrates power and data communications, reducing wiring complexity. This enhances workflow efficiency and keeps the camera stable and secure, even in challenging weather conditions.
SUPPORT FOR USE WITH CHCNAV LIDARS
All-in-one solution for aerial surveying
The C30 camera give maximum flexibility for photogrammetric applications. It can be used independently on RTK-enabled drones to capture high-resolution imagery or installed directly on the CHCNAV’s LiDAR series to colorize point cloud data. This feature allows seamless imagery and LiDAR data integration for a more complete view of the surveyed area.
Specifications
| Specification | C30 Camera |
|---|---|
| Shutter Life | 200,000 exposures |
| Pixel Size | 3.76 μm |
| Number of Lenses | 5 |
| Effective Pixels | 130 MP (26 MP × 5) |
| Aperture | F5.6 |
| Data Copy Speed | 300 Mb/s |
| Sensor Size | 23.5 × 15.7 mm |
| Image Size | 6252 × 4168 px (3:2) |
| Focal Length | 25 mm / 35 mm |
| Angle of Lens | 45° / 90° |
| Minimum Interval | 0.8 s |
| Shutter Speed | 1/50~1/20000 sec |
| ISO Range | 100~3200 |
| Data Storage | 640 GB plug-in memory card |
| Data Processing | CoPre (Copy + Aerotriangulation + Modeling) |
| Weight | 605 g (21.34 oz) with transfer interface |
| Power Consumption | 25 W |
| Voltage | 12 – 27 V |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Storage Temperature | -20°C to +60°C (-4°F to +140°F) |
Frequently Asked Questions
CHCNAV C30 Camera – Frequently Asked Questions (FAQ)
1. What is the resolution of the CHCNAV C30 camera?
The CHCNAV C30 features 130 MP effective pixels (26 MP × 5 lenses) with an image resolution of 6252 × 4168 pixels (3:2 aspect ratio) for high-quality aerial imaging.
2. What storage capacity does the C30 camera offer?
The C30 comes with a 640 GB plug-in memory card, allowing for high-speed data transfer at 300 Mb/s.
3. What is the shutter life of the CHCNAV C30?
The camera has a shutter life of 200,000 exposures, ensuring durability for long-term aerial survey applications.
4. Is the C30 camera compatible with UAVs?
Yes, the C30 supports various fixed-wing and rotor UAVs, including CHCNAV’s BB4 Mini, P330 Pro, and DJI M300 RTK, ensuring seamless integration.
5. What is the operating temperature range of the C30?
The CHCNAV C30 operates in extreme conditions, with a temperature range of -20°C to +50°C (-4°F to +122°F), making it suitable for diverse environments.
